2008 HONDA ACCORD COUPE navigation system

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of an
east/west mountain road.
Driving in tunnels.
Driving on the north side of a
large commercial truck on an
east/west road.
Playing the XMSatellite Radio (Models with navigation system)
192

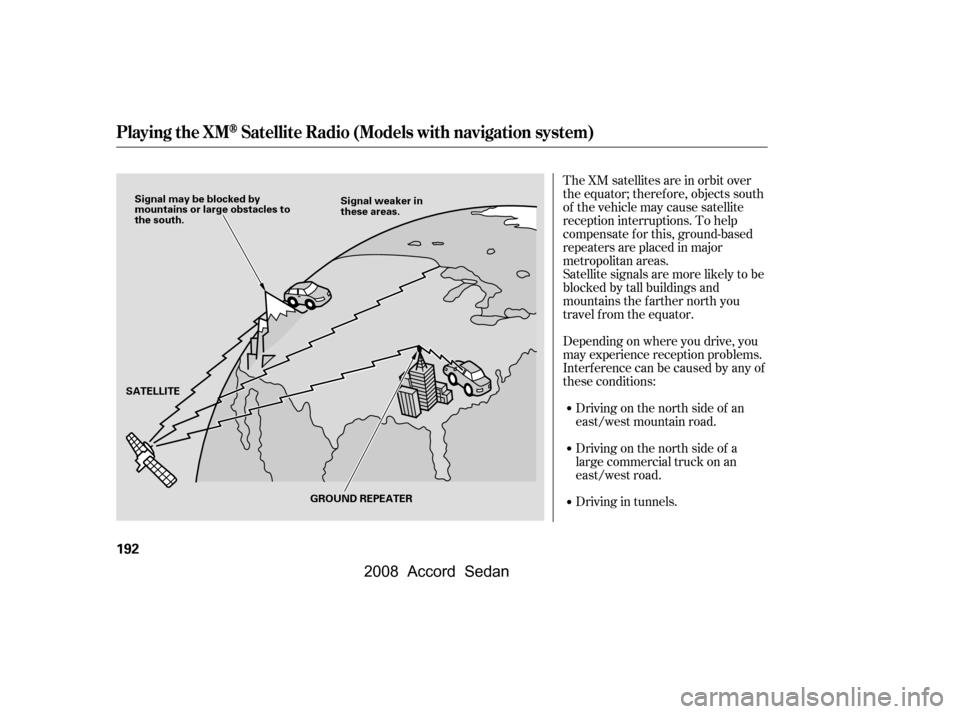

Signal may be blocked by
mountains or large obstacles to
the south. Signal weaker in
these areas.
SATELLITE GROUND REPEATER
\f—\f—
y

y
)\f\f\fy\f
y
2008 Accord Sedan

Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
There may be other geographic
situations that could af f ect XM radio
reception. After you’ve registered with XM
Radio, keep your audio system in the
Satellite Radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, CAT
(category) or CH (channel) will
appear in the center display, and
you’ll be able to listen to XM Radio
broadcasts. XM Radio will continue
to send an activation signal to your
vehicle for at least 12 hours from the
activation request. If the service has
not been activated after 36 hours,
contact XM Radio.
If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, press the
button. A variety of music
types and styles will play.
If you decide to purchase XM
satellite radio service, contact XM
Radio at , or at
1-800-852-9696. In Canada, contact , or call 1-877-438-
9677. You will need to give them
your radio I.D. number and your
credit card number. To get your
radio I.D. number, press and release
the side of the TUNE bar until
‘‘0’’ appears in the display. Your I.D.
will appear in the display.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment. www.xmradio.com
www.xmradio.ca
Receiving XM Satellite Radio
Service
Playing the XMSatellite Radio (Models with navigation system)
Features
193
\f—\f—y
\f
\f
y
)\f\f\fy\f
y
2008 Accord Sedan

Playing Discs (Models with navigation system)
194

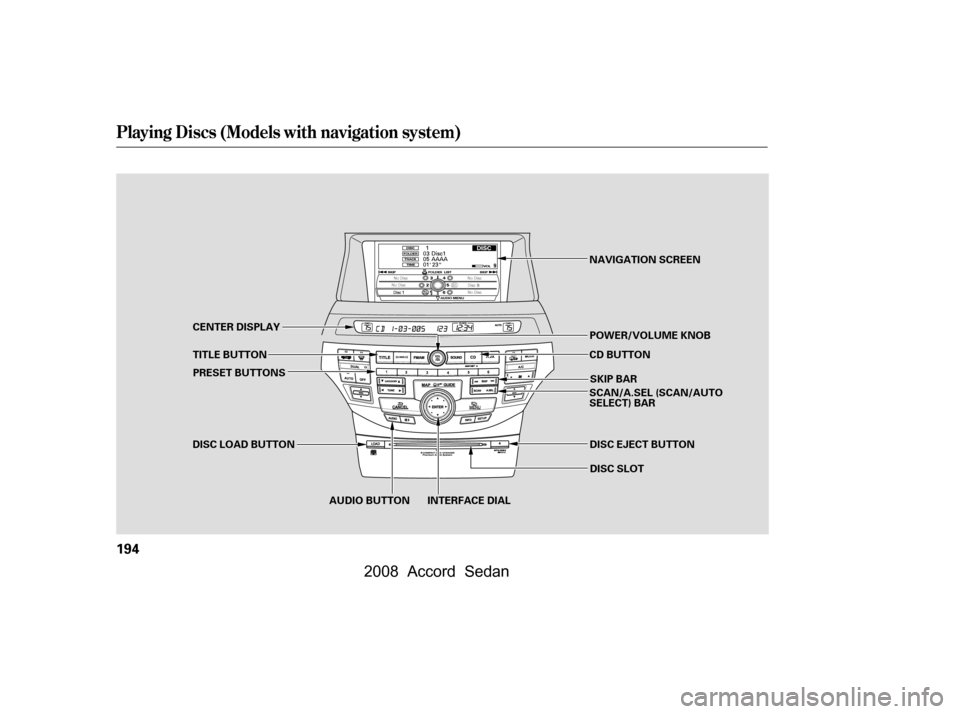

SKIP BAR
SCAN/A.SEL (SCAN/AUTO
SELECT) BAR POWER/VOLUME KNOB
CD BUTTON
INTERFACE DIAL
AUDIO BUTTON
PRESET BUTTONS
NAVIGATION SCREEN
CENTER DISPLAY
TITLE BUTTON
DISC SLOT
DISC LOAD BUTTON
DISC EJECT BUTTON
\f—\f—y
\f
\fy
)\f\f\fy\f
y
2008 Accord Sedan

Your vehicle’s audio system has an
in-dash disc changer with the same
controls used f or the radio. To
operate the disc changer, the ignition
switch must be in the ACCESSORY
(I) or the ON (II) position.
The disc changer can play these disc
formats:CD (CD-DA)
MP3/WMA The disc packages or jackets should
have one of these marks.
When playing a disc in MP3, you will
see ‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display.
The changer can also play MP3 or
WMA format (see page ). NOTE:
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio
system displays UNSUPPORTED in
the center display, and then skips to
the next f ile.
Video CDs and DVD discs will not
work in this unit.
Some CD-DA and CD-ROM mixed
discs are not playable.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
201
Playing Discs (Models with navigation system)
Features
195
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
\f—\f—
y

\fy
)\f\f\fy\f\f\fy
2008 Accord Sedan

To load multiple discs in one
operation:With the ignition in the
ACCESSORY (I) or the ON (II)
position, press and hold the LOAD
button until you hear a beep and
see ‘‘LOAD’’ in the center display,
then release the button.
‘‘NO DISC’’ is shown on the screen
foranemptypositioninthe
changer. When the green load
indicator comes on and you see
‘‘LOAD’’ in the center display,
insert the disc into the slot. Insert
it only about half way; the drive will
pull it in the rest of the way.
Press and release the LOAD
button.
To load a single disc: Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system will
then begin playing the last disc
loaded.
If you stop loading discs bef ore all
six positions are f illed, the system
will wait f or 10 seconds, stop the load
operation, and begin playing the last
disc loaded.
Insert a disc into the slot. Insert it
only about half way; the drive will
pull it in the rest of the way. You
will see ‘‘BUSY’’ in the center
display. When you insert the f irst
disc, the changer will start to play
the disc.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could
damage the audio unit. If you press the LOAD button while
a disc is playing, the system will stop
playing that disc and start the
loading sequence. It will then play
the disc just loaded.
You can select the position to load a
disc. Turn the interf ace knob or
press a preset button to select the
position, then press ENTER on the
selector. This starts the loading
sequence. If you do not select the
position, the system loads the disc to
the f irst empty position in numerical
order.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could damage
the audio unit.
When ‘‘LOAD’’ appears in the
center display again, insert the
next disc into the slot.
1.
1.
2.
3. 4.
2.
L oading Discs in the Changer
Playing Discs (Models with navigation system)
196
\f—\f—
y


y
)\f\f\fy\f\f
y
2008 Accord Sedan

When you play CD-TEXT, you will
see the track name, artist name, and
album name on the screen. When
you play MP3/WMA discs, you will
see the track name and folder name
on the screen. If the disc was not
recorded with this inf ormation, it will
not be displayed.
The player can play CD-TEXT, MP3,
and WMA formats.
Select the changer by pressing the
CD button. The system will begin
playing the last selected disc in the
disc changer. You will see the
current disc position highlighted.
To select a dif f erent disc, press the
corresponding number on the preset
buttons, or turn the interf ace knob to
highlight the desired disc number,
then press ENTER on the interf ace
selector. Each time you press and release the
side of the skip bar or push the
interface selector to the right, the
player skips f orward to the
beginning of the next track. Press
and release the side of the skip
barorpushtheinterfaceselectorto
thelefttoskipbackwardtothe
beginning of the current track. Press
the side or push the interf ace
selector to the left again to skip to
the previous track. To move rapidly
within a track, press and hold either
side of the skip bar.
To Play a Disc To Change Tracks
Playing Discs (Models with navigation system)
Features
197
CURRENT DISC
\f—\f—
y

y
)\f\f\fy\f\fy
2008 Accord Sedan

You can also choose a track directly
f rom a track list. Press ENTER on
the interf ace selector, and the track
list screen will be shown. If there are
no track names, track numbers are
displayed. You will see the current
track is highlighted. Turn the
interf ace knob to select the desired
track, then press ENTER on the
interf ace selector.To exit the track list display, press
the AUDIO button, or push the
interf ace selector to the lef t.
When you press the SCAN side of
the SCAN/A. SEL bar or scroll down
and push the interf ace selector to
the left, the next track of the current
track plays f or about 10 seconds.
You will see SCAN next to TRACK
on the screen and center display. To
listen to the rest of the track, press
andholdtheSCANsideof thebar
until you hear a beep or push the
interface selector to the left again
within 10 seconds.
If you don’t, the system advances to
the next track, plays about 10
seconds of it, and continues through
the rest of the tracks the same way.
When you press the SCAN side of
the SCAN/A. SEL bar repeatedly
until you see D-SCAN in the center
display, or push down the interf ace
selector to the right, the first track of
the current disc plays f or about 10
seconds. You will see SCAN next to
DISC on the screen. The disc
number is blinking and SCAN is also
shown in the center display. To listen
to the rest of the disc, press and hold
the SCAN side of the bar until you
hear a beep, or push down the
interf ace selector to the right again
within 10 seconds.
If you don’t, the system advances to
the next disc, plays about 10 seconds
of its f irst track, and continues
through the rest of the discs the
same way. When the system reaches
the last disc, DISC SCAN is canceled,
and that disc continues to play.
To Choose a Track
Track ScanDisc Scan
Playing Discs (Models with navigation system)
198
\f—\f—y
\f
\fy
)\f\f\fy\f\fy
2008 Accord Sedan

You can select any type of repeat and
random modes by using the
interf ace dial.
Push the AUDIO button to display
the audio inf ormation on the screen,
then scroll down by pushing down
the selector to select the audio menu.Turn the interface knob to select a
desired repeat or random mode, then
press ENTER to set your selection.
To cancel the selected repeat or
random mode, have the selected
mode highlighted, then press
ENTER on the interf ace selector.To replay the current track
continuously, select TRACK
REPEAT, and press ENTER on the
interf ace selector. As a reminder,
you will see REPEAT next to
TRACKonthescreen.Toturnthis
f eature of f , highlight TRACK
REPEAT (if not already highlighted),
andpressENTERontheinterface
selector again.
To select repeat or random mode: Track Repeat
Playing Discs (Models with navigation system)
Features
199

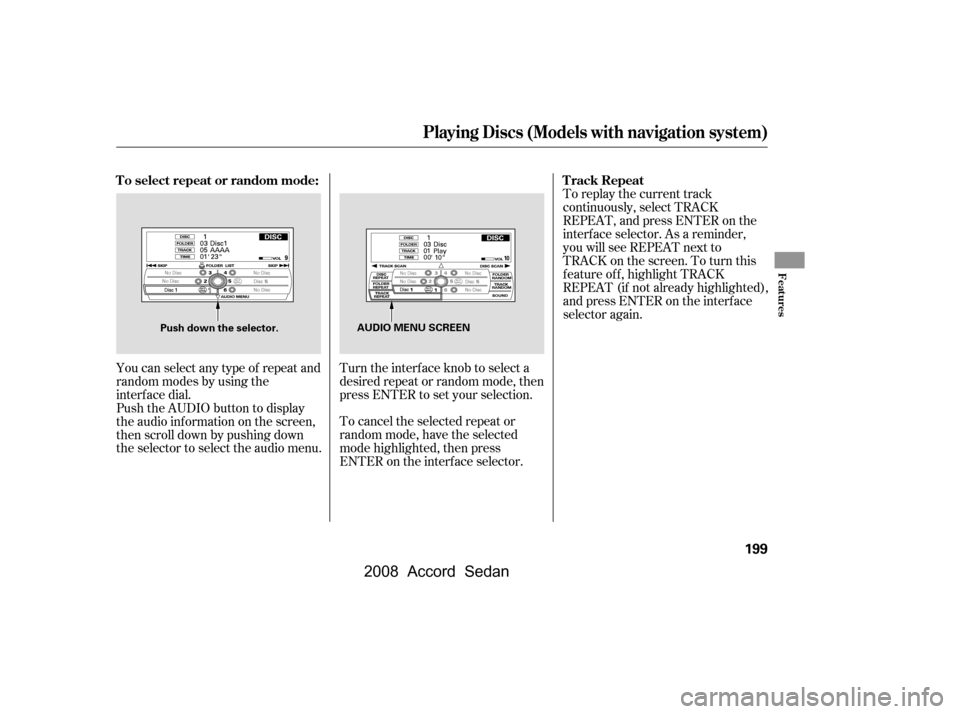

AUDIO MENU SCREEN
Push down the selector.
\f—\f—
y


y
)\f\f\fy\f\fy
2008 Accord Sedan
