2008 GMC SAVANA PASSENGER Owners Manual

Page 249 of 402

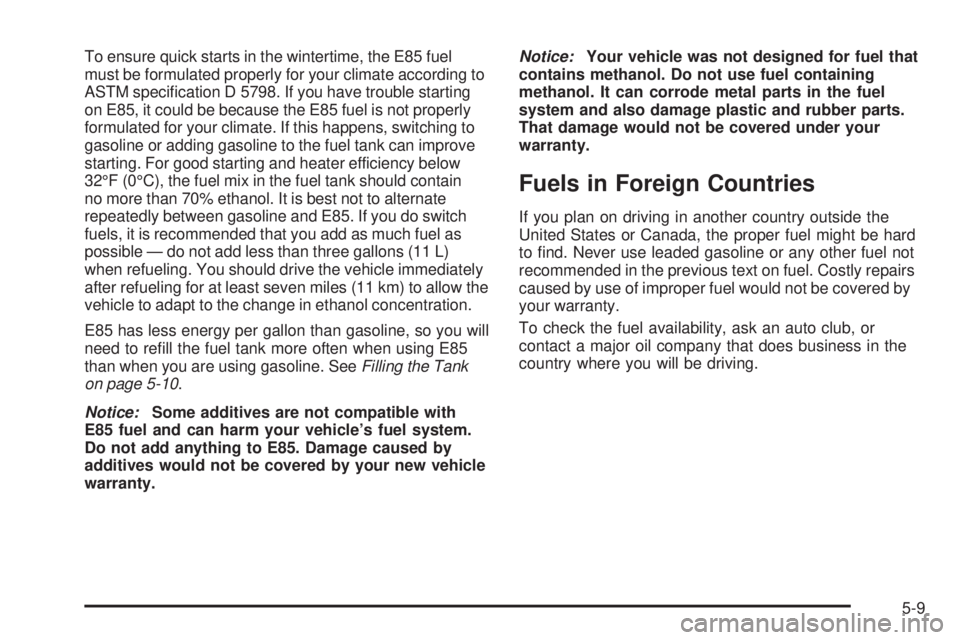

GMC SAVANA PASSENGER 2008  Owners Manual To ensure quick starts in the wintertime, the E85 fuel
must be formulated properly for your climate according to
ASTM specification D 5798. If you have trouble starting
on E85, it could be because th

Page 250 of 402

GMC SAVANA PASSENGER 2008  Owners Manual Filling the Tank
{CAUTION:
Fuel vapor burns violently and a fuel �re can
cause bad injuries. To help avoid injuries to
you and others, read and follow all the
instructions on the pump island. Turn off

Page 251 of 402

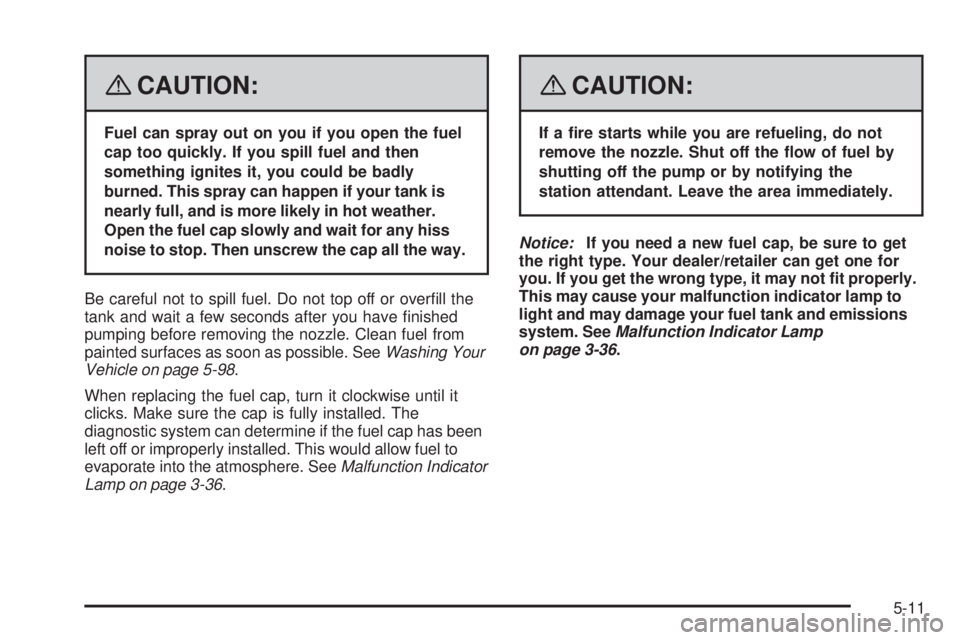

GMC SAVANA PASSENGER 2008  Owners Manual {CAUTION:
Fuel can spray out on you if you open the fuel
cap too quickly. If you spill fuel and then
something ignites it, you could be badly
burned. This spray can happen if your tank is
nearly full,

Page 252 of 402

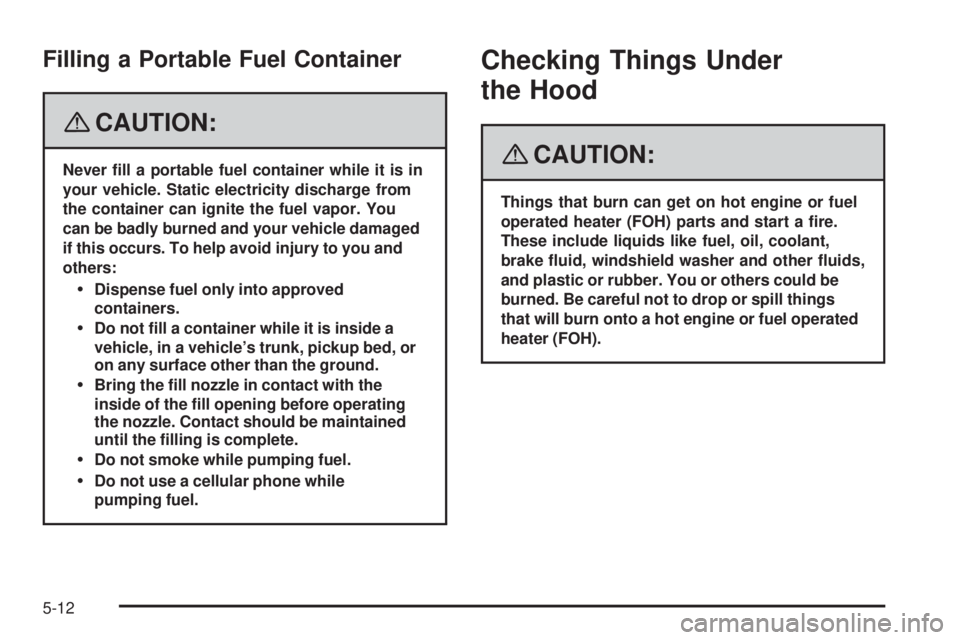

GMC SAVANA PASSENGER 2008  Owners Manual Filling a Portable Fuel Container
{CAUTION:
Never �ll a portable fuel container while it is in
your vehicle. Static electricity discharge from
the container can ignite the fuel vapor. You
can be badly

Page 253 of 402

GMC SAVANA PASSENGER 2008  Owners Manual Hood Release
To open the hood:
1. Pull the handle with
this symbol on it. It is
located in front of the
driver’s side door frame
near the floor.
2. Then go to the front of the vehicle and lift up t

Page 254 of 402

GMC SAVANA PASSENGER 2008  Owners Manual Engine Compartment Overview
If your vehicle has the DURAMAX®Diesel engine, see the DURAMAX®Diesel manual for more information.
When you lift the hood, here is what you will see:
5-14

Page 255 of 402

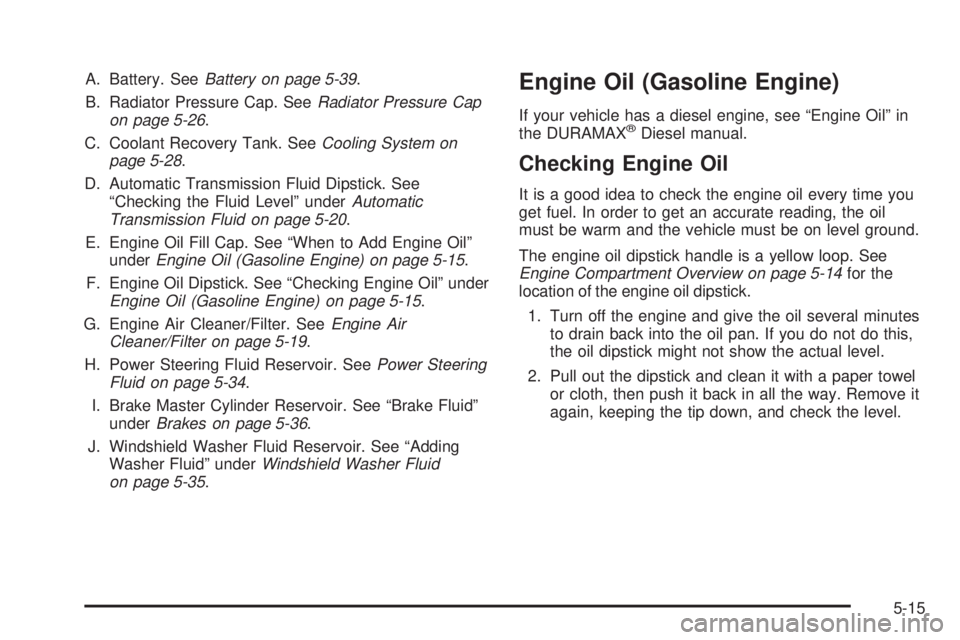

GMC SAVANA PASSENGER 2008  Owners Manual A. Battery. SeeBattery on page 5-39.
B. Radiator Pressure Cap. SeeRadiator Pressure Cap
on page 5-26.
C. Coolant Recovery Tank. SeeCooling System on
page 5-28.
D. Automatic Transmission Fluid Dipstick

Page 256 of 402

GMC SAVANA PASSENGER 2008  Owners Manual When to Add Engine Oil
If the oil is below the cross-hatched area at the tip
of the dipstick, add at least one quart/liter of the
recommended oil. This section explains what kind
of oil to use. For en
