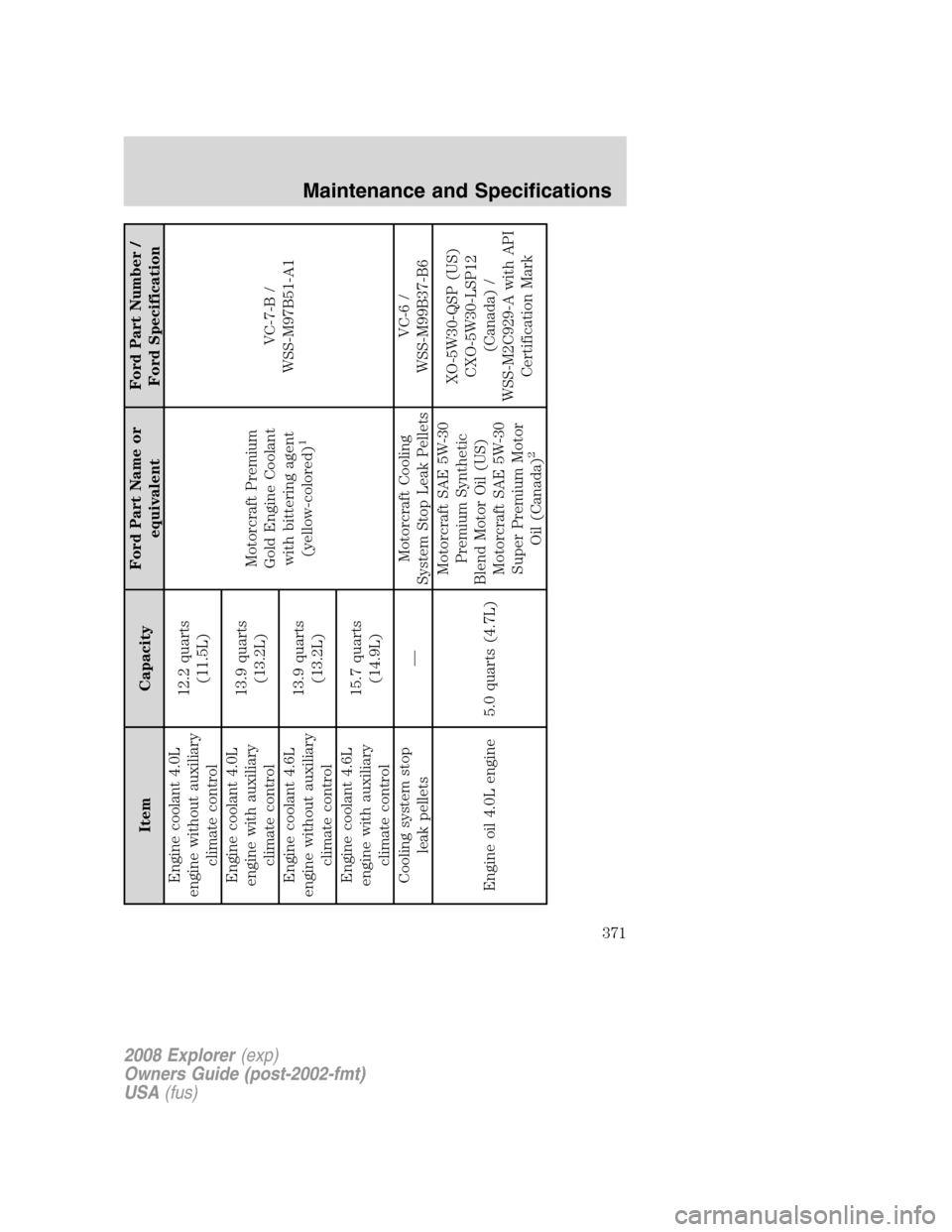

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine coolant 4.0L
engine without auxiliary
climate control12.2 quarts
(11.5L)
Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant 4.0L
engine with auxiliary
climate control13.9 quarts
(13.2L)
Engine coolant 4.6L
engine without auxiliary
climate control13.9 quarts
(13.2L)
Engine coolant 4.6L
engine with auxiliary
climate control15.7 quarts
(14.9L)
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil 4.0L engine 5.0 quarts (4.7L)Motorcraft SAE 5W-30
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-30
Super Premium Motor
Oil (Canada)
2
XO-5W30-QSP (US)
CXO-5W30-LSP12
(Canada) /
WSS-M2C929-A with API
Certification Mark
2008 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
371
Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil 4.6L engine 6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
2
XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark
Automatic transmission
(5R55S) fluid12.4 quarts
(11.7L)
3
Motorcraft MERCONV
AT F
4
XT-5-QM /
MERCONV
Automatic transmission
(6R60) fluid12.2 quarts
(11.6L)
3
Motorcraft MERCONSP
AT F
5
XT-6-QSP /
MERCONSP
Rear axle fluid 3.5 pints (1.7L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantX Y-75W140-QL /
WSL-M2C192-A
Front axle fluid (4WD) 2.7 pints (1.3L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power steering fluidFill between the
MIN and MAX
lines on reservoirMotorcraft MERCONV
AT FXT-5-QM /
MERCONV
Transfer case fluid
(4WD)1.5 quarts (1.4L)Motorcraft Transfer Case
FluidXL–12 /
—
2008 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
372
Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Windshield washer fluid 4.2 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16- A2
Fuel tank22.5 gallons
(85.2L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only have the API
Certification mark and meet the requirements of Ford specification WSS-M2C929-A (4.0L) or
WSS-M2C930-A (4.6L).3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
checked by a qualified technician.4Automatic transmissions that require MERCONV should only use MERCONV fluid or fluid that
is specified dual usage MERCON/MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.5Automatic transmissions that require MERCONSP should only use MERCONSP fluid. Use of a
dual usage fluid in an automatic transmission requiring MERCONSP may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Use of any fluid other than the recommended fluid may cause transmission damage.
2008 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
373

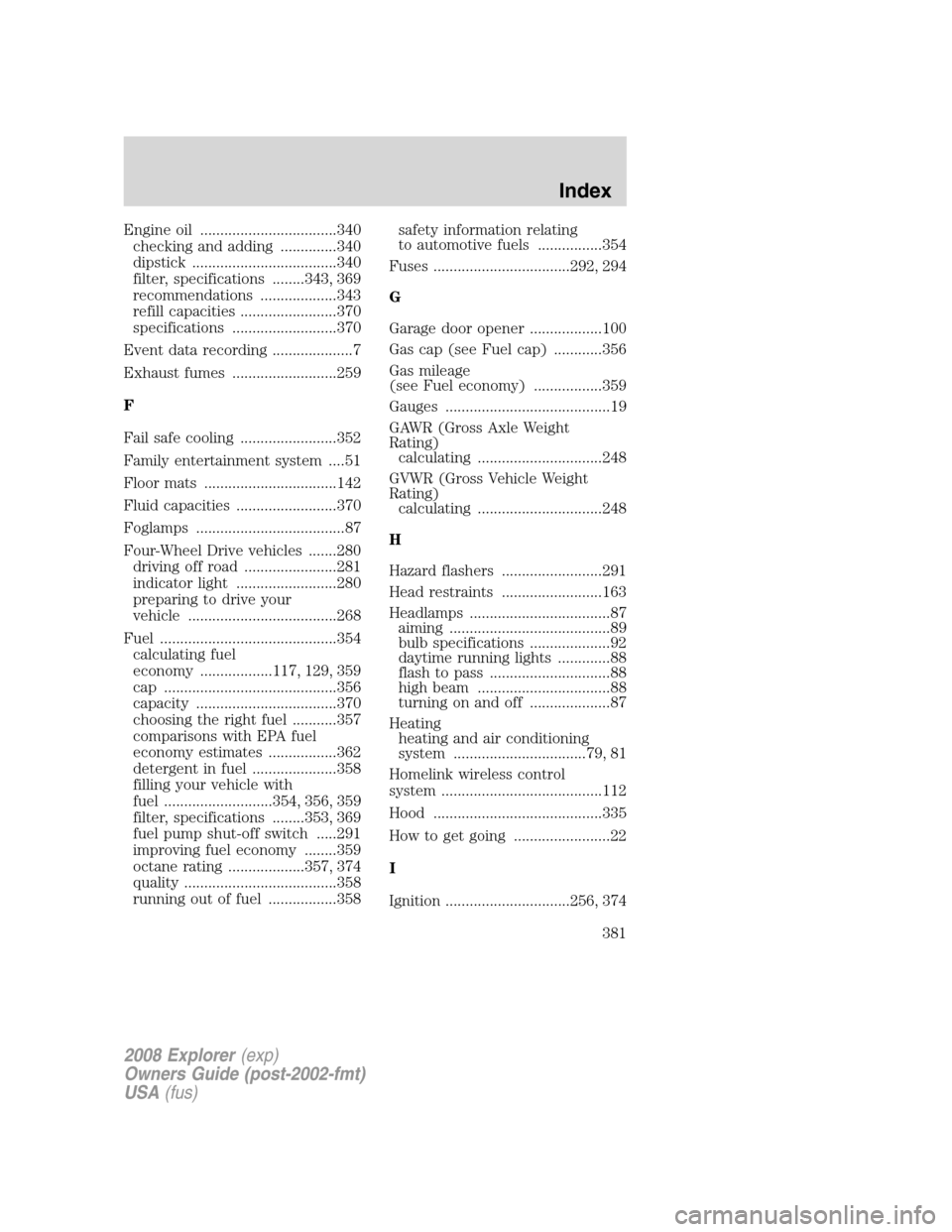

Engine oil ..................................340
checking and adding ..............340
dipstick ....................................340
filter, specifications ........343, 369
recommendations ...................343
refill capacities ........................370
specifications ..........................370
Event data recording ....................7
Exhaust fumes ..........................259
F
Fail safe cooling ........................352
Family entertainment system ....51
Floor mats .................................142
Fluid capacities .........................370
Foglamps .....................................87
Four-Wheel Drive vehicles .......280
driving off road .......................281
indicator light .........................280
preparing to drive your
vehicle .....................................268
Fuel ............................................354
calculating fuel
economy ..................117, 129, 359
cap ...........................................356
capacity ...................................370
choosing the right fuel ...........357
comparisons with EPA fuel
economy estimates .................362
detergent in fuel .....................358
filling your vehicle with
fuel ...........................354, 356, 359
filter, specifications ........353, 369
fuel pump shut-off switch .....291
improving fuel economy ........359
octane rating ...................357, 374
quality ......................................358
running out of fuel .................358safety information relating
to automotive fuels ................354
Fuses ..................................292, 294
G
Garage door opener ..................100
Gas cap (see Fuel cap) ............356
Gas mileage
(see Fuel economy) .................359
Gauges .........................................19
GAWR (Gross Axle Weight
Rating)
calculating ...............................248
GVWR (Gross Vehicle Weight
Rating)
calculating ...............................248
H
Hazard flashers .........................291
Head restraints .........................163
Headlamps ...................................87
aiming ........................................89
bulb specifications ....................92
daytime running lights .............88
flash to pass ..............................88
high beam .................................88
turning on and off ....................87
Heating
heating and air conditioning
system .................................79, 81
Homelink wireless control
system ........................................112
Hood ..........................................335
How to get going ........................22
I
Ignition ...............................256, 374
2008 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
381
