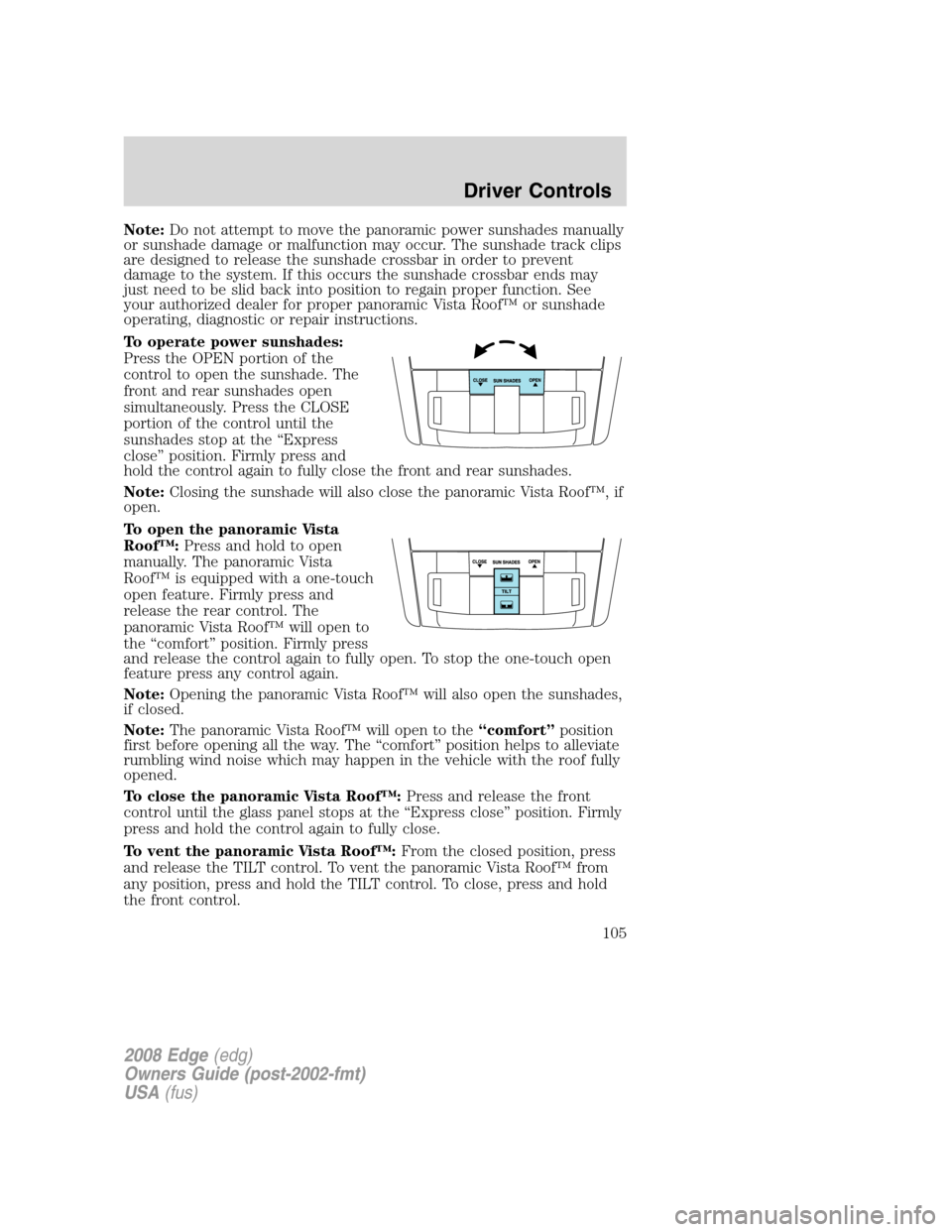

Note:Do not attempt to move the panoramic power sunshades manually
or sunshade damage or malfunction may occur. The sunshade track clips
are designed to release the sunshade crossbar in order to prevent
damage to the system. If this occurs the sunshade crossbar ends may
just need to be slid back into position to regain proper function. See
your authorized dealer for proper panoramic Vista Roof™ or sunshade
operating, diagnostic or repair instructions.
To operate power sunshades:
Press the OPEN portion of the
control to open the sunshade. The
front and rear sunshades open
simultaneously. Press the CLOSE
portion of the control until the
sunshades stop at the “Express
close” position. Firmly press and
hold the control again to fully close the front and rear sunshades.
Note:Closing the sunshade will also close the panoramic Vista Roof™, if
open.
To open the panoramic Vista
Roof™:Press and hold to open
manually. The panoramic Vista
Roof™ is equipped with a one-touch
open feature. Firmly press and
release the rear control. The
panoramic Vista Roof™ will open to
the “comfort” position. Firmly press
and release the control again to fully open. To stop the one-touch open
feature press any control again.
Note:Opening the panoramic Vista Roof™ will also open the sunshades,
if closed.
Note:The panoramic Vista Roof™ will open to the“comfort”position
first before opening all the way. The “comfort” position helps to alleviate
rumbling wind noise which may happen in the vehicle with the roof fully
opened.
To close the panoramic Vista Roof™:Press and release the front
control until the glass panel stops at the “Express close” position. Firmly
press and hold the control again to fully close.
To vent the panoramic Vista Roof™:From the closed position, press
and release the TILT control. To vent the panoramic Vista Roof™ from
any position, press and hold the TILT control. To close, press and hold
the front control.
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
105

Note:If the panoramic Vista Roof™ is excessively operated, the glass
and shade motors will automatically go into a fail-safe jog mode (manual
intermittent operation) to prevent overheating and/or damage to the
motor. The motors will revert back to normal operation after a period of
idle time.
HOMELINKWIRELESS CONTROL SYSTEM (IF EQUIPPED)
The HomeLink
Wireless Control
System, located on the driver’s visor,
provides a convenient way to
replace up to three hand-held
transmitters with a single built-in
device. This feature will learn the
radio frequency codes of most
transmitters to operate garage
doors, entry gate operators, security systems, entry door locks, and
home or office lighting.
When programming your HomeLink
Wireless Control System to
a garage door or gate, be sure that people and objects are out of
the way to prevent potential injury or damage.
Do not use the HomeLink
Wireless Control System with any garage
door opener that lacks safety stop and reverse features as required by
U.S. federal safety standards (this includes any garage door opener
model manufactured before April 1, 1982). A garage door which cannot
detect an object, signaling the door to stop and reverse, does not meet
current U.S. federal safety standards. For more information, contact
HomeLink
at:www.homelink.comor1–800–355–3515.
Retain the original transmitter for use in other vehicles as well as for
future programming procedures (i.e. new HomeLink
equipped vehicle
purchase). It is also suggested that upon the sale of the vehicle, the
programmed Homelink
buttons be erased for security purposes, refer to
Programmingin this section.
Programming
Do not program HomeLink
with the vehicle parked in the garage.
Note:Your vehicle may require the ignition switch to be turned to the
ACC position for programming and/or operation of the HomeLink
.Itis
also recommended that a new battery be placed in the hand-held
transmitter of the device being programmed to HomeLink
for quicker
training and accurate transmission of the radio-frequency signal.
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
106

1. Position the end of your
hand-held transmitter 1–3 inches
(2–8 cm) away from the HomeLink

button you wish to program (located
on your visor) while keeping the
indicator light in view.
2. Simultaneously press and hold
both the chosen HomeLink
and
hand-held transmitter buttons until the HomeLink
indicator light
changes from a slow to a rapidly blinking light. Now you may release
both the HomeLink
and hand-held transmitter buttons.
Note:Some entry gates and garage door openers may require you to
replace Step 2 with procedures noted in the “Gate Operator and
Canadian Programming” in this section for Canadian residents.
3. Firmlypress, hold for five seconds and releasethe programmed
HomeLink
button up to two separate times to activate the door. If the
door does not activate, press and hold the just-trained HomeLink

button and observe the indicator light.
•If the indicator lightstays on constantly, programming is complete
and your device should activate when the HomeLink
button is pressed
and released.
•If the indicator light blinksrapidly for two seconds and then turns
to a constant light continue with “Programming” Steps 4 through
6to complete programming of a rolling code equipped device (most
commonly a garage door opener).
4. At the garage door opener receiver (motor-head unit) in the garage,
locate the “learn” or “smart” button (usually near where the hanging
antenna wire is attached to the unit).
5. Firmly press and release the “learn” or “smart” button. (The name and
color of the button may vary by manufacturer.)
Note:There are 30 seconds in which to initiate Step 6.
6. Return to the vehicle and firmlypress, hold for two seconds and
releasethe programmed HomeLink
button. Repeat the
press/hold/releasesequence again and, depending on the brand of the
garage door opener (or other rolling code equipped device), repeat this
sequence a third time to complete the programming.
HomeLink
should now activate your rolling code equipped device. To
program additional HomeLink
buttons begin with Step 1 in the
“Programming” section. For questions or comments, please contact
HomeLink
atwww.homelink.comor1–800–355–3515.
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
107

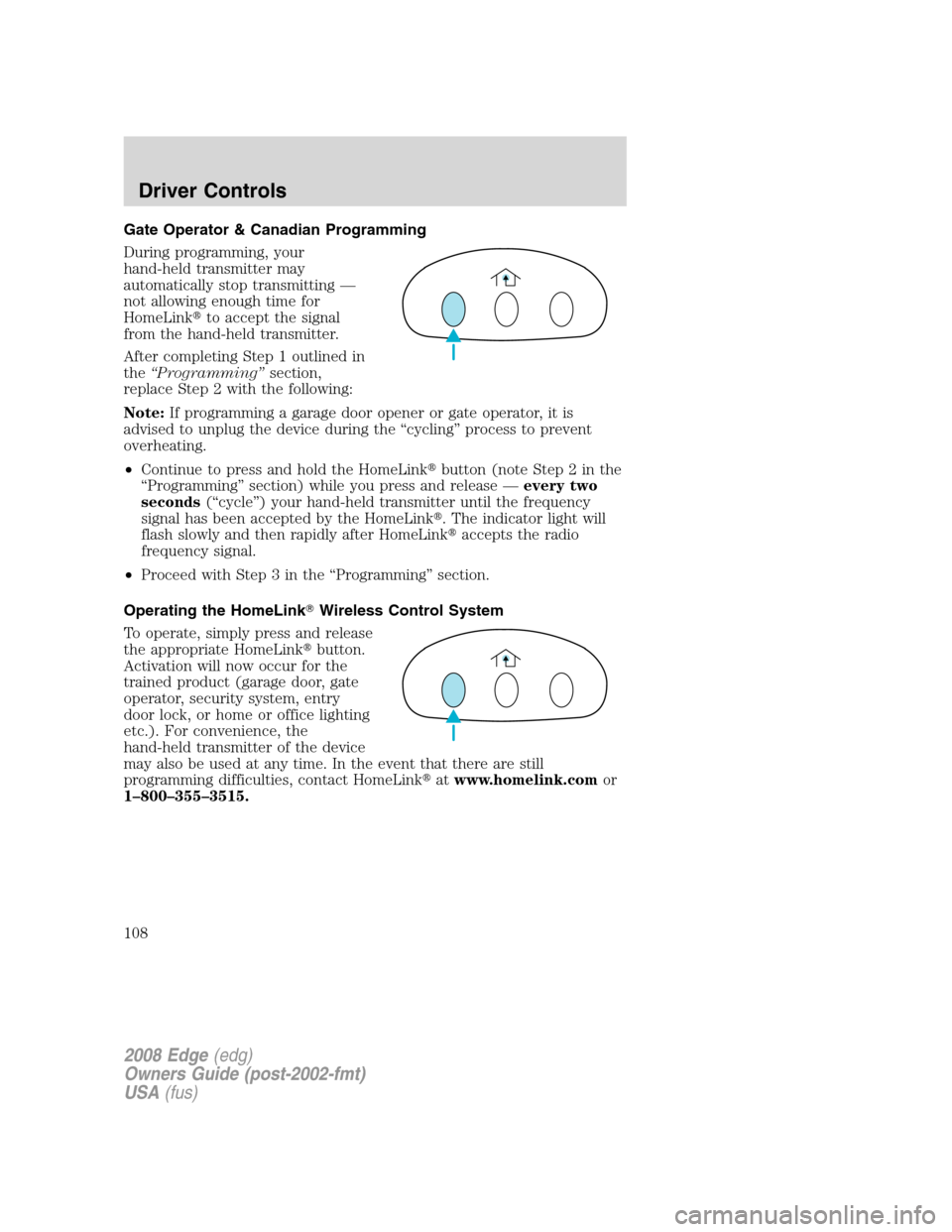

Gate Operator & Canadian Programming
During programming, your
hand-held transmitter may
automatically stop transmitting —
not allowing enough time for
HomeLink
to accept the signal
from the hand-held transmitter.
After completing Step 1 outlined in
the“Programming”section,
replace Step 2 with the following:
Note:If programming a garage door opener or gate operator, it is
advised to unplug the device during the “cycling” process to prevent
overheating.
•Continue to press and hold the HomeLink
button (note Step 2 in the
“Programming” section) while you press and release —every two
seconds(“cycle”) your hand-held transmitter until the frequency
signal has been accepted by the HomeLink
. The indicator light will
flash slowly and then rapidly after HomeLink
accepts the radio
frequency signal.
•Proceed with Step 3 in the “Programming” section.
Operating the HomeLinkWireless Control System
To operate, simply press and release
the appropriate HomeLink
button.
Activation will now occur for the
trained product (garage door, gate
operator, security system, entry
door lock, or home or office lighting
etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time. In the event that there are still
programming difficulties, contact HomeLink
atwww.homelink.comor
1–800–355–3515.
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
108

Erasing HomeLinkbuttons
To erase the three programmed
buttons (individual buttons cannot
be erased):
•Press and hold the two outer
HomeLink
buttons until the
indicator light begins to
flash-after 20 seconds. Release
both buttons. Do not hold for
longer that 30 seconds.
HomeLink
is now in the train (or
learning) mode and can be programmed at any time beginning with Step
1inthe“Programming”section.
Reprogramming a single HomeLinkbutton
To program a device to HomeLink
using a HomeLink
button previously
trained, follow these steps:
1. Press and hold the desired HomeLink
button.Do NOTrelease the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the HomeLink
button, follow Step 1 in the “Programming”
section.
For questions or comments, contact HomeLink
atwww.homelink.com
or1–800–355–3515.
MINI MESSAGE CENTER (IF EQUIPPED)
Selectable features
Press and release the TRIP/RESET stem to scroll and reset the following
functions. Select or reset the function by holding the TRIP/RESET stem
for more than 2 seconds.
Info menu
This menu displays the following control displays:
•Odometer
•Trip Odometer A or B
•Reverse Park Aid (if equipped)
•Autolamp (if equipped)
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
109

Odometer/Trip odometer
Refer toGaugesin theInstrument Clusterchapter.
Note:Engine can not be running to change the state of Autolamp or
Rear Park Assist (when not in Reverse).
Autolamp (if equipped)
This feature keeps your headlights on for up to three minutes after the
ignition is switched off.
1. To disable/enable the autolamp
delay feature, select this function
using TRIP/RESET stem for the
current display mode.
2. Press and hold the TRIP/RESET
stem for 2 seconds to select the
new Autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds.
Reverse Sensing System (Park assist) (if equipped)
This feature sounds a warning tone to warn the driver of obstacles near
the rear bumper, and functions only when R (Reverse) gear is selected.
1. To disable/enable the reverse
sensing system feature, select this
function using the TRIP/RESET
stem or put the vehicle in R
(Reverse).
2. Press and hold the TRIP/RESET stem for 2 seconds to turn the rear
park assist OFF or ON.
MESSAGE CENTER (IF EQUIPPED)
With the ignition in the RUN
position, the message center,
located on your instrument cluster,
displays important vehicle
informationthrough a constant
monitor of vehicle systems.Yo u
may select display features on the message center for a display of status.
The system will also notify you of potential vehicle problems with a
display of system warnings followed by a long indicator chime.
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
110

Selectable features
Reset
Press this control to select and reset
functions shown in the INFO menu
and SETUP menu.
Info menu
This control displays the following
control displays:
•Odometer
•Trip Odometer A or B
•Distance to Empty
•Average Fuel Economy
•Average Speed
•Compass (if equipped)
•Trip Elapsed Drive Time 1 or 2
Odometer/Trip odometer
Refer toGaugesin theInstrument Clusterchapter.
Distance to empty (DTE)
Selecting this function from the
INFO menu estimates approximately
how far you can drive with the fuel
remaining in your tank under
normal driving conditions.
Remember to turn the ignition OFF
when refueling to allow this feature to correctly detect the added fuel.
The DTE function will display LOW FUEL LEVEL when you have
approximately 50 miles (80 km) to empty. If you RESET this warning
message, this display will return within 10 minutes.
DTE is calculated using a running average fuel economy, which is based
on your recent driving history of 500 miles (800 km). This value is not
the same as the average fuel economy display. The running average fuel
economy is reinitialized to a factory default value if the battery is
disconnected.
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
111

Average fuel economy (AFE)
Select this function from the INFO
menu to display your average fuel
economy in miles/gallon or liters/100
km.
If you calculate your average fuel
economy by dividing 100 miles
traveled by gallons of fuel used (kilometers traveled by liters used), your
figure may be different than displayed for the following reasons:
•Your vehicle was not perfectly level during fill-up
•Differences in the automatic shut-off points on the fuel pumps at
service stations
•Variations in top-off procedure from one fill-up to another
•Rounding of the displayed values to the nearest 0.1 gallon (liter)
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET control (press and hold RESET for 2
seconds in order to reset the function) after setting the speed control to
get accurate highway fuel economy readings.
For more information refer toFuel Informationin theMaintenance
and Specificationschapter.
Average Speed
Select this function from the INFO menu to display AVERAGE SPEED
and press the RESET control (press and hold RESET for 2 seconds in
order to reset the function). Your average speed from that point will be
displayed until RESET is pressed and held for two seconds again.
Compass display (if equipped)
The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in, on or near the vehicle may also affect
compass accuracy.
Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal
conditions. If the compass still appears to be inaccurate, a manual
calibration may be necessary. Refer toCompass zone/calibration
adjustment.
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
112
