2008 FORD C MAX headlamp

Downloaded from www.Manualslib.com manuals search engine LIGHTING CONTROL
Lighting control positions
OffA
Side and tail lampsB
HeadlampsC
Front fog lampsD
Rear fog lampsE
Parking lampsF
Parking lamps
CAUTION
Prolonged use of the parkinglamps will discharge the battery.
Switch off the ignition.
Push the lighting control inwards andturn it to position F.
Main and dipped beam
Pull the lever fully towards thesteering wheel to switch betweenmain and dipped beam.
Headlamp flasher
Pull the lever slightly towards thesteering wheel.
Home safe lighting
Switch the ignition off and pull thedirection indicator lever towards thesteering wheel to switch theheadlamps on. You will hear a shorttone. The headlamps will go offautomatically after 3 minutes with anydoor open, or 30 seconds after thelast door has been closed.
With all doors closed, but within the30 second delay, opening any doorwill result in the 3 minute timerstarting again.
The home safe lights can becancelled by either pulling thedirection indicator lever towards thesteering wheel again or by turningthe ignition switch ON.
64
LightingE71094DBCAFE E71095

Downloaded from www.Manualslib.com manuals search engine AUTOLAMPS
Note:If you have switchedautolamps on, you can only switchthe main beam on when autolampshas switched the headlamps on.
The headlamps will come on and gooff automatically depending on theambient light.
FRONT FOG LAMPS
WARNING
Only use the front fog lampswhen visibility is considerablyrestricted by fog, snow or rain.
Note:You cannot switch the frontfog lamps on if you have switchedautolamps on.
REAR FOG LAMPS
WARNING
Do not use the rear fog lampswhen it is raining or snowing andvisibility is more than 50 metres.
Note:You cannot switch the rearfog lamps on if you have switchedautolamps on.
65
LightingE73840A E71096 E71097

Downloaded from www.Manualslib.com manuals search engine HEADLAMP LEVELLING
Without headlamp levellingA
With headlamp levellingB
The level of the headlamp beams canbe adjusted according to the vehicleload.
Recommended headlamp levelling control positions
Control position
Load
Load in luggage
compartment1
Persons
Rear seatsFront seats
0--1-2
1-31-2
2max.31-2
66
LightingE78044 E65990

Downloaded from www.Manualslib.com manuals search engine ADAPTIVE FRONT LIGHTING SYSTEM (AFS)
without AFSA
with AFSB
The AFS adjusts the headlampdipped beam depending on vehicledirection and speed. It improvesvisibility when you are driving at nightand helps to reduce headlamp glarefor oncoming drivers.
The headlamps will also move whenthe vehicle is stationary and thesteering wheel is turned. To preventheadlamp glare for the oncomingtraffic, they will only move towardsthe passenger side of the vehicle.
The system will not operate whenyou have switched on the daytimerunning lamps or when you haveselected reverse gear.
To activate the AFS when thedaytime running lamps are activated,turn the lighting control to position C.See Lighting control (page 64).
68
LightingE72897ABAB

Downloaded from www.Manualslib.com manuals search engine A message will appear in theinformation display and the headlampindicator flashes if the systemmalfunctions. See Informationmessages (page 103). Theheadlamps will move to a fixedcentral or dipped position. Have thesystem checked as soon as possible.
69
Lighting

Downloaded from www.Manualslib.com manuals search engine CHANGING A BULB
WARNINGS
On vehicles fitted with Xenonheadlamps, have the headlampbulbs changed by an expert. Thereis a risk of injury due to high voltage.
During operation, the bulbs andtheir surroundings get hot.Switch off the lights and let the bulbscool down before replacing them.
Always switch off lights and ignitionbefore replacing any bulb.
Never touch the glass of the bulbs.Fit only bulbs having a UV filter.Always replace a faulty bulb with anew one of the same type. Afterreplacing a bulb, check that the lightsoperate correctly.
Headlamps, side lamps,direction indicators
Note:It is necessary to remove theheadlamp assembly to remove anyof the bulbs.
Removing the headlampassembly
Open the bonnet.
Remove the screw.
WARNING
When re-installing the lampassembly, make sure that thewiring connectors and retaining clipsare engaged properly.
Press down the retaining clips at therear of the lamp assembly using ascrewdriver and carefully pull out thelamp assembly.
74
LightingE78106 E78107

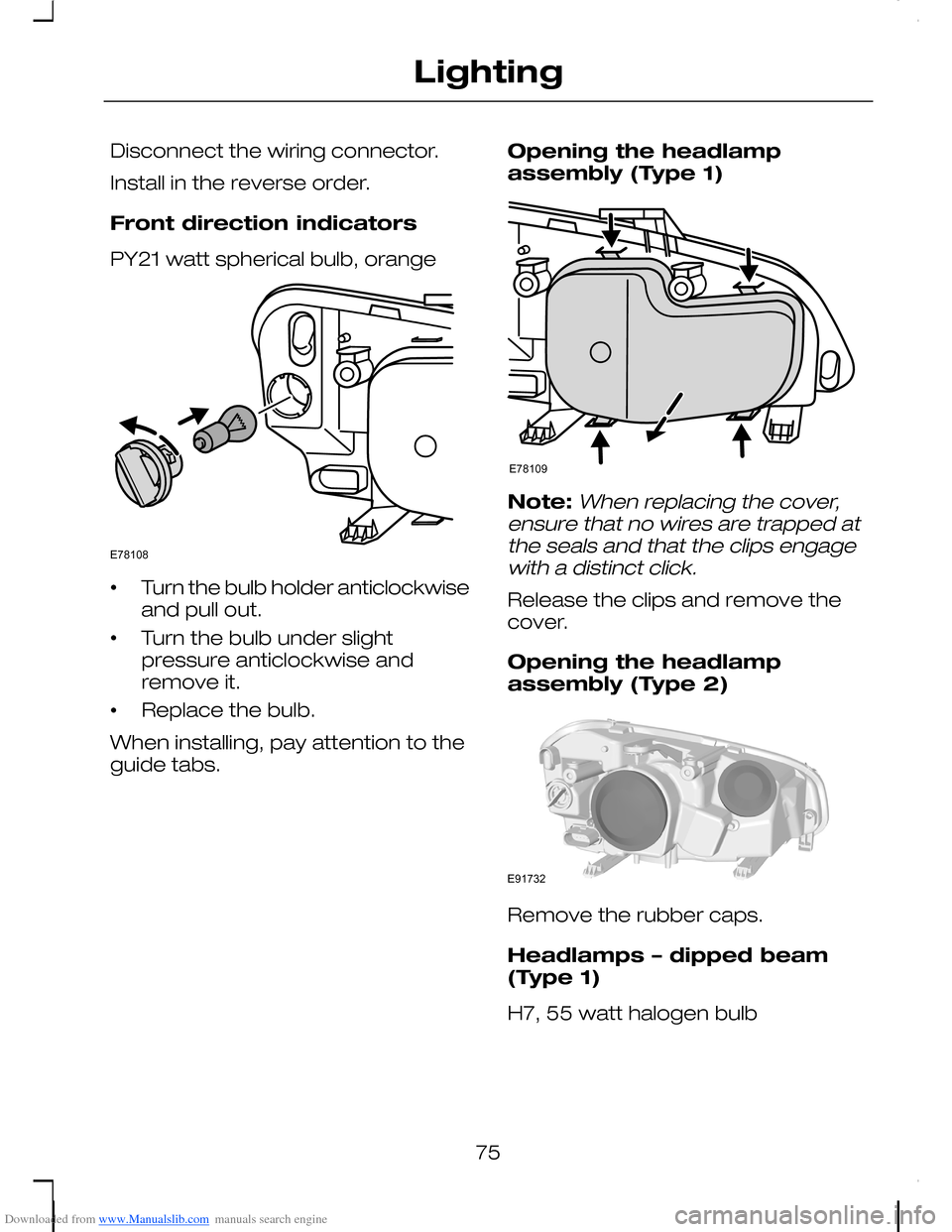

Downloaded from www.Manualslib.com manuals search engine Disconnect the wiring connector.
Install in the reverse order.
Front direction indicators
PY21 watt spherical bulb, orange
•Turn the bulb holder anticlockwiseand pull out.
•Turn the bulb under slightpressure anticlockwise andremove it.
•Replace the bulb.
When installing, pay attention to theguide tabs.
Opening the headlampassembly (Type 1)
Note:When replacing the cover,ensure that no wires are trapped atthe seals and that the clips engagewith a distinct click.
Release the clips and remove thecover.
Opening the headlampassembly (Type 2)
Remove the rubber caps.
Headlamps – dipped beam(Type 1)
H7, 55 watt halogen bulb
75
LightingE78108 E78109 E91732

Downloaded from www.Manualslib.com manuals search engine •Disconnect the wiring connector.
•Release the wire clip, swivel it tothe side and pull out the bulb.
Install in the reverse order.
Headlamps – dipped beam(Type 2)
H7, 55 watt halogen bulb
•Turn the bulb holder anticlockwiseand pull it out.
•Pull out the bulb and replace it.
Install in the reverse order.
Headlamps – main beam
H1, 55 watt halogen bulb
•Disconnect the wiring connector.
•Release the wire clip, swivel itdown and pull out the bulb.
Install in the reverse order.
Side lamps
5 watt wedge base bulb
76
LightingE78110 E91734 E78111
