IGNITION SWITCH
VEHICLE WITHOUT KEYLESS
START SYSTEM
The ignition switch has the following four
positions:
LOCK
This is the normal parking position. It is
the only position in which the key can be
removed.
It locks the ignition, and prevents normal
use of the steering wheel after the key is
removed.
You must push in the key to turn it to the
“LOCK” position.
To release the steering lock, insert the key
and turn it clockwise to one of the other
positions. If you have trouble turning the
key to unlock the steering, try turning the
steering wheel slightly to the right or left
while turning the key.
65D367
To avoid possible injury, do
not operate controls by
reaching through the steering wheel.
WARNING
60G033A
Turn to “LOCK”
Push
60B041A
ACC
Accessories such as the radio can oper-
ate, but the engine is off.
ON
This is the normal operating position. All
electrical systems are on.
057-068 Fiat16 New GB 3-09-2008 8:13 Pagina 58

65
If the lever is equipped with the “INT
TIME” control, turn the control forward
or rearward to adjust the intermittent
wiper operation to the desired interval.WINDSHIELD WASHER
To spray windshield washer fluid, pull the
lever toward you. The windshield wipers
will automatically turn on at low speed if
they are not already on and the “INT” po-
sition is equipped.
WINDSHIELD WIPER
AND WASHER LEVER
WINDSHIELD WIPERS
To turn the windshield wipers on, move
the lever down to one of the three op-
erating positions. In the “INT” position
(if equipped), the wipers operate inter-
mittently. The “INT” position is very con-
venient for driving in mist or light rain. In
the “LO” position, the wipers operate at
a steady low speed. In the “HI” position,
the wipers operate at a steady high speed.
To turn off the wipers, move the lever
back to the “OFF” position.
Move the lever up and hold it to the
“MIST” position, the windshield wipers
will turn on continuously at low speed.
IMPORTANT Never use the window
wiper to remove ice or snow from the
windscreen. In these conditions, the wiper
is submitted to excessive effort that re-
sults in motor protection cutting in and
wiper operation inhibition for few seconds
as a consequence. If operation is not re-
stored (also after restarting the vehicle by
the ignition key) contact Fiat Dealership.
MIST
OFF
INT
LO
HI
63J301
63J302
63J303
To prevent windshield icing in
cold weather, turn on the de-
froster to heat the windshield before
and during windshield washer use.
Do not use radiator antifreeze in the
windshield washer reservoir. It can se-
verely impair visibility when sprayed
on the windshield, and can also dam-
age your vehicle’s paint.
WARNING
057-068 Fiat16 New GB 3-09-2008 8:13 Pagina 65

69
I I
N N
S S
T T
R R
U U
M M
E E
N N
T T
P P
A A
N N
E E
L L
60G406
INSTRUMENT PANEL ........................................................ 70
INSTRUMENT CLUSTER ................................................... 71
WARNING AND INDICATOR LIGHTS ...................... 72
SPEEDOMETER/ ODOMETER/ TRIP METER/
METER ILLUMINATION CONTROL ............................. 81
TACHOMETER .................................................................... 83
FUEL GAUGE ....................................................................... 84
TEMPERATURE GAUGE/OVERHEAT INDICATOR
LIGHT (for diesel engine model) ...................................... 84HAZARD WARNING SWITCH ...................................... 85
“ESP OFF” SWITCH (if equipped)................................... 85
2WD/ 4WD SWITCH (if equipped) ................................ 86
HEADLIGHT LEVELING SWITCH (if equipped) .........87
HEATED REAR WINDOW AND HEATED OUTSIDE
REARVIEW MIRRORS (if equipped)SWITCH .............. 88
ILLUMINATION CANCEL SWITCH (if equipped) ..... 89
FRONT FOG LIGHT SWITCH (if equipped) ................ 89
CIGARETTE LIGHTER AND ASHTRAY (if equipped) .. 90
GLOVE BOX ......................................................................... 91
INFORMATION DISPLAY (Type I) (if equipped) ......... 91
INFORMATION DISPLAY (Type II) (if equipped) ........ 94
CLOCK (if equipped) .......................................................... 98
HEATING AND AIR CONDITIONING SYSTEM ....... 99
MANUAL HEATING AND
AIR CONDITIONING SYSTEM ..................................... 100
AUTOMATIC HEATING AND
AIR CONDITIONING SYSTEM....................................... 104
AUDIO SYSTEMS ................................................................ 109
MP3/WMA PLAYER (if equipped).................................... 120
3
069-128 Fiat16 New GB 3-09-2008 8:19 Pagina 69

70
INSTRUMENT PANEL
1.Instrument cluster
2.Ignition switch
3.Lighting switch/ Turn signal and dim-
mer switch
4.Windshield wiper and washer switch/
Rear window wiper and washer
switch (if equipped)
5.Hazard warning switch
6.Other switches (if equipped)
7.Heater control panel
8.Audio (if equipped)
9.Cigarette lighter/ ashtray or storage
area
10.Hood release
11.Center ventilator
12.Side ventilator
13.Side defroster
14.Glove box
15.Fuse box
16.Air bag (if equipped)
17.Information display
12 13 1313 31614 11 517 8 16 12 13
15 10 62971412 1313 133 16 1 4 11 517 8 16 12 13
15 10 6 2 7 14 9
79J037
Right-hand drive
Left-hand drive
069-128 Fiat16 New GB 3-09-2008 8:19 Pagina 70

71

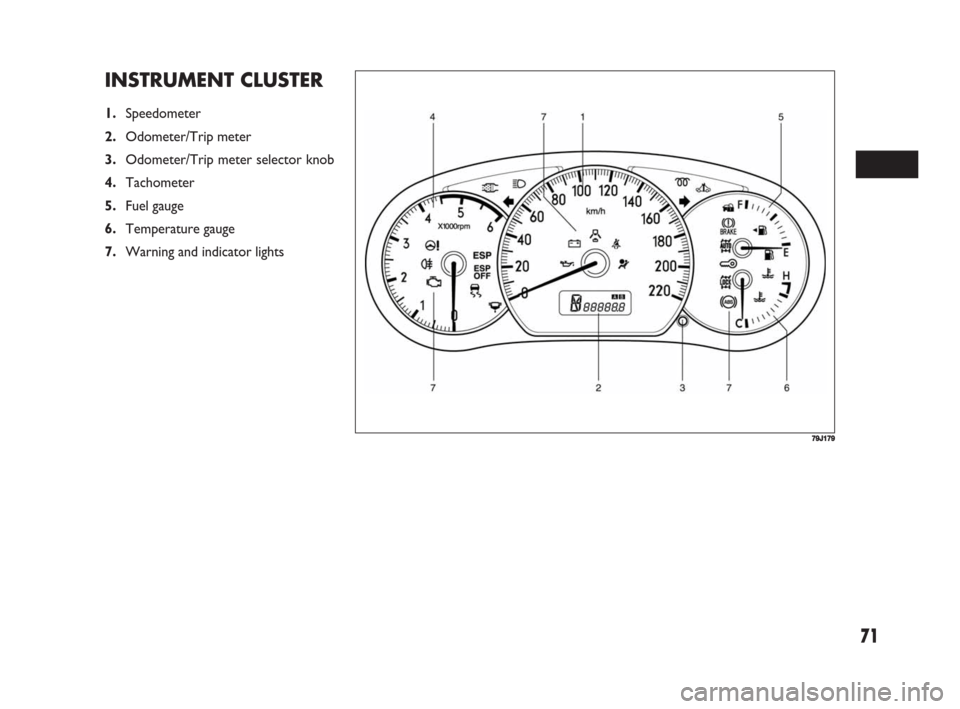

INSTRUMENT CLUSTER
1.Speedometer
2.Odometer/Trip meter
3.Odometer/Trip meter selector knob
4.Tachometer
5.Fuel gauge
6.Temperature gauge
7.Warning and indicator lights
79J179
069-128 Fiat16 New GB 3-09-2008 8:19 Pagina 71

72
The light should go out after starting the
engine and fully releasing the parking
brake, if the fluid level in the brake fluid
reservoir is adequate.
The light also comes on together with the
ABS warning light when the rear brake
force control function (Proportioning
valve function) of the ABS system fails.
If the brake system warning light comes
on while you are driving the vehicle, it may
mean that there is something wrong with
the vehicle’s brake system. If this happens,
you should:
❒Pull off the road and stop carefully.
❒Test the brakes by carefully starting and
stopping at the side of the road.
– If you determine that it is safe, drive
carefully at low speed to the near-
est dealer for repairs, or
WARNING AND
INDICATOR LIGHTS
BRAKE SYSTEM WARNING
LIGHT
65D477
For working check of this light, there are
following three different type operations
depending on the vehicle’s specification.
❒The light comes on briefly when the ig-
nition switch is turned to the “ON”
and/or “START” position.
❒The light comes on when the parking
brake is engaged with the ignition
switch in the “ON” position.
❒The light comes on when under either
or both of above two conditions.
The light also comes on when the fluid in
the brake fluid reservoir falls below the
specified level.
Remember that stopping dis-
tance may be longer, you
may have to push harder on the ped-
al, and the pedal may go down far-
ther than normal.
WARNING
If any of the following con-
ditions occur, you should im-
mediately ask your Fiat Dealership to
inspect the brake system.
If the brake system warning light does
not go out after the engine has been
started and the parking brake has
been fully released.
If the brake system warning light does
not come on when the ignition switch
is turned to the “ON” or “START”
position.
If the brake system warning light
comes on at any time during vehicle
operation.
WARNING
– Have the vehicle towed to the nearest
dealer for repairs.
NOTE Because the disc brake system is
selfadjusting, the fluid level will drop as the
brake pads become worn. Replenishing
the brake fluid reservoir is considered
normal periodic maintenance.
069-128 Fiat16 New GB 3-09-2008 8:19 Pagina 72

73
tion) and there may be something wrong
with both the rear brake force control
function and anti-lock function of the ABS
system.
If one of these happens, have the system
inspected by your Fiat Dealership.
If the ABS becomes inoperative, the brake
system will function as an ordinary brake
system that does not have this ABS sys-
tem. ANTI-LOCK BRAKE SYSTEM
(ABS) WARNING LIGHT
65D529
66J033
When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
If the light stays on, or comes on when dri-
ving, there may be something wrong with
the ABS.
If this happens:
❒Pull off the road and stop carefully.
❒Turn the ignition switch to “LOCK”
and then start the engine again.
If the warning light comes on briefly then
turns off, the system is normal. If the warn-
ing light still stays on, the system will be
something wrong.
If the light and the brake system warning
light stay on, or come on simultaneously
when driving, your ABS system is
equipped with the rear brake force con-
trol function (Proportioning valve func-SLIP INDICATOR LIGHT
(if equipped)
ESP
®is a registered trademark of Daim-
lerChrysler AG.
This light blinks 5 times per second when
one of the ESP
®systems other than ABS
is activated. If this light blinks, drive care-
fully.When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
If the light stays on, or comes on when dri-
ving and remains on, there may be some-
thing wrong with the ESP
®systems (other
than ABS). You should have the system in-
spected by an authorized FIAT dealer.
NOTE When you disconnect and re- con-
nect the battery, ESP
®system functions
other than ABS will be deactivated and the
slip indicator light will blink 1 time per sec-
ond. For details on how to reactive the
ESP
®systems, refer to “SLIP Indicator
Light” in the “OPERATING YOUR VEHI-
CLE” section.
For details of the ESP
®systems, refer to
“Electronic Stability Program (ESP®)” in
the “OPERATING YOUR VEHICLE” sec-
tion.
The ESP®systems cannot
prevent accidents. Always
drive carefully.
WARNING
069-128 Fiat16 New GB 3-09-2008 8:19 Pagina 73

74
Check the oil level and add oil if necessary.
If there is enough oil, the lubrication sys-
tem should be inspected by your Fiat Deal-
ership before you drive the vehicle again.
IMPORTANT
❒If you operate the engine with this light
on, severe engine damage can result.
❒Do not rely on the Oil Pressure Light
to indicate the need to add oil. Be
sure to periodically check the engine
oil level.
Oil Life Monitoring
(for Diesel Engine Model)
Your vehicle also has the oil life monitor-
ing system that let you know when to
change the engine oil and filter.
If the oil pressure light blinks, you should
change the engine oil and oil filter imme-
diately since the monitoring system has
calculated that oil life has been diminished
by detecting a deterioration, increase or
decrease of engine oil. The blinking light
goes out after 1 minute and comes back
on every hour. If the life of engine oil re-
mains 0%, the oil pressure light blinks for
1 minute when the engine is started. You
should change the engine oil and filter at
the first blink. For details on how to
change the engine oil, refer to “Changing
Engine Oil and Filter” in “INSPECTION
AND MAINTENANCE” section.
Whenever the engine oil is changed, the
light must be reset to monitor the next oil
change timing properly. To reset the light,
consult your Fiat Dealership.
50G051A
66J031
66J032
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started. The
light will come on and remain on if there
is insufficient oil pressure. When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
If the light stays on, or comes on when dri-
ving, there may be something wrong with
the ESP
®systems (other than ABS). You
should have the system inspected by an
authorized FIAT dealer.
For details of the ESP
®systems, refer to
“Electronic Stability Program (ESP®)” in the
“OPERATING YOUR VEHICLE” section.
“ESP OFF” INDICATOR LIGHT
(if equipped)
If the warning light vturns on when the vehicle is
travelling stop the engine immedi-
ately and contact a Fiat Dealership.
WARNING
OIL PRESSURE LIGHT
“ESP” WARNING LIGHT
(if equipped)
(Electronic Stability Program) When the ignition switch is turned to the
“ON” position, this light comes on briefly
so you can check that the light is working.
When the “ESP OFF” switch is pushed to
turn off the ESP
®systems (other than
ABS), the “ESP OFF” light comes on and
stays on.
For details of the ESP
®systems, refer to
“Electronic Stability Program (ESP®)” in
the “OPERATING YOUR VEHICLE” sec-
tion.
069-128 Fiat16 New GB 3-09-2008 8:20 Pagina 74
