2008 FIAT QUBO Radio CD MP3 Manual

QUICK
GUIDE
24
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
INTRODUCTION
MP3 CD
PLAYER
SELECT NEXT/PREVIOUS
DIRECTORY
Press button
Nto select the next direc-
tory or press button Oto select the pre-
vious one. The name of the new selected
directory will be shown on the display.
Directories are selected in cyclic se-
quence: after the last directory the first
one is selected and vice versa.
If no other directory/track is selected in
the following 2 seconds, the first track in
the new directory will be played.
If the last track in the currently selected
directory is played, the next will then be
played. DISPLAY INFORMATION
ID3-TAG info display
In addition to time elapsed, directory
name and file name, also ID3-TAG info rel-
evant to track Title, Artist, Author (see
section “MP3 DISPLAY FUNCTION”) are
displayed.
The MP3 directory name shown on the
display corresponds to the name with
which the directory is stored on the CD,
followed by an asterisk.
Example of full MP3 directory name: BEST
OF *.
If you want to display one ID3-TAG info
(Title, Artist, Album) and the track being
played has no ID3-TAG info then, the file
name will be displayed.PROTECTION AGAINST THEFT
Refer to section “COMPACT DISC
PLAYER”.
604_39_895 Radio FiorinoQUBO GB 9-10-2008 11:30 Pagina 24

25
COMPACT DISC PLAYER
CD not played
Loaded CD is dirty. Clean the CD.
Loaded CD is scratched. Try to play an-
other CD.
Required CD cannot be loaded
Another CD is already loaded. Press but-
ton
˚and remove the CD.
T T T T
R R R R
O O O O
U U U U
B B B B
L L L L
E E E E
S S S S
H H H H
O O O O
O O O O
T T T T
I I I I
N N N N
G G G G
OVERVIEW
Low volume
The Fader function shall only be set to “F”
(front), to prevent sound system output
power reduction and volume muting if the
Fader level set is = R+9.
Required source cannot be
selected
No CD loaded. Load the CD or the MP3
CD you want to play.MP3 FILE READING
Skipping when reading MP3 files
Loaded CD is scratched or dirty. Clean
the CD as described in paragraph “CD” in
section “INTRODUCTION”.
MP3 track length not displayed
correctly
In certain cases (due to recording) MP3
track length can be displayed incorrectly.
604_39_895 Radio FiorinoQUBO GB 9-10-2008 11:30 Pagina 25

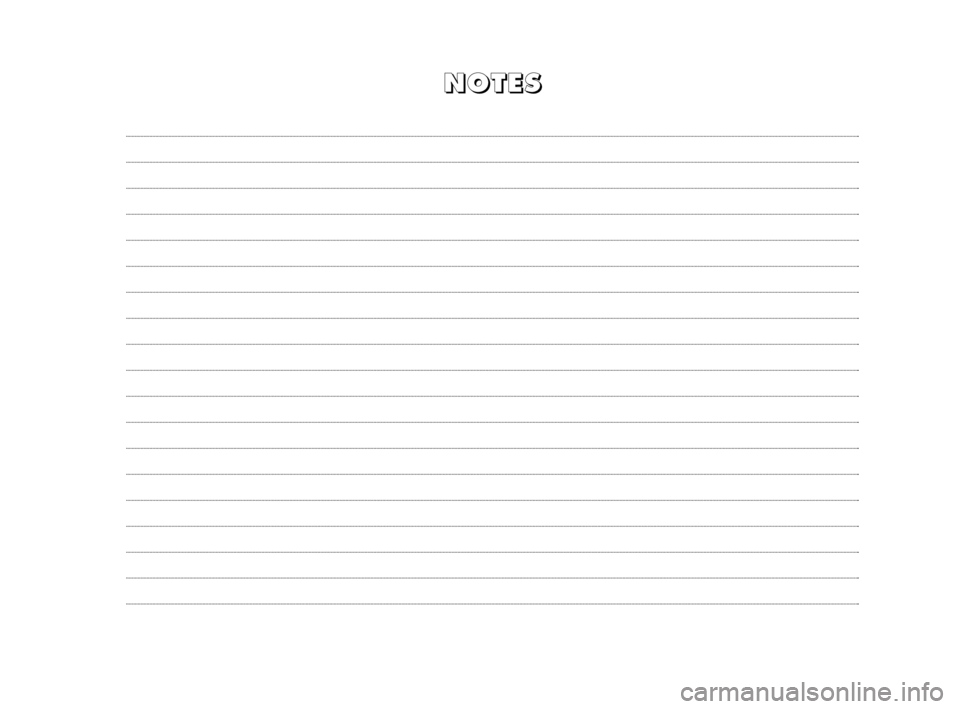

N N N N
O O O O
T T T T
E E E E
S S S S
604_39_895 Radio FiorinoQUBO GB 9-10-2008 11:30 Pagina 26

604_39_895 Radio FiorinoQUBO GB 9-10-2008 11:30 Pagina 27

Fiat Group Automobiles S.p.A.
Customer Services - Technical Services - Service Engineering - Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 604.39.895 - 10/2008 - 1
