REAR CEILING LIGHT
WITH SWITCH (where provided)
The light switches on automatically when
the side sliding doors and rear swing-
doors are opened and switches off when
they are closed.
With the doors closed the light switches
on/off by pressing switch A-fig. 46.The switch Acan take 3 different posi-
tions:
❒with the switch in central position (po-
sition 0), the light turns on when a door
is opened;
❒with the switch pressed in upward po-
sition (position 1), the light is constantly
on;
❒with the switch pressed in downward
position (position 2 – AUTO OFF),
the light is constantly off.
fig. 46F0T0273m
REAR CEILING LIGHT
WITH MOVABLE
LENS (where provided)
The light switches on immediately when
the front door is opened and switches off
when it is closed.
With the doors closed the light switches
on/off by pressing the lens A-fig. 45left-
wards as illustrated in the figure.
fig. 45F0T0114m
036-082 Fiorino GB 1ed 21-10-2008 14:58 Pagina 52

53
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
PORTABLE LIGHT
(where provided)
This light is installed on the right-hand side
of the loading compartment. It is used as
both a fixed light and a portable electric
torch.
To use the portable torch A-fig. 47first
press button Bto extract it in the direc-
tion indicated by the arrow. Then, use
switch Cto switch the light on/off.
When the portable light is secured to its
stationary support, the battery of the elec-
tric torch is automatically recharged.
Portable light recharge when the vehicle
is not running and the ignition key is either
in the STOPposition or removed must
last max. 15 minutes.
fig. 47
AUTO
B
A
C
F0T0115mfig. 48F0T0252m
BOOT LIGHT
(where provided) fig. 48
This light will turn on automatically when
opening the tailgate and it will turn off at
closing.SWITCHING ON/OFF
OF THE CEILING LIGHTS
The ceiling lights turn on/off as described
below.
Ceiling light switch-on without central locking
Front ceiling lights: switch on when front
doors are opened.
Rear ceiling lights: are switched on man-
ually.
Portable light (as an alternative to rear
ceiling light): stationary part is switched on
manually.
Ceiling light switch-off with central locking
Front and rear ceiling lights (also with
portable light option): switch off (with fad-
ing effect) when side sliding doors, rear
swing-doors or front doors are closed.
Option with independent loading
compartment
Front ceiling lights: switch off (with fad-
ing effect) when front doors are closed.
Rear ceiling lights (also with portable light
option): switch off (with fading effect)
when rear doors are closed.
036-082 Fiorino GB 1ed 21-10-2008 14:58 Pagina 53

54
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CONTROLS
EMERGENCY LIGHTS
Emergency lights switch on by pressing
switch A-fig. 49, regardless of the posi-
tion of the ignition key.
When the device is on warning lights
Îand ¥on the panel come on.
Press switch Aagain to turn the lights off.
IMPORTANT The use of emergency lights
is governed by the Highway Code of the
country where you are driving. Keep to
the rules.
Emergency braking
(where present)
In the case of emergency braking the haz-
ard warning lights come on automatically
and the warning lights
Îand ¥in the
panel light up at the same time. The func-
tion is switched off automatically when the
nature of the braking is no longer an emer-
gency. This function complies with the leg-
islation currently in force.FOG LIGHTS
(where provided) fig. 50
To turn front fog lights on, press button
5. To activate these lights it is necessary
to have the side/taillights switched on.
The warning light switches on
5on the
instrument panel.
Press the button again to turn the lights
off.REAR FOG LIGHTS fig. 50
The rear fog lights switch on, with low
beams or front fog lights on, by pressing
the button 4.
The warning light switches on 4on the
instrument panel.
Press the button again or switch off the
dipped beams and/or front fog lights
(where provided) to turn the rear fog
lights off.
fig. 49
A
F0T0049mfig. 50F0T0036m
036-082 Fiorino GB 1ed 21-10-2008 14:58 Pagina 54

55
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL CUT-OFF SYSTEM
This system triggers after a collision and
activates the following:
❒switch off of fuel supply with conse-
quent engine switch off;
❒automatic door unlocking;
❒switch on of all lights inside the vehicle.
When the system is triggered, the mes-
sage “Fuel cut-off tripped - see handbook”
is displayed on some versions.
Carefully check the vehicle for fuel leaks,
for instance in the engine compartment
below the vehicle or near the fuel tank
area.
After the collision, position ignition key on
STOPto avoid battery draining.To reset vehicle operation, follow this
procedure:
❒turn the ignition key to MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the ignition key to STOP.
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reset the system
to avoid fire risk.
WARNING
036-082 Fiorino GB 1ed 21-10-2008 14:58 Pagina 55

56
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

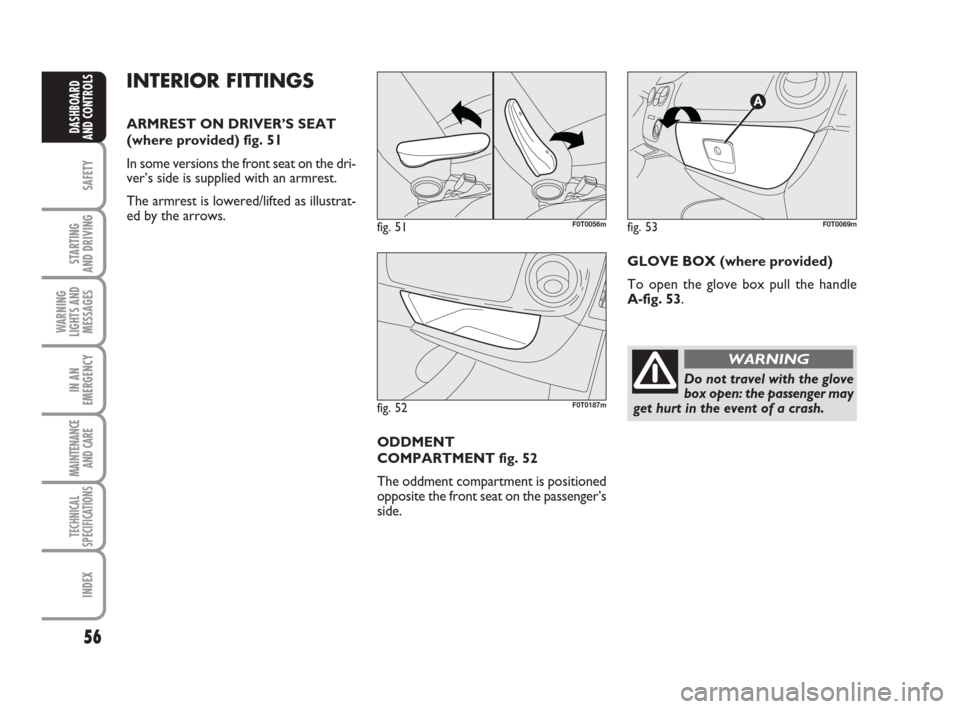

INTERIOR FITTINGS
ARMREST ON DRIVER’S SEAT
(where provided) fig. 51
In some versions the front seat on the dri-
ver’s side is supplied with an armrest.
The armrest is lowered/lifted as illustrat-
ed by the arrows.
ODDMENT
COMPARTMENT fig. 52
The oddment compartment is positioned
opposite the front seat on the passenger’s
side.GLOVE BOX (where provided)
To open the glove box pull the handle
A-fig. 53.
fig. 51F0T0056m
fig. 52F0T0187m
fig. 53F0T0069m
Do not travel with the glove
box open: the passenger may
get hurt in the event of a crash.
WARNING
036-082 Fiorino GB 1ed 21-10-2008 14:58 Pagina 56

57
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
POWER OUTLET (12V)
The power outlet is positioned on the
central console fig. 54and is only opera-
tional when the ignition key is turned to
MAR. CIGAR LIGHTER
(where provided)
The cigar lighter is positioned on the cen-
tral console. Press button A-fig. 55to en-
able the cigar lighter after turning the ig-
nition key to MAR.
After a few seconds the button goes back
to its initial position, and the cigar lighter
is ready for use.
IMPORTANT Always check that the cig-
ar lighter has been disabled.
fig. 54F0T0075mfig. 55
A
F0T0118m
The cigar lighter reaches
high temperatures. Handle
with care. The device must not be
used by children: risk of fire and/or
burns.
WARNING
fig. 56F0T0117m
ASHTRAY (where provided)
fig. 56
The ashtray consists of a removable plas-
tic box with spring loaded opening that
can be fitted into the cup/can recesses on
the central console.
Do not use the ashtray as a
paper bin: paper may go on
fire when contacting cigarette butts.
WARNING
036-082 Fiorino GB 1ed 21-10-2008 14:58 Pagina 57

58
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 59F0T0207m
fig. 60
A
F0T0135m
SUN VISORS fig. 57
The sun visors on the driver’s and pas-
senger’s sides are directable both frontal-
ly and sideways.
Behind the sun visor on the driver’s side
a pocket has been provided for storing
tickets.
Some vehicle versions feature the sun vi-
sor with a mirror on the passenger’s side.DESK (where provided)
In the middle of the dashboard above the
sound system compartment a desk
A-fig. 58has been provided. On some
versions this desk can be used as a read-
ing desk by lifting its back and placing it on
the dashboard as illustrated in the figure.
On versions equipped with an airbag on
the passenger’s side the desk is stationary.
fig. 57F0T0188m
REAR SIDE WINDOWS WITH
“COMPASS” OPENINGfig. 59
To open the rear side windows proceed
as follows:
❒move lever A-fig. 60outwards until
the window opens completely;
❒push the lever backwards until the win-
dow clicks in position.
To close the windows carry out the op-
erations above in reverse order until you
hear the click indicating correct lever po-
sitioning.
fig. 58F0T0204m
036-082 Fiorino GB 1ed 21-10-2008 14:58 Pagina 58

59
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DOORS
CENTRAL DOOR
LOCKING/UNLOCKING SYSTEM
Door locking from the outside
The doors will be locked only if all doors
are closed. If one or more than one door
is open after the button on the remote
control
Øis pressed, the direction indi-
cators start flashing quickly for approx. 3
seconds. When the metal insert is turned
clockwise in the driver’s door lock all the
doors can be locked.
Quickly double click the button
Øon the
remote control
to activate the dead lock
device (see paragraph “Dead lock de-
vice”). Door unlocking from the outside
Press the button Æbriefly to unlock all
the doors, switch on the ceiling lights in
a timed manner and flash the direction in-
dicators. All the doors are unlocked by
turning the metal insert in the door lock
on the driver’s side anticlockwise.
fig. 61F0T0242m
While refuelling, if the flap is
open, the right-hand side
sliding door cannot be opened.
WARNING
SIDE SLIDING DOORS
Before opening a door, en-
sure that you can do it in
safe conditions.
WARNING
Before refuelling, make sure
that the right-hand sliding
door is locked. If it is not, the
door and the sliding block sys-
tem may be damaged when the fuel
flap is opened during refuelling oper-
ations.
