Setting the unit (Unit)
With this function it is possible to set the
unit.
To set the required unit proceed as fol-
lows:
– briefly press button MENU ESC, the
display will show the wording (Unit) and
the previously set unit (km) or (mi);
– press button +or –to select the re-
quired distance unit.
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Front passenger’s airbag
and side bag
activation/deactivation
(where provided) (BAG P)
This function is used to activate/deactivate
the air bag on the passenger’s side.
Proceed as follows:
❒press button MENU ESCand, after
viewing the message (BAG P OFF) (to
deactivate) or (BAG P On) (to activate)
by pressing buttons +or –, press the
button MENU ESCagain;
❒the confirmation request message will
be displayed;
❒press buttons +or –to select (YES)
(confirming activation/deactivation) or
(no) (to abort);
❒briefly press the button MENU ESC
to view a message confirming your se-
lection and go back to the menu screen.
Alternatively, press the button for a
prolonged time and go back to the stan-
dard screen without storing the set-
tings.
MENU ESC
MENU ESC
MENU ESC
– +
– +
– +
– +
F0T1014g
F0T1015gF0T1016g F0T1018g
F0T1017g F0T1020g
F0T1019g
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 20

21
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
MULTIFUNCTIONAL
DISPLAY
(where provided)
The vehicle can be equipped with a mul-
tifunctional display that, according to the
settings made, will show useful informa-
tion when driving.
“STANDARD” SCREEN fig. 15
The standard screen shows the following
information:
ADate.
BOdometer (covered km or miles).
CClock (always displayed, even with ig-
nition key removed and front doors
closed).
DExternal temperature.
EHeadlight aiming position (only with
dipped beam headlights on).
NoteWhen opening one of the front
doors, the display turns on and shows the
clock and the kilometres or miles covered
for a few seconds.
fig. 15F0T0019mfig. 16F0T0025m
CONTROL BUTTONS fig. 16
+To scroll the displayed menu and the
related options upwards or to in-
crease the value displayed.
MENUPress briefly to display
ESCthe menu and/or go to next
screen or confirm the required
menu option.
Hold pressed to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to de-
crease the displayed value.Note.Buttons +and –activate different
functions according to the following situ-
ations.
Light adjustment inside vehicle
– with standard screen enabled, it is pos-
sible to adjust the brightness of the in-
strument panel and sound system.
Setup menu
– to scroll the menu options upwards and
downwards;
– to increase or decrease values during set-
tings.
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 21

22
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Selecting an option of the main menu
with submenu
– Briefly press the button MENU ESCto
display the first submenu option.
– Press buttons +or –(by single press-
es) to scroll all the submenu options.
– Briefly press the button MENU ESCto
select the displayed submenu option and
open the relevant setup menu.
– Press buttons +or –(by single press-
es) to select the new setting for this sub-
menu option.
– Briefly press the button MENU ESC to
store the new setting and go back to the
previously selected submenu option. SETUP MENU fig. 17

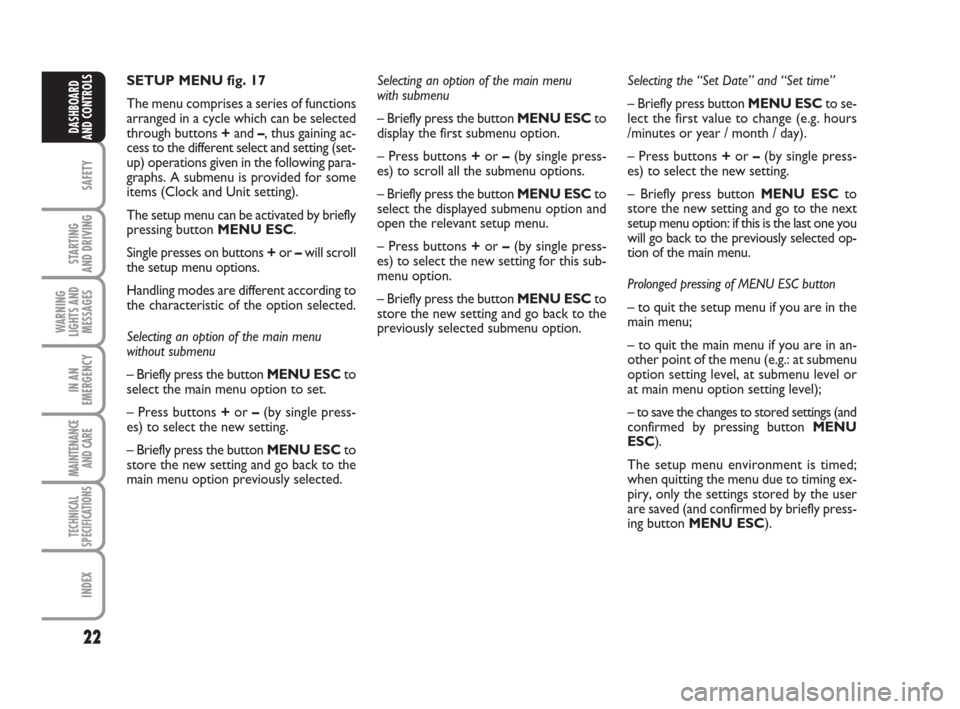

The menu comprises a series of functions
arranged in a cycle which can be selected
through buttons +and –, thus gaining ac-
cess to the different select and setting (set-
up) operations given in the following para-
graphs. A submenu is provided for some
items (Clock and Unit setting).
The setup menu can be activated by briefly
pressing button MENU ESC.
Single presses on buttons +or –will scroll
the setup menu options.
Handling modes are different according to
the characteristic of the option selected.
Selecting an option of the main menu
without submenu
– Briefly press the button MENU ESCto
select the main menu option to set.
– Press buttons +or –(by single press-
es) to select the new setting.
– Briefly press the button MENU ESCto
store the new setting and go back to the
main menu option previously selected.Selecting the “Set Date” and “Set time”
– Briefly press button MENU ESCto se-
lect the first value to change (e.g. hours
/minutes or year / month / day).
– Press buttons +or –(by single press-
es) to select the new setting.
– Briefly press button MENU ESCto
store the new setting and go to the next
setup menu option: if this is the last one you
will go back to the previously selected op-
tion of the main menu.
Prolonged pressing of MENU ESCbutton
– to quit the setup menu if you are in the
main menu;
– to quit the main menu if you are in an-
other point of the menu (e.g.: at submenu
option setting level, at submenu level or
at main menu option setting level);
– to save the changes to stored settings (and
confirmed by pressing button MENU
ESC).
The setup menu environment is timed;
when quitting the menu due to timing ex-
piry, only the settings stored by the user
are saved (and confirmed by briefly press-
ing button MENU ESC).
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 22

23
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Day
YearMonth
Deutsch
Português
English
Español
Français
Italiano
Nederland
Turkçe Example:
fig. 17 Example:
Briefly press button MENU ESCto start browsing
from the standard screen. Press +or –to browse with-
in the menu.
Note.Only the short menu may be accessed for rea-
sons of safety while the vehicle is moving (“Speed Beep”
setting). Stop the vehicle to access the full menu.
F0T1000g
MENU ESC
short pressing
of button
+
– +
–
– +
+
–
+–
–
– +
+++ ––––
++ +
– +
–
EXIT MENUSPEED BEEP
SET TIME
SET DATE
SEE RADIO
AUTOCLOSE
UNITS
LANGUAGE BUZZER VOLUME BUTTON VOL. BELT BUZZER (
*) SERVICEPASSENGER BAG
(*) This function is only displayed after the SBR system is deactivated by a Fiat Dealership.
–+
TRIP B DATA
MENU ESC
short pressing
of button
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 23

24
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
NoteThe speed may be set in the range
from 30 to 200 km/h, or from 20 to 125 mph
according to the previously chosen unit (see
“Setting the distance unit”) described below.
The setting will increase/decrease by five
units each time button +/ –is pressed. Hold
button +/–pressed to increase/decrease the
setting rapidly. Complete the setting by
briefly pressing the button when the required
setting is approached.
– Briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
To cancel the setting, proceed as follows:
– briefly press button MENU ESC: (On)
will flash on the display;
– press button –: (Off) will flash on the dis-
play;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings. Speed limit (Speed Beep)
This function is used to set the vehicle
speed limit (km/h or mph); when this lim-
it is exceeded, the driver is immediately
alerted (see section “Warning lights and
messages”).
To set the speed limit, proceed as follows:
– briefly press button MENU ESC, the
display will show the wording (Speed
Beep);
– press button +or –to select speed lim-
it activation (On) or deactivation (Off);
– if the function has been activated (On),
press buttons +or –to select the re-
quired speed limit and then press MENU
ESCto confirm.Trip B On/Off (TripB data)
Through this option it is possible to acti-
vate (On) or deactivate (Off) the Trip B
(partial trip) display.
For further information see section “Trip
computer”.
For activation / deactivation, proceed as
follows:
– briefly press button MENU ESC: (On)
or (Off) will flash on the display (accord-
ing to previous setting);
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 24

25
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
– when accessing the “Mode” submenu:
briefly press button MENU ESC : the
previously set display mode will flash on
the display;
– press button +or –to select “24h” or
“12h”.
When you have made the required set-
tings, briefly press button MENU ESC
to go back to the menu screen or press
the button for long to go back to the stan-
dard screen without storing settings.
– hold MENU ESCpressed to go back
to the standard screen or main menu ac-
cording to the points of the menu where
you are at. Setting the clock (Set time)
This function enables clock setting using
two submenus: “Time” and “Mode”.
Proceed as follows:
– briefly press button MENU ESC, the
display will show the two sub-menus
“Time” and “Mode”;
– press button +or –to surf the two sub-
menus;
– select the required option and then
press button MENU ESC briefly;
– when accessing the “Hour” submenu:
briefly press button MENU ESC, the
“hours” will flash on the display;
– press button +or –for setting;
– briefly press button MENU ESC, the
“minutes” will flash on the display;
– press button +or –for setting;Set date (Set date)
This function enables updating the date
(day - month - year).
To update the date proceed as follows:
– briefly press button MENU ESC: “day”
will flash on the display;
– press button +or –for setting;
– briefly press button MENU ESC:
“month” will flash on the display;
– press button +or –for setting;
– briefly press button MENU ESC:
“year” will flash on the display;
– press button +or –for setting.
NoteThe setting increases or decreases
by one unit each time button +or – is
pressed. Hold the button pressed to in-
crease/decrease the setting rapidly. Com-
plete the setting by briefly pressing the
button when the required setting is ap-
proached.
– Briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 25

26
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Automatic central door locking
with vehicle running (Autoclose)
When activated (On), this function auto-
matically locks the doors when the vehi-
cle speed exceeds 5 km/h.
To activate (On) or to deactivate (Off) this
function proceed as follows:
– briefly press button MENU ESCto dis-
play one sub-menu;
– briefly press button MENU ESC: (On)
or (Off) will flash on the display (accord-
ing to previous setting);
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the submenu screen or press the
button for long to go back to the standard
screen without storing settings;
– hold MENU ESCpressed to go back
to the standard screen or main menu ac-
cording to the points of the menu where
you are at. Audio repetition (See radio)
This function enables viewing information
regarding the sound system on the display.
– Radio: tuned radio station frequency or
RDS message, automatic tuning activation
or AutoSTore;
– Audio CD, MP3 CD: track number;
– CD Changer: CD number and track
number.
To activate (On) or to deactivate (Off)
sound system info displaying proceed as
follows:
– briefly press MENU ESC: (On) or (Off)
will flash on the display (according to pre-
vious setting);
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Set units (Units)
This function may be used to set the mea-
surement unit in three submenus: “Dis-
tances”, “Consumption” and “Tempera-
ture”.
To set the required unit proceed as follows:
– briefly press button MENU ESCto dis-
play the three sub-menus;
– press button +or –to browse the three
sub-menus;
– select the required submenu and then
briefly press button MENU ESC;
– when accessing the “Distances”submenu:
briefly press MENU ESC: either “km” or
“mi” will appear on the display (according
to the previous setting);
– press button +or –for setting;
– when accessing the “Consumption”submenu:
briefly press MENU ESC: either “km/l ”,
“l/100km” or “mpg” will appear on the dis-
play (according to the previous setting);
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 26

27
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Select language (Language)
The messages can be displayed in the fol-
lowing languages: Italian, German, English,
Spanish, French, Portuguese, Turkish and
Dutch.
To set the required language proceed as
follows:
– briefly press button MENU ESC: the
previously set “language” “will flash on the
display”;
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Adjust the failure/warning buzzer
volume (Buzzer volume)
With this function the volume of the
buzzer accompanying any failure/warning
indication can be adjusted according to 8
levels.
To adjust the desired volume proceed as
follows:
– briefly press button MENU ESC: the
previously set volume “level” will flash on
the display;
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings. If the distance unit set is “km” the fuel con-
sumption unit will be displayed in km/l or
l/100km.
If the distance unit set is “mi” the fuel con-
sumption unit will be displayed in “mpg”.
– press button +or –for setting;
– when accessing the “Temperature”submenu:
briefly press MENU ESC: either “°C” or
“°F” will appear on the display according
to the previous setting;
– press button +or –for setting;
When you have made the required set-
tings, briefly press button MENU ESCto
go back to the menu screen or press the
button for long to go back to the standard
screen without storing settings.
– hold MENU ESCpressed to go back
to the standard screen or main menu ac-
cording to the points of the menu where
you are at.
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 27
