THIRD BRAKE LIGHT fig. 26-27
To change the bulb proceed as follows:
❒open the tailgate;
❒remove the rubber caps A-fig. 26;
❒press the catches B-fig. 26and remove
the lens unit C-fig. 27;
❒disconnect the electric connector;
❒press the tabs D-fig. 27and remove
the bulb holder;
❒remove the snap-fitted bulb and replace
it.
NUMBER PLATE LIGHT fig. 28-29
To change the bulb proceed as follows:
❒work in the point shown by the arrow
and remove lens A-fig. 28;
❒change the bulb fig. 29releasing it from
the side contacts and making sure the
new bulb is correctly fastened between
the contacts;
❒refit the snap-fitted lens unit.
fig. 26F0M0210mfig. 27F0M0211mfig. 28F0M0212m
fig. 29F0M0233m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 172

173
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT CEILING LIGHT
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light A-fig. 30;
❒open the protection lid B;
❒replace bulbs C-fig. 31releasing them
from the side contacts; make sure that
new bulbs are correctly clamped be-
tween contacts;
❒re-close the lid B-fig. 31and secure light
A-fig. 30into its housing locking it
properly.
REAR CEILING LIGHT
(where provided)
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light D-fig. 32;
❒open the protection lid E-fig. 33;
❒replace bulb F-fig. 33releasing it from
the side contacts making sure that the
new bulb is correctly clamped between
the contacts;
❒re-close the protection lid E-fig. 33
and secure light D-fig. 32into its hous-
ing locking it properly.
fig. 30F0M0213m
fig. 31F0M0234m
fig. 32F0M0214m
fig. 33F0M0235m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 173

174
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
COURTESY LIGHT fig. 34
To change the bulb, proceed as follows:
❒remove the bulb A-fig. 34levering in
the points shown by the arrow.
BOOT LIGHT fig. 35
To change the bulb, proceed as follows:
❒ open the tailgate;
❒remove the light Alevering in the point
shown by the arrow.
❒open the protection Band replace the
snap-fitted bulb;
❒re-close the protective cover Bon the
lens;
❒refit the light Ainserting it in its cor-
rect position firstly on one end and
then on the other until it clicks into
place.
PUDDLE LIGHTS
(where provided) fig. 36
To change the bulb, proceed as follows:
❒remove the light by pressing clip A-fig.
36with a screwdriver;
❒press the bulb protection cover sides
B-fig. 37on the two fastening pins and
turn it;
❒replace the snap-fitted bulb C-fig. 37;
❒refit bulb protection cover fitting the
two fastening pins;
❒refit the ceiling light inserting first end
D-fig. 36and then pressing the other
end until hearing the locking click of the
clip.
fig. 34F0M0215mfig. 35F0M0216mfig. 36F0M0217m
fig. 37F0M0229m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 174

175
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

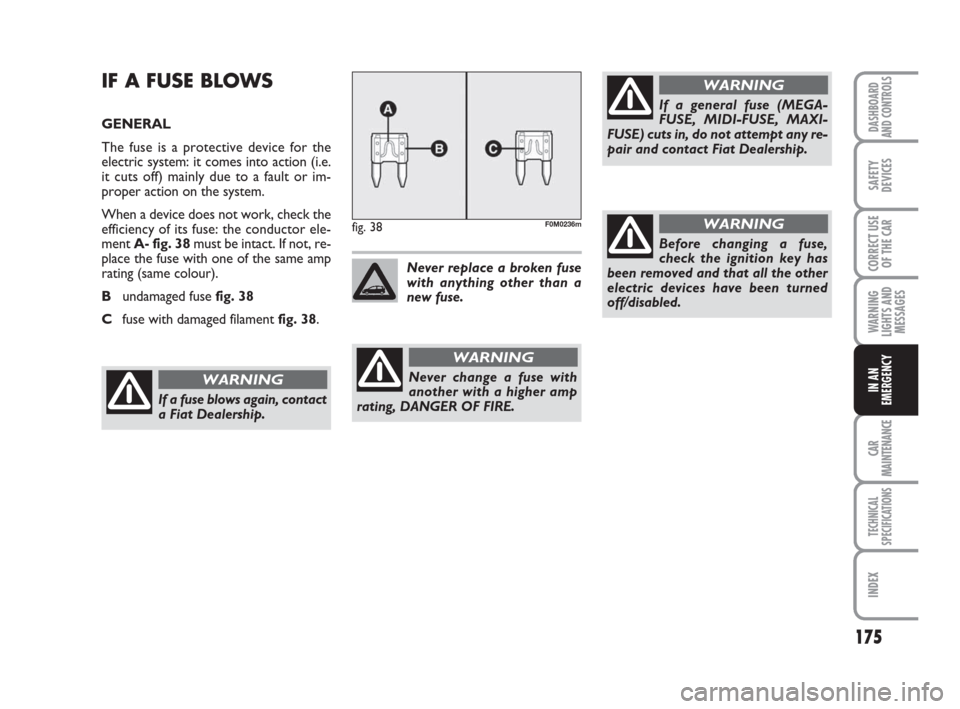

IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment A- fig. 38must be intact. If not, re-
place the fuse with one of the same amp
rating (same colour).
Bundamaged fuse fig. 38
Cfuse with damaged filament fig. 38.
fig. 38F0M0236m
Never change a fuse with
another with a higher amp
rating, DANGER OF FIRE.
WARNING
Never replace a broken fuse
with anything other than a
new fuse.
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact Fiat Dealership.
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING
Before changing a fuse,
check the ignition key has
been removed and that all the other
electric devices have been turned
off/disabled.
WARNING
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 175

176
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
FUSE LOCATION
The car fuses are in three junction units,
located in the dashboard, the engine com-
partment and inside the luggage compart-
ment (left hand side).
Fuse box on the dashboard fig. 40
To gain access to the fuses in the fuse box
on the dashboard, loosen the fastening
screws A-fig. 39and remove the cover.
fig. 40F0M0415m
3 4 5 6 7
8 9 10 11 12
13 141 2
fig. 39F0M0016m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 176

177
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Fuse box in engine compartment
fig. 42
To gain access to the fuses in the fuse box
next to the battery, remove the protec-
tion cover fig. 41.
fig. 41F0M0416m
fig. 42F0M0417m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 177

178
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Fuse box in the boot fig. 44
To gain access to the fuse box located on
the left side of boot open the relevant in-
spection lid (as shown infig. 43).
fig. 43F0M0246m
fig. 44F0M0372m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 178

179
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
7.5
7.5
5
5
10
5
20
20
20
20
5
7.5
5
5 1
8
13
2
5
11
4
6
14
7
12
9
3
10
FUSE SUMMARY TABLE
Fuse box on dashboard fig. 40
USERSFUSE AMPERE
Right dipped headlamp
Left dipped headlamp, headlamp alignment corrector
INT/A power supply for relay coils in engine fuse junction unit and relay coils in
body computer control unit
Front courtesy light, rear courtesy light, lights in visors, door lights, luggage
compartment light
+ battery power supply for EOBD diagnostic socket, automatic climate control
system control unit, alarm siren, car radio, convergence control unit
INT power supply for instrument panel, switch on brake pedal (N.O. contact),
third brake light
Door locking/unlocking motors, dead lock activation motors, tailgate unlocking motor
Windscreen/rearscreen washer pump
Electric window motor on driver’s front door
Electric window motor on passenger side front door
INT power supply for control panel lighting, parking control unit, tyre pressure
monitoring control unit, electric door mirrors movement, rain sensor, electric roof
control unit, by-port infotelematic socket
Air Bag control unit
Instrument panel
INT power supply for switch on brake pedal (NC contact), switch on clutch pedal,
interior heater unit, convergence control unit, car radio preparation system
