❒make sure the compressor switch D-
fig. 10is set to 0 (off), start the engine
and fit plug E-fig. 11into the nearest
current outlet and then turn on the
compressor by setting switch D-fig. 10
to I(on). Inflate the tyre to the pres-
sure specified in paragraph “Inflation
pressure” in section “Technical Speci-
fications”. Check tyre pressure on gauge F-fig.
10with compressor off to obtain pre-
cise reading;
❒if after 5 minutes it is still impossible
to reach at least 1.5 bar, disengage com-
pressor from valve and current outlet,
then move the car forth for approx. ten
metres in order to distribute the seal-
ing fluid inside the tyre evenly, then re-
peat the inflation operation;
❒If after this operation it is still impossi-
ble after 5 minutes to reach at least 1.8
bar, do not start driving since the tyre
is excessively damaged and the quick
tyre repair kit cannot guarantee suit-
able sealing, contact Fiat Dealership;
❒if reaching the tyre pressure specified
in paragraph “Inflation pressure” in sec-
tion “Technical Specifications”, start
driving immediately;
fig. 10F0M0202m
fig. 11F0M0203m
fig. 12F0M0364m
Apply the sticker in a visible
position for the driver to in-
dicate that the tyre has been treat-
ed with the quick tyre repair kit. Dri-
ve carefully especially when corner-
ing. Do not exceed 80 km/h. Avoid
heavy braking and accelerating.
WARNING
❒after driving for about 10 minutes stop
and check again the tyre pressure; pull
up the handbrake;
If the pressure falls below 1.8
bars, do not drive any fur-
ther: the quick tyre repair kit Fix & Go
automatic cannot guarantee proper
hold because the tyre is too much
damaged. Contact Fiat Dealership.
WARNING
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 164

165
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
❒if at least 1.8 bar pressure is read, re-
store proper pressure (with engine
running and handbrake on) and restart;
❒drive with the utmost care to the near-
est Fiat Dealership.
FOR CHECKING AND
RESTORING PRESSURE ONLY
The compressor can be also used just for
restoring pressure. Disconnect the quick
connection and connect it directly to the
tyre valve fig. 13; in this way the cylinder
is not connected to compressor and the
sealing fluid will not flow into the tyre. CYLINDER REPLACEMENT
PROCEDURE
To replace the cylinder proceed as fol-
lows:
❒disconnect connection A-fig. 14;
❒turn counter-clockwise the cylinder to
replace and raise it;
❒fit the new cylinder and turn it clock-
wise;
❒connect connection Ato the cylinder
and fit the transparent tube Binto the
proper space.
It is of vital importance to
communicate that the tyre
has been repaired using the quick tyre
repair kit. Hand the instruction
brochure to the personnel charged
with treating the tyre repaired with
the kit.
WARNING
fig. 13F0M0365mfig. 14F0M0206m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 165

166
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

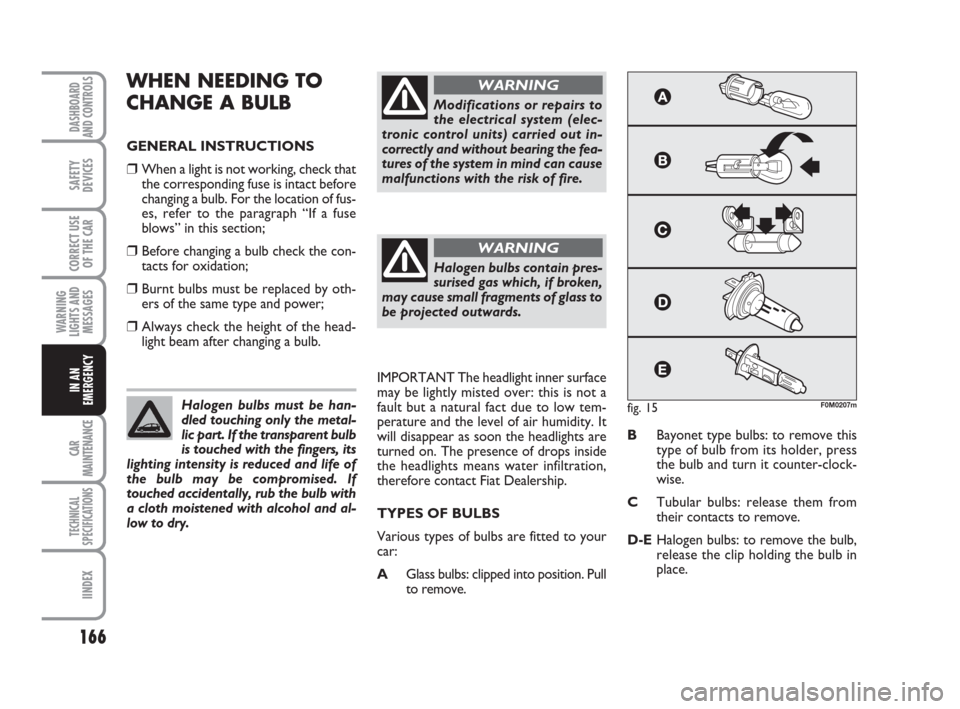

WHEN NEEDING TO
CHANGE A BULB
GENERAL INSTRUCTIONS
❒ When a light is not working, check that
the corresponding fuse is intact before
changing a bulb. For the location of fus-
es, refer to the paragraph “If a fuse
blows” in this section;
❒ Before changing a bulb check the con-
tacts for oxidation;
❒ Burnt bulbs must be replaced by oth-
ers of the same type and power;
❒ Always check the height of the head-
light beam after changing a bulb.
IMPORTANT The headlight inner surface
may be lightly misted over: this is not a
fault but a natural fact due to low tem-
perature and the level of air humidity. It
will disappear as soon the headlights are
turned on. The presence of drops inside
the headlights means water infiltration,
therefore contact Fiat Dealership.
TYPES OF BULBS
Various types of bulbs are fitted to your
car:
AGlass bulbs: clipped into position. Pull
to remove.BBayonet type bulbs: to remove this
type of bulb from its holder, press
the bulb and turn it counter-clock-
wise.
CTubular bulbs: release them from
their contacts to remove.
D-EHalogen bulbs: to remove the bulb,
release the clip holding the bulb in
place. Halogen bulbs must be han-
dled touching only the metal-
lic part. If the transparent bulb
is touched with the fingers, its
lighting intensity is reduced and life of
the bulb may be compromised. If
touched accidentally, rub the bulb with
a cloth moistened with alcohol and al-
low to dry.
Modifications or repairs to
the electrical system (elec-
tronic control units) carried out in-
correctly and without bearing the fea-
tures of the system in mind can cause
malfunctions with the risk of fire.
WARNING
Halogen bulbs contain pres-
surised gas which, if broken,
may cause small fragments of glass to
be projected outwards.
WARNING
fig. 15F0M0207m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 166

167
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Bulbs Ref. figure Type Power
Main-beam headlights
Dipped beam headlights
Front sidelights
Front fog lights (where provided)
Front direction indicators
Side direction indicators
Rear direction indicators
Taillights
Brake lights
Third brake light (additional brake light)
Reversing light
Rear fog lights
Number plate light
Front ceiling light with movable lens
Front ceiling light with spot lights
Rear ceiling light
Boot light
Courtesy lightH4
H4
W5W
H3
PY21W
WY5W
P21W
R5W
P21/5W
–
P21W
P21W
W5W
C10W
C10W
C10W
W5W
C5W D
D
A
–
B
A
B
B
B
B
–
–
A
C
C
C
A
C55W
60W
5W
55W
21W
5W
21W
5W
5W
2.3W
21W
21W
5W
10W
10W
10W
5W
5W
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 167

168
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
IF AN EXTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT LIGHT UNITS fig. 16
The front light units contain sidelights,
dipped beam, main beam and direction in-
dicator bulbs.
The bulbs are arranged inside the light unit
as follows:
Asidelights
Bdipped beams/main beams (double
light)
Cdirection indicatorsSIDELIGHTS fig. 17
To change the bulb, proceed as follows:
❒remove the snap-fitted rubber cap A,
as shown by the arrow;
❒press tabs Band remove the bulb hold-
er;
❒remove the bulb Cand replace it;
❒refit the bulb holder and refit the cap
A, check for proper locking.
fig. 16F0M0178mfig. 17F0M0179m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 168

169
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
DIPPED BEAM/ MAIN BEAM
HEADLIGHTS fig. 18
To change the bulb, proceed as follows:
❒remove the snap-fitted rubber cap A,
as shown by the arrow;
❒disconnect the central electric connec-
tor and release the bulb holder catch;
❒remove the bulb Band replace it;
❒fit the new bulb, making the outlines of
the metallic part coincide with the
grooves on the reflector;
❒refit the bulb holder catch and reconnect
the electrical connector;
❒refit the cap Alocking it properly.DIRECTION INDICATORS
Front fig. 19/a - 19/b
To change the bulb, proceed as follows:
❒steer the right/left wheel outwards;
❒turn the catch A-fig. 19/aas shown by
the arrow, then use the lid B;
❒remove the cover/bulb holder C-
fig. 19/bturning counterclockwise;
❒remove the bulb Dpushing it gently and
turning counterclockwise (“bayonet”
clamping), then replace it;
❒refit the cover/bulb holder Cby turn-
ing it clockwise and locking it proper-
ly;
❒close the lid B-fig. 19/athe turn the
catch A.
fig. 18F0M0180mfig. 19/aF0M0261mfig. 19/bF0M0181m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 169

170
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Side fig. 20
To change the bulb, proceed as follows:
❒work on the lens Ato compress the in-
ternal catch B, then pull the unit out-
wards;
❒turn the bulb holder Ccounterclock-
wise, remove the snap-fitted bulb D
and replace it;
❒refit the bulb holder Cin the lens by
turning it clockwise;
❒refit the unit making sure the catch
clicks into place B.FRONT FOG LIGHTS
(where provided)
Contact Fiat Dealership to have front fog
lights A-fig. 21replaced.
REAR LIGHT UNITS fig. 22-23
Rear light units contain taillights, brake
light and direction indicators bulbs.
The bulbs are arranged inside the light unit
as follows:
Bdirection indicators
Ctaillights
Dtaillights/brake light (double light).
fig. 20F0M0182m
fig. 22F0M0184m
fig. 21F0M0223m
153-186 Punto GDX GB 31-07-2008 17:28 Pagina 170

171
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
To change the bulb proceed as follows:
❒open the tailgate then, slacken the two
fastening screws A;
❒disconnect the central electric connec-
tor and pull the lens unit outwards;
❒slacken the screws Eand remove the
bulb holder;
❒remove the bulb to replace B, Cor D
pushing it slightly and turning it coun-
terclockwise (“bayonet” clamping) and
replace it;
❒refit the bulb holder and tighten the
screws E;
❒reconnect the electric connector, suit-
ably refit the unit to the car body and
then tighten the fastening screws A.
REAR FOG LIGHTS fig. 24
Contact Fiat Dealership to have rear fog
lights Areplaced.REVERSING LIGHT fig. 25
Contact Fiat Dealership to have reversing
light Areplaced.
fig. 24F0M0208mfig. 25F0M0209m
fig. 23F0M0185m
