2008 FIAT DUCATO technical data

167
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
❒drive with the utmost care to the
nearest Fiat Dealership.
FOR CHECKING AND
RESTORING PRESSURE ONLY
The compressor may also be used for
restoring pressure only.
❒Engage the handbrake
❒Undo the cap for the tyre valve, extract
the black pipe and tighten the ring nut
on the tyre valve.
❒Insert the pin in the nearest 12V cur-
rent socket and start the engine.
❒Rotate the selector clockwise to the
pressure renewal position.
❒Activate the kit by pressing the
on/off switch. Inflate the tyre to the
pressure specified in the “Inflation
pressure” paragraph, in the
“Technical Data” chapter.
NOTE If the tyre has to be deflated,
press the dedicated button Billustrated
in fig. 16.
For a more accurate reading, it is advis-
able to check the pressure reading on the
pressure gauge with the compressor off
and without moving the centre selector
from the repair position.CANISTER REPLACEMENT
PROCEDURE
To replace the canister, proceed as fol-
lows:
❒push button A-fig. 17to release the
replacement part;
❒fit the new cansiter and press until it
is automatically engaged.
❒fit the new cylinder and turn it
clockwise;
❒fit connection Aand connect tube
Binto its seat.
Remember to inform the
workshop that the tyre has
been treated with a quick repair kit.
Hand the leaflet over to the staff
who will be dealing the the tyre
treated using the tyre repair kit.
WARNING
If different tyres from the
ones supplied with the vehi-
cle are used, the repair cannot be
carried out. If the tyres are being
changed, it is advisable to used ones
approved by the manufacturer.
Consult a Fiat Dealership.
WARNING
fig. 16
B
F0N0830m
fig. 17F0N0829m
fig. 15F0N0828m

211
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IDENTIFICATION DATA ................................................. 212
ENGINE CODES - BODYWORK VERSIONS .............. 214
ENGINE .................................................................................. 216
FUEL FEED ............................................................................. 217
TRANSMISSION .................................................................. 217
BRAKES................................................................................... 218
SUSPENSIONS....................................................................... 218
STEERING............................................................................... 218
WHEELS.................................................................................. 219
DIMENSIONS......................................................................... 223
PERFORMANCE................................................................... 229
WEIGHTS............................................................................... 230
CAPACITIES .......................................................................... 261
FLUIDS AND LUBRICANTS.............................................. 262
FUEL CONSUMPTION....................................................... 264
CO
2EMISSIONS .................................................................. 265
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL CERTIFICATIONS .................................... 266
TT T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S

212
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
MODEL PLATE fig. 1
The plate is to be found on the front cross
member of the engine compartment and
it bears the following identification data:
BHomologation number.
CVehicle type code.
DChassis number.
EMaximum vehicle weight fully loaded.
FMaximum vehicle weight fully loaded
with trailer.
GMaximum vehicle weight on front axle.HMaximum vehicle weight on rear axle.
IEngine type.
LBody version code.
MSpare part code.
NSmoke opacity index.
IDENTIFICATION DATA
You are advised to note the identification
codes. The identification data stamped and
given on the plates and their position are
the following:
❒Model plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
fig. 1F0N0333m

213
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CHASSIS MARKING fig. 3
These are to be found respectively: on the
internal wheelhouse on passenger’s side
A-fig. 3 and on the bottom of the wind-
screen fig. 4.
❒vehicle model;
❒chassis number.ENGINE MARKING
Engine marking is stamped on the cylinder
block and includes the model and the se-
rial number.
BODYWORK PAINT
IDENTIFICATION PLATE fig. 2
The plate is to be found on the front cross
member of the engine compartment and
it bears the following identification data:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
fig. 2F0N0160mfig. 3F0N0162m
fig. 4F0N0338m

270
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
– jump starting .................................. 158
– recharging........................................ 185
– replacing ......................................... 202
– battery disconnection function ... 83
Bodywork
– maintenance .................................. 208
– version codes ................................ 212
Bonnet .................................................. 98
Brake Assist
(brake assist in an emergency) ....... 103
Brake fluid level.................................... 200
Brakes
– fluid level ........................................ 200
– technical data ................................ 218
Bulb (replacement)
– bulb types ....................................... 168
– general instructions....................... 168
Ceiling lights
– front................................................. 81
– rear................................................... 82
Chassis (marking) ............................... 213
Checking fluid levels............................ 196Child restraint systems
(specifications for use)..................... 119
Cigar lighter ......................................... 87
CO
2exhaust emissions ..................... 265
Code card............................................. 8
Consumption
– engine oil......................................... 198
– fuel.................................................... 264
Containing running costs................... 138
Controls ............................................... 82
Correct use of the vehicle................. 133
Cruise Control .................................... 79
Current outlet...................................... 88
Dashboard (left hand drive version) 5
Dashboard (right hand drive version) 6
Dashboard and controls..................... 4
Dead lock device
– activation/deactivation.................. 94
Digital display........................................ 20
Dimensions .......................................... 223
Dipped beam headlights
– bulb replacement .......................... 171
ABS ...................................................... 102
Accessories purchased by
the user .............................................. 109
Additional climate control system
(rear).................................................... 73
Additional rear heater........................ 72
Air bags (front)..................................... 123
Air bags (side)....................................... 125
Air cleaner............................................. 201
Air vents ............................................... 47
Armrest
– front................................................. 38
Ashtray................................................... 87
ASR ........................................................ 105
– activation/deactivation ................. 105
At the filling station............................. 125
Automatic climate control system .. 55
Automatic headlight sensor
(daylight sensor)................................ 92
Battery
– checking the charge ..................... 202
II I
N N
D D
E E
X X

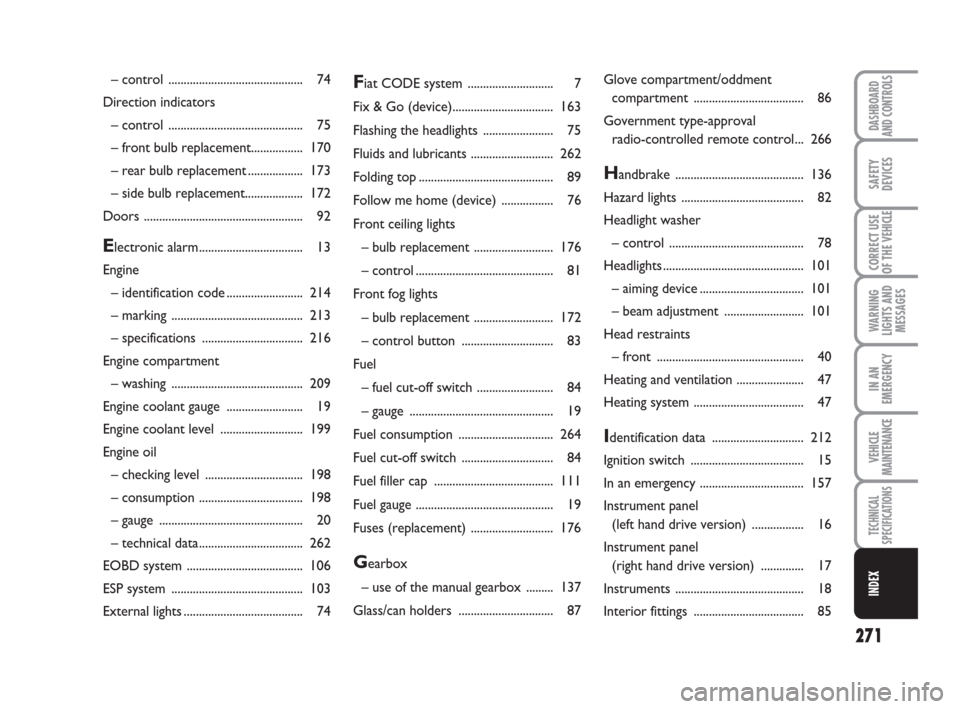

271
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Fiat CODE system ............................ 7
Fix & Go (device)................................. 163
Flashing the headlights ....................... 75
Fluids and lubricants ........................... 262
Folding top............................................ 89
Follow me home (device) ................. 76
Front ceiling lights
– bulb replacement .......................... 176
– control............................................. 81
Front fog lights
– bulb replacement .......................... 172
– control button .............................. 83
Fuel
– fuel cut-off switch ......................... 84
– gauge ............................................... 19
Fuel consumption ............................... 264
Fuel cut-off switch .............................. 84
Fuel filler cap ....................................... 111
Fuel gauge ............................................. 19
Fuses (replacement) ........................... 176
Gearbox
– use of the manual gearbox ......... 137
Glass/can holders ............................... 87Glove compartment/oddment
compartment .................................... 86
Government type-approval
radio-controlled remote control... 266
Handbrake .......................................... 136
Hazard lights ........................................ 82
Headlight washer
– control ............................................ 78
Headlights.............................................. 101
– aiming device.................................. 101
– beam adjustment .......................... 101
Head restraints
– front ................................................ 40
Heating and ventilation ...................... 47
Heating system .................................... 47
Identification data .............................. 212
Ignition switch ..................................... 15
In an emergency .................................. 157
Instrument panel
(left hand drive version) ................. 16
Instrument panel
(right hand drive version) .............. 17
Instruments .......................................... 18
Interior fittings .................................... 85 – control ............................................ 74
Direction indicators
– control ............................................ 75
– front bulb replacement................. 170
– rear bulb replacement.................. 173
– side bulb replacement................... 172
Doors .................................................... 92
Electronic alarm.................................. 13
Engine
– identification code......................... 214
– marking ........................................... 213
– specifications ................................. 216
Engine compartment
– washing ........................................... 209
Engine coolant gauge ......................... 19
Engine coolant level ........................... 199
Engine oil
– checking level ................................ 198
– consumption .................................. 198
– gauge ............................................... 20
– technical data.................................. 262
EOBD system ...................................... 106
ESP system ........................................... 103
External lights....................................... 74

272
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Oddment compartment under
the front passenger's seat ............... 86
Oddment compartments .................. 85
Operation at low temperatures ...... 110
Paint ..................................................... 208
Parking .................................................. 136
Parking sensors ................................... 107
Performance ........................................ 229
Plates
– body paint....................................... 213
– identification data.......................... 212
Pollen filter............................................ 202
Power steering fluid level................... 201
Power windows
– controls .......................................... 97
Pretensioners........................................ 116
Protecting the environment ............. 112
Radio-controlled remote control
– government type-approval.......... 266
Radio transmitters and cellular
telephones.......................................... 110
Rain sensor .......................................... 78
Reading/writing desk........................... 88
Rear ceiling lights– bulb replacement .......................... 176
– control............................................. 82
Rear double door................................ 96
Rear fog lights
– bulb replacement .......................... 173
– control button .............................. 83
Rearview camera .............................40-89
Rearview mirrors................................. 45
– door mirrors ................................. 45
– driving mirror ................................ 45
– electric ............................................ 46
Refrigerated compartment................ 85
Refuelling .............................................. 111
Rev counter ......................................... 18
Reversing light ..................................... 173
Rims
– understanding rim marking.......... 220
Roof rack/ski rack................................ 100
Safety devices...................................... 113
Seat adjustment ................................... 37
Seat belts............................................... 114
– general warnings ........................... 117
– load limiters.................................... 116
– maintenance .................................. 109 Interiors ................................................ 209
Isofix....................................................... 124
Jacking the vehicle .............................. 186
Key with remote control ................ 9
Key without remote control ........... 11
Levels
– brake fluid ...................................... 200
– engine coolant ............................... 199
– engine oil ........................................ 198
– power steering fluid ..................... 201
– windscreen/rear window/
headlight washer............................ 200
Load limiters ........................................ 116
Main beam headlights
– bulb replacement .......................... 171
– control ............................................ 75
– flashing ............................................ 75
Manual climate control system ......... 51
Mobile footboard................................. 95
Multifunction display .......................... 26
Multimeter ........................................... 91
Number plate light ............................ 175
