2008 FIAT BRAVO dashboard and controls

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
116
Below is a summary of the rules of
safety to be followed for carrying
children:
1) The recommended position for in-
stalling child’s seat is on the rear seat, as
it is the most protected in the case of a
crash.
2) If the passenger airbag is deactivated,
always check that it is properly deactivat-
ed by ensuring the warning light “is on
with a fixed light on the instrument pan-
el.
3) Attain to the instructions for fastening
the specific child restraint system which
you are using. These instructions must be
provided by the manufacturer. Keep the
child restraint system installation instruc-
tions with the car documents and this
Handbook. Never use a child restraint sys-
tem without installation instructions.4) Always check the seat belt is well fas-
tened by pulling the webbing.
5) Only one child is to be strapped to
each retaining system.
6) Always check the seat belts do not fit
around the child’s throat.
7) While travelling, do not let the child
sit incorrectly or release the belts.
8) Passengers should never carry children
on their laps. No-one, however strong
they are, can hold a child in the event of
a crash.
9) In case of an accident, replace the
child’s seat with a new one.
With passenger’s air bag ac-
tive, never place child’s seats
with the cradle facing backwards
since the air bag activation could
cause to the child serious injuries,
even mortal, regardless of the seri-
ousness of the crash that triggered it.
You are advised to carry children al-
ways with proper restraint systems on
the rear seats, as this is the most pro-
tected position in the case of a crash.
WARNING
105-128 BRAVO GB 29-10-2008 12:31 Pagina 116

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
117
fig. 13F0Q0698m
fig. 12F0Q0614m
PRESETTING FOR
MOUNTING THE
ISOFIX CHILD
RESTRAINT SYSTEM
This car is preset for mounting the Uni-
versal Isofix child restraint system, a new
European standardised system for carry-
ing children safely.
It is possible to mount at the same time
both the traditional restraint system and
the Isofix one.
Fig. 12shows a child’s seat by way of ex-
ample. The Universal Isofix child’s seat
covers weight group: 1.
Other weight groups are covered by a
specific Isofix child seat that can be used
only if specifically designed, tested and ap-
proved for his vehicle (see the list of ve-
hicles accompanying the child seat).
Due to its different anchoring system, the
Universal Isofix child’s seat shall be an-
chored to the proper lower metal rings
A-fig. 13, set between rear seat back and
cushion. The upper belt (provided with
the child’s seat) shall be then secured to
ring B-fig. 14set at the back of the seat
backrest at child’s seat height.Remember that in case of Universal Isofix
child’s seat, you can only use all those
seats approved with the marking ECE
R44/03 Isofix.
105-128 BRAVO GB 29-10-2008 12:31 Pagina 117

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
118
fig. 14F0Q0699m
At Lineaccessori Fiat is available the “Duo
Plus” Universal Isofix child’s seat .
For any further installation/use detail, re-
fer to the “Instructions Manual” that must
be provided by the child’s restraints sys-
tem Manufacturer.
Mount the child restraint
system only with the car sta-
tionary. The Isofix child restraint sys-
tem is properly anchored to the
mounting brackets when clicks are
heard. In any case, keep to the in-
stallation instructions that must be
provided by the child restraint system
Manufacturer.
WARNING
105-128 BRAVO GB 29-10-2008 12:31 Pagina 118

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
119
IUF: suitable for Isofix child restraint systems to be set facing forwards, universal class (fitted with third upper fastener), ap-
proved for the weight group.
IL: suitable for Isofix TYPE child restraint systems, specific and approved for this type of car. The child’s seat can be installed by
moving forward the front seat.
(*) The Isofix child seat can be mounted by positioning the front seat at its full height. PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON UNIVERSAL ISOFIX CHILD’S SEAT USE
The table below, according to ECE 16 European Directive, shows the different installation possibilities of Universal Isofix restraint
systems on seats fitted with Isofix fasteners.
Range of weight Child’s seat Isofix class Isofix position
orientation side rear
Group 0 to 10 kg
Group 0+ to 13 kg
Group I - 9 to 18 kg
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing forwards
Facing forwards
Facing forwardsE
E
D
C
D
C
B
B1
AIL
IL
IL
IL (*)
IL
IL (*)
IUF
IUF
IUF
105-128 BRAVO GB 29-10-2008 12:31 Pagina 119

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
120
FRONT AIR BAGS
The car is fitted with front air bags for the
driver, for the passenger and with driver’s
knees air bag (where provided).
The front air bags (driver and passenger)
and driver’s knees air bag (where provid-
ed) have been designed to protect the oc-
cupants in the event of head-on crashes of
medium-high severity, by placing the cush-
ion between the occupant and the steer-
ing wheel or dashboard.
Front air bags are designed to protect
car’s occupants in front crashes and there-
fore non-activation in other types of col-
lisions (side collisions, rear shunts, roll-
overs, etc.) is not a system malfunction.In case of front crash, an electronic con-
trol unit, when required, triggers the in-
flation of the cushion according to the
severity of the collision. The cushion im-
mediately inflates, placing itself as a pro-
tection between the body of the front oc-
cupants and the structure that could cause
injuries. Immediately after, the cushion de-
flates.
The front driver / passenger air bags and
the driver’s knees air bag (where provid-
ed) are not a replacement of but comple-
mentary to the use of belts, which should
always be worn, as specified by law in Eu-
rope and most non European countries.
In case of crash, a person not wearing the
seat belt moves forward and may come in-
to contact with the cushion while it is still
inflating. Under this circumstance the pro-
tection offered by the air bag is reduced.
Do not apply stickers or oth-
er objects to the steering
wheel or to the air bag cover on the
passenger’s side or on the side roof
lining. Do not put objects on the
dashboard on passenger side since
they could interfere with proper pas-
senger air bag inflation and cause in-
juries to the car’s passengers.
WARNING
Front air bag may not be activated in the
following situations:
❒front collisions against highly de-
formable objects not affecting the car
front surface (e.g. bumper collision
against guard rail, etc.);
❒in case of wedging under other vehicles
or protective barriers (for example un-
der a truck or guard rail);
as it offers no additional protection com-
pared with the seat belts, consequently,
it would be pointless. Therefore, failure to
come into action in the above circum-
stances does not mean that the system is
not working properly.
105-128 BRAVO GB 29-10-2008 12:31 Pagina 120

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
121
DRIVER’S FRONT AIR BAG fig. 15
It consists of an instant-inflating cushion
contained in a special recess in the cen-
tre of the steering wheel.PASSENGER’S FRONT AIR BAG
fig. 16
It consists of an instant-inflating cushion
contained into a special recess in the
dashboard, this cushion has a volume big-
ger than that of the driver.
The driver’s and passenger’s front Air bags
have been designed and calibrated to im-
prove the protection of a person wear-
ing seat belts.
At their maximum inflation, their volume
fills most of the space between the dash-
board and the passenger.
fig. 15F0Q0624mfig. 16F0Q0700m
SERIOUS DANGER: With
passenger’s air bag active,
never place child’s seats with
the cradle facing backwards
since the air bag activation
could cause to the child serious in-
juries, even mortal. In the case of
need, always deactivate the passen-
ger’s air bag when a child’s seat is
placed on the front seat. The front
passenger’s seat shall be adjusted in
the most backward position to pre-
vent any contact between child’s seat
and dashboard. Even if not compul-
sory by law, you are recommended to
reactivate the air bag immediately as
soon as child transport is no longer
necessary.
WARNING
Always keep your hands on
the steering wheel rim when
driving, so that if the air bag is trig-
gered, it can inflate without meeting
any obstacles which could cause seri-
ous harm to you. Do not drive with
the body bent forwards, keep the seat
back rest in the erect position and
lean your back well against it.
WARNING
105-128 BRAVO GB 29-10-2008 12:31 Pagina 121

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
122

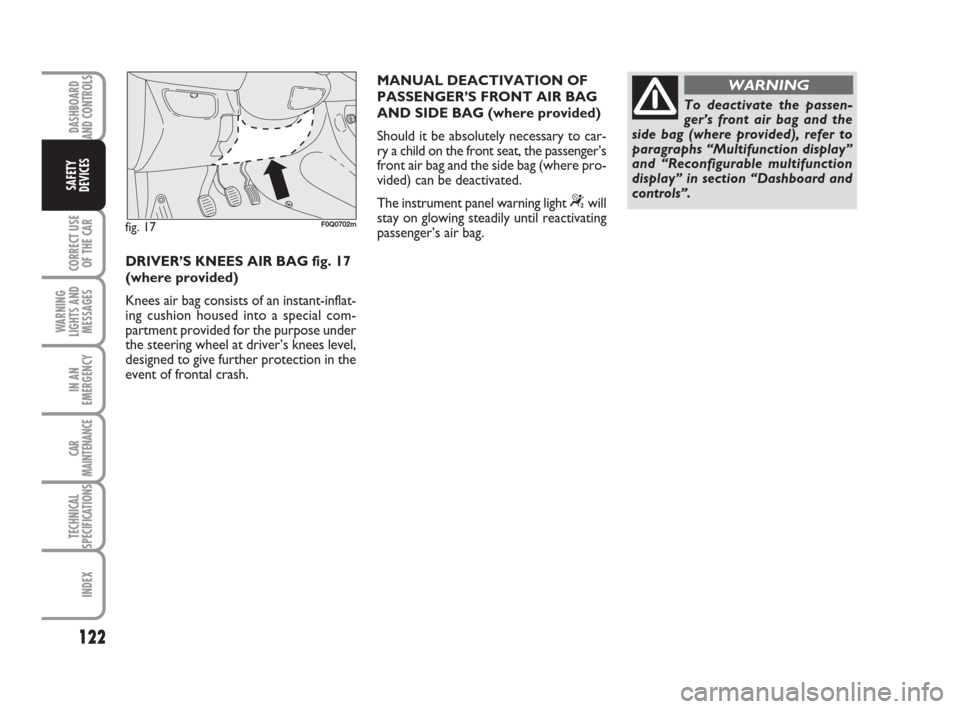

MANUAL DEACTIVATION OF
PASSENGER’S FRONT AIR BAG
AND SIDE BAG (where provided)
Should it be absolutely necessary to car-
ry a child on the front seat, the passenger’s
front air bag and the side bag (where pro-
vided) can be deactivated.
The instrument panel warning light
“will
stay on glowing steadily until reactivating
passenger’s air bag.
DRIVER’S KNEES AIR BAG fig. 17
(where provided)
Knees air bag consists of an instant-inflat-
ing cushion housed into a special com-
partment provided for the purpose under
the steering wheel at driver’s knees level,
designed to give further protection in the
event of frontal crash.
fig. 17
AUT
O
F0Q0702m
To deactivate the passen-
ger’s front air bag and the
side bag (where provided), refer to
paragraphs “Multifunction display”
and “Reconfigurable multifunction
display” in section “Dashboard and
controls”.
WARNING
105-128 BRAVO GB 29-10-2008 12:31 Pagina 122

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
123
SIDE AIR BAGS
(Side bag -
Window bag)
The car is fitted with front side bags for
driver and passenger (where provided) for
protecting the chest and window bags
(where provided) for protecting front and
rear passengers’ head.
Side bags protect car occupants from side
crashes of medium-high severity, by plac-
ing the cushion between the occupant and
the internal parts of the side structure of
the car.
Non-activation of side bags in other types
of collisions (front collisions, rear shunts,
roll-overs, etc...) is not a system malfunc-
tion.In case of side crash, an electronic control
unit, when required triggers the inflation
of the cushion. The cushion immediately
inflates, placing itself as a protection, be-
tween the occupant’s body and the struc-
ture that could cause injuries. Immediate-
ly after, the cushion deflates.
Side bags are not a replacement of but
complementary to the belts, which you
are recommended to always wear, as
specified by law in Europe and most non-
European countries.
SIDE BAGS (where provided)
They consist of two types of instant infla-
tion cushions and are housed in the back
rests of the front seats fig. 18. The task
of the side air bags is to increase protec-
tion of the occupants’ chest in the event
of a side crash of medium-high severity.
fig. 18F0Q0701m
105-128 BRAVO GB 29-10-2008 12:31 Pagina 123
