312 OperationDriving tips
4
You will find information about the
speed limit for your tires under “Tires
and wheels” in this section
(\2
page 383).
Check regularly, e.g. weekly or when re-
fueling:
\4
the vehicle lighting
\4
the condition of the tires
(\2
page 346) and the tire pressures
(
\2
page 361)
\4
the engine oil level (
\2
page 322)
\4
the brake fluid level (
\2
page 331)
\4
the fluid level in the windshield wash-
er system / headlamp cleaning sys-
tem reservoir (
\2
page 333)
\4
the contamination level of the rear
air-conditioning air cleaner
(\2
page 414)
Your vehicle is equipped with monolith-
ic-type catalytic converters, an impor-
tant element in conjunction with the
oxygen sensors to achieve substantial
control of the pollutants in the exhaust
emissions. Keep your vehicle in proper
operating condition by following our rec-
ommended maintenance instructions as
outlined in your Service Booklet.
Warning
G
Exceeding the permissible maximum
speed can cause tire damage, which
could lead to loss of control of the vehi-
cle.
As the driver, you must find out about the
maximum speed of the vehicle and the re-
sulting permissible maximum speed of
the tires (tire and tire pressure).
Never exceed the speed limit for your
tires under any circumstances
(\2page 383).
Regular checks
Catalytic converter (gasoline engine)
nf_BA.book Page 312 Friday, January 25, 2008 3:53 PM

333 Operation
Engine compartment
4
For specifications of brake fluid, see
"Service products and capacities"
(\2
page 616).The windshield washer reservoir is in the
engine compartment. It holds approx.
7.4 US qt (7.0 l).
On vehicles with a headlamp cleaning
system, this is also supplied from the
windshield washer reservoir.
1Coolant tank cap
2Brake fluid reservoir cap
3Windshield washer reservoir capAdd windshield washer fluid concentrate
to the water all year round.
Warning
G
If the boiling point of the brake fluid is too
low, vapor pockets may form in the brake
system when the brakes are applied hard
(e.g. when driving on long downhill
stretches). This has a detrimental effect
on braking efficiency, which could in-
crease the stopping distance. This in-
creases the risk of an accident.
Have the brake fluid replaced every
two years.
Windshield washer system/
headlamp cleaning system*
N20.30-2063-31
nf_BA.book Page 333 Friday, January 25, 2008 3:53 PM

422 OperationCleaning and care of the vehicle
4
Headlamps
\1
Wipe the headlamp lenses with a
damp sponge.
Parktronic sensors* The sensors are located in the front and
rear bumpers.\1
Clean the sensors in the bumpers us-
ing water, shampoo and a soft cloth.
Rear view camera lens* The rear view camera is located in the
center of the roof above the third brake
lamp.
!
CAUTION
Only use washer fluid which is suit-
able for plastic lamp lenses.
Unsuitable washer fluid may damage
the plastic headlamp lenses.
For this reason, do not use a dry
cloth, abrasive material, solvent or
solvent-based cleaning agent. You
could otherwise scratch or damage
the lens surface.
1 Parktronic sensors
!
CAUTION
D o n o t u s e d r y , c o a r s e o r h a r d c l o t h s
and do not scrub. You will otherwise
scratch or damage the sensors.
If you clean the sensors with a high-
pressure cleaner or steam cleaner,
observe the information provided by
the manufacturer regarding the dis-
tance to be maintained between the
vehicle and the nozzle of the high-
pressure cleaner.
nf_BA.book Page 422 Friday, January 25, 2008 3:53 PM

442 Practical hintsWhat to do if ...
5
Headlamps and turn signalsWarning
G
Always have maintenance work carried
out at an authorized Sprinter Dealer
Continued
Warning (Continued)
G
which has the necessary specialist knowl-
edge and tools to carry out the work required.The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose.
Continued
Warning (Continued)
G
I n p a r t i c u l a r , w o r k r e l e v a n t t o s a f e t y o r o n
safety-related systems must be carried
out at an authorized Sprinter Dealer.
There is a risk of an accident and injury if
this work is carried out incorrectly.
Problem
Possible cause / result
Suggested solutions
The headlamps are fogged up on the inside.
Air humidity is very high.
\1
Drive with the lights on.
The headlamps will defrost after the vehicle
has been driven a short distance.
Moisture has penetrated the headlamp housing since
it is not water-tight.
\1
Have the headlamps checked at an autho-
rized Sprinter Dealer.
nf_BA.book Page 442 Friday, January 25, 2008 3:53 PM

482 Practical hintsWhat to do if ...
5
Problem
Possible cause / result
Suggested solutions
/
The yellow water separator indi-
cator lamp
1 lights up while the ig-
nition is on.
The water that has collected in the water sepa-
rator has reached the maximum level.
\1Drain the water separator
(\2page 542).
\1Have the water separator drained at an
authorized Sprinter Dealer.
W
The yellow washer fluid level indi-
cator lamp for the windshield
washer / headlamp cleaning sys-
tem lights up after the engine is
started or while the vehicle is in
motion.
The windshield washer fluid level is too low.
\1Check the fluid level in the reservoir
and add windshield washer fluid if nec-
essary (\2page 333).
<

The red seat belt telltale lights up
for approximately 6 seconds
when the ignition is switched on.
A signal also sounds.
The telltale reminds you to fasten your seat
belt.
\1Fasten your seat belt.
nf_BA.book Page 482 Friday, January 25, 2008 3:53 PM

503 Practical hints
Display messages
5
.
Low beam left
The left-hand low-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
Low beam right
The right-hand low-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
Turn signal left
The left-hand turn signal is malfunctioning.
\1Change the bulb as soon as possible.
Turn signal right
The right-hand turn signal is malfunctioning.
\1Change the bulb as soon as possible.
Brake lamp left
The left-hand brake lamp is malfunctioning.
\1Change the bulb as soon as possible.
Brake lamp right
The right-hand brake lamp is malfunctioning.
\1Change the bulb as soon as possible.
Third brake lamp
The third brake lamp is malfunctioning. This
message will only appear if all LEDs have
failed.
\1Visit an authorized Sprinter Dealer as soon
as possible.
High beam left
The left-hand high-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
Display symbol
Display message
Possible cause / result
Possible solution
nf_BA.book Page 503 Friday, January 25, 2008 3:53 PM

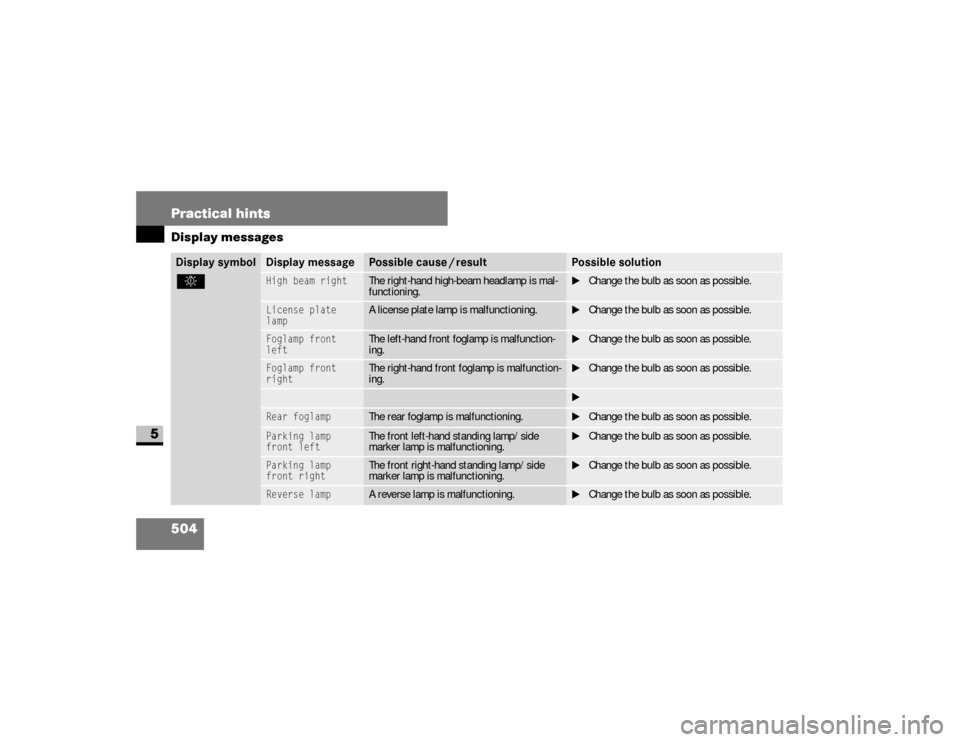

504 Practical hintsDisplay messages
5
.
High beam right
The right-hand high-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
License plate
lamp
A license plate lamp is malfunctioning.
\1Change the bulb as soon as possible.
Foglamp front
left
The left-hand front foglamp is malfunction-
ing.
\1Change the bulb as soon as possible.
Foglamp front
right
The right-hand front foglamp is malfunction-
ing.
\1Change the bulb as soon as possible.\1
Rear foglamp
The rear foglamp is malfunctioning.
\1Change the bulb as soon as possible.
Parking lamp
front left
The front left-hand standing lamp/side
marker lamp is malfunctioning.
\1Change the bulb as soon as possible.
Parking lamp
front right
The front right-hand standing lamp/side
marker lamp is malfunctioning.
\1Change the bulb as soon as possible.
Reverse lamp
A reverse lamp is malfunctioning.
\1Change the bulb as soon as possible.
Display symbol
Display message
Possible cause / result
Possible solution
nf_BA.book Page 504 Friday, January 25, 2008 3:53 PM

506 Practical hintsDisplay messages
5
.
Trailer tail lamp
A trailer tail lamp or license plate lamp is
malfunctioning.
\1Change the bulb as soon as possible.
Switch off lights
You have forgotten to switch off the lights
when leaving the vehicle.
\1Switch off the lights.
Lights on auto-
matic.
Remove key
Automatic headlamp mode is active
(\2page 132). The key is in the ignition lock
and the driver’s door is open.
\1Remove the key.
I
Replace key
Visit
workshop
The authorization to drive must be checked.
\1Visit an authorized Sprinter Dealer.
Display symbol
Display message
Possible cause / result
Possible solution
