2008 DODGE SPRINTER stop start

502 Practical hintsDisplay messages
5
Z
Coolant
Stop, turn engine
off
The coolant temperature is too high.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
If the vehicle is switched off after being
subjected to extreme loads (for example driving
in mountainous terrain, trailer towing, etc.), this
message may be displayed when the ignition is
switched on or the engine is restarted. Run the
engine for approximately 1 minute at idling
speed.
Consult an authorized Sprinter Dealer if the
message remains displayed.
H
Coolant
Check level
The coolant level is too low.
Never run the engine if the coolant level is
too low. The engine could overheat and be
damaged.
\1Add coolant (\2page 329).
\1If you are having to add coolant frequently,
have the cooling system checked at an au-
thorized Sprinter Dealer.
Display symbol
Display message
Possible cause / result
Possible solution
nf_BA.book Page 502 Friday, January 25, 2008 3:53 PM

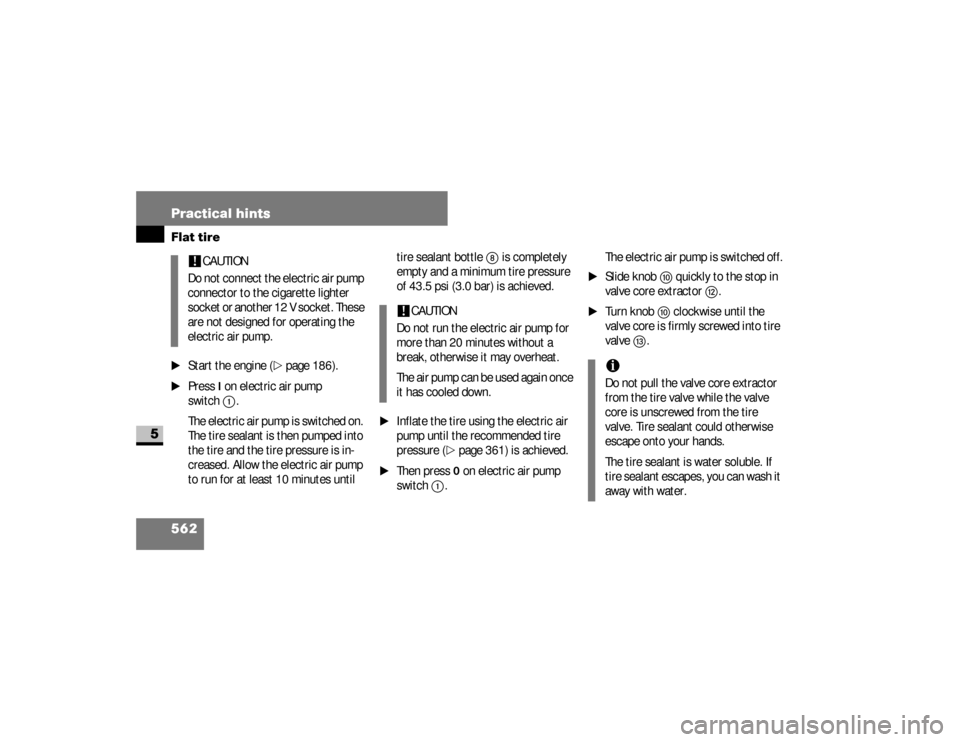

562 Practical hintsFlat tire
5
\1
Start the engine (
\2
page 186).
\1
Press
I on electric air pump
switch1
.
The electric air pump is switched on.
The tire sealant is then pumped into
the tire and the tire pressure is in-
creased. Allow the electric air pump
to run for at least 10 minutes until tire sealant bottle
8
is completely
empty and a minimum tire pressure
of 43.5 psi (3.0 bar) is achieved.
\1
Inflate the tire using the electric air
pump until the recommended tire
pressure (
\2
page 361) is achieved.
\1
Then press
0 on electric air pump
switch
1
.The electric air pump is switched off.
\1
Slide knob
a
quickly to the stop in
valve core extractor
c
.
\1
Turn knob
a
clockwise until the
valve core is firmly screwed into tire
valve
d
.
!
CAUTION
Do not connect the electric air pump
connector to the cigarette lighter
socket or another 12 V socket. These
are not designed for operating the
electric air pump.
!
CAUTION
Do not run the electric air pump for
more than 20 minutes without a
break, otherwise it may overheat.
The air pump can be used again once
it has cooled down.
iDo not pull the valve core extractor
from the tire valve while the valve
core is unscrewed from the tire
valve. Tire sealant could otherwise
escape onto your hands.
The tire sealant is water soluble. If
tire sealant escapes, you can wash it
away with water.
nf_BA.book Page 562 Friday, January 25, 2008 3:53 PM

565 Practical hints
Flat tire
5
\1
Connect connector
6
to the 12 V
socket (12 V, 25 A, 300 watts) on
the center console (
\2
page 297).
\1
Start the engine (
\2
page 186).
\1
Press
I on electric air pump
switch1
.
The electric air pump is switched on.
The tire sealant is then pumped into
the tire and the tire pressure is in-
creased. Allow the electric air pump
to run for at least 10 minutes until
tire sealant bottle
8
is completely
empty and a minimum tire pressure
of 43.5 psi (3.0 bar) is achieved.
\1
Inflate the tire using the electric air
pump until the recommended tire
pressure (
\2
page 361) is achieved.
\1
Then press
0 on electric air pump
switch
1
.
The electric air pump is switched off.
\1
Slide knob
c
quickly to the stop in
valve core extractor
a
.
!
CAUTION
Do not connect the electric air pump
connector to the cigarette lighter
socket or another 12 V socket. These
are not designed for operating the
electric air pump.
!
CAUTION
Do not run the electric air pump for
more than 20 minutes without a
break, otherwise it may overheat.
The air pump can be used again once
it has cooled down.
nf_BA.book Page 565 Friday, January 25, 2008 3:53 PM

568 Practical hintsFlat tire
5
cAngle bracket
dHook
\1
Hook tire sealant valve
8
into the
upper vent hole in the wheel using
hook
d
.
\1
Press angle bracket
c
on hose of
tire sealant bottle
8
(\2
page 560)
to the stop on tire valveb
and
clamp it into place.
\1
Make sure that the pressure release
screw on pressure gauge
5
is
closed.
\1
Connect connector
6
to the 12 V
socket (12 V, 25 A, 300 watts) on
the center console (
\2
page 297).
\1
Start the engine (
\2
page 186).
\1
Press
I on electric air pump
switch1
.
The electric air pump is switched on.
The tire sealant is then pumped into
the tire and the tire pressure is in-
creased.
!
CAUTION
Do not connect the electric air pump
connector to the cigarette lighter
socket or another 12 V socket.
These are not designed for operating
the electric air pump.
nf_BA.book Page 568 Friday, January 25, 2008 3:53 PM

639 Index
stopping . . . . . . . . . . . . . . . . . . . 206
towing . . . . . . . . . . . . . . . . . . . . 587
trailer towing . . . . . . . . . . . . . . . 207
working on the vehicle . . . . . . . . 207Auxiliary heating
. . . . . . . . . . . . . 236
heater booster function . . . . . . . 234
malfunctions . . . . . . . . . . . . . . . 453
with water heater
changing the remote control
batteries . . . . . . . . . . . . . . . . . 541
remote control . . . . . . . . . . . . 239
selecting a switch-on time . . . 240
setting the switch-on time . . . 242
B
Bar
. . . . . . . . . . . . . . . . . . . . . . . . 394
BASsee Brake AssistBatteryauxiliary . . . . . . . . . . . . . . . . . . . 577
charge indicator lamp . . . . . . . . 469
check lamp (auxiliary heating
remote control) . . . . . . . . . . . . . 240
display message . . . . . . . . . . . . 497
in the auxiliary heating remote
control . . . . . . . . . . . . . . . . . . . . 541
in the engine compartment . . . . 577
in the key . . . . . . . . . . . . . . . . . . 540
indicator lamp (key) . . . . . . . . . . . 86
isolating switch . . . . . . . . . 338
,339
recharging . . . . . . . . . . . . . . . . . 579
reconnecting . . . . . . . . . . . . . . . 580
removing . . . . . . . . . . . . . . . . . . 578safety notes . . . . . . . . . . . . . . . . 335
starter battery
disconnecting . . . . . . . . . . . . 575
Bead
. . . . . . . . . . . . . . . . . . . . . . . 394
Belt force limiters
. . . . . . . . . . . . .44
Bi-xenon headlamps
. . . . . . . . . . 527
driving abroad . . . . . . . . . . . . . . 311
Body builder guideline
. . . . . . . . . .11
Bottle holdersee Cup holdersBrake Assist (BAS)
. . . . . . . . . . . . .71
display message . . . . . . . . 500
–501
indicator lamp . . . . . . . . . . 462,465
malfunction . . . . . . . . . . . . . . . . 465
Brake fluid
. . . . . . . . . . . . . . . . . . 617
checking the brake fluid level . . 331
display message . . . . . . . . . . . . 498
B
