2008 DODGE RAM 3500 GAS keyless

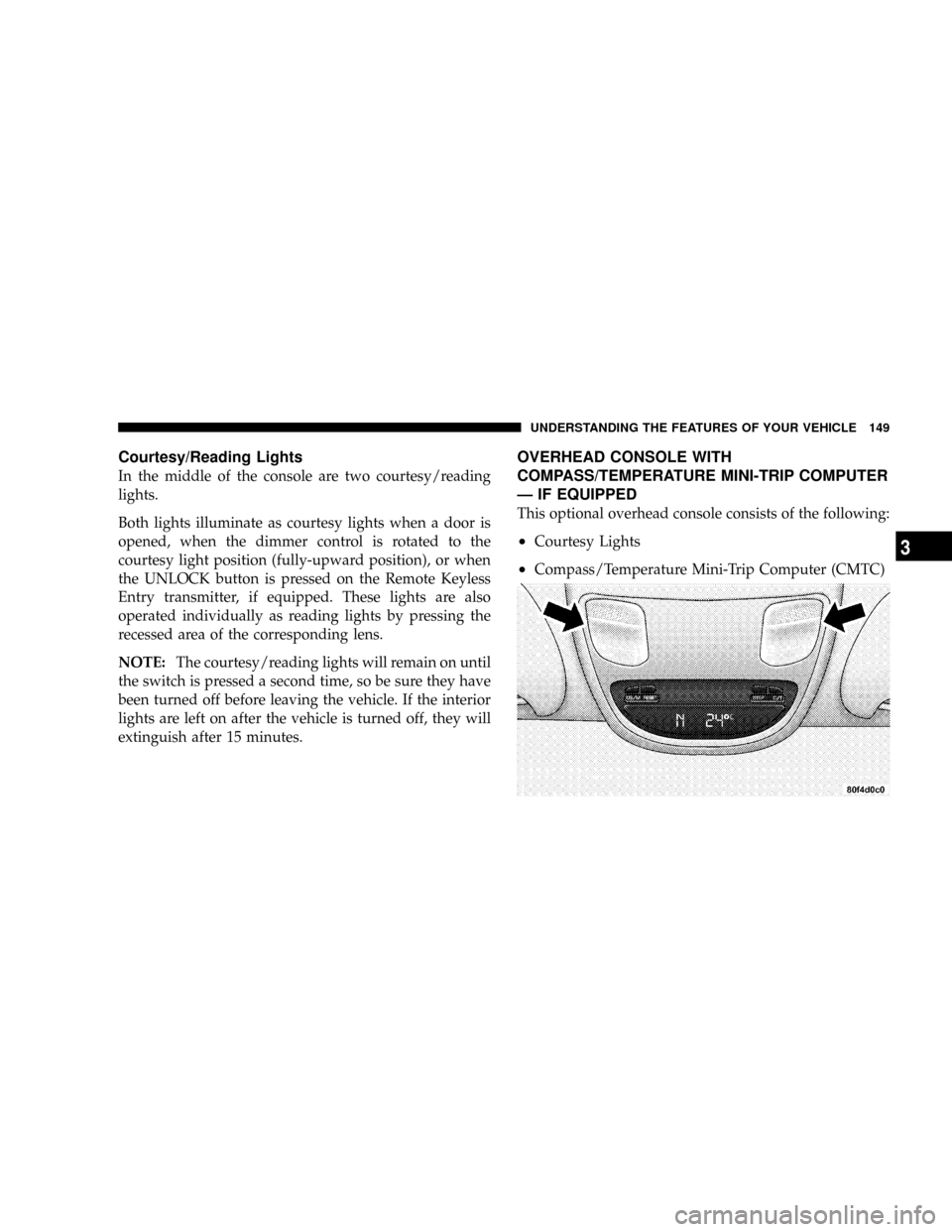

Courtesy/Reading Lights
In the middle of the console are two courtesy/reading
lights.
Both lights illuminate as courtesy lights when a door is
opened, when the dimmer control is rotated to the
courtesy light position (fully-upward position), or when
the UNLOCK button is pressed on the Remote Keyless
Entry transmitter, if equipped. These lights are also
operated individually as reading lights by pressing the
recessed area of the corresponding lens.
NOTE:The courtesy/reading lights will remain on until
the switch is pressed a second time, so be sure they have
been turned off before leaving the vehicle. If the interior
lights are left on after the vehicle is turned off, they will
extinguish after 15 minutes.
OVERHEAD CONSOLE WITH
COMPASS/TEMPERATURE MINI-TRIP COMPUTER
Ð IF EQUIPPED
This optional overhead console consists of the following:
²Courtesy Lights
²Compass/Temperature Mini-Trip Computer (CMTC)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149
3

²Any time you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
NOTE:When reinstalling the IOD fuse push firmly until
fully seated; the gauges in the instrument cluster will do
a full sweep when the ignition key is cycled to RUN. This
is a normal condition.
NOTE:
When the vehicle is shipped from the factory, the
IOD fuse is in the up, or extracted position. If the radio,
interior lamps, keyless entry, or other features do not work
with the key OFF, check the position of the fuse (or check
to see if the fuse is blown) to ensure that it is fully seated.
When the IOD fuse is extracted, the instrument cluster in
the odometer window will display9NO FUSE.º
REPLACEMENT LIGHT BULBS
LIGHT BULBS Ð Interior Bulb No.
Overhead Console Lights............... TS212-2
Dome Light............................7679
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
LIGHT BULBS Ð Exterior Bulb No.
Backup...............................3057
Center High Mounted Stop Light............. 912
Fog Light...........................9006LL
Headlight (Halogen)...................... H13
Side Marker, Park & Turn Signal.........3157NAK
Rear License Plate Light.................... 168
Rear Cargo Light......................... 912
494 MAINTAINING YOUR VEHICLE

Heated Seats........................... 131
Heater............................... 261
Heater, Engine Block..................... 282
High Beam/Low Beam Select (Dimmer) Switch . . 140
Hitches
Trailer Towing........................ 389
Hoisting.............................. 434
HomeLinkt(Garage Door Opener) Transmitter . . . 156
Hood Release.......................... 133
Hoses................................ 470
Hub Caps............................. 429
Ignition............................... 12
Key ................................. 12
Ignition Key Removal..................... 12
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................62,63
Inflation Pressure Tires.................... 357Inside Rearview Mirror.................... 86
Instrument Cluster....................194,196
Instrument Panel and Controls.............. 193
Instrument Panel Lens Cleaning............. 488
Integrated Power Module (Fuses)............ 489
Interior Appearance Care.................. 487
Interior Lights.......................... 135
Intermittent Wipers (Delay Wipers)........... 141
Introduction............................. 4
Jack Location........................... 417
Jack Operation.......................422,423
Jacking Instructions...................... 422
Jump Starting.......................... 434
Key, Programming........................ 17
Key, Replacement........................ 16
Key, Sentry (Immobilizer)................... 15
Keyless Entry System...................... 21
INDEX 539
10

Radio, Navigation....................... 248
Radio Operation................... 211,219,233
Radio Remote Controls.................... 255
Radio, Satellite.......................248,251
Radio (Sound Systems).............. 211,219,233
Rear Axle (Differential).................... 474
Rear Seat, Folding....................126,128
Rear Wheel Bearings..................... 480
Rear Window Features.................... 182
Rear Window, Sliding..................... 183
Reclining Front Seats.................. 119,120
Reclining Rear Seats...................... 126
Recorder, Event Data...................... 60
Recreational Towing...................... 406
Shifting into Transfer Case Neutral (N)....407,409
Shifting out of Transfer Case Neutral (N) . . . 408,411
Reformulated Gasoline.................... 372
Refrigerant............................ 460
Reminder, Seat Belt....................... 46Remote Control
Starting System........................ 25
Remote Keyless Entry (RKE)................. 21
Remote Sound System (Radio) Controls........ 255
Remote Starting System.................... 25
Replacement Keys........................ 16
Replacement Tires....................... 355
Reporting Safety Defects................... 526
Reset Switch ªLight Loadº (TPMS).........193,365
Resetting Oil Change Indicator.............. 200
Restraint, Head......................... 121
Restraints, Child.......................62,70
Restraints, Occupant...................... 34
Rotation, Tires.......................... 359
Safety Checks Inside Vehicle................. 79
Safety Checks Outside Vehicle............... 79
Safety Defects, Reporting.................. 526
Safety Information, Tire................... 339
544 INDEX
