Delayed Shifts in Cold Temperatures
During cold temperature operation, you may notice
delayed upshifts depending on engine and transmission
temperature as well as vehicle speed. This feature im-
proves warm up time of the engine and transmission to
achieve maximum efficiency.
Temporary Transmission Limp Home Mode
The transmission is monitored for abnormal conditions.
If a condition is detected that could result in transmission
damage, the transmission will engage Limp Home Mode.
If vehicle acceleration worsens, or the transmission no
longer shifts, the transmission is most likely operating in
the Limp Home Mode. In this mode, the transmission
will remain in the current gear until the vehicle is
brought to a stop. After the vehicle has stopped, PARK,
REVERSE, and NEUTRAL will continue to operate. Sec-
ond gear will operate in the DRIVE position. The Mal-
function Indicator Light (MIL) may be illuminated.A reset feature is available to allow the vehicle to be
driven to an authorized dealer for service. To reset the
transmission, use the following procedure:
1. Stop the vehicle.
2. Move the shift lever to the PARK position.
3. Turn OFF the engine.
4. Wait approximately 10 seconds.
5. Restart the engine.
6. Move the shift lever to the desired range. If the
problem is no longer detected, the transmission will
return to normal operation.
NOTE:Even if the transmission can be reset, we recom-
mend that you visit your authorized dealer at your
earliest possible convenience. Your authorized dealer has
diagnostic equipment to determine if the problem could
recur.
STARTING AND OPERATING 289
5

These indicators are molded into the bottom of the tread
grooves. They will appear as bands when the tread depth
becomes 1/16 in (2 mm). When the tread is worn to the
tread wear indicators, the tire should be replaced.
Many states have laws requiring tire replacement at this
point.
Life of Tire
The service life of a tire is dependent upon varying
factors including, but not limited to:
•Driving style
•Tire pressure
•Distance driven
WARNING!
Tires and the spare tire should be replaced after six
years, regardless of the remaining tread. Failure to
follow this warning can result in sudden tire failure.
You could lose control and have an accident resulting
in serious injury or death.
Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact
with oil, grease, and gasoline.
STARTING AND OPERATING 321
5

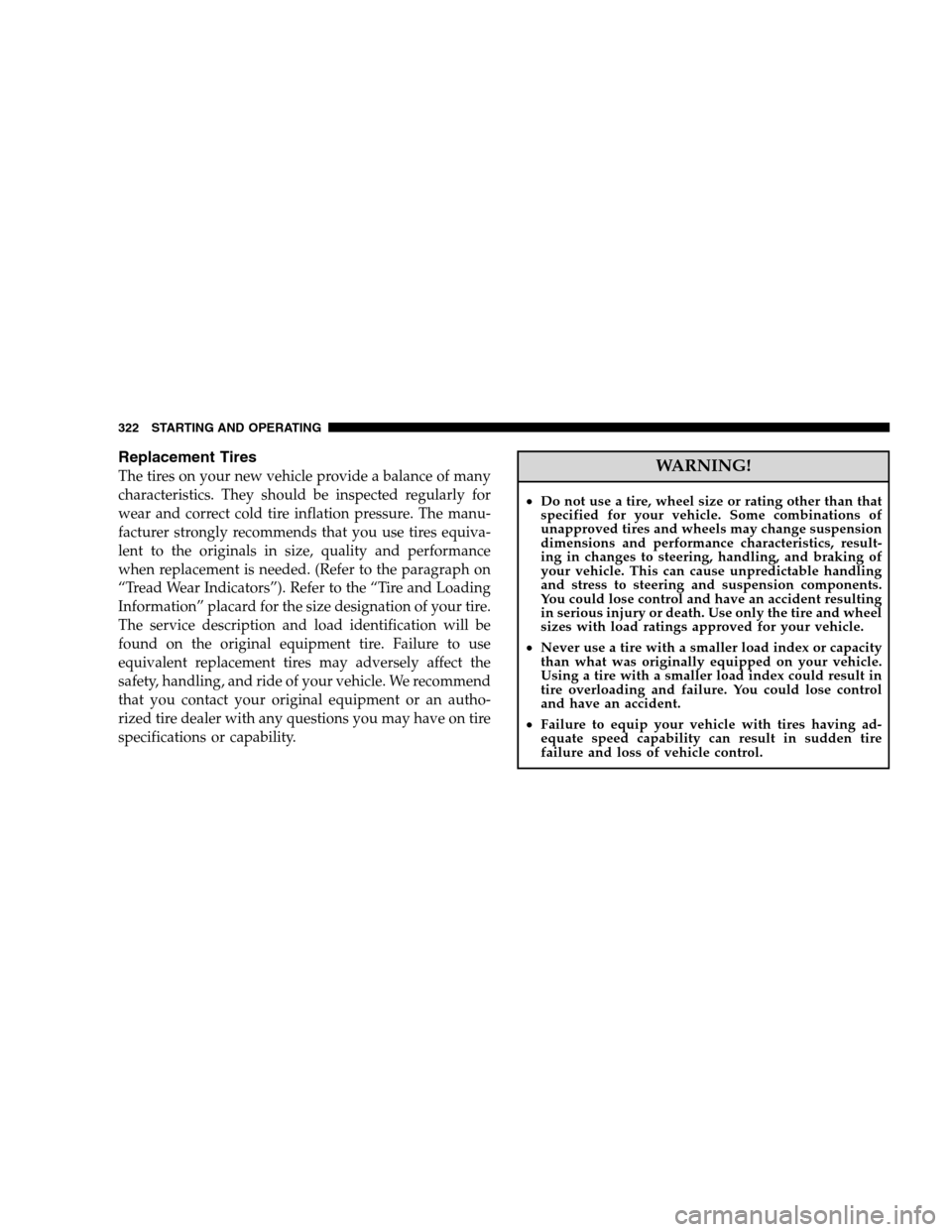

Replacement Tires
The tires on your new vehicle provide a balance of many
characteristics. They should be inspected regularly for
wear and correct cold tire inflation pressure. The manu-
facturer strongly recommends that you use tires equiva-
lent to the originals in size, quality and performance
when replacement is needed. (Refer to the paragraph on
“Tread Wear Indicators”). Refer to the “Tire and Loading
Information” placard for the size designation of your tire.
The service description and load identification will be
found on the original equipment tire. Failure to use
equivalent replacement tires may adversely affect the
safety, handling, and ride of your vehicle. We recommend
that you contact your original equipment or an autho-
rized tire dealer with any questions you may have on tire
specifications or capability.WARNING!
•Do not use a tire, wheel size or rating other than that
specified for your vehicle. Some combinations of
unapproved tires and wheels may change suspension
dimensions and performance characteristics, result-
ing in changes to steering, handling, and braking of
your vehicle. This can cause unpredictable handling
and stress to steering and suspension components.
You could lose control and have an accident resulting
in serious injury or death. Use only the tire and wheel
sizes with load ratings approved for your vehicle.
•Never use a tire with a smaller load index or capacity
than what was originally equipped on your vehicle.
Using a tire with a smaller load index could result in
tire overloading and failure. You could lose control
and have an accident.
•Failure to equip your vehicle with tires having ad-
equate speed capability can result in sudden tire
failure and loss of vehicle control.
322 STARTING AND OPERATING

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the Malfunction Indicator Light (MIL). It will
also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
Prolonged driving with the “MIL” on could cause
further damage to the emissions control system. It
could also affect fuel economy and driveability. The
vehicle must be serviced before any emissions tests
can be performed.
If the “MIL” is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
MAINTAINING YOUR VEHICLE 381
7

fused by the 25-amp circuit breaker in cavity 11. The
passenger SEAT switch is fused by the 25-amp circuit
breaker in cavity 12. The door modules, the driver power
WINDOW switch, and the passenger power WINDOW
switch are fused by the 25-amp circuit breaker in cavity
13. If you experience temporary or permanent loss of
these systems, see your authorized dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This willensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb Number
Rear Courtesy/Reading Lights.............. W5W
Rear Compartment (Liftgate) Light............ 578
Overhead Console Reading Lights............. 578
Visor Vanity Lights.....................A6220
Glove Box Light......................... 194
Door Courtesy.......................... 562
Shift Indicator Light................. JKLE14140
Optional Door Map Pocket / Cupholder
Lighting........ LED(ServicedatAuthorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
420 MAINTAINING YOUR VEHICLE

Check Engine Light (Malfunction
Indicator Light)......................... 382
Checking Your Vehicle For Safety............. 74
Checks, Safety........................... 74
Child Restraint.................... 63,65,69,70
Child Restraint Tether Anchors............. 67,69
Child Safety Locks........................ 30
Clean Air Gasoline....................... 338
Cleaning
Wheels............................. 410
Windshield Wiper Blades................. 395
Climate Control......................... 258
Clock ........................207,210,226,231
CoinHolder ........................... 157
Cold Weather Operation................... 279
Compact Disc (CD) Maintenance............. 257
Compass.............................. 195
Compass Calibration..................... 195
Compass Variance....................... 196Computer, Trip/Travel.................... 189
Connector
UCI ................................ 251
Universal Consumer Interface (UCI)......... 251
Console, Floor.......................... 157
Console, Overhead....................... 142
Contract, Service........................ 445
Converter, Catalytic...................... 389
Coolant Pressure Cap (Radiator Cap).......... 400
Cooling System......................... 397
Adding Coolant (Antifreeze).............. 399
Coolant Capacity...................... 429
Coolant Level......................398,401
Disposal of Used Coolant................ 401
Drain, Flush, and Refill.................. 398
Inspection........................... 401
Points to Remember.................... 401
Pressure Cap......................... 400
Radiator Cap......................... 400
INDEX 455
10

Bulb Replacement...................420,421
Courtesy/Reading...................131,142
Cruise .............................. 175
Daytime Running...................... 129
Dimmer Switch, Headlight.............129,130
Electronic Stability Program (ESP) Indicator . . . 307
Electronic Throttle Control Warning......... 176
Engine Temperature Warning.............. 178
Exterior.............................. 77
Fog .............................129,179
Hazard Warning Flasher................. 364
Headlight Switch...................... 126
Headlights........................126,423
Headlights On Reminder................. 129
Headlights On With Wipers............128,134
High Beam........................130,179
High Beam Indicator.................... 179
High Beam/Low Beam Select............. 130
Illuminated Entry....................... 20Instrument Cluster..................126,175
Intensity Control....................... 132
Interior..........................131,142
License............................. 428
Lights On Reminder.................... 129
Low Fuel............................ 184
LowTire ............................ 182
Malfunction Indicator (Check Engine)........ 184
Map Reading......................131,142
Oil Pressure.......................... 179
Parade Mode (Daytime Brightness).......... 132
Passing............................. 131
Reading..........................131,142
Seat Belt Reminder..................... 179
Service...........................420,421
Service Engine Soon (Malfunction Indicator) . . . 184
Tire Pressure Monitoring (TPMS)........182,327
Traction Control....................... 307
Turn Signal................... 77,129,130,177
462 INDEX

VanityMirror .......................... 86
Voltage............................. 175
Warning (Instrument Cluster Description)..... 175
Load Leveling System.................... 168
Loading Vehicle......................344,345
Capacities........................... 345
Tires ............................... 312
Locks................................. 27
Auto Unlock.......................... 29
Automatic Door........................ 28
Child Protection........................ 30
Door................................ 27
Power Door........................... 28
Low Tire Pressure System.................. 327
Lower Anchors and Tether for CHildren
(LATCH)............................ 67,69
Lubrication, Body....................... 395
Luggage Rack (Roof Rack)................. 165
Lumbar Support........................ 120Maintenance Free Battery.................. 390
Maintenance, General..................... 384
Maintenance Procedures................... 384
Maintenance Schedule.................... 434
Maintenance, Sunroof..................... 152
Malfunction Indicator Light (Check Engine) . . 184,382
Manual, Service......................... 447
Map/Reading Lights..................131,142
Master Cylinder (Brakes).................. 405
Methanol............................. 338
Mini-Trip Computer...................... 189
Mirrors ................................ 83
Automatic Dimming..................... 83
Electric Powered....................... 85
Electric Remote........................ 85
Exterior Folding........................ 85
Heated.............................. 86
Outside.............................. 84
Rearview............................. 83
INDEX 463
10
