20. Electronic Stability Program (ESP) Indicator
Light/Traction Control System (TCS) Indicator Light —
If Equipped
If this indicator light flashes during accelera-
tion, apply as little throttle as possible. While
driving, ease up on the accelerator. Adapt your
speed and driving to the prevailing road con-
ditions, and do not switch off the ESP, or TCS — if
equipped.
21. Turn Signal Indicators
The arrows will flash in unison with the exterior
turn signal when using the turn signal lever.
22. Front Fog Light Indicator — If Equipped
This light shows when the front fog lights are ON.23. Electronic Stability Program (ESP) Indicator Light
The malfunction light for the ESP is combined
with BAS. The yellow “ESP/BAS Warning
Light” comes on when the ignition switch is
turned to the ON position. They should go out
with the engine running. If the “ESP/BAS Warning
Light” comes on continuously with the engine running, a
malfunction has been detected in either the ESP or the
BAS system. If this light remains on after several ignition
cycles, and the vehicle has been driven several miles/
kilometers at speeds greater than 30 mph (48 km/h), see
your authorized dealer as soon as possible.
24. All-Wheel Drive Failure Indicator Light
This light monitors the All-Wheel Drive (AWD)
system. The light will come on for a bulb check
when the ignition key is turned to the ON
position, and may stay on for as long as three
seconds.
UNDERSTANDING YOUR INSTRUMENT PANEL 171
4

When the appropriate conditions exist, the EVIC displays
the following messages.
•Turn Signal On (with a continuous warning chime)
•Left Front Turn Signal Light Out (with a single chime)
•Left Rear Turn Signal Light Out (with a single chime)
•Right Front Turn Signal Light Out (with a single
chime)
•Right Rear Turn Signal Light Out (with a single chime)
•RKE Battery Low (with a single chime)
•Personal Settings Not Available – Vehicle Not in Park
(automatic transmissions) or vehicle is in motion
(manual transmissions).
•Left/Right Front Door Ajar (one or more, with a single
chime if speed is above 1 mph (1 km/h)
•Left/Right Rear Door Ajar (one or more, with a single
chime if speed is above 1 mph (1 km/h)
•Door(s) Ajar (with a single chime if vehicle is in
motion)
•Gate Ajar (with a single chime)
•Headlights On
•Key In Ignition
•Check TPM System
•Oil Change Required
Oil Change Required
Your vehicle is equipped with an engine oil change
indicator system. The “Change Oil” message will flash in
the instrument cluster odometer for approximately 12
seconds after a single chime has sounded to indicate the
next scheduled oil change interval. The engine oil change
176 UNDERSTANDING YOUR INSTRUMENT PANEL

RESET button to turn off the message. If the problem
persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the MIL. Resolving the problem will turn the MIL
light off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing.Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery, or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON position, you
will see the MIL symbol come on as part of a normal bulb
check.
320 MAINTAINING YOUR VEHICLE

NOTE:Inspection of brake hoses should be done when-
ever the brake system is serviced and at every engine oil
change.
WARNING!
Worn brake hoses can burst and cause brake failure.
You could have an accident. If you see any signs of
cracking, scuffing, or worn spots, have the brake
hoses replaced immediately.
Brake Master Cylinder
The fluid level in the master cylinder should be checked
when performing under hood services, or immediately if
the brake system warning light is on.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the
fluid level up to the requirements described on the brakefluid reservoir. Fluid level can be expected to fall as the
brake pads wear. The brake fluid level should be checked
when the pads are replaced. However, low fluid level
may be caused by a leak and a checkup may be needed.
NOTE:If your vehicle is equipped with amanual
transaxle, the brake fluid reservoir supplies fluid to both
the brake system and the clutch release system. The two
systems are separated in the reservoir, and a leak in one
system will not affect the other system. Themanual
transaxleclutch release system should not require fluid
replacement during the life of the vehicle. If the brake
fluid reservoir is low and the brake system does not
indicate any leaks or other problems, it may be a result of
a leak in the hydraulic clutch release system. See your
local authorized dealer for service.
Use only manufacturer’s recommended brake fluid. Re-
fer to “Fluids, Lubricants, and Genuine Parts” under
Section 8.
342 MAINTAINING YOUR VEHICLE

•Check all lights and other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
•Check the manual transmission fluid level.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
366 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

ABS (Anti-Lock Brake System).............. 247
Adding Engine Coolant (Antifreeze).......... 337
Adding Fuel........................... 284
Adding Washer Fluid..................124,153
Additives, Fuel......................... 283
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 328
Air Conditioner Maintenance............... 331
Air Conditioning Controls................. 219
Air Conditioning, Operating Tips............ 225
Air Conditioning Refrigerant.............331,332
Air Conditioning System................219,331
Air Pressure, Tires....................... 263
Airbag................................ 48
Airbag Deployment....................... 55
Airbag Light....................... 57,70,165
Airbag Maintenance....................... 57
Airbag, Side............................ 54
Airbag, Window (Side Curtain)............... 49
Alarm System (Security Alarm)............ 19,165Alignment and Balance................... 270
All Wheel Drive (AWD)................... 244
Alterations/Modifications, Vehicle............. 7
Antenna, Satellite Radio................... 216
Antifreeze (Engine Coolant)...........336,360,361
Capacities........................... 360
Disposal............................ 338
Anti-Lock Brake System (ABS)............128,247
Anti-Theft Security Alarm (Theft Alarm)........ 19
Appearance Care........................ 346
Assistance Towing........................ 93
Automatic Door Locks................... 28,29
Automatic Transaxle........... 13,233,235,304,343
Fluid Level Check...................... 344
Interlock System....................... 237
Overheating.......................... 304
Selection Of Lubricant................... 343
Shifting ............................. 237
Special Additives...................... 344
382 INDEX

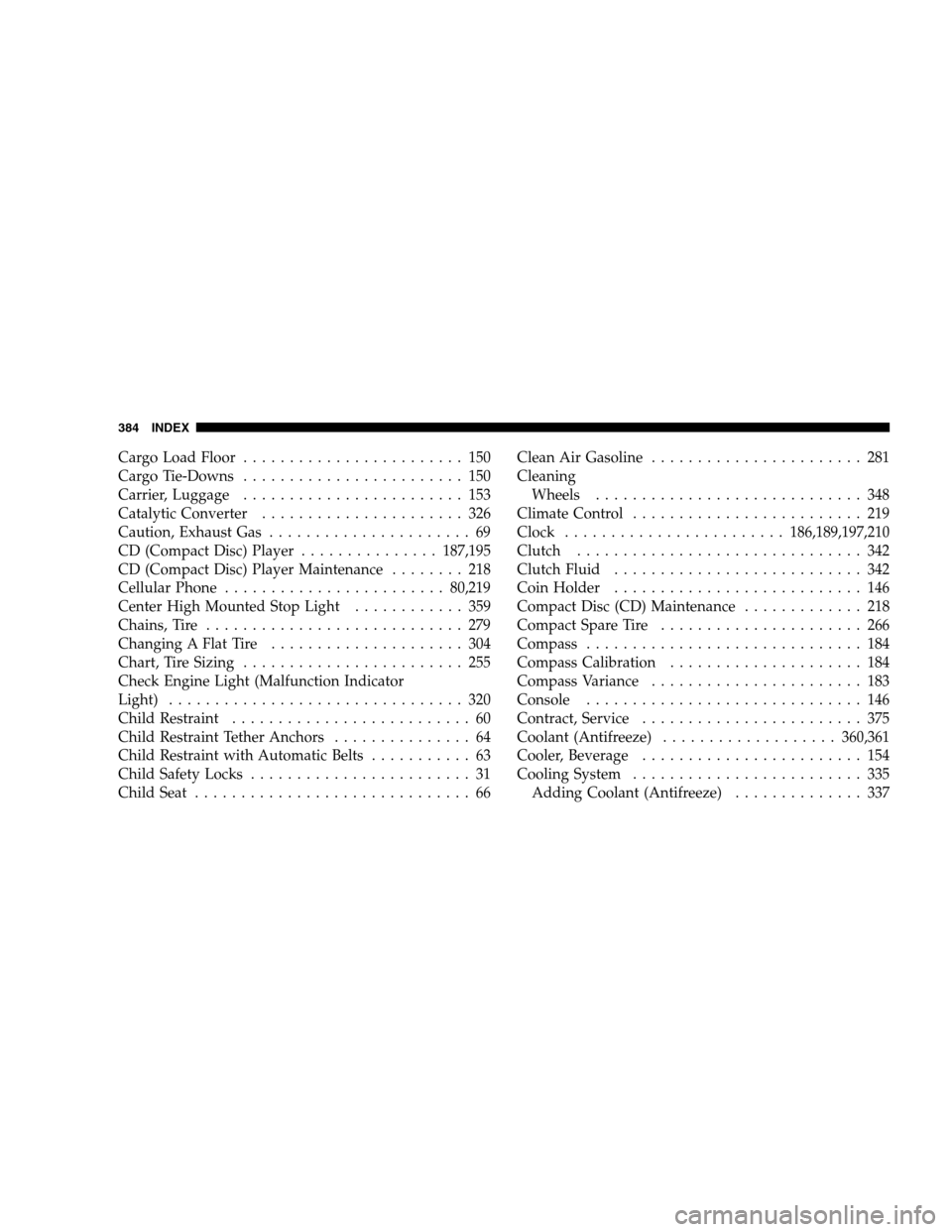

Cargo Load Floor........................ 150
Cargo Tie-Downs........................ 150
Carrier, Luggage........................ 153
Catalytic Converter...................... 326
Caution, Exhaust Gas...................... 69
CD (Compact Disc) Player...............187,195
CD (Compact Disc) Player Maintenance........ 218
Cellular Phone........................ 80,219
Center High Mounted Stop Light............ 359
Chains, Tire............................ 279
Changing A Flat Tire..................... 304
Chart, Tire Sizing........................ 255
Check Engine Light (Malfunction Indicator
Light)................................ 320
Child Restraint.......................... 60
Child Restraint Tether Anchors............... 64
Child Restraint with Automatic Belts........... 63
Child Safety Locks........................ 31
Child Seat.............................. 66Clean Air Gasoline....................... 281
Cleaning
Wheels............................. 348
Climate Control......................... 219
Clock ........................186,189,197,210
Clutch............................... 342
Clutch Fluid........................... 342
CoinHolder ........................... 146
Compact Disc (CD) Maintenance............. 218
Compact Spare Tire...................... 266
Compass.............................. 184
Compass Calibration..................... 184
Compass Variance....................... 183
Console.............................. 146
Contract, Service........................ 375
Coolant (Antifreeze)...................360,361
Cooler, Beverage........................ 154
Cooling System......................... 335
Adding Coolant (Antifreeze).............. 337
384 INDEX

Flashers.............................. 302
Hazard Warning....................... 302
Turn Signal.......................... 356
Flat Tire Stowage........................ 309
Flooded Engine Starting................... 234
Fluid, Brake........................... 362
Fluid Capacities......................... 360
Fluid Leaks............................. 71
Fluid Level Checks
Automatic Transaxle.................... 344
Fluids ................................ 361
Fluids, Lubricants and Genuine Parts.......... 361
Fog Lights....................... 119,171,356
Folding Rear Seat........................ 113
Folding Rear Seat (Sedan).................. 113
Freeing A Stuck Vehicle................... 312
Fuel..............................281,361
Adding............................. 284
Additives............................ 283Capacity............................ 360
CleanAir ............................ 281
Filler Cap (Gas Cap).................164,284
Filler Door (Gas Cap)................... 164
Filter ............................... 328
Gasoline............................ 281
Gauge.............................. 164
Hoses.............................. 340
Light ............................... 165
Octane Rating........................ 281
Requirements......................... 281
System Hoses......................... 340
Tank Capacity........................ 360
Fuel System Caution..................... 286
Fueling ............................... 284
Fuses................................ 351
Garage Door Opener (HomeLink) ........... 134
Gas Cap (Fuel Filler Cap)............284,286,319
INDEX 387
10
