2008 DODGE AVENGER warning lights

If the alarm system is armed and the battery becomes
disconnected the system will remain armed when the
battery is reconnected. The exterior lights will flash, the
horn will sound, and the ignition will not start the
vehicle. If this occurs, disarm the system.
Tamper Alert
If the alarm was triggered, but the warning signals have
timed out, the park and taillights flash three times
(instead of the normal twice) when unlocking the vehicle
with a valid Remote Keyless Entry (RKE) transmitter to
alert the driver.
ILLUMINATED ENTRY SYSTEM Ð IF EQUIPPED
The courtesy/reading lights will turn on when you use
the Remote Keyless Entry (RKE) transmitter or open
either door. This feature also turns on the approach lighting (if so
equipped). For details, refer to ªIllumination Approach,º
under ªPersonal Settings (Customer Programmable Fea-
tures),º under ªElectronic Vehicle Information Center
(EVIC)º in Section 4 of this manual.
The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned on.
NOTE:
² The front courtesy overhead console and door cour-
tesy lights do not turn on if the dimmer control is in
the interior lights ON position (extreme top position).
² The illuminated entry system will not operate if the
dimmer control is in the ªdefeatº position (extreme
downward position).20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Outside Mirror Ð Passenger's Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle.
WARNING!Vehicles and other objects seen in the right side
convex mirror will look smaller and farther away
than they really are. Relying too much on your right
side mirror could cause you to collide with another
vehicle or other object. Use your inside mirror when
judging the size or distance of a vehicle seen in this
convex mirror. ILLUMINATED VANITY MIRRORS Ð IF EQUIPPED
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover turns off the lights.
Illuminated Vanity Mirror88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
MAP/READING/INTERIOR LIGHTS
These lights are mounted between the sun visors above
the rear view mirror. Each light is turned ON by pressing
the button. Press the button a second time to turn the
light OFF. The lights will remain on until the switch is
pressed a second time, so be sure they have been turned
off before leaving the vehicle. They will not turn off
automatically. Interior lighting also comes on when a
door is opened or the dimmer control is turned fully
upward, past the second detent. There is a second light located midway back in the
headliner.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition switch is
moved to the LOCK position. This will occur if the
interior lights were switched on manually or are on Interior Dome LampUNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3

could lead to immediate loss of power or severe catalytic
converter damage. The vehicle should be serviced as
soon as possible if this occurs.
26. Anti-Lock Warning Light (ABS)
This light monitors the ABS. This light will
come on when the ignition key is turned to the
ON position and may stay on for as long as
four seconds.
If the ABS light remains on or comes on during driving,
it indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required, however,
the conventional brake system will continue to operate
normally provided that the BRAKE warning light is not
on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefit of Anti-Lock
Brakes. The ABS warning light should be checked frequently to
assure that it is operating properly. Turn the ignition key
to the on position, but do not start the vehicle. The light
should come on. If the light does not come on, have the
system checked by an authorized dealer.
27. High Beam Indicator
This light shows that the headlights are on high
beam. Push the turn signal lever away from the
steering wheel to switch the headlights from high or low
beam.
28. Brake System Warning Light
This light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on, it may
indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with
the anti-lock brake system (if equipped). UNDERSTANDING YOUR INSTRUMENT PANEL 179
4

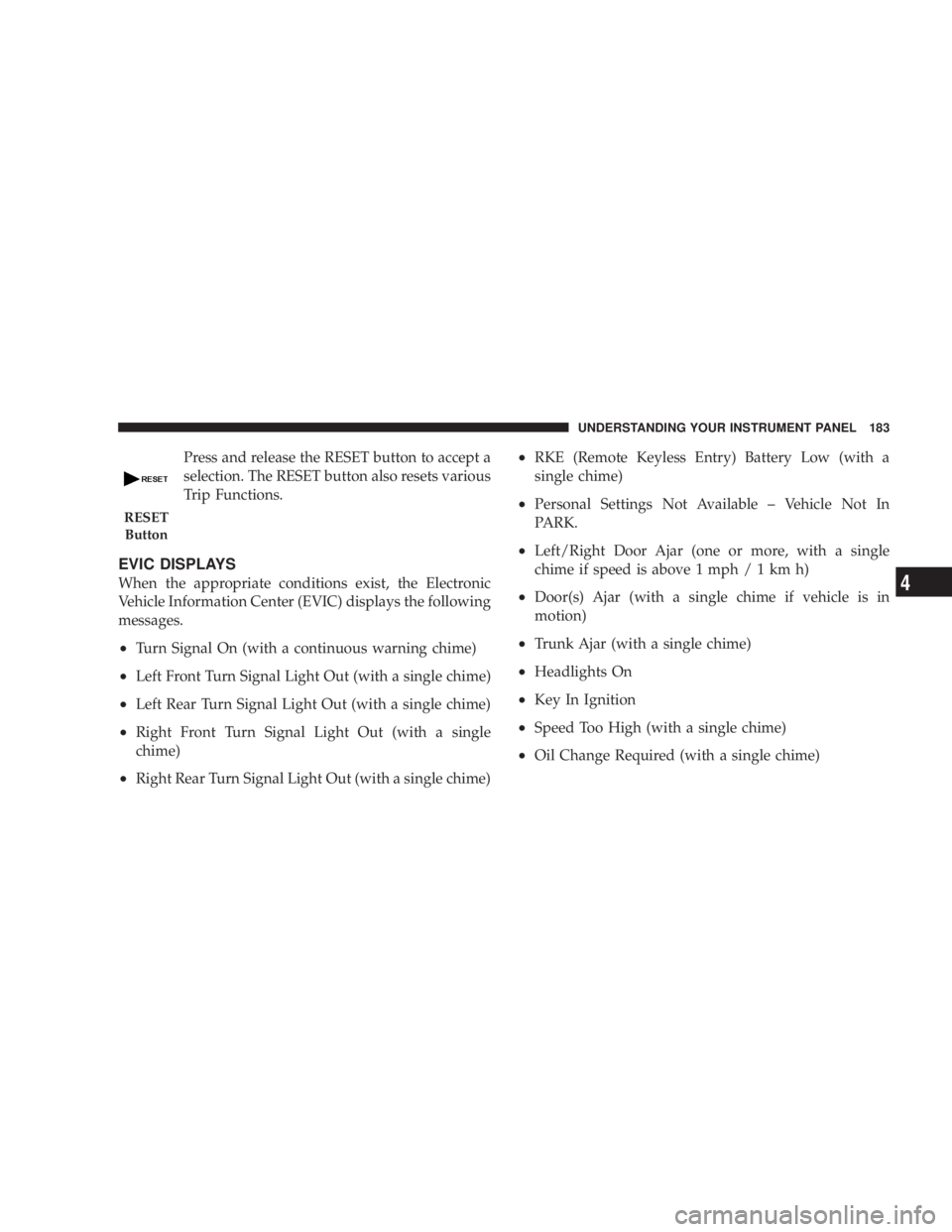

Press and release the RESET button to accept a
selection. The RESET button also resets various
Trip Functions.
EVIC DISPLAYS
When the appropriate conditions exist, the Electronic
Vehicle Information Center (EVIC) displays the following
messages.
² Turn Signal On (with a continuous warning chime)
² Left Front Turn Signal Light Out (with a single chime)
² Left Rear Turn Signal Light Out (with a single chime)
² Right Front Turn Signal Light Out (with a single
chime)
² Right Rear Turn Signal Light Out (with a single chime) ² RKE (Remote Keyless Entry) Battery Low (with a
single chime)
² Personal Settings Not Available ± Vehicle Not In
PARK.
² Left/Right Door Ajar (one or more, with a single
chime if speed is above 1 mp h/1kmh)
² Door(s) Ajar (with a single chime if vehicle is in
motion)
² Trunk Ajar (with a single chime)
² Headlights On
² Key In Ignition
² Speed Too High (with a single chime)
² Oil Change Required (with a single chime)RESET
Button UNDERSTANDING YOUR INSTRUMENT PANEL 183
4

² Trailer brakes are recommended for trailers over 1,000
lbs (450 kg) and required for trailers in excess of 2,000
lbs (907 kg).
CAUTION!If the trailer weighs more than 1,000 lbs (450 kg)
loaded, it should have its own brakes with adequate
braking capacity. Failure to do this could lead to
accelerated brake lining wear, higher brake pedal
effort, and longer stopping distances. WARNING!Do not connect trailer brakes to your vehicle's hy-
draulic brake lines. It can overload your brake sys-
tem and cause it to fail. You might not have brakes
when you need them and could have an accident.
Towing any trailer will increase your stopping dis-
tance. When towing, you should allow for additional
space between your vehicle and the vehicle in front
of you. Failure to do so could result in an accident.
Towing Requirements Ð Trailer Lights and Wiring
Whenever you pull a trailer, regardless of the trailer size,
stoplights and turn signals on the trailer are required for
motoring safety.
Use a factory approved trailer harness and connector.342 STARTING AND OPERATING

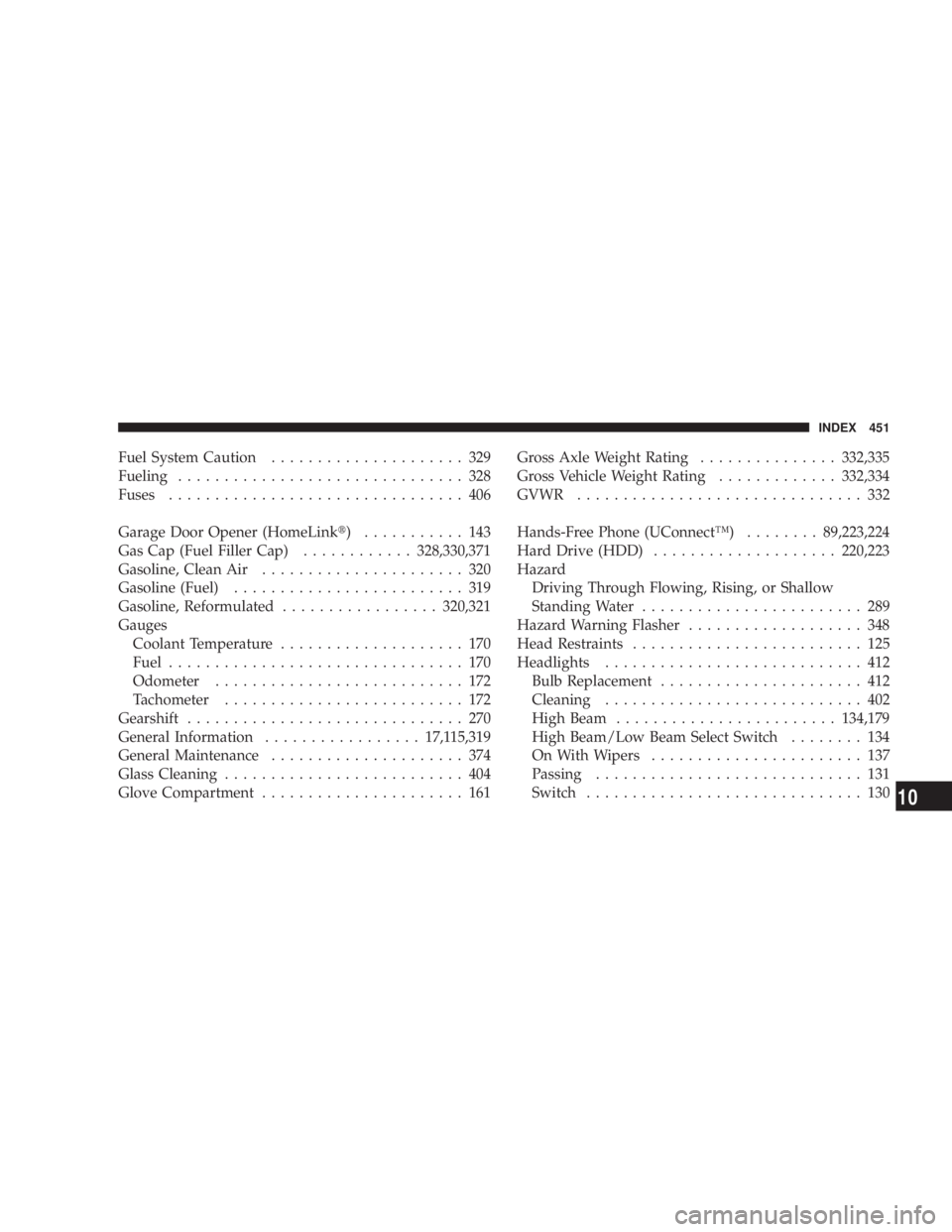

Fuel System Caution ..................... 329
Fueling ............................... 328
Fuses ................................ 406
Garage Door Opener (HomeLink t ) ........... 143
Gas Cap (Fuel Filler Cap) ............ 328,330,371
Gasoline, Clean Air ...................... 320
Gasoline (Fuel) ......................... 319
Gasoline, Reformulated ................. 320,321
Gauges
Coolant Temperature .................... 170
Fuel ................................ 170
Odometer ........................... 172
Tachometer .......................... 172
Gearshift .............................. 270
General Information ................. 17,115,319
General Maintenance ..................... 374
Glass Cleaning .......................... 404
Glove Compartment ...................... 161 Gross Axle Weight Rating ............... 332,335
Gross Vehicle Weight Rating ............. 332,334
GVWR ............................... 332
Hands-Free Phone (UConnectŸ) ........ 89,223,224
Hard Drive (HDD) .................... 220,223
Hazard
Driving Through Flowing, Rising, or Shallow
Standing Water ........................ 289
Hazard Warning Flasher ................... 348
Head Restraints ......................... 125
Headlights ............................ 412
Bulb Replacement ...................... 412
Cleaning ............................ 402
High Beam ........................ 134,179
High Beam/Low Beam Select Switch ........ 134
On With Wipers ....................... 137
Passing ............................. 131
Switch .............................. 130 INDEX 451
10

Keyless Entry System (Sedan) ................ 21
Keys ................................. 12
Knee Bolster .......................... 51,53
Lane Change and Turn Signals ........... 176,416
Lap/Shoulder Belts ....................... 42
LATCH (Lower Anchors and Tether for CHildren) .. 73
Latches
Hood ............................... 127
Lead Free Gasoline ...................... 319
Life of Tires ............................ 306
Light Bulbs ............................ 411
Lights .............................. 80,129
Airbag ........................ 52,65,79,171
Back-Up ............................. 416
Brake Warning ........................ 179
Bulb Replacement ...................... 412
Center Mounted Stop ................... 418
Daytime Running ...................... 132 Dimmer Switch, Headlight ............... 130
Electronic Stability Program (ESP) Indicator . . . 284
Engine Temperature Warning .............. 172
Fog .......................... 132,176,415
Headlight Switch ...................... 130
Headlights ........................... 130
Headlights On With Wipers ............... 137
High Beam Indicator .................... 179
Illuminated Entry ....................... 20
Instrument Cluster ..................... 130
Interior ............................. 129
License ............................. 418
Lights On Reminder .................... 132
Low Fuel ............................ 171
Malfunction Indicator (Check Engine) ........ 178
Map Reading ......................... 129
Oil Pressure .......................... 171
Passing ............................. 131
Seat Belt Reminder ..................... 171 INDEX 453
10
