2008 DODGE AVENGER CD player

Touch the screen where the words ªShow Time if Radio is
Offº are displayed to change the current setting.
Changing the Time Zone
1. Turn on the multimedia system.
2. Touch the screen where the time is displayed. The
clock setting menu will appear on the screen.
3. Touch the screen where the words ªSet Time Zoneº are
displayed. The time zone selection menu will appear on
the screen.
4. Select a time zone by touching the screen where your
selection appears. If you do not see a time zone that you
want to select, touch the screen where the word ªPageº is
displayed to view additional time zones in the menu.
5. Touch the screen where the word ªSaveº is displayed. SALES CODE RER Ð MULTIMEDIA SYSTEM Ð IF
EQUIPPED
NOTE: The sales code is located on the lower right side
of the unit's faceplate.
The RER Multimedia system contains a radio, Sirius
Satellite Radio player, navigation system, CD/DVD
player, USB port, 20-gigabyte hard drive (HDD), and the
UConnect t Hands-Free Bluetooth t cellular system.
NOTE: If your vehicle is not equipped with UConnect t ,
the unit will respond with a ªNot Equipped With
UConnect t º message when selecting controls related to
this feature.
A 6.5 in (16.5 cm) touch screen allows easy menu selec-
tion, while the Advanced Voice Dialog System recognizes
more than 1,000 words for audio, navigation, entertain-
ment, and hands-free mobile phone use. UNDERSTANDING YOUR INSTRUMENT PANEL 223
4

The satellite navigation capability combines a Global-
Positioning System (GPS)-based navigation system with
an integrated color screen to provide maps, turn identi-
fication, selection menus, and instructions for selecting a
variety of destinations and routes.
A shared HDD for the navigation system, the database,
and other radio features allows uploads of music and
photos from CDs or through the USB port. The Gracenote
database finds the artist, track, and title for the music.
An auxiliary input jack permits passengers to listen to a
portable MP3 player through the vehicle's speakers. For
vehicles equipped with the Vehicle Entertainment System
(VES) t , separate audio outputs allow passengers to listen
to the vehicle speakers while different audio tracks play
through the system's wireless headphones. This means
rear-seat passengers can watch a DVD on the optional
rear-seat entertainment system while the driver and
front-seat passenger listen to the radio. Other special features include direct tune, music type
selections, traffic messaging (optional), easy store presets,
parental lockout for VES t (if equipped), backup camera
display for vehicles equipped with a backup camera, and
on some models, a dual display screen operation. Refer to
your ªNavigation User's Manualº for detailed operating
instructions.
Operating Instructions Ð Satellite Radio
Refer to your ªNavigation User's Manualº for detailed
operating instructions.
Operating Instructions Ð Hands-Free
Communication (UConnect T ) (If Equipped)
Refer to your ªNavigation User's Manualº for detailed
operating instructions.224 UNDERSTANDING YOUR INSTRUMENT PANEL

Operation with RES / REQ AM/FM Stereo Radio
with CD Player
Right-Hand Switch Functions
² Press the top of the switch to increase the volume.
² Press the bottom of the switch to decrease the volume. ² Press the button in the center of the switch to select
AM, FM, Satellite (SAT) - if equipped, or CD (DISC)
mode.
Left-Hand Switch Functions for Radio Operation
² Press the top of the switch to SEEK the next listenable
station up from the current setting.
² Press the bottom of the switch to SEEK the next
listenable station down from the current setting.
² Press the button in the center of the switch to tune to
the next preset that you have programmed.
Left-Hand Switch Functions for CD Player
Operation
² Press the top of the switch once to listen to the next
track on the CD.
² Press the bottom of the switch once either to listen to

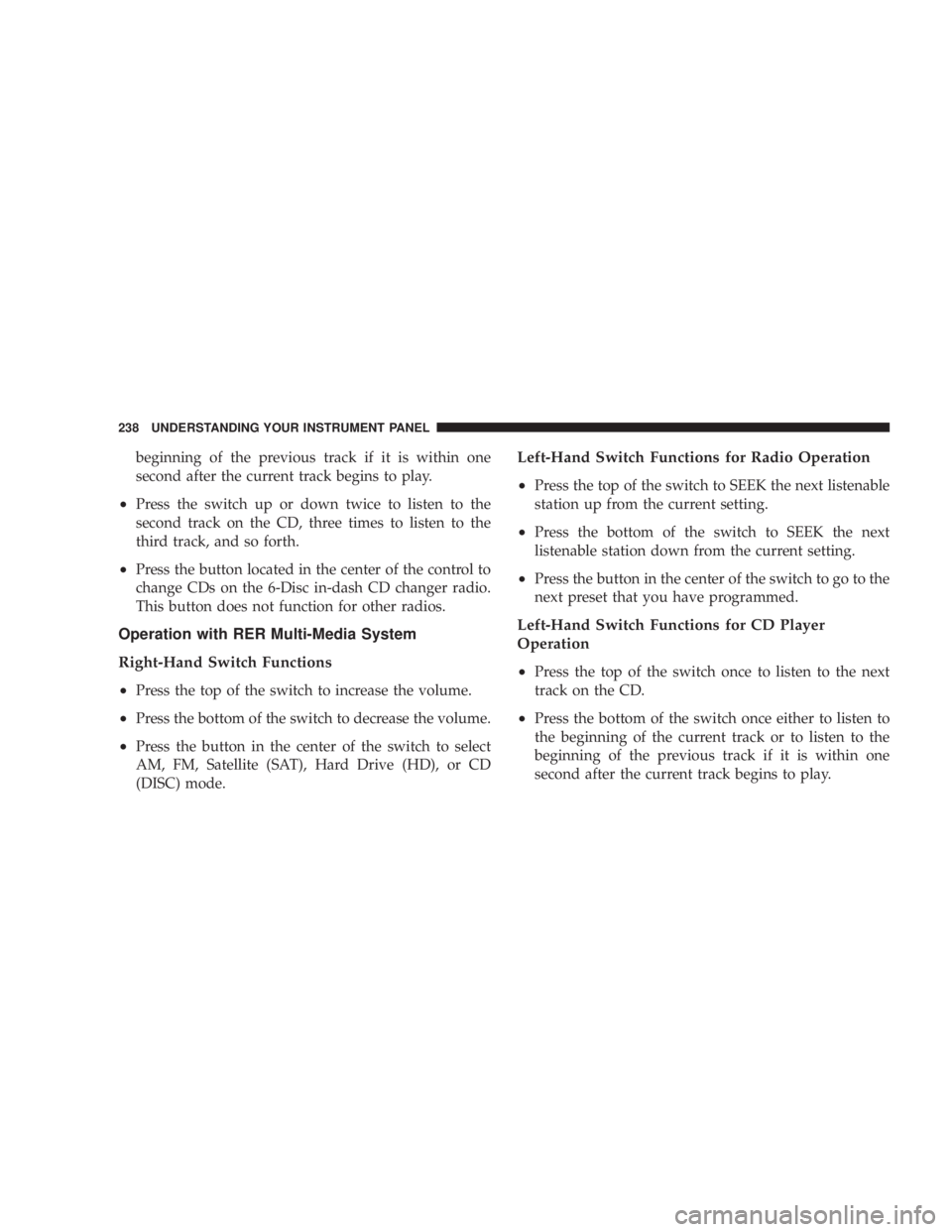

the beginning of the current track or to listen to theRemote Sound Controls UNDERSTANDING YOUR INSTRUMENT PANEL 237
4

beginning of the previous track if it is within one
second after the current track begins to play.
² Press the switch up or down twice to listen to the
second track on the CD, three times to listen to the
third track, and so forth.
² Press the button located in the center of the control to
change CDs on the 6-Disc in-dash CD changer radio.
This button does not function for other radios.
Operation with RER Multi-Media System
Right-Hand Switch Functions
² Press the top of the switch to increase the volume.
² Press the bottom of the switch to decrease the volume.
² Press the button in the center of the switch to select
AM, FM, Satellite (SAT), Hard Drive (HD), or CD
(DISC) mode. Left-Hand Switch Functions for Radio Operation
² Press the top of the switch to SEEK the next listenable
station up from the current setting.
² Press the bottom of the switch to SEEK the next
listenable station down from the current setting.
² Press the button in the center of the switch to go to the
next preset that you have programmed.
Left-Hand Switch Functions for CD Player
Operation
² Press the top of the switch once to listen to the next
track on the CD.
² Press the bottom of the switch once either to listen to
the beginning of the current track or to listen to the
beginning of the previous track if it is within one
second after the current track begins to play.238 UNDERSTANDING YOUR INSTRUMENT PANEL

² The LCD screen swings up from the rear of the armrest
to allow the rear seat passenger(s) to view the display.
NOTE: Close the armrest after the LCD screen has been
raised to its viewing position. ² The touch screen radio and DVD player controls allow
front seat operation for easy setup in the case of
younger rear seat passengers.
² A battery-powered infrared remote control snaps into
a molded compartment in the center console armrest
upper storage bin.
VES t Video Screen
VES t Remote Control240 UNDERSTANDING YOUR INSTRUMENT PANEL

² Two wireless infrared headsets allow rear seat passen-
gers to listen to the same or individual audio sources.
Audio/Video RCA Jacks (AUX Jacks)
on the rear of the center console enable
the monitor to display video directly
from a video camera, connect video
games for display on the screen, or
play music directly from an MP3
player.
1. Video in (yellow)
2. Left audio in (white)
3. Right audio in (red)
NOTE: Refer to your ªVehicle Entertainment System
(VES) t Users Manualº for detailed operating instruc-
tions. RADIO OPERATION AND CELLULAR PHONES
Under certain conditions, the cellular phone being ON in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the cellular phone antenna. This condition
is not harmful to the radio. If your radio performance
does not satisfactorily ªclearº by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during cellular phone operation.
CD/DVD MAINTENANCE
To keep the CD/DVD discs in good condition, take the
following precautions:
1. Handle the disc by its edge; avoid touching the
surface.
2. If a disc is stained, clean the surface with a soft cloth,
wiping from center to edge. UNDERSTANDING YOUR INSTRUMENT PANEL 241
4

Bulbs, Light ............................ 411
Calibration, Compass ..................... 186
Capacities, Antifreeze (Engine Coolant) ......... 20
Capacities, Fluid ........................ 420
Caps, Filler
Fuel ................................ 328
Oil (Engine) .................. 368,369,370,377
Radiator (Coolant Pressure) ............... 391
Car Washes ............................ 401
Carbon Monoxide Warning ................. 323
Cargo Area Features ...................... 160
Cargo Compartment ...................... 160
Cargo Load Floor ........................ 160
Cargo (Vehicle Loading) ................... 160
Catalytic Converter ...................... 379
Caution, Exhaust Gas ...................... 78
CD (Compact Disc) Player ............... 220,223
CD (Compact Disc) Player Maintenance ........ 241 Cellular Phone .................. 89,223,224,241
Center High Mounted Stop Light ............ 418
Chains, Tire ............................ 309
Changing A Flat Tire ..................... 350
Chart, Tire Sizing ........................ 292
Check Engine Light
(Malfunction Indicator Light) ............... 372
Child Restraint .................... 67,69,73,76
Child Restraint Tether Anchors ............. 71,73
Child Safety Locks ........................ 34
Cigar Lighter ........................... 155
Clean Air Gasoline ....................... 320
Cleaning
Wheels ............................. 402
Windshield Wiper Blades ................. 386
Climate Control ......................... 242
Clock ........................ 194,206,221,225
Coin Holder ........................... 156
Compact Disc (CD) Maintenance ............. 241446 INDEX

Digital Video Disc (DVD) Player .......... 220,223
Dimmer Switch, Headlight ................. 134
Dipsticks
Automatic Transaxle ................. 397,398
Oil (Engine) .......................... 374
Disabled Vehicle Towing ................... 362
Disposal
Antifreeze (Engine Coolant) ............... 392
Engine Oil ........................... 378
Door Locks ............................. 30
Door Locks, Automatic .................... 32
Door Opener, Garage ..................... 143
Drive Belts ............................ 378
Driving
On Slippery Surfaces .................... 288
Through Flowing, Rising, or Shallow Standing
Water .............................. 289
DVD Player (Video Entertainment System) ...... 239 E-85 Fuel ............................. 324
Electric Rear Window Defrost ............... 256
Electric Remote Mirrors .................... 86
Electrical Power Outlets ................... 153
Electronic Speed Control (Cruise Control) ...... 140
Electronic Stability Program (ESP) ............ 283
Electronic Vehicle Information Center (EVIC) .... 181
Emergency, In Case of
Jacking ............................. 350
Jump Starting ......................... 358
Towing ............................. 362
Emergency Trunk Release ................. 39,40
Emission Control System Maintenance ...... 372,426
Engine ........................ 78,368,369,370
Air Cleaner .......................... 379
Block Heater ......................... 266
Break-In Recommendations ................ 78
Checking Oil Level ..................... 374
Coolant (Antifreeze) ................. 389,422448 INDEX
