2008 DODGE AVENGER engine coolant

Disposal of Used Engine Coolant
Used ethylene glycol based engine coolant is a regulated
substance requiring proper disposal. Check with your
local authorities to determine the disposal rules for your
community. To prevent ingestion by animals or children,
do not store ethylene glycol based engine coolant in open
containers or allow it to remain in puddles on the
ground. If ingested by a child, contact a physician
immediately. Clean up any ground spills immediately.
Coolant Level
4 Cylinder Engines Ð the coolant bottle provides a quick
visual method for determining that the coolant level is
adequate. With the engine idling and warm to normal
operating temperature, the level of the coolant in the
bottle should be between the ªADDº and ªFULLº lines,
shown on the bottle. 6 Cylinder Engines Ð the level of the coolant in the
pressurized coolant bottle should be between the
ªCOLDº and ªFULLº range on the bottle when the
engine is cold.
The radiator normally remains completely full, so there is
no need to remove the radiator cap unless checking for
coolant freeze point or replacing coolant. Advise your
service attendant of this. As long as the engine operating
temperature is satisfactory, the coolant bottle need only
be checked once a month. When additional coolant is
needed to maintain the proper level, it should be added
to the coolant bottle. Do not overfill.
Points To Remember
NOTE: When the vehicle is stopped after a few miles
(kilometers) of operation, you may observe vapor coming
from the front of the engine compartment. This is nor-
mally a result of moisture from rain, snow, or high392 MAINTAINING YOUR VEHICLE

humidity accumulating on the radiator and being vapor-
ized when the thermostat opens, allowing hot coolant to
enter the radiator.
If an examination of your engine compartment shows no
evidence of radiator or hose leaks, the vehicle may be
safely driven. The vapor will soon dissipate.
² Do not overfill the coolant recovery bottle.
² Check coolant freeze point in the radiator and in the
coolant recovery bottle. If antifreeze needs to be
added, contents of coolant recovery bottle must also be
protected against freezing.
² If frequent coolant additions are required, or if the
level in the coolant recovery bottle does not drop when
the engine cools, the cooling system should be pres-
sure tested for leaks. ² Maintain coolant concentration at 50% HOAT engine
coolant (minimum) and distilled water for proper
corrosion protection of your engine, which contains
aluminum components.
² Make sure that the radiator and coolant recovery
bottle overflow hoses are not kinked or obstructed.
² Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean, also.
² Do not change the thermostat for summer or winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs may
result in unsatisfactory coolant performance, poor gas
mileage, and increased emissions. MAINTAINING YOUR VEHICLE 393
7

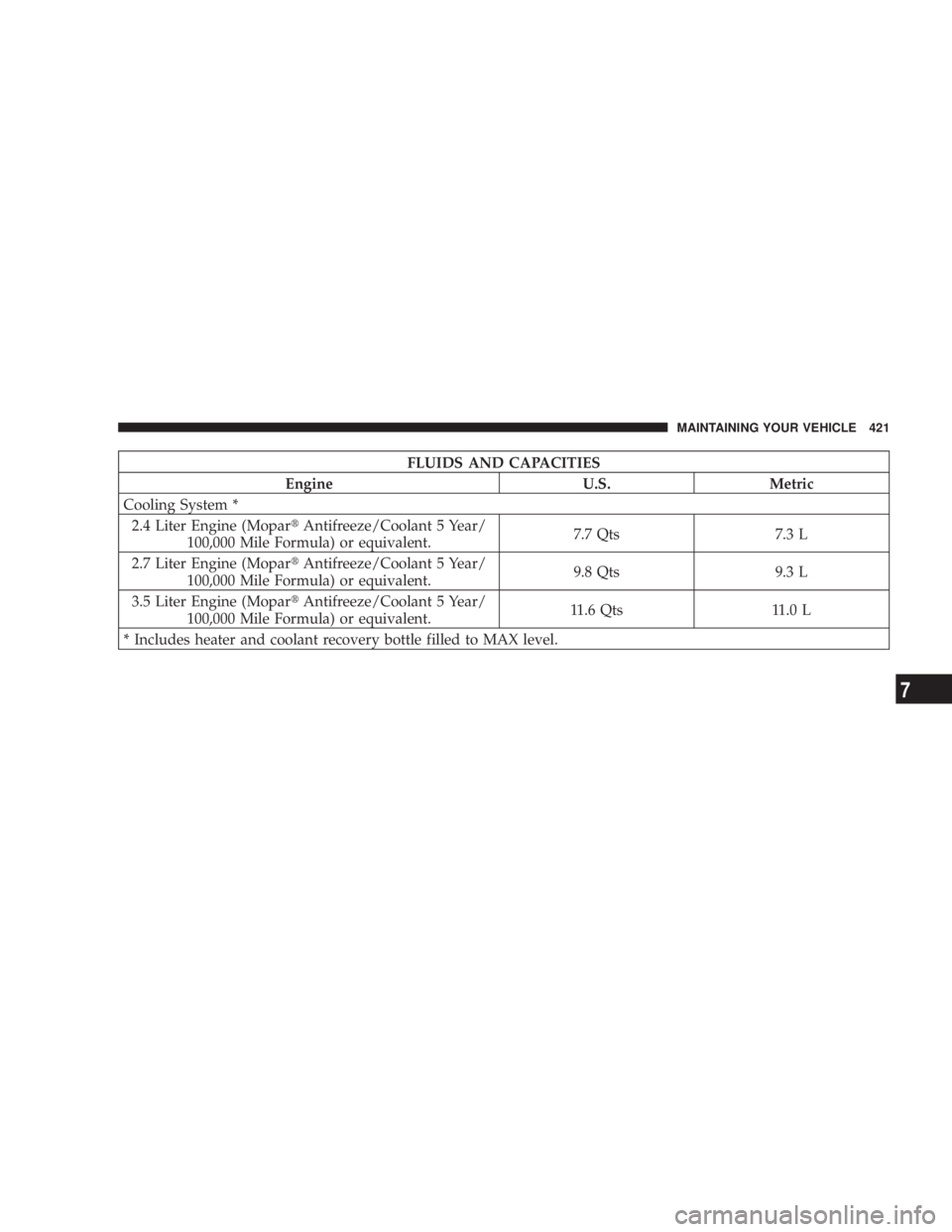

FLUIDS AND CAPACITIES
Engine U.S. Metric
Cooling System *
2.4 Liter Engine (Mopar t Antifreeze/Coolant 5 Year/
100,000 Mile Formula) or equivalent. 7.7 Qts 7.3 L
2.7 Liter Engine (Mopar t Antifreeze/Coolant 5 Year/
100,000 Mile Formula) or equivalent. 9.8 Qts 9.3 L
3.5 Liter Engine (Mopar t Antifreeze/Coolant 5 Year/
100,000 Mile Formula) or equivalent. 11.6 Qts 11.0 L
* Includes heater and coolant recovery bottle filled to MAX level. MAINTAINING YOUR VEHICLE 421
7

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluids, Lubricants, and Genuine Parts
Engine Coolant Mopar t Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic
Additive Technology) or equivalent
Engine Oil (2.4L, 2.7L) Use API Certified engine oil. SAE 5W-20 is recommended. Refer to the engine oil
fill cap for the correct SAE grade meeting DaimlerChrysler Material Standard MS-
6395.
Engine Oil (3.5L) Use API Certified engine oil. SAE 10W-30 is recommended. Refer to the engine oil
viscosity chart for the correct SAE grade meeting DaimlerChrysler Material Stan-
dard MS-6395.
Oil Filter (2.4L) Mopar t 04884900AB or equivalent.
Oil Filter (2.7L, 3.5L) Mopar t 04884899AB or equivalent.
Spark Plugs (2.4L - EXCEPT
PZEV*) ZFR5F-11 (Gap.043 in [1.11 mm])
Spark Plugs (2.4LÐ with
PZEV ZFR5AP (Gap.031 in [0.8 mm])422 MAINTAINING YOUR VEHICLE

oil if it has been six months since your last oil change
even if the oil change indicator message is NOT
illuminated.
² Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
² Under no circumstances should oil change intervals
exceed 6,000 mi (10 000 km) or six months, whichever
comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under ªOil Change
Requiredº under ªElectronic Vehicle Information Center
(EVIC)º in Section 4 or under ªOdometer/Trip Odom-
eterº under ªInstrument Cluster Descriptionsº in Section
4. At Each Stop for Fuel
² Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the SAFE or MIN mark.
² Check the windshield washer solvent and add if
required.
Once a Month
² Check tire pressure and look for unusual wear or
damage.
² Inspect the battery and clean and tighten the terminals
as required.
² Check the fluid levels of coolant reservoir, brake
master cylinder, power steering, and automatic trans-
axle, and add fluid as needed. MAINTENANCE SCHEDULES 427
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Perform Maintenance Every (Where time and mileage
are listed, follow the interval that occurs first.)
Maintenance Items Miles Kilometers or Months
Replace the spark plugs on 2.4L engines (except
PZEV* engine). 30,000 50 000 30
Inspect and adjust the power steering pump belt ten-
sion on 2.4L engines. 30,000 50 000 30
Inspect the generator belt on 2.4L engines, and replace
if necessary. 30,000 50 000 30
Change the automatic transaxle fluid & filter if using
your vehicle for any of the following: police, taxi,
fleet, or frequent trailer towing. 60,000 100 000 60
Inspect and replace PCV valve if necessary. ² 90,000 150 000 90
Flush and replace the engine coolant. 100,000 160 000 60
Replace the spark plugs on 2.4L PZEV*, 2.7L and
3.5L engines. 102,000 170 000 102
Replace the power steering pump belt on 2.4L engines. 102,000 170 000 102
Replace the generator belt on 2.4L engines. 102,000 170 000 102 430 MAINTENANCE SCHEDULES
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

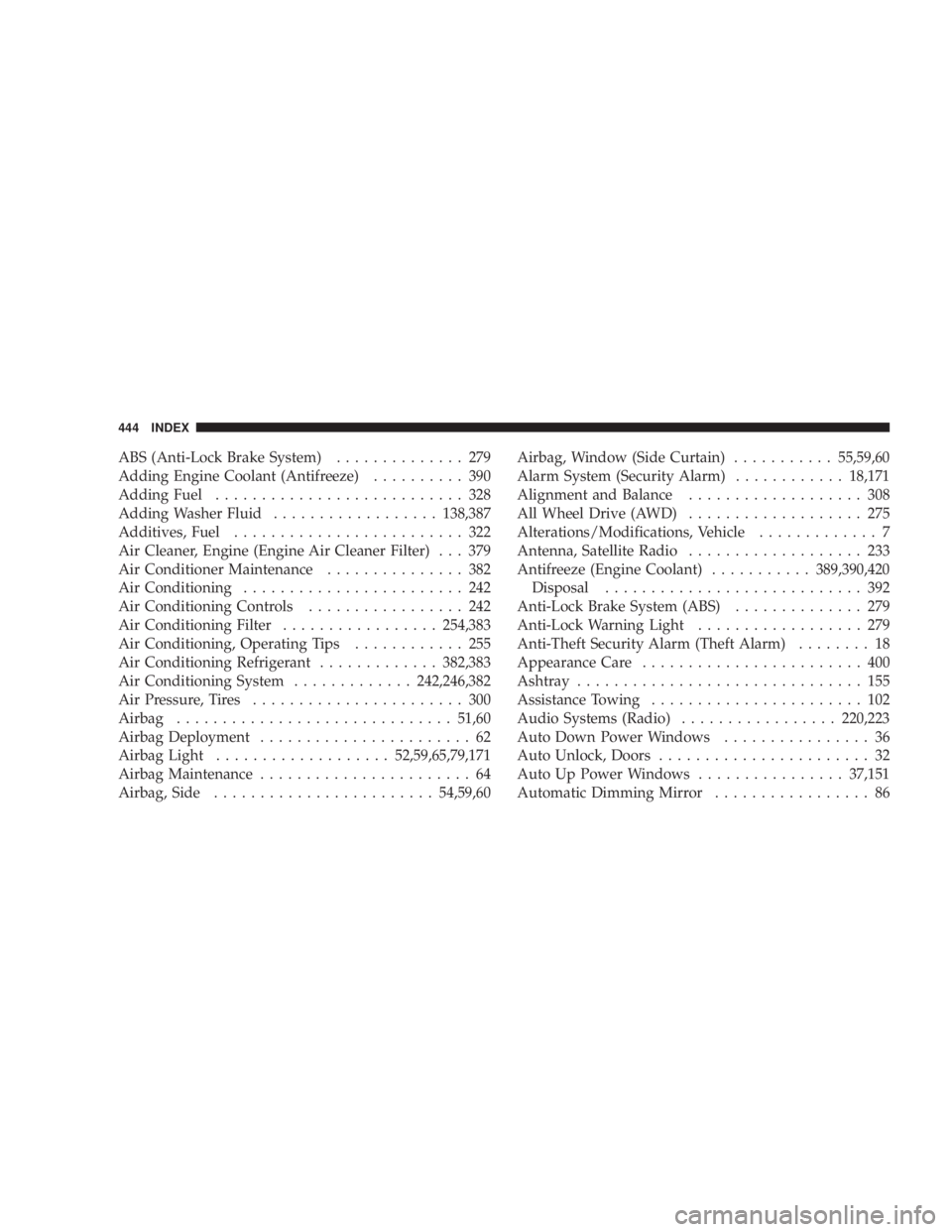

ABS (Anti-Lock Brake System) .............. 279
