Familiarisation INSTRUMENTS AND
CONTROLS

1. Steering wheel adjustment control.

2. Lights and direction indicators controls.

3. Instrument panel.

4. Driver’s air bag.
Horn.

5. Gear lever.

6. Handbrake.

7. Bonnet release.

8. Exterior mirror controls.

9. Fuse box.

10. Manual headlamp height adjustment.

11. Side adjustable and closing vent.

12. Front side window demisting vent.

13. Windscreen demisting vent.

14. Steering lock and ignition.

15. Wipers / wash-wipe / trip computer
controls.

16. Central adjustable and closing vents.

17. Passenger air bag.

18. MENU button.

19. Glove box.

20. Lighter.

21. Ashtray.

22. Heating / air conditioning controls.

23. Audio equipment.

24. Electric window controls.

25. 12V socket.

13
Familiarisation
FAMILIARISATION
Ring B: rear wiper

 37 Intermittent wipe.
Wash-wipe.
Park.
SEE CLEARLY
Lighting
Ring
Fog lamps Direction indicators
«Motorway» function
Press up or down once, without passing the
point of resistance; the corresponding direction
indicators will fl ash three times.
Wipers
Ring A: windscreen wipers
Lights off.
Side lights.
Dipped / main beam headlamps.
Rear fog lamp.
or
Front and rear fog lamps.

 35

 35
 37 Park.
Intermittent.
Slow continuous.
Rapid continuous.
Single wipe.
Wash-wipe.

18
Instruments and controls
INSTRUMENT PANELS

1. Distance recorder in Kilometres / miles.

2. Display.
3. Fuel gauge.
4. Coolant temperature.

5. Rev counter.
Instrument panel display level 1
- Time,
- Kilometres / miles travelled,
- Trip computer / range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Arming or disarming of the passenger air bag.
Instrument panel display level 2
- Time,
- Date,
- Radio,
- Kilometres / miles travelled,
- Exterior temperature,
-
Modes and gears selected in electronic
gearbox system,
- Trip computer / range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
-
Selection of display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while
driving.
Instrument panel with level 1 display Instrument panel with level 2 display

22
Instruments and controls

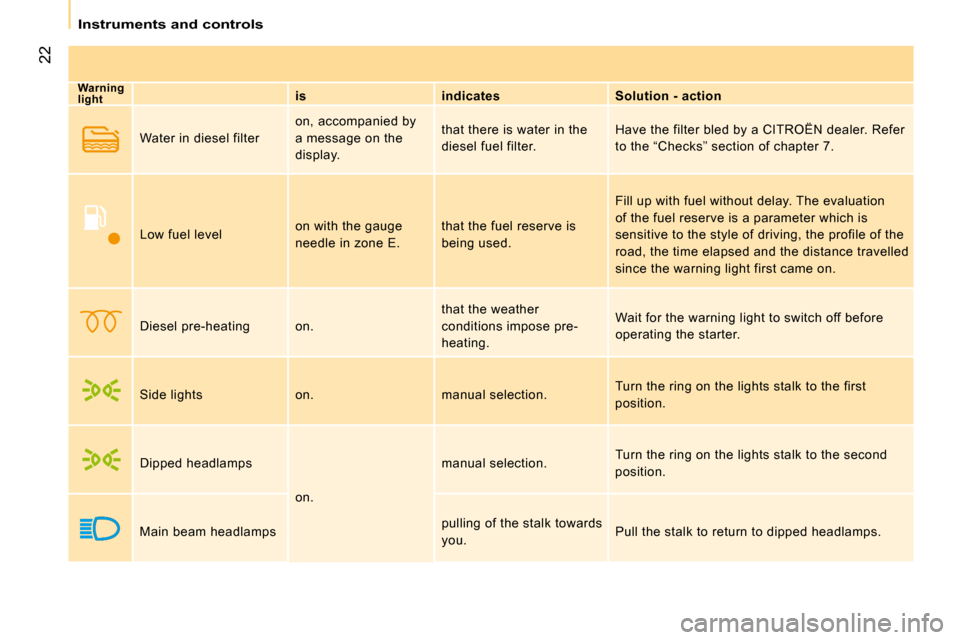

Warning
light
is indicates Solution - action
Water in diesel filter on, accompanied by
a message on the
display. that there is water in the
diesel fuel filter.
Have the filter bled by a CITROËN dealer . Refer
to the “Checks” section of chapter 7.
Low fuel level on with the gauge
needle in zone E. that the fuel reserve is
being used. Fill up with fuel without delay. The evaluation
of the fuel reserve is a parameter which is
sensitive to the style of driving, the profile of t
he
road, the time elapsed and the distance travelled
since the warning light first came on.
Diesel pre-heating on. that the weather
conditions impose pre-
heating. Wait for the warning light to switch off before
operating the starter.
Side lights on. manual selection.
Turn the ring on the lights stalk to the first
position.
Dipped headlamps
on.
manual selection. Turn the ring on the lights stalk to the second
position.
Main beam headlamps pulling of the stalk towards
you. Pull the stalk to return to dipped headlamps.

23
1
READY TO SET OFF
Instruments and controls

Warning
light
is indicates Solution - action
Direction indicators flashing with buzzer. a change of direction
using the lights stalk, to
the left of the steering
wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front fog lamps on. that the button on the
fascia panel has been
pressed. Manual selection.
The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear foglamps. on. that the button on the
fascia panel has been
pressed. Manual selection.
The lamps only operate if the
dipped beams are on. When visibility is normal,
please switch the fog lamps off to avoid breaking
the law. This light is a dazzling red.
Faulty bulb on, accompanied by
a message on the
display. that one or more bulbs
have blown. Have the bulb changed.
Refer to the “Changing a bulb” section of
chapter 7 or consult a CITROËN dealer .

24
Instruments and controls

Warning
light
is indicates Solution - action
Rear parking assistance on. failure of the syste m. The audible assistance is no longer active.
Have the system checked by a CITROËN
dealer without delay.
Electronic gearbox
system
on, accompanied by a
flashing of “AUTO”. A gearbox fault. Have the system checked by a CITROËN
dealer without delay.

Display
displays indicates Solution - action

External temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake sharply.
Refer to the “Driving safety” section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the “Menu” section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the “Steering wheel controls” section of
chapter 1.

24
Instruments and controls

Warning
light
is indicates Solution - action
Rear parking assistance on. failure of the syste m. The audible assistance is no longer active.
Have the system checked by a CITROËN
dealer without delay.
Electronic gearbox
system
on, accompanied by a
flashing of “AUTO”. A gearbox fault. Have the system checked by a CITROËN
dealer without delay.

Display
displays indicates Solution - action

External temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake sharply.
Refer to the “Driving safety” section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the “Menu” section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the “Steering wheel controls” section of
chapter 1.

35
1
READY TO SET OFF
Steering wheel controls
LIGHTING CONTROL
Selection is by rotation of the white mark
on the ring, when the ignition key is in the
“RUNNING” position.
All lights off
Side lights on
This is indicated on the
instrument panel by lighting of the
warning light.
Dipped headlamps/main beam headlamps on
Dipped headlamps/main beam headlamps change
Pull the control fully towards you.
Headlamp flash
Direction indicators (green flashing)
“Motorway” function
System which indicates a change of lane on
a motorway.
Press up or down once, without passing
the point of resistance; the corresponding
direction indicators will flash three times. Pull the control towards you
gently, regardless of the position
of the ring.
Left: downwards. The direction
arrow warning light flashes on the
instrument panel.
Right: upwards. The direction
arrow warning light flashes on the instrument
panel.
Turn the ring into position.
