11 IV
F U S E S
Ref. Rating
Functions
F1 15 A Rear wipe
F3 5 A Airbag
F4 10 A Steering angle sensor - ESP - Photochromic interior rear view mirror - Diag
nostic
s o c k e t - C l u t c h - A i r c o n d i t i o n i n g - S u s p e n s i o n - P a r t i c l e i l t e r
F5 30 A Sun roof - Front window
F6 30 A Rear window
F7 5 A Interior lamps - Vanity mirrors - Glovebox
F8 20 A D i s p l a y s - A l a r m - R a d i o - C D c h a n g e r - D i e s e l f u e l a d d i t i v e s y s t e m
- D e l a t i o n
detection - Sliding side door
F9 30 A Cigar lighter
F10 15 A Trailer relay unit - Controls at the steering wheel
F11 15 A Diagnostic socket - Siren - Automatic gearbox - Ignition
F12 15 A Seat belts warning lamp - Sliding doors - Airbag - Parking assistance
- Driver’s seat
memorisation - Passenger’s electric seat - Hands-free kit.
F13 5 A Trailer relay unit
F14 15 A Rain sensor - Sun roof - Air conditioning - Odometer warning lamp
control unit -
Instrument panel - Telematics
F15 30 A Locking - Deadlocking - Child safety
F17 40 A Heated rear screen

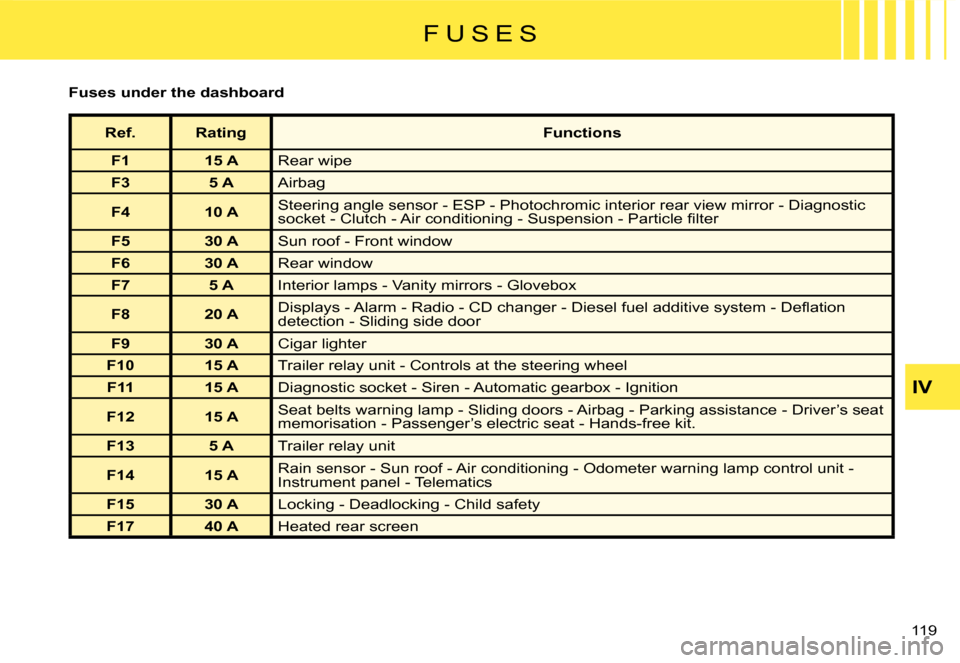

Fuses under the dashboard
