Page 117 of 216
120
IV
NOTES ON RADIO RECEPTION
Your radio will be subject to certain phenomena that are not encoun-tered by domestic systems.
The reception of AM and FM sig-nals may suffer from interference, which is caused by the nature and propagation of the signals and d o e s n o t r e fl e c t o n t h e q u a l i t y o f your radio installation.
In AM, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.
In FM mode, the reception may be affected by the distance from the s t a t i o n t r a n s m i t t e r , t h e r e fl e c t i n g o f signals off obstacles (mountains, hills, tower blocks) and radio blacks-pots (no coverage from the station transmitter).
SELECTION OF RADIO SOURCE
Press button D to select the source.
You can also do this by means of control 5 at the steering wheel.
R A D I O S O U R C E
SELECTION OF FREQUENCIES AND MEMORY BANKS
Press button R successively to go through the memory banks FM1, FM2 and FM3, for the FM wave-band, and the memory banks MW/LW, for the AM waveband.
MANUAL SEARCH
Manual search is via buttons Jor M.
By keeping button J or M pressed, you will be able to scroll through the waveband. Scrolling will stop as soon as you release the button. The radio will remain tuned to the frequency that is displayed.
TUNING SENSITIVITY
Automatic searches can be carried out according to two levels of sen-sitivity:To capture the most powerful transmitters, choose the local search mode "LO" (default option).
To capture the weakest or most distant transmitters, choose the sensitive search mode "DX".
Page 118 of 216
121
IV
DISPLAY AND SELECTION OF A STATION AVAILABLE IN THE AREA IN WHICH YOU ARE TRAVELLING
B r i e fl y p r e s s o n b u t t o n G to bring up a list of stations, this is updated every 10 minutes.
You can also update this list at any time by giving a long press on button G.
To listen to one of these stations, select by pressing buttons J or Mand validate using button L.
MANUAL PRE-SETTING
Select the waveband and memory bank required using button R.
Select a station using either auto-matic or manual search.
Keep pressing for more than two seconds on one of the pre-selection buttons 1 to 6 on the keypad P.
The sound momentarily cuts off, then returns to its previous level to c o n fi r m t h a t i t h a s m e m o r i s e d t h e station.
R A D I O S O U R C E
AUTOMATIC MEMORISATION OF TRANSMITTERS (AUTOSTORE FUNCTION)
In FM, if you hold down button Rfor more than two seconds, your radio will automatically memorise the 6 strongest stations on the FM3 memory bank.
The display shows "FM AST".
The radio memorises the 6 strong-est transmitters, deleting the 6 pre-viously memorised.
After the memorisation, the radio goes directly to memory 1 of mem-ory bank FM3.Note: I f t h e t r a f fi c i n f o r m a t i o n function has been activated (see RDS SYSTEM), the stations offering this facility will be memorised as priority.
If it is unable to memorise any new stations, the system will retain the previously memorised stations. I f t h e s y s t e m i s u n a b l e t o fi n d 6 s t a t i o n s , t h e u n fi l l e d m e m o r y slots will remain free.
Page 119 of 216
122
IV
USING THE RDS (RADIO DATA SYSTEM) FUNCTION ON FM
The majority of FM radio stations use the RDS system. The radio in your vehicle has this system.
The RDS system enables these stations to transmit non-audible data in addition to the broadcasting of their programmes. The data pro-vides access to various functions described in this chapter, such as: display of the station name, inter- m i t t e n t t r a f fi c i n f o r m a t i o n fl a s h e s or automatic scanning of stations. This enables you to continue lis-tening to your chosen radio station, regardless of the different frequen-cies it uses in the regions through which you are travelling.
SCANNING OF RDS STATIONS
Your radio keeps the best possible reception by continuously looks for any other frequencies on which the selected radio station is broadcast, automatically choosing the fre-quency offering the best reception (if the station broadcasts on more than one transmitter or frequency.
R D S S Y S T E M
ACTIVATION/DEACTIVATION OF THE RDS FUNCTIONS
The RDS functions can be accessed via the following two menus:Main menu (press button O).
AUDIO menu (press button L).
To activate/deactivate the functions RDS1. Press button O.2. Select the AUDIO icon using buttons J or M.3. C o n fi r m y o u r c h o i c e w i t h a press on button L.4. Select the sub-menu for the FM waveband, via buttons J or M. C o n fi r m y o u r c h o i c e w i t h a press on button L.5. Select scanning for RDS stations, via buttons J or M.6. Validate your choice with a press on button L.7. Using control L, select/deselect to activate/deactivate the function.8. Validate your choice by selecting "OK" on the display.
Page 122 of 216
125
IV
MP3 CDS
The MP3 format (MPEG 1,2 & 2,5 Audio Layer 3) is an audio com-pression standard that permits recording of 10 times as many m u s i c a l fi l e s o n o n e C D .
Y o u r r a d i o o n l y p l a y s b a c k fi l e s w h i c h have the extension ".mp3". Other t y p e s o f fi l e s ( . w a v , . m p g 4 , . o g g , midi...) cannot be played back.
When you insert an MP3 CD, the radio searches all the musical tracks. Playback may require some tens of seconds before starting.
Playback of the MP3 CD is opti-mised if the level of the cover is limited to 2.
Burning format
Some cut CDs cannot be read by your equipment (quality, speed of recording, etc.).
When you burn a CD-R or CD-RW, select the burning standard ISO 9660 level 1,2 or Joliet. Playback of other formats may not occur correctly.
Use the Joliet standard to burn multi-session CDs.
On a given CD, always use the same burning standard.
To obtain the best possible acous-tic quality, select the lowest burn-ing speed.
It can handle transmission speeds of 8 to 320 kbits/s and playback of 22.05 to 44.1 kHz.
C D S O U R C E
MP3 CD PLAYER
Your Audio CD system may be MP3 compatible.
As you insert a CD recorded in MP3 format, playback starts of the fi r s t s o n g o f t h e fi r s t C D - c o v e r .
You can select a particular track by using buttons N or K and CD-covers using buttons J or M.
TO SELECT A TRACK
To display the list of CD-covers, press on button G.
Use buttons J or M to select the CD-cover you wish to listen to.
To open a CD-cover, press L.
Use buttons N or K to select the track you wish to listen to.
Validate with a press on L.
MENU
This menu is for activation/deacti-vation of three options: P l a y b a c k o f t h e fi r s t 7 s e c o n d s (approx.) of each track of the CD.
Repetition of the current CD-cover.Random playback of CD-cover tracks by CD-cover.
This can be accessed in two ways:Either by pressing button Oand proceeding as for Scanning of RDS stations – the sub-menu for Audio Preferences.
Or, provided you are in CD source, by pressing onbutton L. You can then access the Audio menu.Note: The CD changer (if there is one) is not MP3 compatible.
Page 124 of 216
127
IV
Note:Refer to the user instruc-tions to familiarise yourself with the features of twinning.The telephone detects the Bluetooth® system on your ®
vehicle. "C6vehicle. "vehicle. "" displays on your telephone.
You should then select "C6" on your telephone controls. Next you have to accept or decline this twin-ning.Note: If the 4 twinning memories are already being used, you must select a memory that is already attributed although the telephone twinned to this location will no longer be.Next the telephone asks you to e n t e r a n i d e n t i fi c a t i o n c o d e : 1234.Validate.Note: This entry may be demanded earlier in the twinning sequence.Thetelephone is now twinned to your Bluetooth® system. For imme-®
diate access to the Bluetooth®
functions, it may be necessary to make a connection (see following page C o n fi g u r a t i o n : C o n n e c t i n g a t w i n n e d m o b i l e t e l e p h o n e ) .Once t h e t w i n n i n g i s fi n i s h e d , y o u will be able to connect your tele-phone via the " M a i n m e n u ".
Page 125 of 216
128
IV
MAIN MENU
Press on the Menu button O to access to Main menu, then select the "Telephone" icon using but-tons J ou M), then validate the selection via button L.
You have access:To the Directory.
T o C o n fi g u r a t i o n .To Communication Management.
You access your choices via (Jou M), then you validate them with a press on L.
This main menu can also be accessed by pressing button Ethen button L.
FOLDER
This menu lets you open:The telephone Directory of the telephone that is connected.
The Calls List.
Telephone directory
The starting of a telephone call can be done independently of the telephone or of the audio system, thanks to the directory.
The directory is displayed. Select the number via J or M, then vali-date with a press on L.
Page 136 of 216
139
V

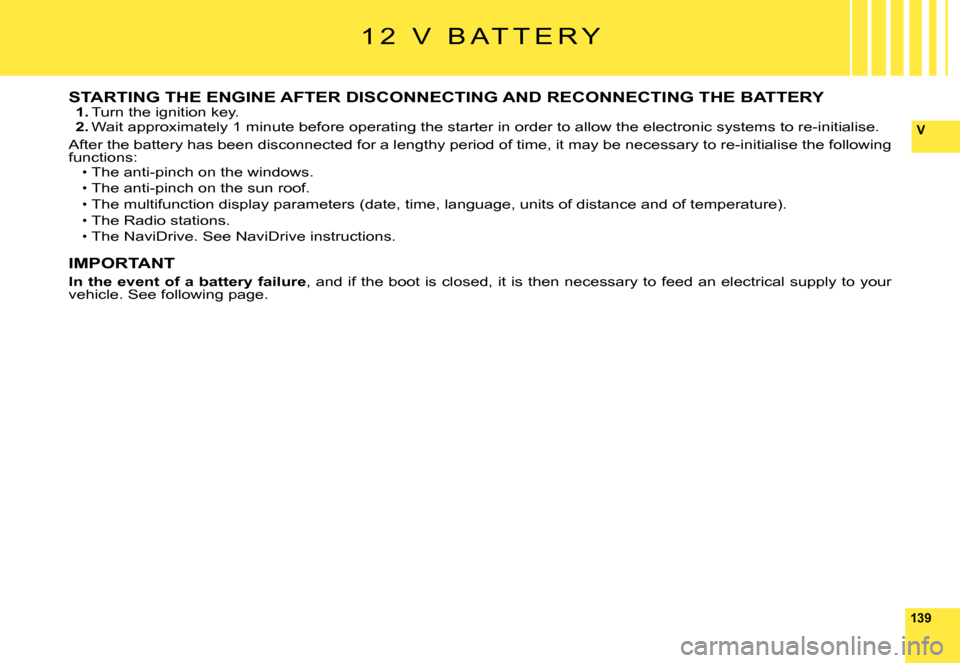

STARTING THE ENGINE AFTER DISCONNECTING AND RECONNECTING THE BATTERY1. Turn the ignition key.2. W a i t a p p r o x i m a t e l y 1 m i n u t e b e f o r e o p e r a t i n g t h e s t a r t e r i n o r d e r t o a l l o w t h e e l e c t r o n i c s y s t e m s t o r e - i n i t i a l i s e .
After the battery has been disconnected for a lengthy period o f time, it may be necessary to re-initialise the following functions:The anti-pinch on the windows.
The anti-pinch on the sun roof.
The multifunction display parameters (date, time, language, units of distance and of temperature).The Radio stations.
The NaviDrive. See NaviDrive instructions.
IMPORTANT
In the event of a battery failure, and if the boot is closed, it is then necessary to feed an electrical supply to your vehicle. See following page.
Page 164 of 216
44
1312
14
171819
212022231615
11
D E S C R I P T I O N O F T H E C O N T R O L S
11Shor t press: Answer call.Display of telephone menu.
12SIM card eject button.
13SIM card slot.
14
Other functions of the alphanumeric keypad:Radio source:Shor t press: Recall of pre-set stations.Long press: Pre-setting of stations.CD changer source: Selecting a CD.
