IN BRIEF
I
15
D R I V I N G
LIGHTING CONTROL
Ring A
1 Off
2 Automatic lighting
3 Sidelamps
4 Dipped beams / Main beams
Ring B
Front foglamps
Rear foglamps
Windscreen wiper
3 Rapid wipe.
2 Normal wipe.
1 Intermittent wipe.
0 Off.
4 Automatic wipe by pressing downwards, and single wipe.
Note : To deactivateautomatic wipe :
- go to position 1, then return to position 0.
Rear screen wipe
Stop.
Intermittent.
Timed wash and wipe.
A Warning lamps for direction indicators and vehicle lamps
B Audio system controls
C Multifunction display controls
D Horn
E Optional function controls
F Cruise control and speed limiter
Page 14 of 266
A
A
IN BRIEF
I
17
D R I V I N G
Electronic parking brake
This device combines :
- automatic functions :
Automatic application when the engine stops and automatic re-lease on use of the accelerator (automatic operation by default) ;
- manual use :
Permanent manual application / release of parking brake is pos-sible by pulling control A.
Navidrive Multifunction display
Before leaving the vehicle, check that the electronic parking brake warning lamp P (red) is perma-nently on.If you leave the vehicle with the engine running, manually apply the parking brake.Never leave a child alone inside the vehicle with the ignition on, as they could release the park-ing brake.
Parking space sensor
You can select the “parking space sen-sor” function by pressing on button A. Once the space has been measured, the function displays the following messages :
Warning lamps displaylamps displayWarning lamps displayps disInstrument panelpanelpanel
Multifunction display
Instrument panel
Parking possible
P a r k i n g d i f fi c u l t
Parking not advised
Hill start assist
To aid starting on a gradient, your v e h i c l e i s e q u i p p e d w i t h a s y s t e m which keeps it immobilised for about 2 seconds, the approximate time it takes to move your foot from the brake pedal to the accel-erator pedal.
Page 15 of 266
IN BRIEF
I
18
Air recirculation, automatic (depending on version)
Automatic comfort regulation
Air
conditioning
Rapid deicing / demisting of front and rear windows and rear view mirrors
Adjustment and display of temperature ( c o m f o r t r e q u i r e m e n t )
REST function REST(retention of ventilation with (retention of ventilation with the engine switched off)the engine switched of
Adjustment of air blower speed
Adjustment of air distribution
Mode of adjustment for rear passengers
Black panel function (extinction of air conditioning displays and button backlighting)
Deicing / demisting of rear screen and rear view mirrorsAdjustment of air blower speed
DRIVER’S AND PASSENGER’S CONTROL PANEL REAR PASSENGERS’ CONTROL
PANEL
V E N T I L A T I O NA u t o m a t i c a i r c o n d i t i o n i n g
With additional air conditioning (no warm air distribution)
Temperature adjustment
Page 16 of 266
IN BRIEF
I
19
V E N T I L A T I O NH e a t i n g a n d m a n u a l a i r c o n d i t i o n i n g
Display of air distribution
Adjustment of blown air temperature
Rapid deicing / demisting of front and rear windows and rear view mirrors
Adjustment and display of air blower speed
Adjustment of air distributionMode of temperature adjustment for passenger
Air recirculation
Air conditioning (not available in heating version)
Deicing / demisting of rear screen and rear view mirrors
Status of temperature adjustment (active/inactive)
Temperature adjustment
DRIVER’S CONTROL PANEL PASSENGER’S CONTROL PANEL
Page 17 of 266
A
IN BRIEF
I
20
M O N I T O R I N G
Seat belts not fastened / unfastened warning lamp
This warning lamp informs you if the driver’s or front passenger’s seat belt is not fastened (depend-ing on model), and if the front pas-senger’s (depending on model) or the second- and third-row passen-gers’ seat belts are unfastened. The lit up positions represent those whose seat belts are not fastened / unfastened.
Locking from inside
You can use electrical central locking or unlocking by pressing on button A.
If one of the doors is open or is not closed properly, central lock-ing will not work.
Anti-intrusion security
When starting the engine, the sys-tem automatically locks the doors once you reach approximately 10 km/h (approximately 6 mph).
T y r e d e fl a t i o n detection
This function warns you if a tyre is d e fl a t e d o r p u n c t u r e d .
This system does not absolve the driver of the need to regularly check the tyre pressures.
The SERVICE warning lamp lights up, and a ve-hicle outline is displayed, accompanied by a mes-sage and a sound signal.
D e fl a t i o n w a r n i n g
The STOP warning lamp lights up, and a vehicle outline is displayed, ac-companied by a message and a sound signal.
Puncture
Page 28 of 266
123456
DC987BA
II
3 1
CENTRAL DISPLAY
1. Rev counter
2. G e a r b o x i n f o r m a t i o n
3. “ F o o t o n b r a k e ” w a r n i n g l a m p
4. S p e e d i n d i c a t o r
5. C r u i s e c o n t r o l o r s p e e d l i m i t e r r e f e r e n c e
6. F u e l g a u g e
7. T r i p m i l e a g e r e c o r d e r
8. M u l t i f u n c t i o n s c r e e n A
9. M a i n t e n a n c e i n d i c a t o r , w h e n s w i t c h i n g o n i g n i t i o n , t h e n t o t a l m i l e a g e r e c o r d e r
COMMAND BUTTONS
A. L i g h t i n g r h e o s t a t ( a v a i l a b l e d a y a n d n i g h t )
B. T r i p m i l e a g e r e c o r d e r r e s e t
C. L i g h t i n g r h e o s t a t ( a v a i l a b l e d a y a n d n i g h t )
D. C h e c k ( l i s t o f a l e r t s )
Warning lamps displayWarning lamps display
M O N O - T O N E I N S T R U M E N T P A N E L E LLM U L T I F U N C T I O N S C R E E N A
Page 30 of 266
123456
DC987BA
3 2
II
CENTRAL DISPLAY
1. Rev counter
2. G e a r b o x i n f o r m a t i o n
3. “ F o o t o n b r a k e ” w a r n i n g l a m p
4. S p e e d i n d i c a t o r
5. C r u i s e c o n t r o l o r s p e e d l i m i t e r r e f e r e n c e
6. F u e l g a u g e
7. T r i p m i l e a g e r e c o r d e r
8. M u l t i f u n c t i o n s c r e e n C
9. M a i n t e n a n c e i n d i c a t o r , w h e n s w i t c h i n g o n i g n i t i o n , t h e n t o t a l m i l e a g e r e c o r d e r
COMMAND BUTTONS
A. L i g h t i n g r h e o s t a t ( a v a i l a b l e d a y a n d n i g h t )
B. T r i p m i l e a g e r e c o r d e r r e s e t
C. P e r s o n a l i s a t i o n o f t h e i n s t r u m e n t p a n e l ( d i s p l a y o f d e s i r e d i n f o r m a t i o n )
D. C O L O U R ( c h o i c e o f b a c k g r o u n d c o l o u r )
T h i s b u t t o n o f f e r s y o u a w h o l e r a n g e o f c o l o u r b a c k g r o u n d s , f r o m w h i t e t o b l u e .
Warning lamps displayWarning lamps display
B I - T O N E I N S T R U M E N T P A N E LM U L T I F U N C T I O N S C R E E N C
Page 32 of 266
124
C
9876
B
35
D
A
II
3 3

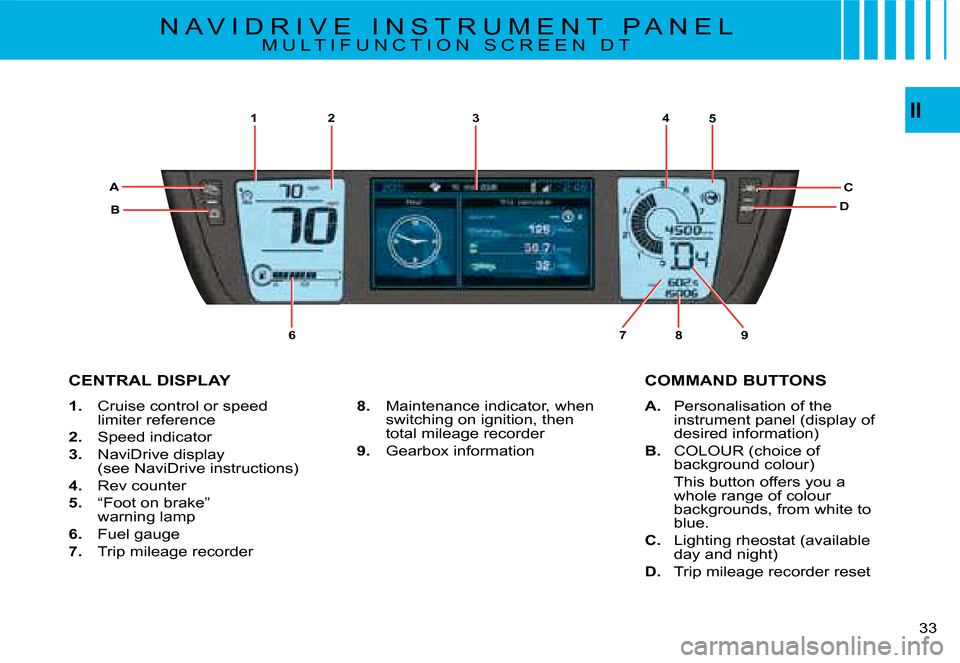

CENTRAL DISPLAY
1. C r u i s e c o n t r o l o r s p e e d l i m i t e r r e f e r e n c e
2. S p e e d i n d i c a t o r
3. N a v i D r i v e d i s p l a y ( s e e N a v i D r i v e i n s t r u c t i o n s )
4. Rev counter
5. “ F o o t o n b r a k e ” w a r n i n g l a m p
6. F u e l g a u g e
7. T r i p m i l e a g e r e c o r d e r
8. M a i n t e n a n c e i n d i c a t o r , w h e n s w i t c h i n g o n i g n i t i o n , t h e n t o t a l m i l e a g e r e c o r d e r
9. G e a r b o x i n f o r m a t i o n
COMMAND BUTTONS
A. P e r s o n a l i s a t i o n o f t h e i n s t r u m e n t p a n e l ( d i s p l a y o f d e s i r e d i n f o r m a t i o n )
B. C O L O U R ( c h o i c e o f b a c k g r o u n d c o l o u r )
T h i s b u t t o n o f f e r s y o u a w h o l e r a n g e o f c o l o u r b a c k g r o u n d s , f r o m w h i t e t o blue.
C. L i g h t i n g r h e o s t a t ( a v a i l a b l e d a y a n d n i g h t )
D. T r i p m i l e a g e r e c o r d e r r e s e t
N A V I D R I V E I N S T R U M E N T P A N E LM U L T I F U N C T I O N S C R E E N D T
