2008 Citroen C4 DAG gearbox

98
IX
D R I V I N G
Manual gearbox
- Ensure that the gear lever is in the neutral position.
- Do not touch the accelerator.
- In the case of diesel engine vehi-cles: turn the key to the drive position. Wait for the pre-heater warning lamp to go off, if it is on.
- Action the starter by turning the key until the engine starts (but not for more than ten seconds).
- In temperatures lower than 0 °C, apply the clutch during the action on the starter in order to aid starting. Then release the clutch slowly.
DO NOT RUN THE ENGINE IN A SPACE THAT IS ENCLOSED OR INSUFFICIENTLY VENTILATED.
Automatic gearbox
- Check that you are in position P or N.
- Do not touch the accelerator.
- For Diesel engines: turn the key to position M. Wait for the pre-heater warning lamp to go off if it is on.
- Action the starter by turning the key until the engine turns over (not for longer than ten seconds).
Advice
Vehicles equipped with a Turbo:
Turbo equipped engines MUST be allowed to return to idle for several seconds before switching off the ignition. Failure to do so could cause serious damage to the turbo unit.
Flicking the throttle pedal as the ignition is turned off can lead to severe dam-age to the turbo unit.
(6 speed) Electronic Gearbox System
- Check that you are in position N.
- Fully depress the brake pedal.
- Do not touch the accelerator.
- For Diesel engines: turn the key to position M. Wait for the pre-heater warning lamp to go off if it is on.
- Action the starter by turning the key until the engine turns over (not for longer than ten seconds).
Note: If the vehicle has been sta-tionary for a long time, or if you have pressed the brake pedal a number of times while stationary, it will be necessary to press the brake pedal hard down in order to authorise the engine to start.
STARTING

99
IX
D R I V I N G

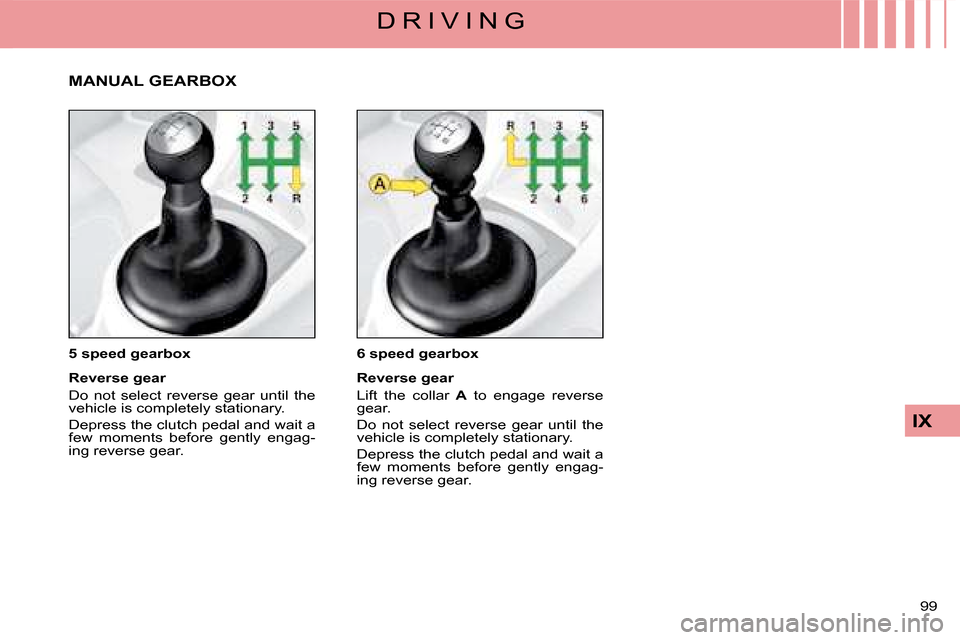

6 speed gearbox
Reverse gear
Lift the collar Acollar to engage reverse gear.
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.
5 speed gearbox
Reverse gear
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.
MANUAL GEARBOX

100
IX
D R I V I N G
The 6-speed electronic gear-box offers a choice of two driving modes:
6-SPEED ELECTRONIC GEARBOX
A manual mode with two methods of operation:
Note: if you are in automatic mode, an instant manual mode activates whenever you action one of the con-trols at the steering wheel.
- the paddle controls behind the steering wheel.
- the gear lever in position M,
Display in the instrument panel
N. Neutral
R. Reverse
1, 2, 3, 4, 5, 6. Gears in manual mode
A1, A2, A3, A4, A5, A6. Gears in automatic mode.
S. Sport (Sport driving style)
For each of these two modes, a Sport option (corresponding to a more dynamic style of driving) is also available.
An automated mode with the gear lever in position A.

102
IX
D R I V I N G
Starting the vehicle
- To start the engine, the gear lever has to be in position N.
- Fully depress the brake pedal.
- Action the starter.
- With the engine running, depend-ing on your preference place the lever on R, A or M.
- Check the position engaged on the rev counter.
- Release the handbrake.
- Release the brake pedal and accelerate.
If the lever is not in position N, the warning lamp "N" fl ashes on the rev counter.
If the brake pedal is not pressed down, the warning lamp "Foot on brake" fl ashes in the instrument panel.
In both cases, the engine does not start; recommence the above proce-dure.
Note: If the vehicle has been sta-tionary for a long time, or if you have pressed the brake pedal a number of times while stationary, it will be necessary to press the brake pedal hard down in order to authorise the engine to start.
Stopping the engine
Before switching the engine off, you can choose:
- to leave the vehicle in neutral; for that, place the lever in position N,
- to leave the vehicle with a gear engaged (R, A or M); for that, place the lever in the position cho-sen. In this case, the vehicle can-not be moved.
In all cases, it is essential to apply the handbrake.
Before undertaking any operation in the engine compartment, make absolutely sure that the gearbox is in neutral and that the handbrake is on.
Do not hold the vehicle stationary using only the accelerator.
If you are stopped on an incline, use the handbrake to hold the vehicle.
Acceleration
To obtain optimum acceleration (for example to overtake another vehi-cle), you have only to press the pedal hard down to go beyond the end-of-travel switch.

103
IX
D R I V I N G
Automated mode
Place the selection lever in posi-tion A.
"A" appears in the speedometer to confi rm the selection made.
The gearbox then operates in autoactive mode, without interven-tion on your part.
It constantly selects the gear best adapted to the following parame-ters:
- Style of driving.
- Road profi le.
Cancellation of automatic mode
Move the gear lever from position Ato select a different position.
The "A" warning lamp disappears on the rev counter.
Instant manual mode
Even in automatic mode, if you touch the controls under the steer-ing wheel "+" or "-" you immediately change gear.
The "A" warning lamp remains dis-played on the rev counter.
In the absence of any further action, automatic mode reactivates to cope with the prevailing driving condi-tions.

IX
D R I V I N G
Manual mode
Position the gear lever in position M, then:
- push the lever to engage a higher gear,
- pull the lever to change down.
Manual mode with controls behind the steering wheel
Place the gear lever in position M, and then the controls at the steering wheel will give you access to the six gears in forward drive.
To change gear:
- Press behind the control "+" at the steering wheel to engage a higher gear.
- Press behind the control "-" at the steering wheel to change down.
Observations:
When the vehicle is braking or reduc-ing speed, the gearbox changes down automatically to a suitable gear.
In manual mode, it is not necessary to release the accelerator during changes of gear.
Changes of gear are accepted only if consistent with engine speed.
Under heavy accelera-tion, a higher gear will only be engaged when the driver actions the gear lever or the controls at the steering wheel.
Note: These controls at the steering do not permit you to select neutral or reverse gear.

IX
D R I V I N G
HILL START ASSIST (with 6-speed electronic gearbox system)
To aid starting on a gradient, your vehicle is equipped with a system that keeps it temporarily immobi-lised.
It keeps the brakes applied for a brief moment, precisely the time taken for moving your foot from the brake pedal to the accelerator pedal.
This function is only active when the vehicle is completely stationary, with your foot on the brake pedal, in particular conditions on a slope.
On a descending slope, provided the vehicle is stationary and reverse gear is engaged, the vehi-cle is held for a brief moment when you release the brake pedal.
Do not leave the vehicle during the hill start phase.
The hill start function cannot be deactivated.
On an ascending slope, with the vehicle stationary, the vehicle is held for a brief moment when you release the brake pedal, provided you are in A or M.
Display of these warning lamps indi-cates a malfunctioning of the hill start assist function.

IX
D R I V I N G
HILL START ASSIST (with 6-speed electronic gearbox system)
To aid starting on a gradient, your vehicle is equipped with a system that keeps it temporarily immobi-lised.
It keeps the brakes applied for a brief moment, precisely the time taken for moving your foot from the brake pedal to the accelerator pedal.
This function is only active when the vehicle is completely stationary, with your foot on the brake pedal, in particular conditions on a slope.
On a descending slope, provided the vehicle is stationary and reverse gear is engaged, the vehi-cle is held for a brief moment when you release the brake pedal.
Do not leave the vehicle during the hill start phase.
The hill start function cannot be deactivated.
On an ascending slope, with the vehicle stationary, the vehicle is held for a brief moment when you release the brake pedal, provided you are in A or M.
Display of these warning lamps indi-cates a malfunctioning of the hill start assist function.
