II
4 9
D A S H B O A R D A D J U S T M E N T S
Headlamps adjustment
You are advised to adjust the aim of the headlamps in accordance with vehicle load.
In the dashboard on the right hand side of the steering column.
0: Unladen weight.
1: Lightly laden.
2: Half laden.
3: Fully laden.
As a metter of safety, these manœuvres should not be performed while the vehicle is moving.
Steering column adjustment
The steering can be adjusted for both height and reach.
With the vehicle stationary , fi r s t adjust your seat to the most suit-able position, then adjust the posi-tion of the steering wheel. See “Driving position”.
Unlock the steering wheel by pull-ing the control upwards.
Adjust the position of the steering wheel then lock by pushing the control fully downwards.
Make sure that you have a good view of the instrument panel dis-plays.
Page 78 of 129
III
7 9
C H I L D R E S T R A I N T S
rear of the vehicle, the front seat of the vehicle must be adjusted so that the child’s feet do not touch the backrest of the front seat.
T h i s c h i l d s e a t c a n a l s o b e i n s t a l l e d i n s e a t p o s i t i o n s n o t fi t t e d w i t h I S O F I X anchorages. In this case, it is compulsory to secure it to the seat using the seat belt.
( 1 ) O n I S O F I X a n c h o r a g e s , y o u m a y fi x o n l y t h e I S O F I X c h i l d s e a t s p e c i fi -cally approved for your vehicle.
Child seats secured by means of the vehicle seat belt
I n c o n f o r m i t y w i t h D i r e c t i v e 2 0 0 0 / 3 , t h e t a b l e t e l l s y o u t o w h a t e x t e n t e a c h of the seat positions in your vehicle may take a child seat tha t is secured by means of the vehicle seat belt and approved as “Universal” as a f unction of the weight of the child.
Seat position(s)Weight of child
< 1 3 k g ( g r o u p s 0 a n d 0 + ) 9 - 1 8 k g (group 1) 1 5 - 2 5 k g ( g r o u p 2 ) 2 2 - 3 6 k g ( g r o u p 3 )
Front passenger’s (a)UUUU
RearUUUU
KEY TO THE TABLEU: Seat position suitable for the installation of a universal rear-facing child seat and a universal forward-facing child sea t posi-tion.(a): In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a “rear-fac-ing” child seat there. Otherwise the child risks being killed o r seriously injured should the airbag deploy.
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s g i v e n i n t h e child seat manufacturer’s installation guide.
ISOFIX anchoring points and the ISOFIX fastening system
The rear seats of your vehicle are equipped with ISOFIX anchoring p o i n t s . T h e s e c o n s i s t o f 2 r i n g s located between the backrest and t h e v e h i c l e s e a t , a p p r o x . 2 8 c m apart.
ISOFIX child seats are equipped w i t h 2 l a t c h e s w h i c h a r e e a y t o attach to these rings.
Incorrect installation of a child seat in a vehicle compromises protec-tion of the child in the event of a collision.
The ISOFIX system enables you to minimise the risks posed by incor- r e c t fi t t i n g . T h e I S O F I X f a s t e n i n g system gives you a convenient, s t r o n g a n d r e l i a b l e fi t t i n g f o r a c h i l d seat in your vehicle.
The ISOFIX child seat recom-mended (1) for your vehicle is:
The RÖMER Duo Plus ISOFIX (1) :
This child seat is approved for chil- d r e n f r o m 9 t o 1 8 k g . I t i s o n l y b e installed in the «forward-facing» position. The use of the upper strap is not necessary. If the RÖMER position. The use of the upper strap upper strap
Duo Plus ISOFIX is installed in the
Page 120 of 129
A
VI
1 2 2
S A F E T Y R E C O M M E N D A T I O N S
Towbar
W e r e c o m m e n d y o u t o h a v e t h i s d e v i c e fi t t e d b y a C I T R O Ë N D e a l e r , w h o w i l l b e a c q u a i n t e d w i t h y o u r v e h i c l e ’ s t o w -ing capability and with the procedures necessary for installing a safety item of this kind.
Dimensions (in metres)
A : 0 . 7 3 8
Do not exceed the maximum permitted load.
For the maximum distributed load on the roof bars: see the chapter “General”.
To avoid damage, do not remove the roof arches with the roof bars attached. Make sure that the load on the roof is n ot hindering the sliding of the folding roof.
Roof bars
For your safety and to avoid damage to the roof, you should use roof bars that are tested and approved by AUTO-MOBILES CITROËN for the design of your particular vehicle.For your safety and to avoid damage to the roof, you should use safety and
Recommendations:Spread the load evenly, avoiding overloading on one side.
Position the heaviest weight as low down as possible.Tie the load down securely and add warning signs if it is protruding.
Drive conservatively, as the vehicle will be more vulnerable to si de winds.
The stability of your vehicle may be altered.Remove the roof rack or roof bars when you are not using them.Note: It is possible to open the sun roof even when the roof bars are present.
Page 125 of 129
VII
1 2 7
G E N E R A L
MAV: Unladen weight.
MTAC: Gross vehicle weight.
CMAE AR: Maximum weight on rear axle.
MTRA: Gross train weight.
Weights: Refer to the manufactur-er's plate.
BVM: Manual gearbox.
BVMP: Electronic Gearbox System.
Observe your vehicle's towing limits.
It is essential to comply with the max. Gross Trailer Weights and s p e e d l i m i t s a s s p e c i fi e d b y l e g i s -lation in each country.
For further information about the towing capacity of your vehicle and its max. authorised Gross Train Weight, contact a CITROËN dealer.
Engine type1.4iBVM1.6i 16VBVMPHDi 70BVM
Fuel tank capacity A p p r o x i m a t e l y 4 7 l i t r e s
Fuels to be usedUnleaded petrol R O N 9 5 - R O N 9 8Diesel fuel
Turning circle between walls (in metres) 1 1 . 5 5 1 1 . 5 5 1 1 . 5 5
F r e n c h fi s c a l r a t i n g 5 7 4
Calculated maximum speed in km/h (mph) (In the highest gear) 1 6 0 ( 9 9 ) 1 8 2 ( 1 1 3 ) 1 5 8 ( 9 8 )
Weights (kg)
U n l a d e n w e i g h t ( M A V ) 1 1 3 6 1 1 7 7 1 1 8 9
Gross vehicle weight (MTAC) 1 5 0 6 1 5 4 3 1 5 3 6
Maximum weight on rear axle (CMAE AR) 7 3 5 7 3 5 7 3 5
Gross train weight (MTRA) 2 1 0 6 2 1 4 3 2 1 3 6
Gross trailer weight (with brakes) (Within the Gross Train Weight limit) 8 5 0 8 5 0 8 5 0
Gross trailer weight (without brakes) 5 4 0 6 0 0 5 4 0
Trailer nose weight 3 2 3 2 3 2
Maximum roof rack load 5 0
Dimensions of chainable tyres 1 8 5 / 6 5 R 1 5
Page 129 of 129
A
A
B
D
1
C
VII
1 3 1
V E H I C L E I D E N T I F I C A T I O N

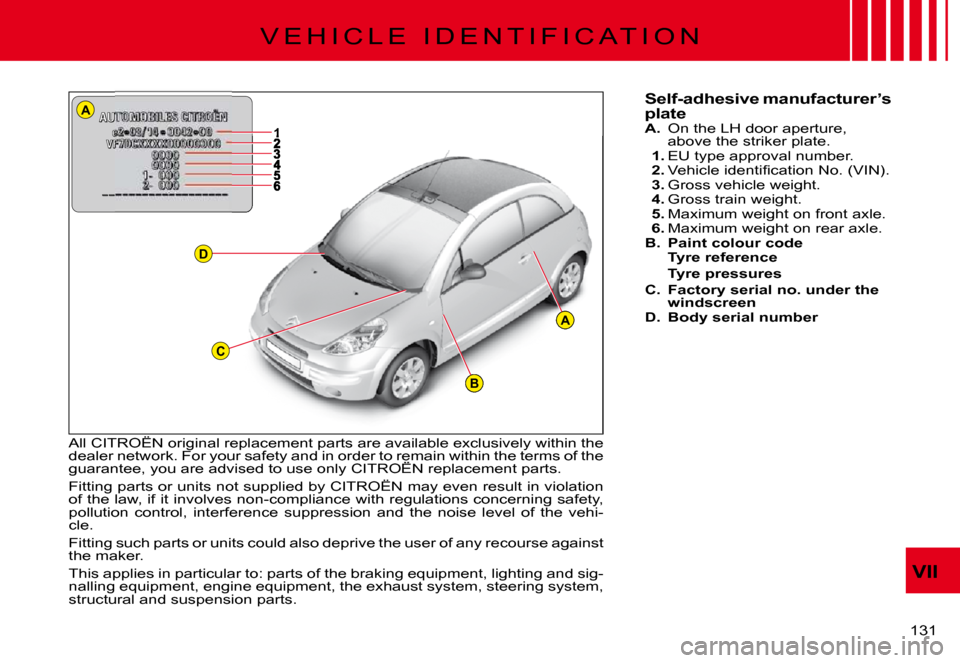

Self-adhesive manufacturer’s plateA. On the LH door aperture, above the striker plate.1. EU type approval number.2. V e h i c l e i d e n t i fi c a t i o n N o . ( V I N ) .3. Gross vehicle weight.4. Gross train weight.5. Maximum weight on front axle.6. Maximum weight on rear axle.B. Paint colour codeTyre reference
Tyre pressures
C. Factory serial no. under the windscreenD. Body serial number
All CITROËN original replacement parts are available exclusively within the dealer network. For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement part s.dealer network. For your safety and in order to remain within the terms of order to remain
Fitting parts or units not supplied by CITROËN may even result in violation of the law, if it involves non-compliance with regulations concerning safety, pollution control, interference suppression and the noise leve l of the vehi-cle.
Fitting such parts or units could also deprive the user of any recourse against the maker.
This applies in particular to: parts of the braking equipment, lighting and sig-nalling equipment, engine equipment, the exhaust system, ste ering system, structural and suspension parts.
