Page 16 of 129
B
A
II
19
R E M O T E C O N T R O L
Note: The simultaneous use of other high frequency equipment (mobile telephones, domestic alarms, etc.) may momentarily hinder the operation of the remote control.
If there is a permanent fault, the remote control has to be reinitial-ised. See “Changing remote con-trol batteries”.
Central unlocking
A short press on control B unlocks your vehicle.
T h i s o p e r a t i o n i s c o n fi r m e d b y t h e r a p i d fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s and the lighting of the interior lamp (if the function is activated). It can also deploy the exterior rear view mirrors.
Central locking – Deadlocking
A short press on button A locks your vehicle.
T h i s i s c o n fi r m e d b y t h e l i g h t i n g f o r a r o u n d 2 s e c o n d s o f t h e d i r e c t i o n i n d i c a -tors and by the interior lamp going out. It may cause the exte rior rear view mirrors to fold back.
If any of the doors, or the boot, is open or not properly closed, the central locking does not operate.
For vehicles equipped with deadlocking, two successive presses on co ntrol A will operate deadlocking. It is then impossible to open the doors, either from the inside or from the outside.
It is dangerous to operate the deadlocking when a p erson is in the vehicle as unlocking is impossible from the inside (without the remote control).
Page 48 of 129
1
3
2
II
5 0
R E A R V I E W M I R R O R S
Electric exterior rear view mirrors
Your vehicle is equipped with elec-tric door mirrors.
Set the position of the selected door mirror:1. Left hand door mirror.2. Right hand door mirror.
Move the control in the four direc-tions to set the position.
The defrosting of the exterior rear view mirrors is linked to the electri-cal demisting of the rear window.
Fold-back of door mirrors
When the vehicle is parked, the door mirrors can be folded back either manually or electrically.
Turn the control to position 3 for electric foldback of the rear view mirrors.
Quit position 3 to deploy the rear view mirrors.
The end of the glass in the exte-rior rear view mirrors is aspherical, s o a s t o e n l a r g e t h e l a t e r a l fi e l d o f vision.
Objects observed in the aspherical part of the rear view mirrors are in reality closer than they appear.
You must take this into account in order to be properly aware of the distances involved.
Interior rear view mirror
The lever on the lower edge ena-bles you to place the rear view mir-ror in either of two positions:
Day position: the lever is not vis-ible.
Night position (anti-dazzle): the lever is visible.
Page 86 of 129
IV
8 8

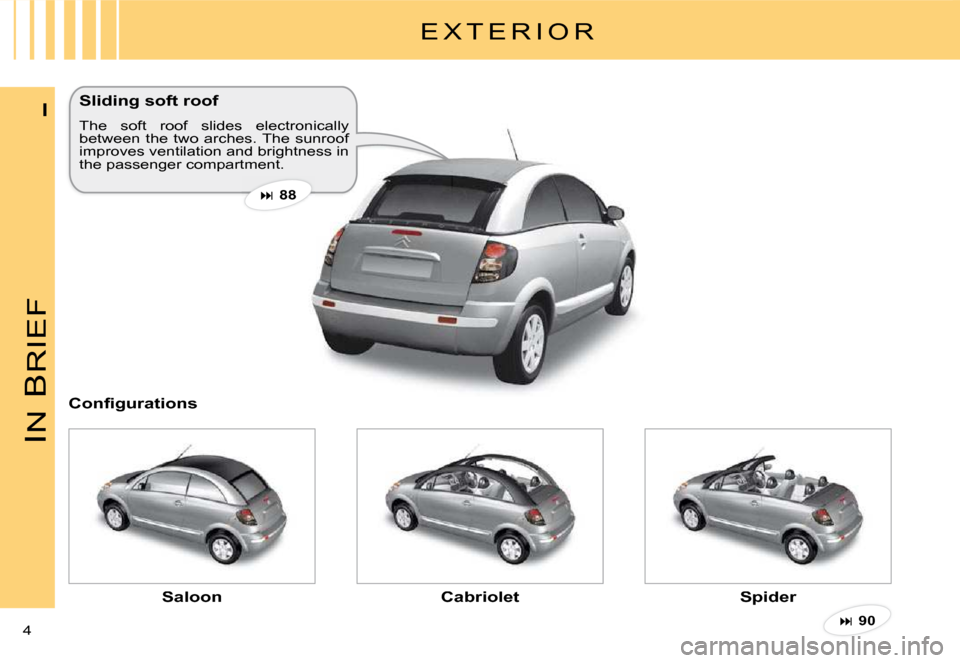

S L I D I N G S O F T R O O F
The soft roof slides electrically between the two arches, provided the ignition is at least in position A: Accessories.
It is operated from the electric r o t a r y c o n t r o l w h i c h h a s 1 0 p o s i -tions and is located above the interior rear view mirror.
Position 0: Roof closed.
Positions 1 to 8: Soft roof open positions.
Position 9: Soft roof slid onto the rear screen.
If opening/closing of the soft roof is prohibited, there is an audible alert.
OPENING THE ROOF (Positions 1 to 8)
Turn the control to the position desired.
OPENING THE ROOF FULLY (Position 9)
Rotate the control to position 9, then press on the control to make the soft roof slide back onto the rear screen.
ROOF FULLY CLOSED (Position 0)
Turn the control to position 0 . T h e r o o f s t o p s 2 0 c m b e f o r e f u l l c l o s i n g i n o r d e r t o p r e v e n t a n y r i s k o f p i n c h i n g .
Press on the control to complete full closing of the roof.Note: It is possible to slide the soft roof while the vehicle is moving. At high speed, the control is rendered inopera-tional.
The roof will only slide if the rear screen is properly closed.
