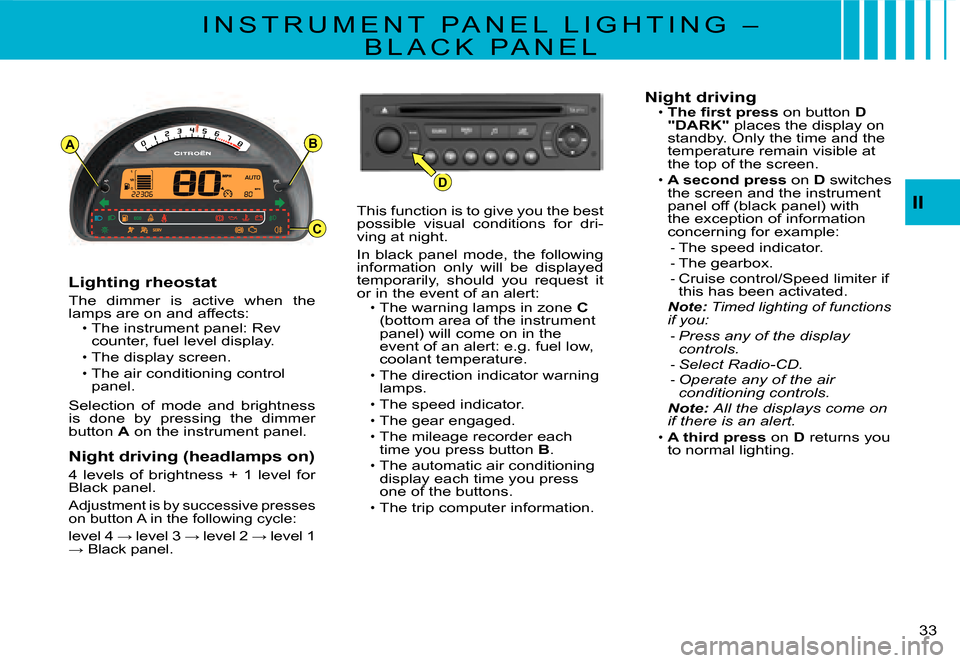

I N S T R U M E N T P A N E L L I G H T I N G –
B L A C K P A N E L
Lighting rheostat
The dimmer is active when the lamps are on and affects:The instrument panel: Rev counter, fuel level display.
The display screen.
The air conditioning control panel.
Selection of mode and brightness is done by pressing the dimmer button A on the instrument panel.
Night driving (headlamps on)
4 levels of brightness + 1 level for Black panel.
Adjustment is by successive presses on button A in the following cycle:
level 4 W level 3 W level 2 W level 1 W Black panel.
D
23
A
C
B
E
EDCB
AE
1
35
II
M U L T I F U N C T I O N D I S P L A YD I S P L A Y A
The driver is recommended not to concern himself with the display controls while driving.1. Time.2. Date - Display zone.3. Outside temperature.
When the outside temperature is between +3 °C and –3 °C, the t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k of ice).Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
Remark: The display of certain types of information is sometimes scrolled and sometimes alternated.
ControlsA. Access to the "Main menu" of the display.B. Scroll through display menus.C. Validation and Selection in the menus, of the function chosen o r v a l u e m o d i fi e d .D. Cancellation of the operation or return to the previous display.E. Selection of the type of information displayed in zone 2 (date, radio/CD and trip computer).In the Menus, choice of activation/deactivation of your functions and choice of your adjustments.
Main Menu
By pressing control A then B, you have access to the following func-tions:
Radio-CD (See radio-CD handbook).
V e h i c l e c o n fi g u r a t i o n , to activate/deactivate:Triggering of rear screen wipe.The automatic guide-me-home lighting.Automatic lighting of headlamps.Options, to display the alerts.
Display adjustments, to adjust the date and time on the display.Languages, to select the display language.
Units, to access the choices of units of Temperature and Fuel Consumption.
II
D A S H B O A R D A D J U S T M E N T S
Seat belt height adjustment
The correct positioning of the seat belt is across the middle of the shoulder. See User Precautions.
Adjust the height of the seat belt anchorage by holding down the button and the lever.
Headlamps adjustment
You are advised to adjust the aim of the headlamps in accordance with vehicle load.
In the dashboard on the right hand side of the steering column.
0: Unladen weight.
1: Lightly laden.
2: Half laden.
3: Fully laden.
As a metter of safety, these manœuvres should not be performed while the vehicle is moving.
Steering column adjustment
The steering can be adjusted for both height and reach.
With the vehicle stationary, fi r s t a d j u s t y o u r s e a t t o t h e m o s t suitable position, then adjust the position of the steering wheel. See "Driving position".
Unlock the steering wheel by pulling the control upwards.
Adjust the position of the steering wheel then lock by pushing the control fully downwards.
Make sure that you have a good view of the instrument panel displays.
