I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.
Total mileage.
It also displays the trip mileage or trip computer information (depend-ing on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
Page 10 of 178
BCD
AF
E
IJHG
2 8
II
I N S T R U M E N T P A N E L
D I E S E L V E R S I O N

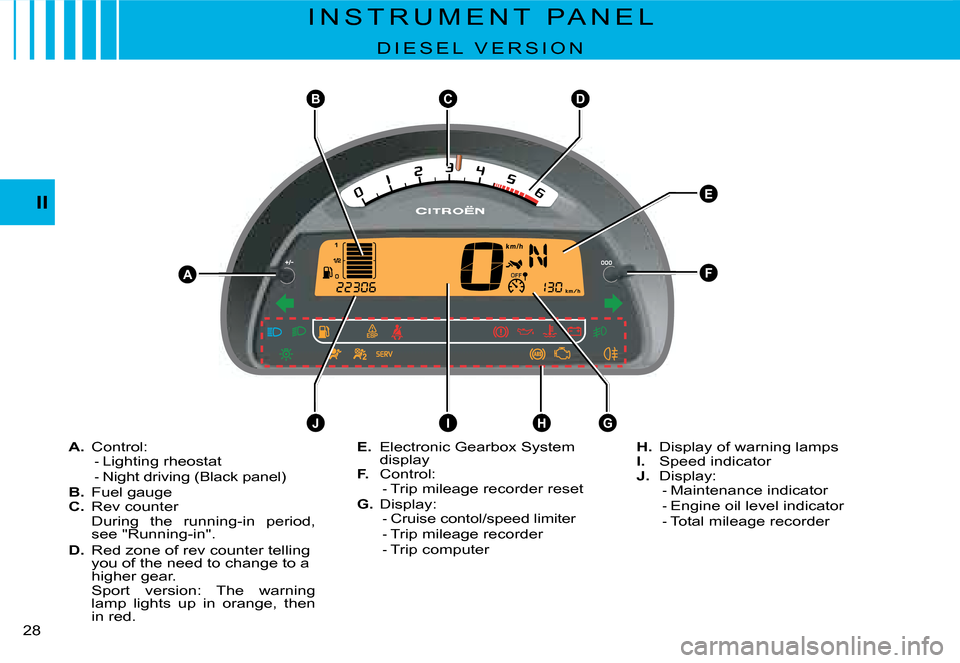

A. Control:Lighting rheostatNight driving (Black panel)B. Fuel gaugeC. Rev counterDuring the running-in period, see "Running-in".
D. Red zone of rev counter telling you of the need to change to a higher gear.Sport version: The warning lamp lights up in orange, then in red.
--
E. Electronic Gearbox System displayF. Control:Trip mileage recorder resetG. Display:Cruise contol/speed limiterTrip mileage recorderTrip computer
-
---
H. Display of warning lampsI. Speed indicatorJ. Display:Maintenance indicatorEngine oil level indicatorTotal mileage recorder
---
Page 11 of 178
B
2 9
II
I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.
Total mileage.
It also displays the trip mileage or trip computer information (depend-ing on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
Page 12 of 178
B
2 9
II
I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.
Total mileage.
It also displays the trip mileage or trip computer information (depend-ing on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
Page 13 of 178
3 0
II
W A R N I N G L A M P S
These warning lamps may be accompanied by a message and/or a sound signal
Engine oil pressure
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the oil pressure is low.
It is essential to stop the vehicle.
Contact a CITROËN dealer.
Coolant temperature warning lamp
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the coolant temperature is rising abnormally.
It is essential to stop the vehicle.
Check the coolant level.
See "Levels".
If the level is satisfactory, consult a CITROËN dealer.If the level is satisfactorythe level
Battery charge
This warning lamp should go out when the engine is running.
If it remains permanently on, con-tact a CITROËN dealer.If it remains permanently remains permanently
Warning lamp for parking brake, b r a k e fl u i d l e v e l a n d braking distribution malfunction
With the engine running, the light-ing of this warning lamp indicates that the parking brake is on or not properly released, that the brake fl u i d l e v e l i s l o w o r t h a t t h e b r a k i n g system is malfunctioning.
If the warning lamp remains on even after you have released the parking brake, stop immediately and contact a CITROËN dealer.parking brake, stop immediately stop immediately
Driver's seat belt not fastened
This lamp comes on if the LH seat belt is not fastened when the ignition is switched on and while the vehicle is moving at u p t o a p p r o x . 2 0 k m / h ( 1 2 m p h ) . Above this speed, the warning l a m p fl a s h e s , a c c o m p a n i e d b y a s o u n d s i g n a l f o r a r o u n d 1 2 0 s e c -onds. Then it remains on.
SERVICE
This warning lamp remains on for a seri-ous fault. Consult a CITROËN dealer as soon as pos-sible.
This warning lamp remains on only for a short time for faults that are minor. Contact a CITROËN dealer if necessary.
T o fi n d o u t t h e n a t u r e o f t h e c o r r e -sponding warning, consult the Log of Alerts (See section "Displays Aand C" in "Multifunction display").
Fuel low
It comes on for a few sec-onds each time you switch on the ignition.
If the fuel low warning lamp comes on, there remain approx. 4 to 6 litres of fuel in the tank.
Depollution system
It remains on until you start the engine.
I f t h i s w a r n i n g l a m p fl a s h e s or lights up while you are driving, this indicates a problem with the depollution system.
Consult a CITROËN dealer as soon as possible.
Page 15 of 178
3 2
II
M A I N T E N A N C E I N D I C A T O R
It informs you when the next routine service is due in accordance with the vehicle servicing schedule in the Maintenance Guide. This information is dependent on two p arameters: the mileage covered, and the time elapsed since the last visit.
Operation
When the ignition is switched on, the maintenance indicator spanner is displayed for a few seconds. The mileage recorder display indicates how many miles remain to be trav-elled before the next service is due (in thousands and hundreds of miles).
Example: there remain up to the next service:
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role.
Operation if the distance to the next service is less than 1 000 km (600 miles)
Each time you switch on the igni-tion and for 5 seconds, the span- n e r a n d t h e d i s t a n c e fl a s h .
Example: there remain up to the n e x t s e r v i c e : 5 0 0 k m ( 3 0 0 m i l e s ) . On switching on the ignition and for 5 seconds, the instrument panel indicates:
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role and the spanner remains lit up. This is a warning to you that a service must be carried out at the earliest opportunity.
Operation if the service interval has been passed
Each time you switch on the igni-tion, the spanner and the distance covered (preceded by a minus) beyond the recommended interval fl a s h .
Example: You have exceeded t h e s e r v i c e i n t e r v a l b y 3 0 0 k m ( 3 0 0 m i l e s ) .
The routine service on your vehi-cle needs to be carried as soon as possible.
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role and the spanner remains lit up.
Page 16 of 178
AB
D
C
3 3
II
I N S T R U M E N T P A N E L L I G H T I N G –
B L A C K P A N E L
Lighting rheostat
The dimmer is active when the lamps are on and affects:The instrument panel: Rev counter, fuel level display.
The display screen.
The air conditioning control panel.
Selection of mode and brightness is done by pressing the dimmer button A on the instrument panel.
Night driving (headlamps on)
4 l e v e l s o f b r i g h t n e s s + 1 l e v e l f o r Black panel.
Adjustment is by successive presses on button A in the follow-ing cycle:
l e v e l 4 W l e v e l 3 W l e v e l 2 W level 1 W Black panel.
