Page 92 of 97
1010
83
TECHNICAL DATA
PETROL ENGINES AND GEARBOXES
Model codes PM, PN CFAC CFAC/P
Engines
1 . 0 l i t r e ( ≈ 6 8 b h p )
Cubic capacity (cm 3
) 998
Bore x stroke (mm) 71 x 84
EU standard maximum power (kW) 50
Max power engine speed (rpm) 6 000
EU standard max torque (Nm) 93
Max torque engine speed (rpm) 3 600
Fuel Unleaded
Catalytic converter Yes
G e a r b o x Manual (5-speed) "SensoDrive" (5-speed)
Oil capacity (in litres)
Engine (with cartridge replacement) 3.2
Gearbox-Final drive 2

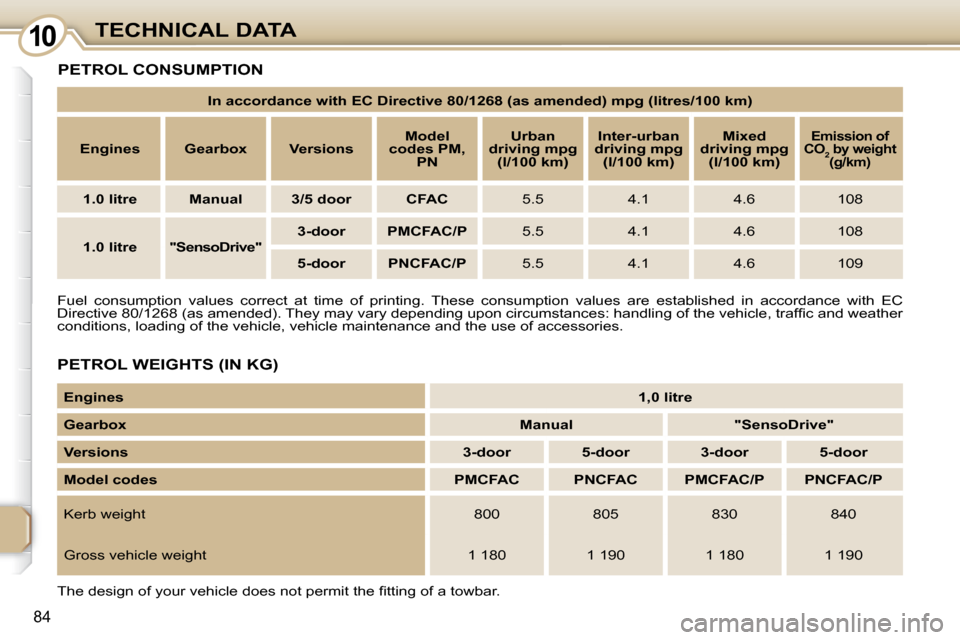

Page 93 of 97
1010
84
TECHNICAL DATA
Fuel consumption values correct at time of printing. These consu mption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of accessories.
PETROL CONSUMPTION
P E T R O L W E I G H T S ( I N K G )
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) m p g ( l i t r e s / 1 0 0 k m )
Engines G e a r b o x Versions
Model
codes PM, PN
U r b a n
d r i v i n g m p g ( l / 1 0 0 k m )
I n t e r - u r b a n
d r i v i n g m p g ( l / 1 0 0 k m )
M i x e d
d r i v i n g m p g ( l / 1 0 0 k m )
E m i s s i o n o f
CO
2 b y w e i g h t ( g / k m )
1.0 litre Manual 3/5 door CFAC 5.5 4.1 4.6 108
1.0 litre " S e n s o D r i v e "
3-door PMCFAC/P 5.5 4.1 4.6 108
5-door PNCFAC/P 5.5 4.1 4.6 109
Engines
1,0 litre
G e a r b o x
Manual " S e n s o D r i v e "
Versions
3-door 5-door 3-door 5-door
Model codes
PMCFAC PNCFAC PMCFAC/P PNCFAC/P
Kerb weight 800 805 830 840
Gross vehicle weight 1 180 1 190 1 180 1 190
Page 94 of 97
1010
85
TECHNICAL DATA
DIESEL ENGINES AND GEARBOXES
Model codes PM, PN
8 H T C
Engines
1 . 4 l i t r e T u r b o H D I ( ≈ 5 4 b h p )
Cubic capacity (cm 3
) 1 398
Bore x stroke (mm) 73.7 x 82
EU standard maximum power (kW) 40
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 130
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
P a r t i c l e e m i s s i o n fi l t e r No
G e a r b o x
M a n u a l ( 5 - s p e e d )
Oil capacity (in litres)
Engine (with cartridge replacement) 3.8
Gearbox-Final drive 1.9
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) m p g
( l i t r e s / 1 0 0 k m )
G e a r b o x U r b a n
d r i v i n g m p g ( l / 1 0 0 k m ) I n t e r - u r b a n
d r i v i n g m p g ( l / 1 0 0 k m ) M i x e d
d r i v i n g m p g ( l / 1 0 0 k m ) E m i s s i o n o f
2 b y w e i g h t ( g / k m )
" S e n s o D r i v e "
Page 95 of 97
1010
86
TECHNICAL DATA
D I E S E L W E I G H T S ( I N K G )
DIESEL CONSUMPTION
Fuel consumption values correct at time of printing. These consumption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of accessories.
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) m p g ( l i t r e s / 1 0 0 k m )
Engines G e a r b o x
Model codes
PM, PN
U r b a n d r i v i n g
( l / 1 0 0 k m ) m p g
I n t e r - u r b a n
d r i v i n g
( l / 1 0 0 k m ) m p g
M i x e d d r i v i n g
( l / 1 0 0 k m )
E m i s s i o n o f C O
2
b y w e i g h t m p g g / k m
1.4 litre
T u r b o H D I
Manual 8 H T C 5.3 3.4 4.1 109
Engines
1 . 4 l i t r e T u r b o H D I
G e a r b o x
Manual
Versions
3-door 5-door
Model codes
P M 8 H T C P N 8 H T C
Kerb weight 885 890
Gross vehicle weight (GVW) 1 235 1 245
Page 96 of 97
1010
87
TECHNICAL DATA
D I M E N S I O N S ( I N M M )
Page 97 of 97
1010
88
TECHNICAL DATA
IDENTIFICATION FEATURES OF YOUR VEHICLE
B . S e r i a l n u m b e r .
This is engraved on the crossmem-
ber, under the front right seat. T h e i n fl a t i o n p r e s s u r e m u s t
be checked when cold, at
least once a month.
A . M a n u f a c t u r e r ' s p l a t e .
1. EU approval number.
2 . Serial number.
3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front axle.
6 . Maximum weight on rear axle.
7. Paint colour reference. 5-door
3-door
I f t h e i n fl a t i o n p r e s s u r e i s t o o
low, this increases fuel con-
sumption.
C . T y r e s .
The label
C a f fi x e d t o t h e p i l l a r , n e a r
the left door striker, indicates:
- the tyre sizes,
- t h e i n fl a t i o n p r e s s u r e s .
