A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
184
General notes on CDs
Playing an audio CD When the audio CD is
inserted in the player,
playing of the tracks is
automatic and they can
be recorded onto the
hard disc.
Simultaneous access to the music
recognition service “Gracenote CDDB”
on the hard disc permits displaying of
the title information. Switching off the engine or removing
the CD during recording will result in the
tracks being faulty.
The operation of the navigation system
may slow down during recording.
The recording speed may be slower
than 4x due to the processing load on
the equipment or the condition of the
audio CD.
If jumps or other errors occur, return to
the beginning of the track and start the
recording again.
Even if there is no gap between the
tracks on the CD, a brief silence between
tracks is stored on the hard disc. What is the Gracenote CDDB?
The title information for the
track currently being played
can be obtained from the
“Gracenote CDDB” database
stored on the hard disc.
The Gracenote company uses
this standard to identify the music and
the associated information such as:
- the title of the album,
- the name of the artist,
- the title of the tracks,
- the genre, ...
For further details, consult the site:
www.gracenote.com.
The Gracenote CDDB database
incorporated in this equipment cannot
guarantee the content of the data
100%. You can update this database
using a DVD sold separately.
Copyright
Your Audio equipment may allow you to
listen to music which is usually protected
by copyright in accordance with current
national and international standards.
Please consult these standards and
comply with them.
Recording onto the music server
The tracks of audio CDs (not
MP3/WMA) can be recorded
onto the hard disc at approxi-
mately 4x speed (e.g. 60 minutes con-
verted to 15 minutes) and stored on the
music server.
The sounds recorded may be altered
by the noise present and the quality of
the sound may differ from the original.
The tracks recorded on the music
server cannot be reproduced on another
medium (CD-R/RW, HDD, etc.).
Previously recorded tracks cannot be
recorded again from the same CD.

ABC
DE
F
GHI
J
K
L
M
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
185
Information displayed in CD mode and recording a CD

A. The name of the album is displayed
for the track currently being played.

B. The name of the artist is displayed for
the album currently being played.

C. The playing time of the track
currently being played is displayed.

D. The playing mode currently selected
is displayed.

E. Position of the cursor and total
number of tracks on the album.

F. Displays the item currently selected.

G. To scroll up or down through the
tracks. Press and hold for rewind or
fast forwards playing of a track.
H. Displays the number and the name
of the track. While driving, they
are not available and cannot be
selected.

I. To display the secondary menu.

J. Move the cursor onto the track
currently being played.

K. The number and the name of the
track currently being played are
displayed.

L. During recording, this symbol is
displayed in red and it switches off
when all recording operations are
complete. The number indicates the
percentage of the total number of
tracks on the CD already recorded
onto the hard disc. 00% when only
one track has been recorded.

M. The tracks which have not been
recorded are displayed in blue.
No symbol is displayed for tracks
which have been recorded.
The CD button is only active if the play-
er contains a CD.
Press Open to return the display to the
vertical position.

ABCD
E
F
G
HIJK
L
M
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
191
Information displayed in Music Server mode
A. The number and the name of the
track currently being played are
displayed.

B. The number and the name of the
playlist currently being played are
displayed.

C. The name of the artist is displayed
for the playlist currently being
played.

D. The playing time of the track
currently being played is displayed.

E. The playing mode currently selected
is displayed.

F. Group lists: position of the cursor
and total number of groups.
Playlists: position of the cursor
and total number of playlists.
Track lists: position of the cursor
and total number of tracks.
G. To display the list of groups, the
playlist and the list of tracks.

H. To scroll up or down through the
tracks. Press and hold for rewind or
fast forwards playing of a track.

I. To scroll up or down through the
playlists.

J. Group lists: number and name of
the group.
Playlists: number and name of the
playlist.
Track lists: number and name of the
track.

K. To display the secondary menu.

L. Displays the item currently
selected.

M. Move the cursor onto the track
currently being played.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
194
General notes on MP3/WMA CDs
Playing an MP3/WMA CD When the MP3/WMA CD is
inserted in the player, play-
ing of the tracks is automat-
ic.
The tracks cannot be recorded
onto the music server.
You can play up to 8 levels,
255 folders and 400 fi les
maximum.
Copyright
Your Audio equipment may allow you to
listen to music which is usually protected
by copyright in accordance with current
national and international standards.
Please consult these standards and
comply with them.
Acceptance of the fi les
Some burned CDs may not be played
by your equipment (quality, recording
speed ...).
When you burn a CD-R or CD-RW,
select the ISO 9660 level 1.2 or Joliet
burning standard.
To obtain the best acoustic quality
possible, select the lowest burning
speed.
The MPEG1 and MPEG2 standards
are accepted.
Transmission speeds between 32 and
320 kbits/s and scans between 16 kHz
and 48 kHz are accepted.
To display the title information (the
name of the artist, the title of the album,
etc.), the information contained in the
ID3 Tags or the WMA Tags must be
included in the MP3/WMA fi les burned
onto the disc.
What is the MP3/WMA fi le format?
MP3 is the abbreviation of MPEG-1
Audio Layer 3 and MPG is the
abbreviation of Motion Pictures Experts
Group, a digital video data compression
standard used on media such as video
CDs.
The MP3 compression reduces the
number of bytes in a song by eliminating
the long sound waves in the range of
frequencies which are imperceptible
to the human ear, so producing high
quality audio fi les with a low volume of
data.
This compression divides the size of
the content of a conventional audio
CD by approximately 10, which means
that the content of 10 audio CDs can
be recorded onto a single CD-R or
CD-RW.
WMA is the abbreviation of Windows
Media Audio, another audio data
compression standard offered by
Microsoft.
It can be used to create and save audio
fi les at a compression rate higher than
that of the MP3 format.
Windows Media and Microsoft
Corporation are trademarks registered
in the United States and/or other
countries.

ABC
EF
G
IKL
M
N
D
H
J
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
195
Information displayed in MP3/WMA CD mode
A. The number and the name of the
track currently being played are
displayed.

B. The name of the album/folder is
displayed for the track currently
being played.

C. The name of the artist is displayed
for the track currently being played.

D. The playing time of the current track
is displayed.

E. The playing mode currently selected
is displayed.

F. Position of the cursor and total
number of folders or tracks on the
current level.

G. To display the list of folders of a
higher level.

H. Displays the item currently
selected.
I. To scroll up or down through the
tracks. Press and hold for rewind or
fast forwards playing of a track.

J. To scroll up or down through the
folders.

K. Displays the folder number and
the folder name. Plus the lists and
numbers of tracks and the name of
the fi le (without extension).

L. To display the secondary menu.

M. Move the cursor onto the track
currently being played.

N. Displays the type of medium, MP3
or WMA.
The CD button is only active if the play-
er contains a CD.
Press Open to return the display to the
vertical position.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
196

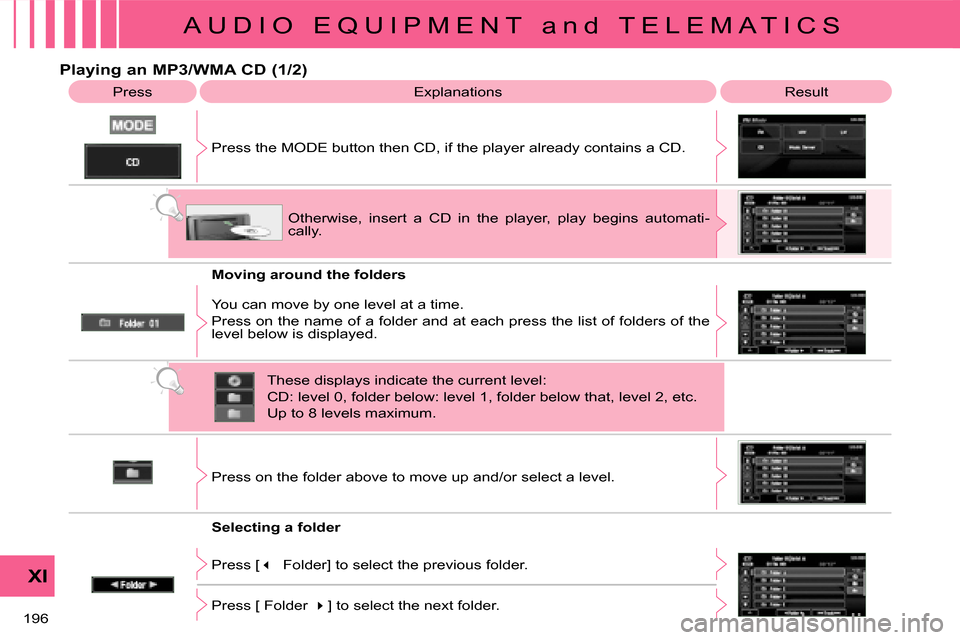

Playing an MP3/WMA CD (1/2) Press Explanations Result
Press the MODE button then CD, if the player already contains a CD.
Moving around the folders
Selecting a folder Otherwise, insert a CD in the player, play begins automati
-
cally.
You can move by one level at a time.
Press on the name of a folder and at each press the list of f olders of the
level below is displayed.
Press on the folder above to move up and/or select a level.
Press [  Folder] to select the previous folder.
Press [ Folder  ] to select the next folder.
These displays indicate the current level:
CD: level 0, folder below: level 1, folder below that,
level 2, etc.
Up to 8 levels maximum.

ABCDE
FGHIJ
KLM
RQPON
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
198
Information displayed in DVD mode
The DVD button is only active if the
player contains a DVD. Press Open to return the display to the
vertical position. For safety reasons, the video
is not displayed while driving,
however the audio can be
played.
To display the picture and watch
a DVD, park the vehicle in a safe
place.

K. To display the DVD title menu.
L. To scroll up or down through the
chapters.
Press and hold for fast backwards
or forwards play.

M. To scroll up or down through the
titles.

N. To enter a title or chapter number.

O. To change the angle.

P. To change the language of the
subtitles.

Q. To change the language .

R. To select a chapter or title or specify
a number.

A. This icon is displayed when the
operation requested cannot be
carried out.

B. The number of the chapter currently
being played is displayed.

C. The number of the title currently
being played is displayed.

D. Symbols display the current status
of the player.

E. The playing time is displayed.

F. To resume normal play when play is
paused or during slow-motion play.

G. To stop play temporarily.

H. To stop play. Press the screen to
access the menu.

I. For slow-motion play.

J. To play the previously selected zone
on the disc.

ABCB1B2
B3
C1C2C3C4C5
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
200

A - Choose to switch off the display.
To switch it back on, touch the
screen or press any button.
B - Choose the settings of the sound
in the vehicle, if an audio source is
selected (FM, CD, ...), for:

B1 - the sound distribution or the volume
such as the front-rear balance, the
bass, the medium, the treble, the
volume adjustment in relation to
the vehicle speed,
B2 - the type of music (with surround
option) such as classic, jazz, pop,
rock, hip hop, country, normal, ...
B3 - the sound fi eld (with surround
option) such as stage, live, hall,
normal, ...

C - Choose the quality of the picture
for:
C1 - the colour (when playing DVDs),
C2 - the intensity of the colours (when playing DVDs),

C3 - the brightness,

C4 - the contrast,

C5 - the level of black.
SETTINGS
Display, sound, picture
