2008 Citroen C CROSSER display
[x] Cancel search: displayPage 179 of 216
GH
G1G2G3
G4G5
H1H2
H3H4
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
176
Navigation settings and
information G
- Select the settings of functions
linked with the navigation to:
G1 - set the screen display parameters
such as:
- display 1 or 2 maps,
- display or do not display the POIs on the map, display selected
icons,
- change the colours of the map,
- display or do not display the name of the current street,
- display or do not display the address of the current street.
G2 - set route conditions,
G3 - set the route guidance mode and
the displaying of the results of the
route search.
G4 - save, change or delete a location
in the address book,
G5 - d i s p l a y a n d s e l e c t t h e t r a f fi c
i n f o r m a t i o n s u c h a s t r a f fi c j a m s o r
road works.
H - Select basic information relating to
the navigation as well as a pre-set
route demonstration to:
H1 - choose to divert your route to avoid
certain areas,
H2 - select a location using an advanced
search based on a POI along a
motorway or in the vicinity of the
m o t o r w a y e x i t ,
H3 - start/stop the demonstration,
H4 - recall a stored map screen.
Page 180 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
177
Selecting points of interest (POI)
icons displayed on the map
You can select up to 40 types of point
of interest icon which are displayed on
your map screen.
Press the MENU button then
[Navigation/Settings].
Press [Screen] then [Select] on the POI
line.
Press [ ] which is displayed.
Press each POI required.
At each contact with a POI, the display-
ing of [ ] changes ( = the POI will be
displayed on the screen). General
Town centre
Locality
S h o p s , fi n a n c e a n d b u s i n e s s e s (Green)
Major companies
Shopping centre
Vehicles and travel (Dark blue)
CITROËN
Airport
Bus stop
Vehicle hire
Suburban station / station
Ferry terminal
Hotel
Park and ride
Car park (press +)
Service station
Rest area
Toll booth
Tourist information
Railway station Restaurant (Orange)
Night life / night club
Restaurant Public places and emergency
services (Brown)
Town Hall
Community centre
C o n v e n t i o n / e x h i b i t i o n c e n t r e
Hospital
University / college
Entertainment and attractions (Blue) Theme park
Bowling alley
Casino
Cinema
Golf course
Historical monument
Skating rink
Marina
Museum
Flying club
Leisure area
Ski station
Sports centre
Theatre / opera
Tourist attraction
Vineyard / wine and spirit store
Page 181 of 216
![Citroen C CROSSER 2008 1.G Owners Manual A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
178

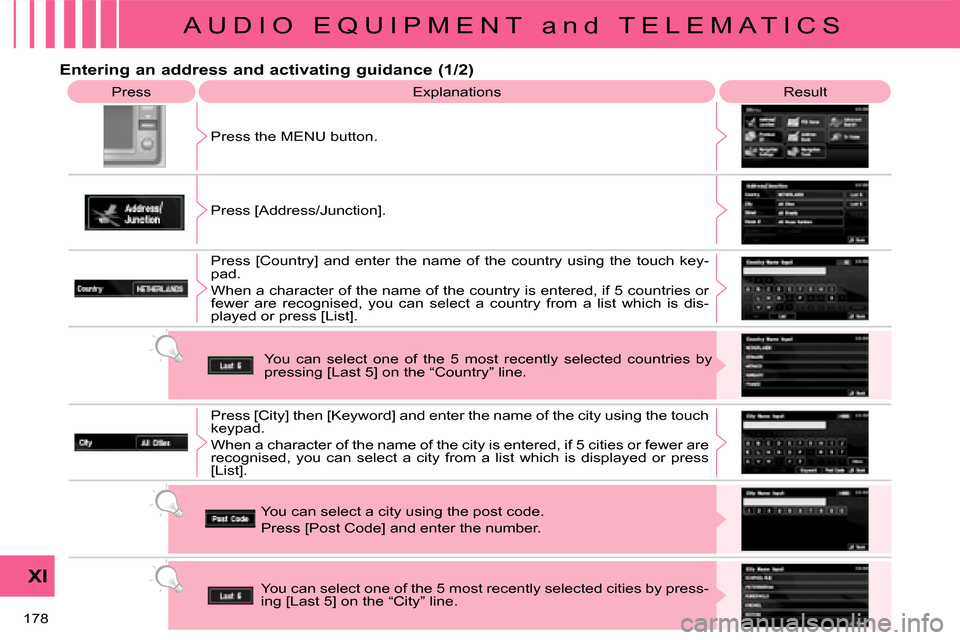

Press E x p l a n a t i o n s Result
Press the MENU button.
Press [Address/Junction]. Press [Country] and enter the](/manual-img/9/4180/w960_4180-180.png "Citroen C CROSSER 2008 1.G Owners Manual A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
178
Press E x p l a n a t i o n s Result
Press the MENU button.
Press [Address/Junction]. Press [Country] and enter the")
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
178
Press E x p l a n a t i o n s Result
Press the MENU button.
Press [Address/Junction]. Press [Country] and enter the name of the country using the to uch key-
pad.
When a character of the name of the country is entered, if 5 countries or
fewer are recognised, you can select a country from a list which is dis-
played or press [List].
You can select one of the 5 most recently selected countries by
pressing [Last 5] on the “Country” line.
Press [City] then [Keyword] and enter the name of the city usin g the touch
keypad.
When a character of the name of the city is entered, if 5 ci ties or fewer are
recognised, you can select a city from a list which is displayed or press
[List].
You can select a city using the post code.
Press [Post Code] and enter the number.
You can select one of the 5 most recently selected cities by pre ss-
ing [Last 5] on the “City” line.
Entering an address and activating guidance (1/2)
Page 182 of 216
![Citroen C CROSSER 2008 1.G Owners Manual /
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
179
Entering an address and activating guidance (2/2) Press E x p l a n a t i o n s Result
Press [Street] and enter the na](/manual-img/9/4180/w960_4180-181.png "Citroen C CROSSER 2008 1.G Owners Manual /
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
179
Entering an address and activating guidance (2/2) Press E x p l a n a t i o n s Result
Press [Street] and enter the na")
/
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
179
Entering an address and activating guidance (2/2) Press E x p l a n a t i o n s Result
Press [Street] and enter the name of a street using the touch keypad.
When a character of the name of the street is entered, if 5 streets or fewer
are recognised, you can select a street from a list which is displa yed or
press [List].
Press [House #] and enter the number of the house using the touch key-
pad.
You can enter the name of a junction instead of the numb er
of the street. Press [Junction] and select the name from a
list which is displayed.
This is what you obtain once all of the information has b een entered:
If you agree with the information press [Set], otherwise press one of the
buttons to correct.
Press [Start] to start the navigation.
Page 183 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
180

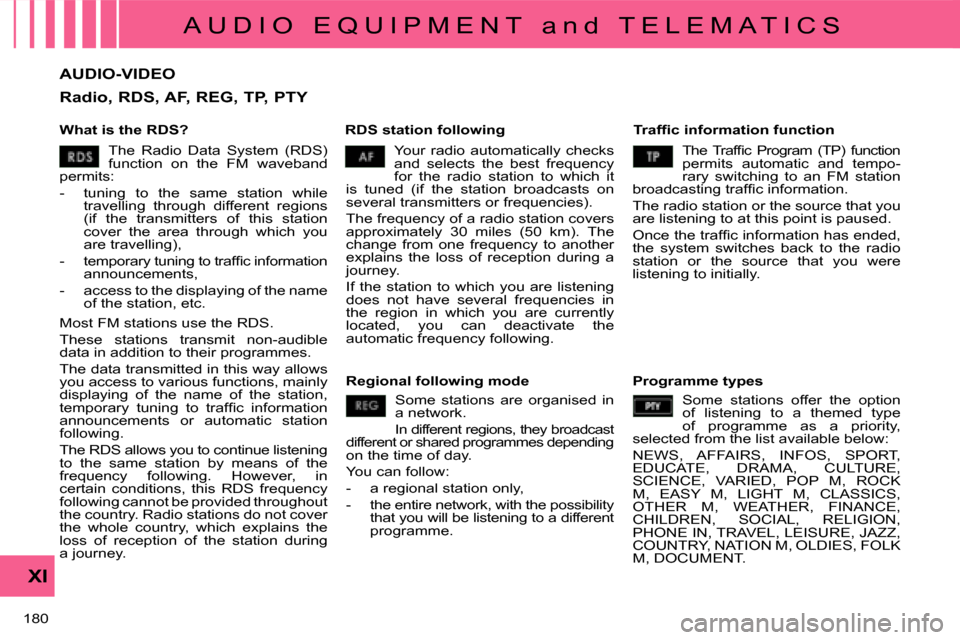

AUDIO-VIDEO
What is the RDS? RDS station following T r a f fi c i n f o r m a t i o n f u n c t i o n
Your radio automatically checks
and selects the best frequency
for the radio station to which it
is tuned (if the station broadcasts on
several transmitters or frequencies).
The frequency of a radio station covers
a p p r o x i m a t e l y 3 0 m i l e s ( 5 0 k m ) . T h e
change from one frequency to another
e x p l a i n s t h e l o s s o f r e c e p t i o n d u r i n g a
journey.
If the station to which you are listening
does not have several frequencies in
the region in which you are currently
located, you can deactivate the
automatic frequency following.
Radio, RDS, AF, REG, TP, PTY
The Radio Data System (RDS)
function on the FM waveband
permits:
- tuning to the same station while travelling through different regions
(if the transmitters of this station
cover the area through which you
are travelling),
- t e m p o r a r y t u n i n g t o t r a f fi c i n f o r m a t i o n announcements,
- access to the displaying of the name of the station, etc.
Most FM stations use the RDS.
These stations transmit non-audible
data in addition to their programmes.
The data transmitted in this way allows
you access to various functions, mainly
displaying of the name of the station,
t e m p o r a r y t u n i n g t o t r a f fi c i n f o r m a t i o n
announcements or automatic station
following.
The RDS allows you to continue listening
to the same station by means of the
frequency following. However, in
certain conditions, this RDS frequency
following cannot be provided throughout
the country. Radio stations do not cover
t h e w h o l e c o u n t r y , w h i c h e x p l a i n s t h e
loss of reception of the station during
a journey. T h e T r a f fi c P r o g r a m ( T P ) f u n c t i o n
permits automatic and tempo-
rary switching to an FM station
b r o a d c a s t i n g t r a f fi c i n f o r m a t i o n .
The radio station or the source that you
are listening to at this point is paused.
O n c e t h e t r a f fi c i n f o r m a t i o n h a s e n d e d ,
the system switches back to the radio
station or the source that you were
listening to initially.
Regional following mode Some stations are organised in
a network.
In different regions, they broadcast
different or shared programmes depending
on the time of day.
You can follow:
- a regional station only,
- the entire network, with the possibility that you will be listening to a different
programme. Programme types
Some stations offer the option
of listening to a themed type
of programme as a priority,
selected from the list available below:
NEWS, AFFAIRS, INFOS, SPORT,
EDUCATE, DRAMA, CULTURE,
SCIENCE, VARIED, POP M, ROCK
M, EASY M, LIGHT M, CLASSICS,
OTHER M, WEATHER, FINANCE,
CHILDREN, SOCIAL, RELIGION,
PHONE IN, TRAVEL, LEISURE, JAZZ,
COUNTRY, NATION M, OLDIES, FOLK
M, DOCUMENT.
Page 184 of 216
ABCDE
G
HIJK
LMN
F
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
181
Information displayed in Radio mode
A. A pre-set number is displayed when
a pre-set channel has been selected.
B. The name of the station is displayed
during the reception of RDS data. If
the name has not been transmitted,
the frequency is displayed.
C. Stereo is displayed when a stereo
transmission is received.
D. AF is displayed when the AF control
function is activated.
E. PTY (programme type) is displayed if
the RDS data received is displayed.
TRAFINF is displayed, during an
i n t e r r u p t i o n , f o r t r a f fi c i n f o r m a t i o n .
ALARM is displayed, during an
interruption, for urgent information.
F. Displaying of 6 stored stations.
G. To receive the stored station.
Press and hold to store a station.
H. To change the frequency step by step.
Press and hold for scrolling of the
frequency.
I. To search for currently broadcast-
ing stations which can be received
in the current location, until a station
is found.
J. To display the programme types
pre-setting screen, e.g. sport, rock,
classical, news, ... Press PTY again
t o e x i t .
K. Press this button to display the
secondary menu.
L. REG is displayed during the reception
of regional frequencies data.
M. RDS is displayed during the reception
of RDS data.
N. T P i s d i s p l a y e d w h e n t h e t r a f fi c
information is in standby mode.
Page 185 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
182
Radio, selecting an FM station and storing Press the MODE button.
Press
E x p l a n a t i o n s Result
You can select [ Seek] or [Seek ] to start a continuous
search until the stations which can be received in the current
location are detected.
Press FM. By default the display shows the FM1 stations.
Press [
Tune] to decrease the frequency or [ Tune ] to increase the
frequency. The frequency is changed in steps of 0.1 MHz.
Continue to press to tune to a station automatically.
Once the frequency has been selected, a maintained press on t he station
(e.g. 3) will store it.
The name of the station (e.g. PS name 1) is displayed if it is available.
You can start automatic storing on FM3 for 6 stations, which
can be received in the current location, by pressing [^] then
[Auto-Store]. You can also start a search by type of programme by pressing
[PTY].
Page 186 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
183

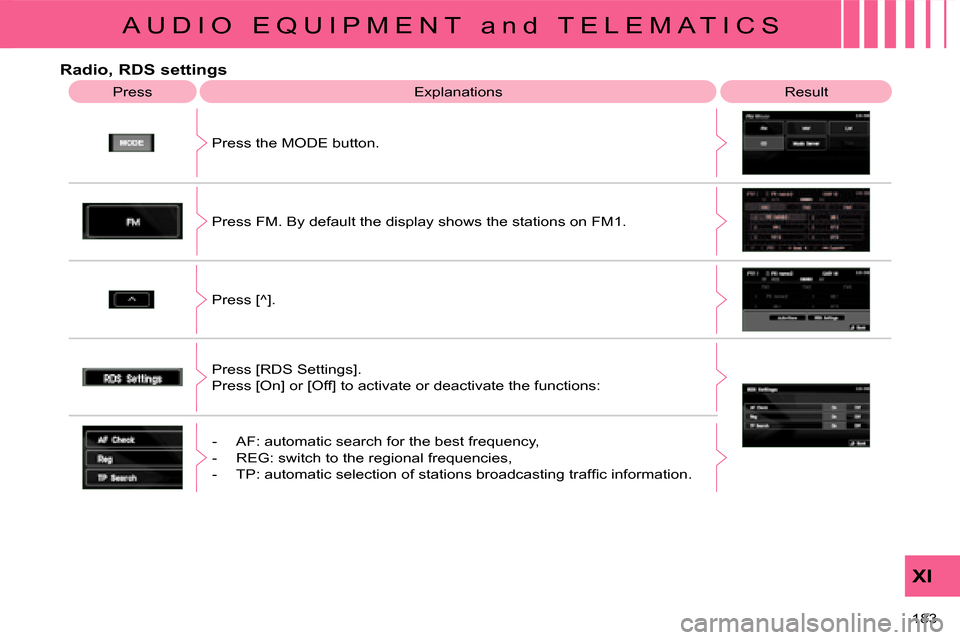

Radio, RDS settings Press E x p l a n a t i o n s Result
Press the MODE button.
Press FM. By default the display shows the stations on FM1.
Press [^].
Press [RDS Settings].
Press [On] or [Off] to activate or deactivate the functions:
- AF: automatic search for the best frequency,
- REG: switch to the regional frequencies,
- T P : a u t o m a t i c s e l e c t i o n o f s t a t i o n s b r o a d c a s t i n g t r a f fi c i n f o r m a t i o n .
