2008 CHRYSLER SEBRING SEDAN Owners Manual

CavityCartridge
FuseMini Fuse Description
26 —15 Amp
Lt. BlueAuto Shutdown (ASD)
Relay Feed 2
27 —10 Amp
RedIgnition Run — Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
28 —10 Amp
RedIgnition Run — Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
29 — —Hot Car (No Fuse Re-
quired)
30 —20 Amp
YellowIgnition Run — Heated
Seats - If EquippedCavityCartridge
FuseMini Fuse Description
31 —10 Amp
Red—
3230 Amp
Pink—Auto Shutdown (ASD)
Relay Feed 1
33 —10 Amp
RedBattery Feed — Switch
Bank/Diagnostic Link
Connector/Powertrain
Control Module (PCM)
3430 Amp
Pink—Battery Feed — Anti-
Lock Brakes (ABS)
Module - if equipped/
Electronic Stability Pro-
gram (ESP) Module - If
Equipped
MAINTAINING YOUR VEHICLE 415
7

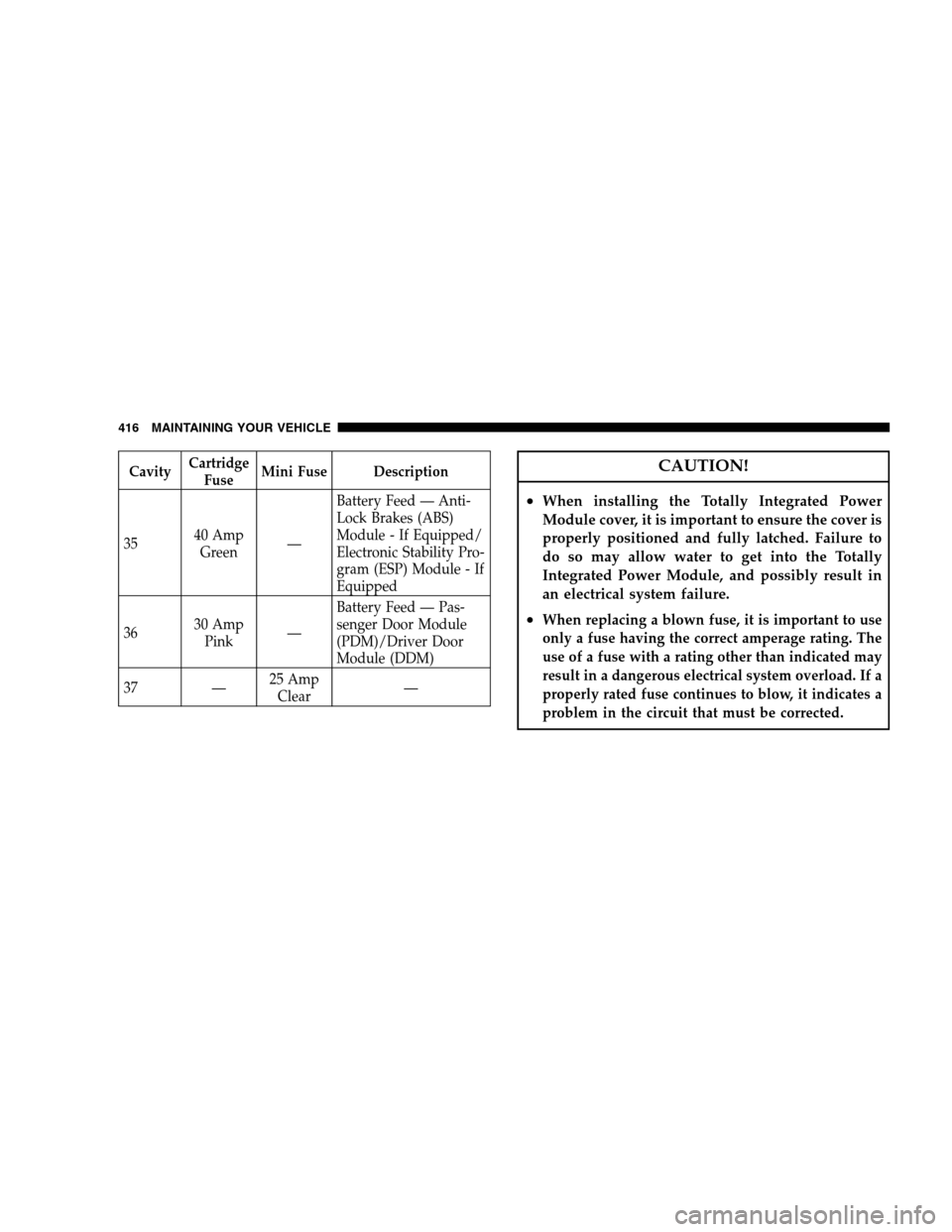

CavityCartridge
FuseMini Fuse Description
3540 Amp
Green—Battery Feed — Anti-
Lock Brakes (ABS)
Module - If Equipped/
Electronic Stability Pro-
gram (ESP) Module - If
Equipped
3630 Amp
Pink—Battery Feed — Pas-
senger Door Module
(PDM)/Driver Door
Module (DDM)
37 —25 Amp
Clear—CAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.
416 MAINTAINING YOUR VEHICLE

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery. You may:
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or, disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb Number
Front Courtesy/Reading Lights..........578/W5W
Center Courtesy/Reading Lights.........578/W5W
Visor Vanity Lights.....................A6220
Glove Box Light......................... 194LIGHT BULBS — Interior Bulb Number
Shift Indicator Light................. JKLE14140
Rear Compartment (Trunk) Light............. 579
NOTE:For lighted switches, see your dealer for replace-
ment instructions.
LIGHTS BULBS — Outside Bulb No.
Low Beam Headlight.....................9006
High Beam Headlight.....................9005
Front Park/Turn Signal/Side Marker Light. . . 3157AK
Front Fog Light.....................9145//H10
Center High Mounted Stop Light
(CHMSL)........................ W16W(921)
Rear Tail/Stop.........................3157K
Decklid Tail Light....................... T3.25
Rear Turn Signal......................3157AK
Backup Light..........................3157K
License Light........................... 168
MAINTAINING YOUR VEHICLE 417
7

BULB REPLACEMENT
Headlight Bulb Replacement
1. Raise and prop open the hood. Locate the connector
behind the headlight.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlight
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
NOTE:It may be necessary to remove the head light
housing due to access constraints. See “Head Light
Assembly Removal — Bulb Replacement” following this
procedure.
Headlight Housing - Rear View
418 MAINTAINING YOUR VEHICLE

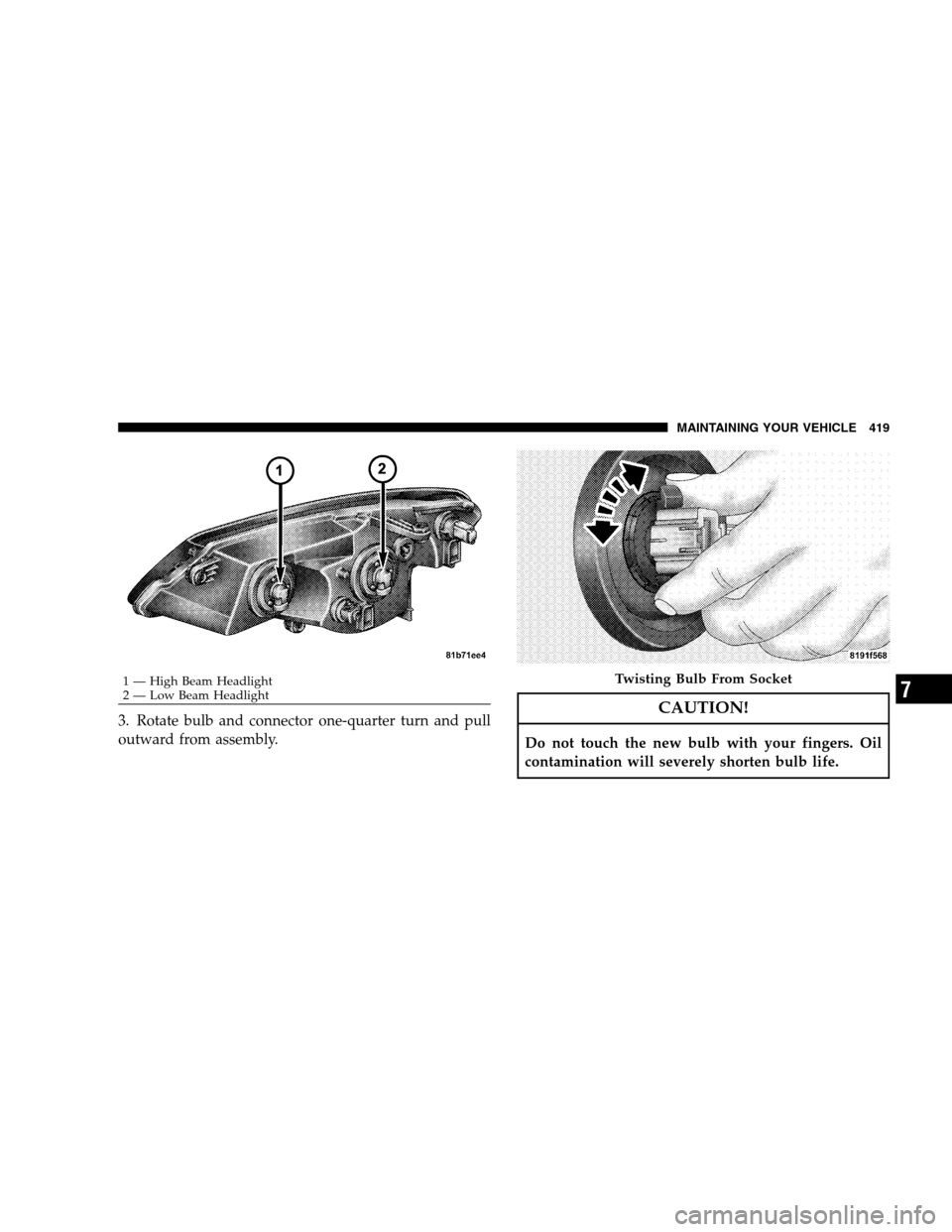

3. Rotate bulb and connector one-quarter turn and pull
outward from assembly.CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.
1 — High Beam Headlight
2 — Low Beam HeadlightTwisting Bulb From Socket
MAINTAINING YOUR VEHICLE 419
7

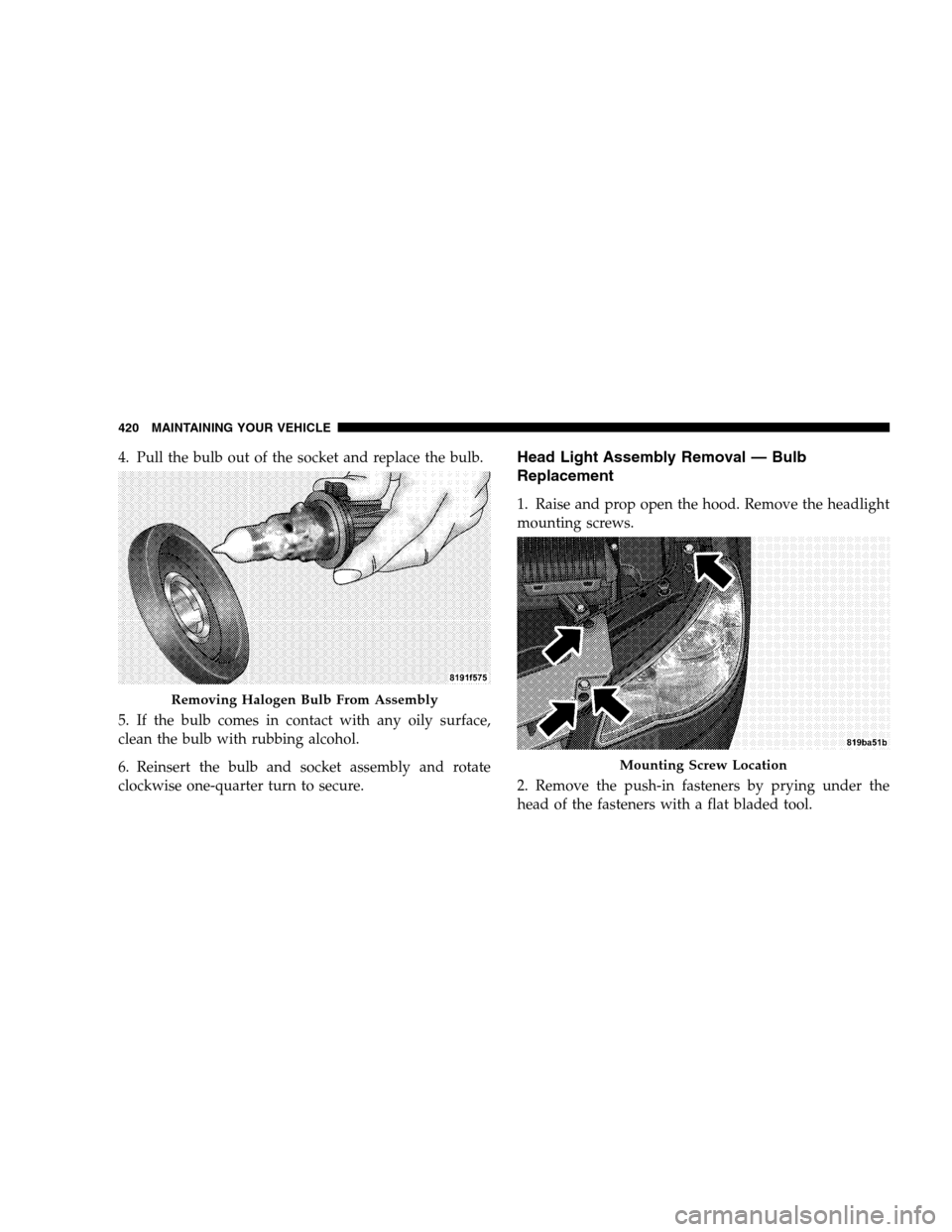

4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise one-quarter turn to secure.Head Light Assembly Removal — Bulb
Replacement
1. Raise and prop open the hood. Remove the headlight
mounting screws.
2. Remove the push-in fasteners by prying under the
head of the fasteners with a flat bladed tool.
Removing Halogen Bulb From Assembly
Mounting Screw Location
420 MAINTAINING YOUR VEHICLE

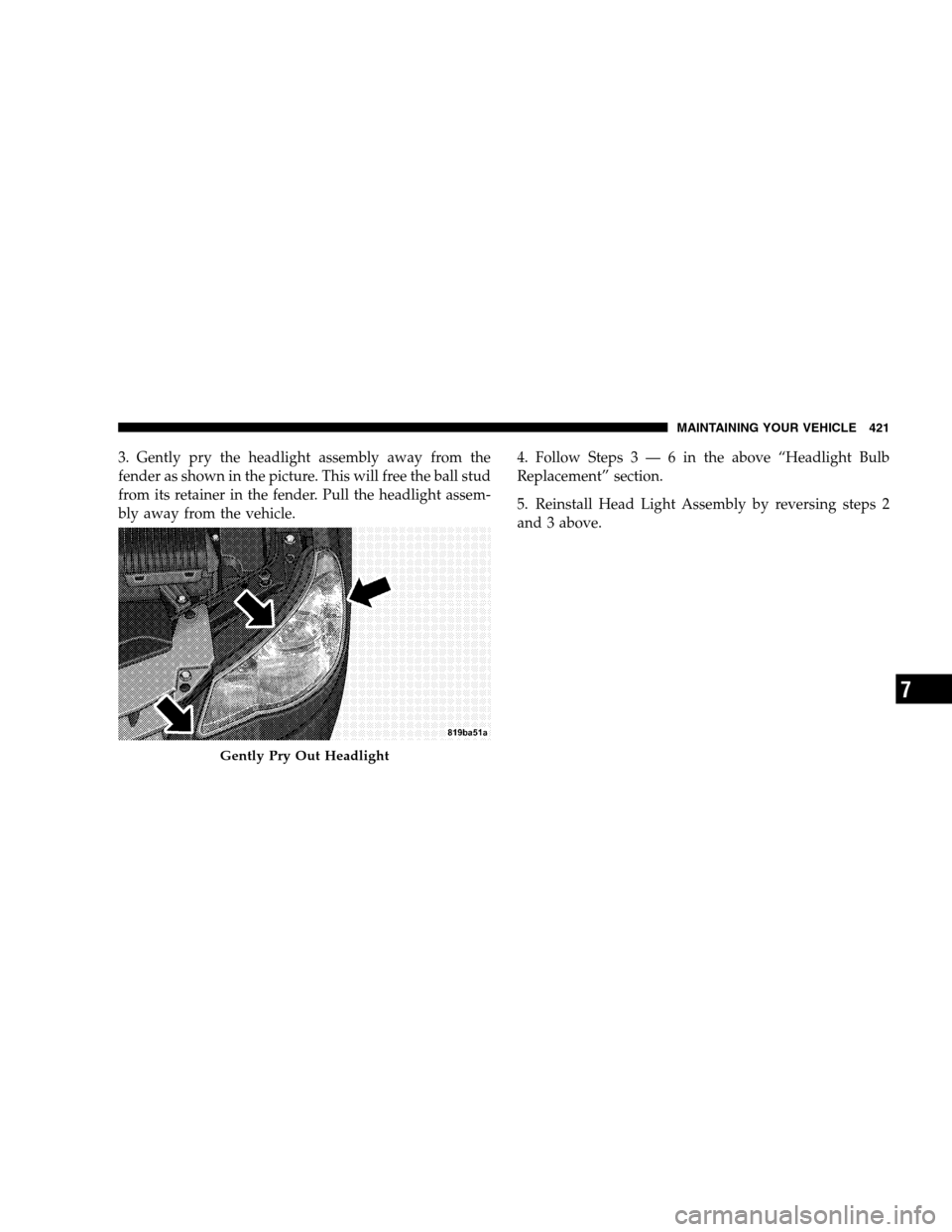

3. Gently pry the headlight assembly away from the
fender as shown in the picture. This will free the ball stud
from its retainer in the fender. Pull the headlight assem-
bly away from the vehicle.4. Follow Steps 3 — 6 in the above “Headlight Bulb
Replacement” section.
5. Reinstall Head Light Assembly by reversing steps 2
and 3 above.
Gently Pry Out Headlight
MAINTAINING YOUR VEHICLE 421
7

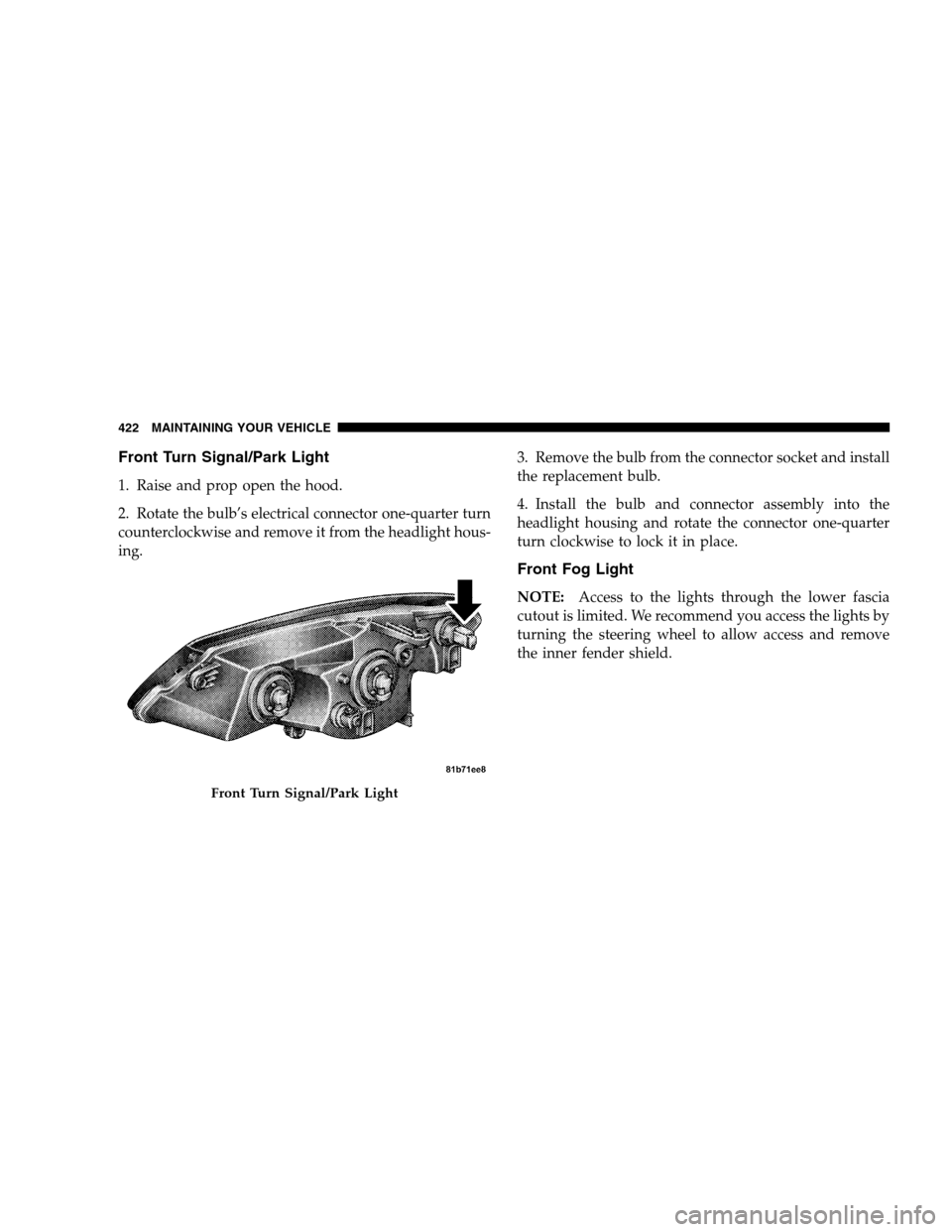

Front Turn Signal/Park Light
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the headlight hous-
ing.3. Remove the bulb from the connector socket and install
the replacement bulb.
4. Install the bulb and connector assembly into the
headlight housing and rotate the connector one-quarter
turn clockwise to lock it in place.
Front Fog Light
NOTE:Access to the lights through the lower fascia
cutout is limited. We recommend you access the lights by
turning the steering wheel to allow access and remove
the inner fender shield.
Front Turn Signal/Park Light
422 MAINTAINING YOUR VEHICLE
