2008 CHRYSLER CROSSFIRE roof

CONVERTIBLE TOP OPERATION
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection of
the occupants of a vehicle in a collision. Therefore, it is
important that all occupants wear their seat belts at all
times when riding in a convertible. Studies have shown
that it is generally safer to remain inside a vehicle
during a collision than to be ejected from the vehicle.
For safety reasons, the convertible top should only be
opened and closed when the vehicle is standing still. Top
operation is allowed up to a maximum of 9 mph (15
km/h). Above this speed, top operation will cease and an
audible warning will sound. The top operation can be
resumed after the vehicle is below the maximum speed
by pressing the convertible top switch again.
WARNING!
Before operating the switch for the convertible top,
make sure that no persons can be injured by the
moving parts (convertible top frame and tonneau
cover).
Hands must never be placed near the sport bar,
convertible top frame, upper windshield area, shelf
behind sport bar, or convertible top storage compart-
ment while the convertible top is being raised or
lowered. Serious personal injury may occur.
If potential danger exists, release the convertible top
switch. This immediately interrupts the raising or
lowering procedure. You then can operate the con-
vertible top switch to raise or lower the convertible
top away from the danger zone.
68 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

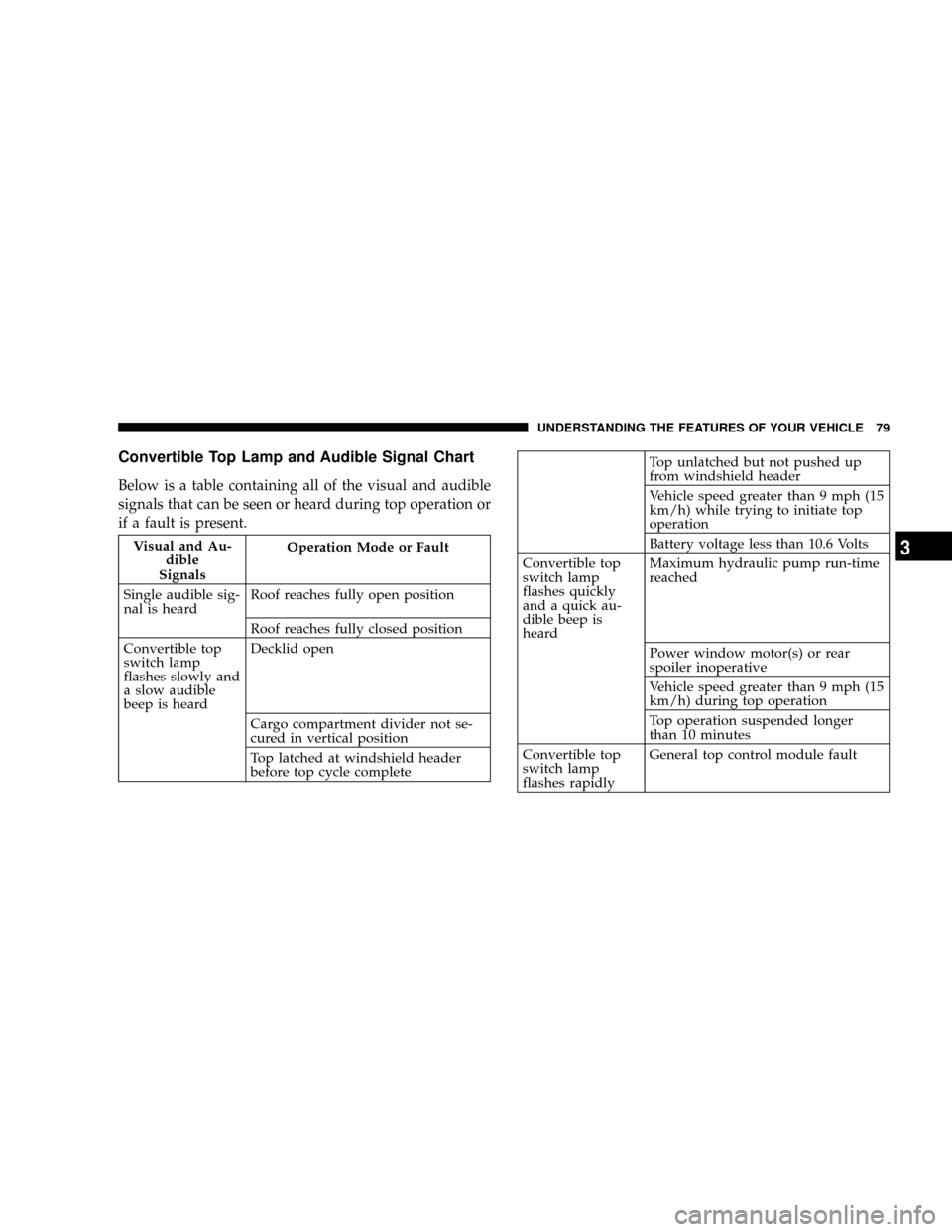

Convertible Top Lamp and Audible Signal Chart
Below is a table containing all of the visual and audible
signals that can be seen or heard during top operation or
if a fault is present.
Visual and Au-
dible
SignalsOperation Mode or Fault
Single audible sig-
nal is heardRoof reaches fully open position
Roof reaches fully closed position
Convertible top
switch lamp
flashes slowly and
a slow audible
beep is heardDecklid open
Cargo compartment divider not se-
cured in vertical position
Top latched at windshield header
before top cycle complete
Top unlatched but not pushed up
from windshield header
Vehicle speed greater than 9 mph (15
km/h) while trying to initiate top
operation
Battery voltage less than 10.6 Volts
Convertible top
switch lamp
flashes quickly
and a quick au-
dible beep is
heardMaximum hydraulic pump run-time
reached
Power window motor(s) or rear
spoiler inoperative
Vehicle speed greater than 9 mph (15
km/h) during top operation
Top operation suspended longer
than 10 minutes
Convertible top
switch lamp
flashes rapidlyGeneral top control module fault
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3

NReplacement Tires.....................213
NAlignment And Balance.................214
mTire Pressure Monitor System..............214
NGeneral Information...................218
mTire Chains...........................219
mOriginal Equipment Tires.................220
mSnow Tires...........................220
mTire Rotation Recommendations............221
mFuel Requirements......................222
NReformulated Gasoline.................223NGasoline/Oxygenate Blends..............223
NMMT In Gasoline.....................224
NMaterials Added To Fuel................224
NSulfur In Gasoline.....................224
mAdding Fuel..........................225
NFuel Filler Cap (Gas Cap)...............225
mVehicle Loading........................227
NRoof Luggage Rack....................228
mTrailer Towing.........................229
STARTING AND OPERATING 167
5

Roof Luggage Rack
Convertible Top Vehicles
CAUTION!
To prevent damage to the convertible top, DO NOT
carry any loads on the convertible top.
Coupe Vehicles
External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant
and luggage load inside the vehicle, plus the load on the
roof luggage rack, do not exceed the rated vehicle capac-
ity. The maximum recommended roof load for your
vehicle is 110 lbs (50 kg).
CAUTION!
²To prevent damage to the roof of your vehicle, DO NOT
carry any loads on the roof luggage rack which may come
in contact with the roof panel. The load should be secured
and placed on top of the rack, not directly on the roof. If it
is necessary to place some part of the load on the roof,
place a blanket or some other protection between the load
and the roof surface.
²To avoid damage to the roof luggage rack and vehicle, do
not exceed the rated load capacity of your roof luggage
rack system maximum load capacity. Always distribute
heavy loads as evenly as possible and secure the load
appropriately.
²Long loads which extend over the windshield, such as
wood panels or surfboards, should be carefully secured to
both the front and rear of the vehicle.
²Travel at reduced speeds and turn corners carefully when
carrying large or heavy loads on the roof luggage rack.
Wind forces, due to natural causes or nearby truck traffic,
can add sudden upward loads. This is especially true on
large flat loads and may result in damage to the cargo or
your vehicle.
228 STARTING AND OPERATING

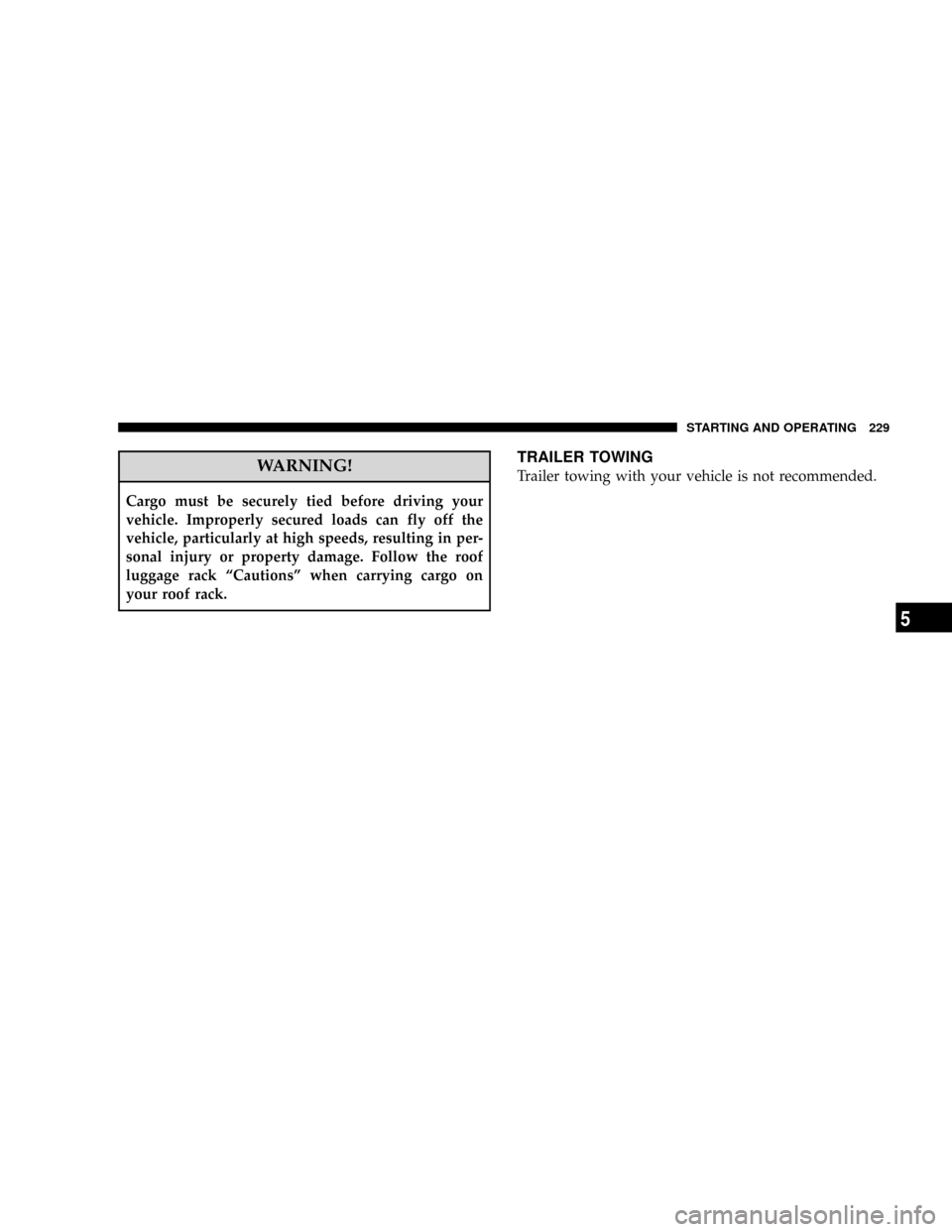

WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof
luggage rack ªCautionsº when carrying cargo on
your roof rack.
TRAILER TOWING
Trailer towing with your vehicle is not recommended.
STARTING AND OPERATING 229
5

Underhood Accessory Fuse Block Fuses
Cavity Fuse Circuits
1 5 Amp
BeigeGarage Door Opening Signal,
Tire Pressure Control and Seat
Heater
2 5 Amp
BeigeControl Unit Airbag
3 5 Amp
BeigeIndicator, Safety Restraint System
and Indicator Passenger Airbag
Off
4 7.5 Amp
BrownHeated Mirror
5 15 Amp
BlueRadio (Coupe)
5 25 Amp
WhiteRoof Control Module (Roadster)
6 5 Amp
BeigeExterior Mirror Adjustment, Left
And Right (Coupe)
MAINTAINING YOUR VEHICLE 299
7

Cavity Fuse Circuits
6 40 Amp
OrangeRoof Hydraulic Unit (Roadster)
7 5 Amp
BeigeOccupation Classification Module
(Right Seat)
8 15 Amp
BlueRadio
9 5 Amp
BeigeControl Unit Airbag
10 5 Amp
BeigeSpeed Control
11 15 Amp
BlueIgnition Coil 6 Cyl.
12 10 Amp
RedWasher Liquid Heater, Washer
Nozzle Heater
13 10 Amp
RedRoof Light, Horn, Anti-Theft-
Alarm, Trunk Light and Tire
Pressure ControlCavity Fuse Circuits
14 10 Amp
RedDiagnostic Socket
15 5 Amp
BeigeClimate Control, Auxiliary Water
Pump
16 10 Amp
RedSpoiler Motor
17 40 Amp
OrangeElectronic Stability Program
18 40 Amp
OrangeElectronic Stability Program
19 40 Amp
OrangePower Window, Front
20 30 Amp
GreenWiper Motor
21 30 Amp
GreenSeat Adjustment Right Side
22 30 Amp
GreenSeat Adjustment Left Side
300 MAINTAINING YOUR VEHICLE
