2008 CHRYSLER CROSSFIRE instrument panel

TABLE OF CONTENTSSECTIONPAGE
1INTRODUCTION.............................................................3
2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE...............................7
3UNDERSTANDING THE FEATURES OF YOUR VEHICLE...............................65
4UNDERSTANDING YOUR INSTRUMENT PANEL................................... 125
5STARTING AND OPERATING................................................. 165
6WHAT TO DO IN EMERGENCIES...............................................231
7MAINTAINING YOUR VEHICLE............................................... 257
8MAINTENANCE SCHEDULES.................................................. 319
9IF YOU NEED CONSUMER ASSISTANCE..........................................331
10INDEX....................................................................341
1
2
3
4
5
6
7
8
9
10

WARNINGS AND CAUTIONS
This manual containsWARNINGSagainst operating
procedures which could result in an accident or bodily
injury. It also containsCAUTIONSagainst procedures
which could result in damage to your vehicle. If you do
not read this entire manual you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is located be-
neath the left front corner of the instrument panel, visible
through the windshield. This number also appears on the
Automobile Information Disclosure Label affixed to a
window on your vehicle. Save this label as a convenient
record of your VIN and optional equipment.NOTE:It is illegal to remove the VIN.
6 INTRODUCTION

WARNING!
Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use the
extender when the lap belt is not long enough when
it is worn low and snug, and in the recommended
seating positions. Remove and store the extender
when not needed.
Supplemental Restraint System (SRS) - Airbag
This vehicle has airbags for the driver and passenger as a
supplement to the seat belt restraint systems. The driver's
airbag is mounted in the steering wheel. The passenger
frontal airbag is mounted in the instrument panel, under
a cover marked SRS/AIRBAG.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2

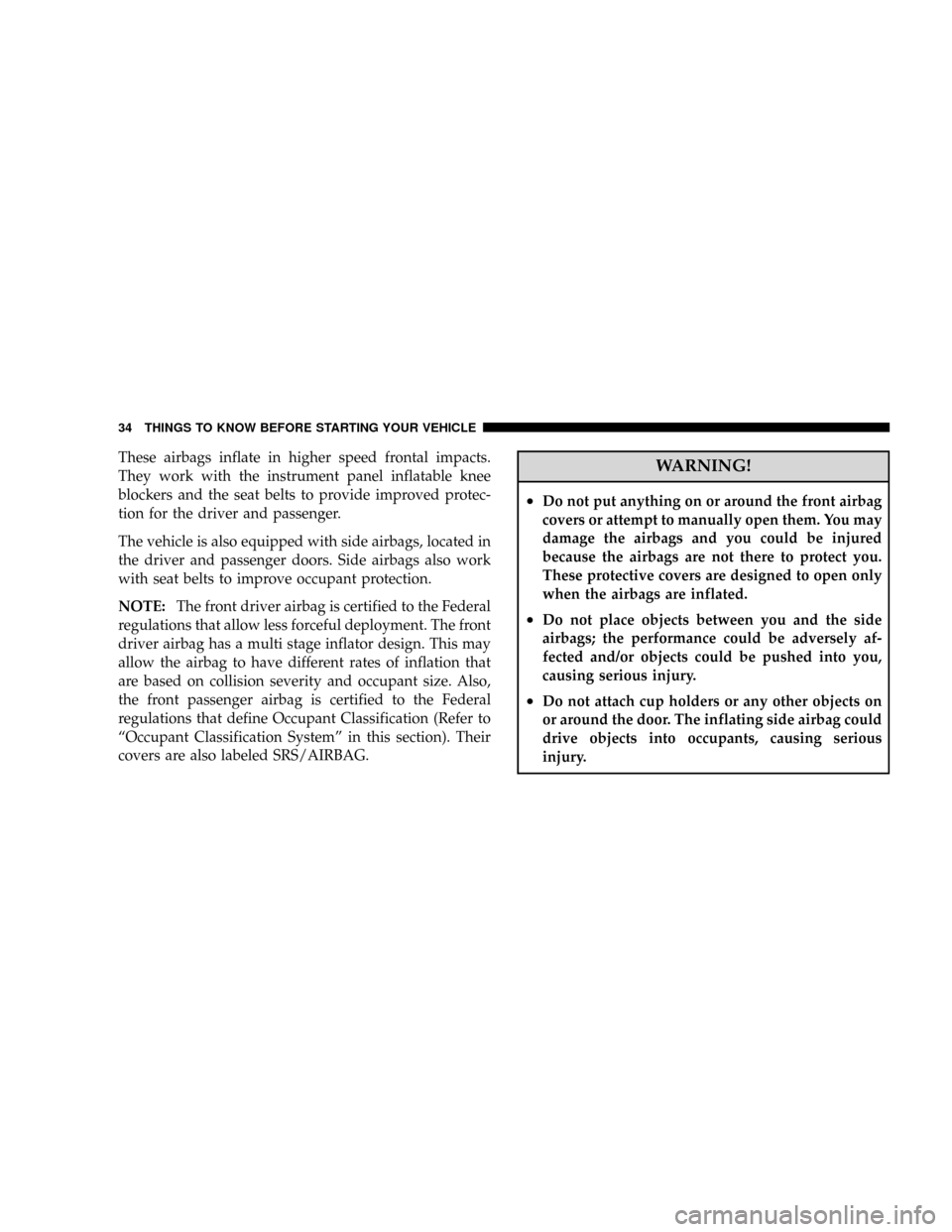

These airbags inflate in higher speed frontal impacts.
They work with the instrument panel inflatable knee
blockers and the seat belts to provide improved protec-
tion for the driver and passenger.
The vehicle is also equipped with side airbags, located in
the driver and passenger doors. Side airbags also work
with seat belts to improve occupant protection.
NOTE:The front driver airbag is certified to the Federal
regulations that allow less forceful deployment. The front
driver airbag has a multi stage inflator design. This may
allow the airbag to have different rates of inflation that
are based on collision severity and occupant size. Also,
the front passenger airbag is certified to the Federal
regulations that define Occupant Classification (Refer to
ªOccupant Classification Systemº in this section). Their
covers are also labeled SRS/AIRBAG.WARNING!
²Do not put anything on or around the front airbag
covers or attempt to manually open them. You may
damage the airbags and you could be injured
because the airbags are not there to protect you.
These protective covers are designed to open only
when the airbags are inflated.
²Do not place objects between you and the side
airbags; the performance could be adversely af-
fected and/or objects could be pushed into you,
causing serious injury.
²Do not attach cup holders or any other objects on
or around the door. The inflating side airbag could
drive objects into occupants, causing serious
injury.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If a child from 1 to 12 years old must ride in the vehicle,
move the seat as far back as possible, shut off the
passenger airbag, and use the proper child restraint. See
the section on ªChild Restraint.º
You should read the instructions provided with your
child restraint or belt-positioning booster seat to make
sure that you are using it properly.
2. All occupants should wear their lap and shoulder belts
properly.
3. The driver and passenger seats should be moved back
as far as practical to allow the front airbags room to
inflate.
4. Do not lean against the door, as the side airbags will
inflate forcefully into the space between you and the
door. (See the section on ªSide Airbagsº)WARNING!
After installing a child safety seat or booster seat on the
passenger seat, do not adjust the back rest forward. This
could cause a higher load being perceived by the OCS
system which in turn could lead to the passenger airbag
being turned on. Failure to follow this warning could
result in serious or fatal injury. It is always recom-
mended to turn off the passenger front air bags using
the passenger front airbags on/off switch located at the
right end of the instrument panel when the passenger is:
²an infant (less than 1 year old),
²a child, age 1 to 12,
²an adult with a medical condition which makes
passenger airbags inflation (deployment) a greater
risk for the passenger than the risk of hitting the
dashboard (instrument panel) or windshield in a
crash.
The on/off switch is accessible by opening the passen-
ger door.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
²Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won't deploy at all.
Always wear your seat belts even though you have
airbags.
²Being too close to the steering wheel or instrument
panel during airbag deployment could cause seri-
ous injury.
²Airbags need room to inflate. Sit back, comfort-
ably extending your arms to reach the steering
wheel or instrument panel.
²The side airbags also need room to inflate. Do not
lean against the door. Sit upright in the center of
the seat.
Airbag System Components
The airbag system consists of the following:
²Occupant Restraint Controller
²Airbag Warning Light
²Driver and passenger frontal airbag/inflator units
²Driver and passenger side airbag/inflator units
²Driver and Passenger Inflatable Knee Blocker
²Driver and Front Passenger Seat Belt Pretensioners
²Side impact sensors
²Front Passenger Seat Occupant Classification System
(OCS)
How the Front Airbag System Works
²
TheOccupant Restraint Controller (ORC)determines
if a frontal collision is severe enough to require the
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2

airbags to inflate. Based on the level of collision
severity, the front control module determines the
proper rate of inflation. The front airbag inflators are
designed to provide different rates of airbag inflation
from direction provided by the ORC. The ORC may
modify the rate of inflation based on the occupant size
provided by the Occupant Classification Module. The
ORC will not detect roll overs. The ORC monitors the
readiness of the electronic parts of the system when-
ever the ignition switch is in the START or RUN
positions. If the key is in the OFF position, in the ACC
position, or not in the ignition, the airbags are not on
and will not inflate.
Also, the ORC turns on the AIRBAG warning light
(located in the instrument cluster) and Passenger
Airbag Disable (PAD) indicator light (located in the
center console) for 4 seconds for a self-check when theignition is first turned on. After the self-check, the
AIRBAG warning light will turn off. The PAD indica-
tor light will function normally (Refer to ªPassenger
Airbag Disable (PAD) Indicator Lightº in this section).
If the ORC detects a malfunction in any part of the
system, it turns on the AIRBAG warning light either
momentarily or continuously.
WARNING!
Ignoring the AIRBAG light in your instrument panel
could mean you won't have the airbags to protect you
in a collision. If the light does not come on, stays on
after you start the vehicle, or if it comes on as you
drive, have the airbag system checked right away.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
Do not put anything on or around the airbag covers
or attempt to manually open them. You may damage
the airbags and you could be injured because the
airbags are not there to protect you. These protective
covers are designed to open only when the airbags
are inflated.
²TheDriver and Passenger Airbag/Inflator Unitsare
located in the center of the steering wheel and the right
side of the instrument panel. When the ORC detects a
collision requiring the airbags, it signals the inflator
units. A large quantity of nontoxic gas is generated to
inflate the front airbags. Different airbag inflation rates
may be possible based on collision severity and occu-
pant size. The steering wheel hub trim cover and theupper right side of the instrument panel separate and
fold out of the way as the bags inflate to their full size.
The bags fully inflate in about 50±70 milliseconds. This
is about half of the time it takes to blink your eyes. The
bags then quickly deflate while helping to restrain the
driver and front passenger. The driver 's front airbag
gas is vented through vent holes in the sides of the
airbag. The passenger 's front airbag gas is vented
through vent holes in the sides of the airbag. In this
way the airbags do not interfere with your control of
the vehicle.
²The Knee Blocker Airbag helps protect the knees and
working with the seat belts, position you for the best
interaction with the airbags.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
