2008 CHEVROLET SILVERADO fuse

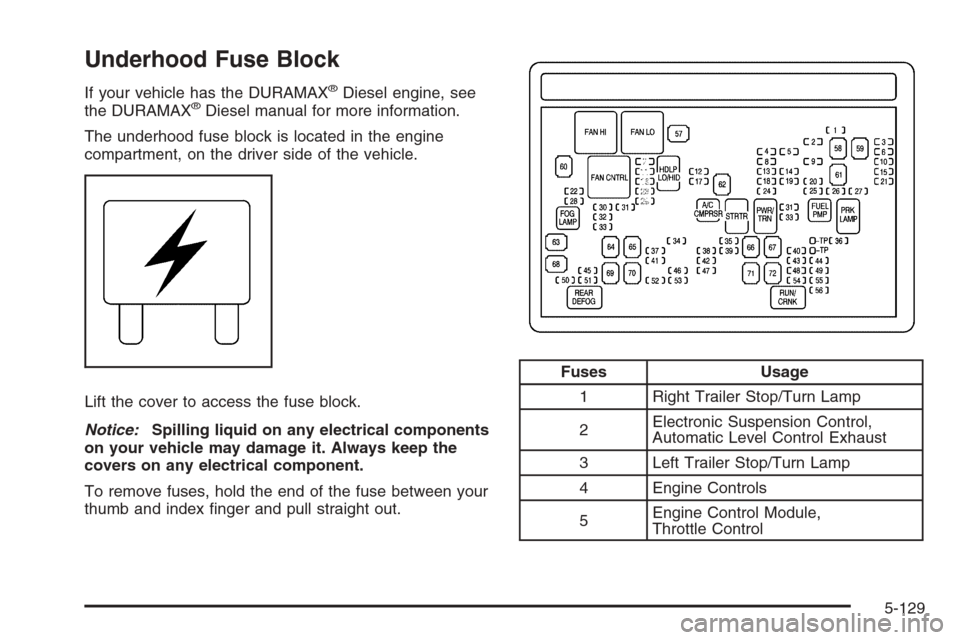

Underhood Fuse Block
If your vehicle has the DURAMAX®Diesel engine, see
the DURAMAX®Diesel manual for more information.
The underhood fuse block is located in the engine
compartment, on the driver side of the vehicle.
Lift the cover to access the fuse block.
Notice:Spilling liquid on any electrical components
on your vehicle may damage it. Always keep the
covers on any electrical component.
To remove fuses, hold the end of the fuse between your
thumb and index nger and pull straight out.
Fuses Usage
1 Right Trailer Stop/Turn Lamp
2Electronic Suspension Control,
Automatic Level Control Exhaust
3 Left Trailer Stop/Turn Lamp
4 Engine Controls
5Engine Control Module,
Throttle Control
5-129

Fuses Usage
6 Trailer Brake Controller
7 Front Washer
8 Oxygen Sensor
9 Antilock Brakes System 2
10 Trailer Back-up Lamps
11 Driver Side Low-Beam Headlamp
12 Engine Control Module (Battery)
13Fuel Injectors, Ignition Coils
(Right Side)
14Transmission Control Module
(Battery)
15 Vehicle Back-up Lamps
16Passenger Side Low-Beam
Headlamp
17 Air Conditioning Compressor
18 Oxygen Sensors
19 Transmission Controls (Ignition)
20 Fuel Pump
21 Fuel System Control ModuleFuses Usage
22 Not Used
23 Not Used
24Fuel Injectors, Ignition Coils
(Left Side)
25 Trailer Park Lamps
26 Driver Side Park Lamps
27 Passenger Side Park Lamps
28 Fog Lamps
29 Horn
30Passenger Side High-Beam
Headlamp
31 Daytime Running Lamps
32 Driver Side High-Beam Headlamp
33 Daytime Running Lights 2
34 Sunroof
35Key Ignition System, Theft Deterrent
System
36 Windshield Wiper
37 SEO B2 Uptter Usage (Battery)
5-130

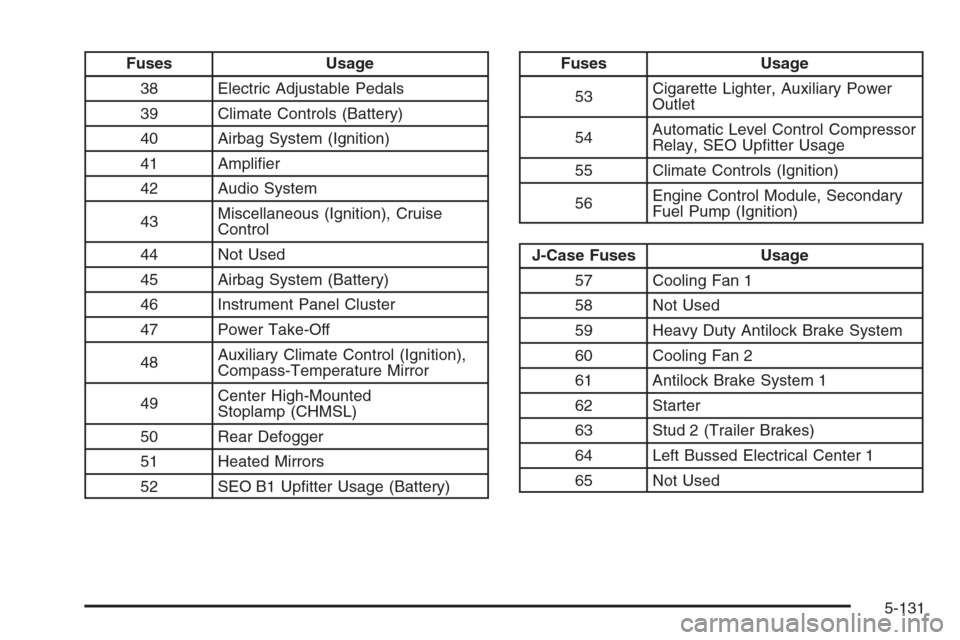

Fuses Usage
38 Electric Adjustable Pedals
39 Climate Controls (Battery)
40 Airbag System (Ignition)
41 Amplier
42 Audio System
43Miscellaneous (Ignition), Cruise
Control
44 Not Used
45 Airbag System (Battery)
46 Instrument Panel Cluster
47 Power Take-Off
48Auxiliary Climate Control (Ignition),
Compass-Temperature Mirror
49Center High-Mounted
Stoplamp (CHMSL)
50 Rear Defogger
51 Heated Mirrors
52 SEO B1 Uptter Usage (Battery)Fuses Usage
53Cigarette Lighter, Auxiliary Power
Outlet
54Automatic Level Control Compressor
Relay, SEO Uptter Usage
55 Climate Controls (Ignition)
56Engine Control Module, Secondary
Fuel Pump (Ignition)
J-Case Fuses Usage
57 Cooling Fan 1
58 Not Used
59 Heavy Duty Antilock Brake System
60 Cooling Fan 2
61 Antilock Brake System 1
62 Starter
63 Stud 2 (Trailer Brakes)
64 Left Bussed Electrical Center 1
65 Not Used
5-131

J-Case Fuses Usage

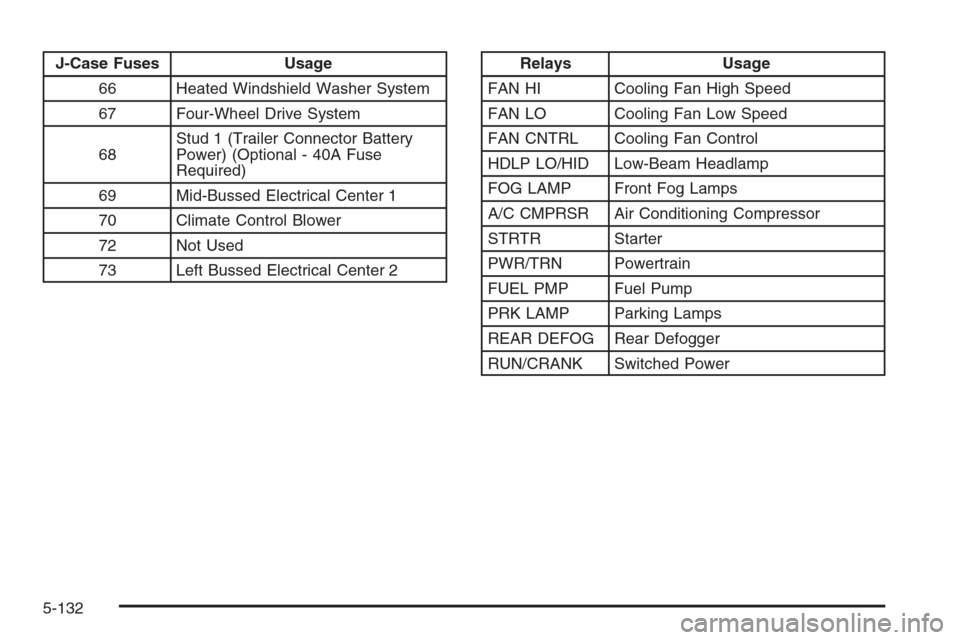

66 Heated Windshield Washer System
67 Four-Wheel Drive System
68Stud 1 (Trailer Connector Battery
Power) (Optional - 40A Fuse
Required)
69 Mid-Bussed Electrical Center 1
70 Climate Control Blower
72 Not Used
73 Left Bussed Electrical Center 2Relays Usage
FAN HI Cooling Fan High Speed
FAN LO Cooling Fan Low Speed
FAN CNTRL Cooling Fan Control
HDLP LO/HID Low-Beam Headlamp
FOG LAMP Front Fog Lamps
A/C CMPRSR Air Conditioning Compressor
STRTR Starter
PWR/TRN Powertrain
FUEL PMP Fuel Pump
PRK LAMP Parking Lamps
REAR DEFOG Rear Defogger
RUN/CRANK Switched Power
5-132

E
EDR .............................................................7-16
Electrical System
Add-On Equipment.....................................5-125
Center Instrument Panel Fuse Block.............5-128
Fuses and Circuit Breakers.........................5-125
Instrument Panel Fuse Block.......................5-126
Power Windows and Other Power Options....5-125
Underhood Fuse Block...............................5-129
Windshield Wiper Fuses.............................5-125
Electronic Immobilizer
PASS-Key
®III+...........................................2-20
Electronic Immobilizer Operation
PASS-Key
®III+...........................................2-20
Engine
Air Cleaner/Filter.........................................5-20
Check and Service Engine Soon Light............3-49
Coolant......................................................5-29
Coolant Heater............................................2-27
Coolant Temperature Gage...........................3-48
Drive Belt Routing.......................................6-17
Engine Compartment Overview......................5-14
Exhaust.....................................................2-54
Fan Noise..................................................5-40
Fast Idle System.........................................2-25
Oil .............................................................5-15
Oil Life System...........................................5-18
Overheated Protection Operating Mode...........5-34Engine (cont.)
Overheating................................................5-32
Starting......................................................2-24
Entry Lighting.................................................3-21
Event Data Recorders.....................................7-17
Exit Lighting...................................................3-21
Extender, Safety Belt.......................................1-35
Exterior Lamps...............................................3-17
F
Fast Idle System............................................2-25
Filter
Engine Air Cleaner......................................5-20
Finish Damage.............................................5-122
Fixed Mast Antenna.......................................3-134
Flashers, Hazard Warning.................................. 3-8
Flash-to-Pass.................................................3-11
Flat Tire........................................................5-93
Flat Tire, Changing.........................................5-94
Flat Tire, Storing...........................................5-110
Fluid
Automatic Transmission........................5-22, 5-26
Power Steering...........................................5-41
Windshield Washer......................................5-42
Fog Lamp
Fog ...........................................................3-20
Fog Lamp Light..............................................3-53
Four-Wheel Drive....................................2-36, 5-54
5

Four-Wheel-Drive Light....................................3-54
Front Axle......................................................5-56
Fuel............................................................... 5-6
Additives...................................................... 5-7
California Fuel.............................................. 5-7
E85 (85% Ethanol)........................................ 5-8
Filling a Portable Fuel Container....................5-12
Filling the Tank...........................................5-10
Fuels in Foreign Countries.............................. 5-9
Gage .........................................................3-55
Gasoline Octane........................................... 5-6
Gasoline Specications.................................. 5-6
Low Warning Light.......................................3-56
Running Out of...........................................2-54
Fuses
Center Instrument Panel Fuse Block.............5-128
Fuses and Circuit Breakers.........................5-125
Instrument Panel Fuse Block.......................5-126
Underhood Fuse Block...............................5-129
Windshield Wiper.......................................5-125G
Gage
Engine Coolant Temperature.........................3-48
Fuel..........................................................3-55
Oil Pressure...............................................3-52
Speedometer..............................................3-38
Tachometer.................................................3-38
Voltmeter Gage...........................................3-45
Garage Door Opener.......................................2-71
Gasoline
Octane........................................................ 5-6
Specications............................................... 5-6
Glove Box.....................................................2-78
GM Mobility Reimbursement Program.................. 7-6
6

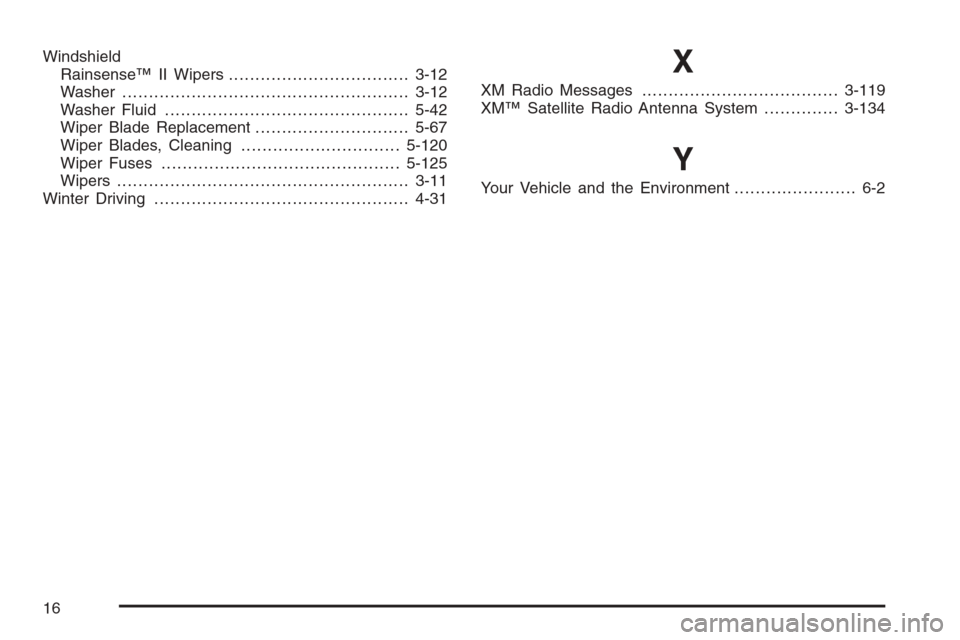

Windshield
