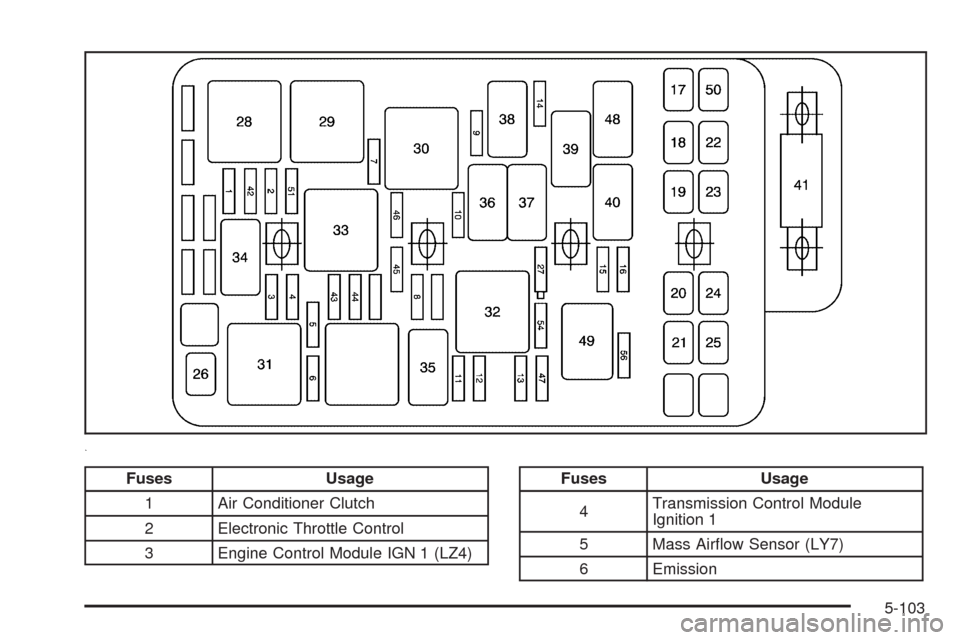

Fuses Usage
1 Air Conditioner Clutch
2 Electronic Throttle Control
3 Engine Control Module IGN 1 (LZ4)Fuses Usage
4Transmission Control Module
Ignition 1
5 Mass Airow Sensor (LY7)
6 Emission
5-103

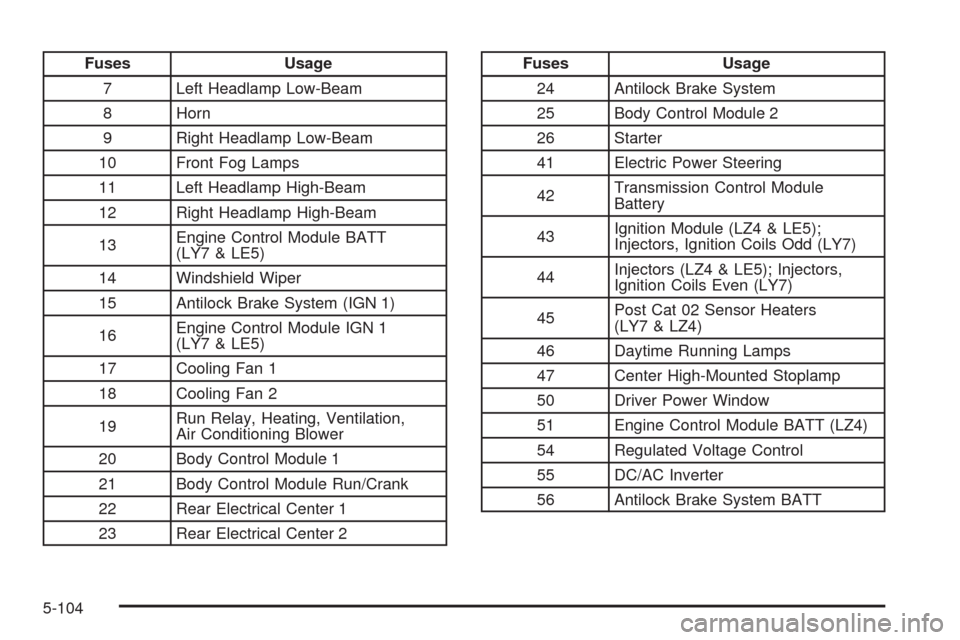

Fuses Usage
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
10 Front Fog Lamps
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13Engine Control Module BATT
(LY7 & LE5)
14 Windshield Wiper
15 Antilock Brake System (IGN 1)
16Engine Control Module IGN 1
(LY7 & LE5)
17 Cooling Fan 1
18 Cooling Fan 2
19Run Relay, Heating, Ventilation,
Air Conditioning Blower
20 Body Control Module 1
21 Body Control Module Run/Crank
22 Rear Electrical Center 1
23 Rear Electrical Center 2Fuses Usage
24 Antilock Brake System
25 Body Control Module 2
26 Starter
41 Electric Power Steering
42Transmission Control Module
Battery
43Ignition Module (LZ4 & LE5);
Injectors, Ignition Coils Odd (LY7)
44Injectors (LZ4 & LE5); Injectors,
Ignition Coils Even (LY7)
45Post Cat 02 Sensor Heaters
(LY7 & LZ4)
46 Daytime Running Lamps
47 Center High-Mounted Stoplamp
50 Driver Power Window
51 Engine Control Module BATT (LZ4)
54 Regulated Voltage Control
55 DC/AC Inverter
56 Antilock Brake System BATT
5-104

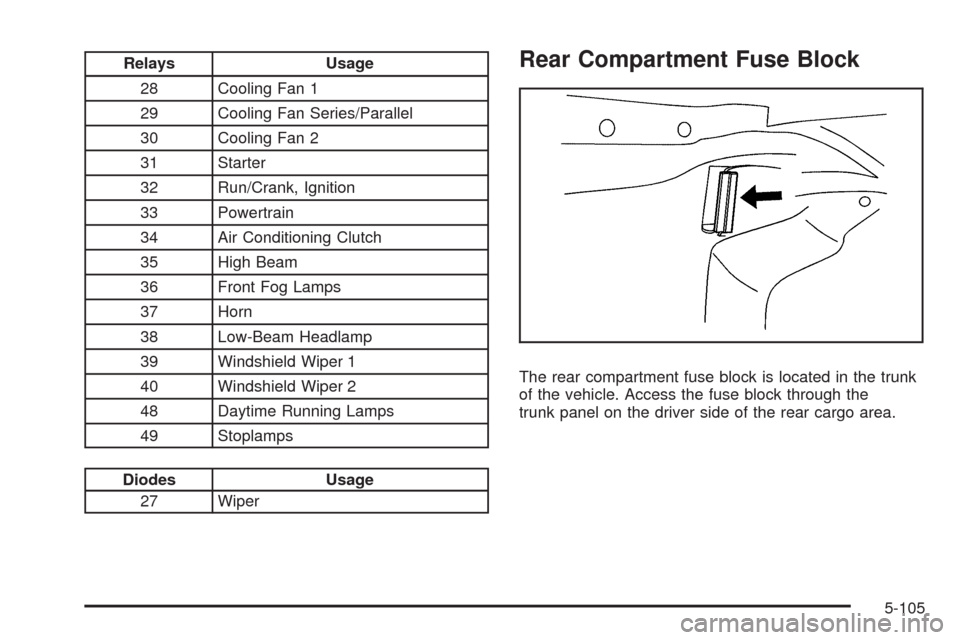

Relays Usage
28 Cooling Fan 1
29 Cooling Fan Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High Beam
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamp
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running Lamps
49 Stoplamps
Diodes Usage
27 Wiper
Rear Compartment Fuse Block
The rear compartment fuse block is located in the trunk
of the vehicle. Access the fuse block through the
trunk panel on the driver side of the rear cargo area.
5-105

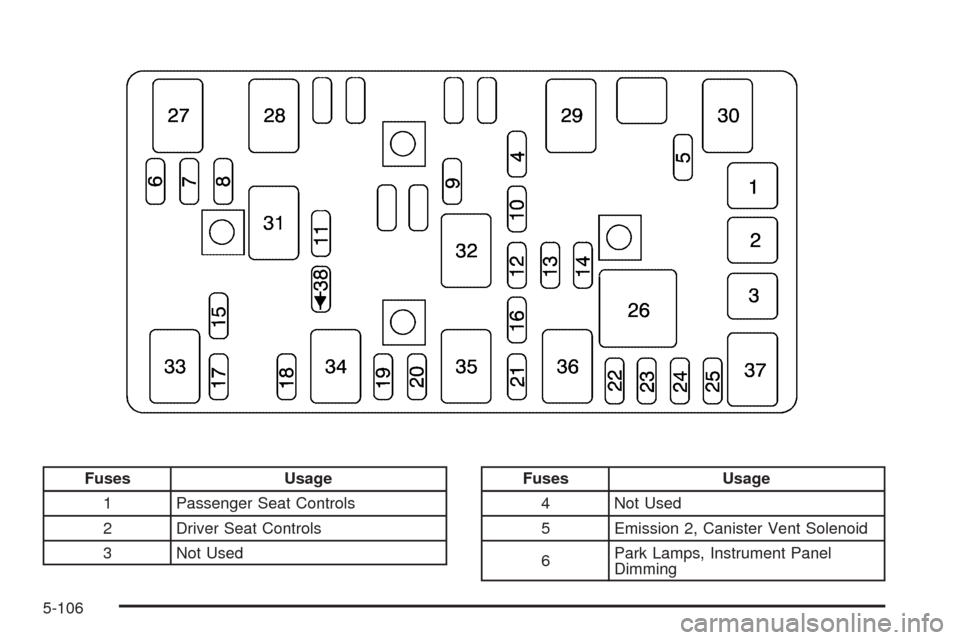

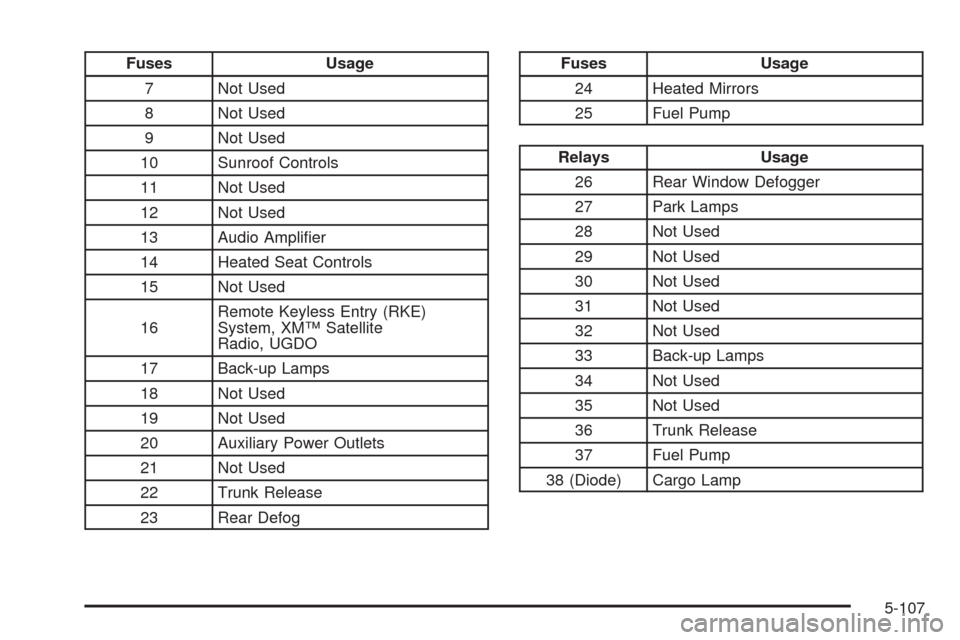

Fuses Usage
1 Passenger Seat Controls
2 Driver Seat Controls
3 Not UsedFuses Usage
4 Not Used
5 Emission 2, Canister Vent Solenoid
6Park Lamps, Instrument Panel
Dimming
5-106

Fuses Usage
7 Not Used
8 Not Used
9 Not Used
10 Sunroof Controls
11 Not Used
12 Not Used
13 Audio Amplier
14 Heated Seat Controls
15 Not Used
16Remote Keyless Entry (RKE)
System, XM™ Satellite
Radio, UGDO
17 Back-up Lamps
18 Not Used
19 Not Used
20 Auxiliary Power Outlets
21 Not Used
22 Trunk Release
23 Rear DefogFuses Usage
24 Heated Mirrors
25 Fuel Pump
Relays Usage
26 Rear Window Defogger
27 Park Lamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk Release
37 Fuel Pump
38 (Diode) Cargo Lamp
5-107

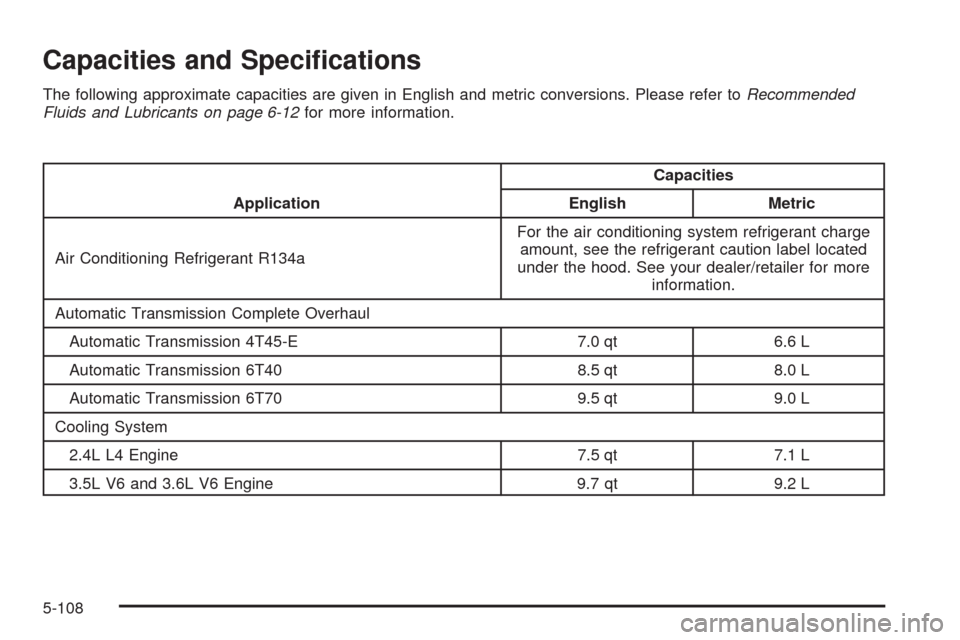

Capacities and Specications
The following approximate capacities are given in English and metric conversions. Please refer toRecommended
Fluids and Lubricants on page 6-12for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more
information.
Automatic Transmission Complete Overhaul
Automatic Transmission 4T45-E 7.0 qt 6.6 L
Automatic Transmission 6T40 8.5 qt 8.0 L
Automatic Transmission 6T70 9.5 qt 9.0 L
Cooling System
2.4L L4 Engine 7.5 qt 7.1 L
3.5L V6 and 3.6L V6 Engine 9.7 qt 9.2 L
5-108

ApplicationCapacities
English Metric

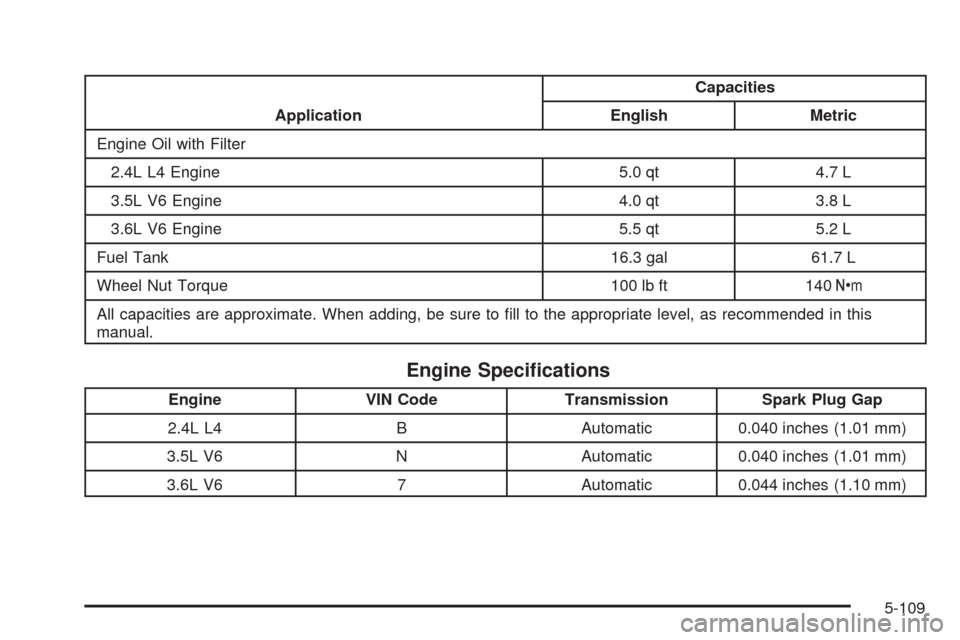

Engine Oil with Filter
2.4L L4 Engine 5.0 qt 4.7 L
3.5L V6 Engine 4.0 qt 3.8 L
3.6L V6 Engine 5.5 qt 5.2 L
Fuel Tank 16.3 gal 61.7 L
Wheel Nut Torque 100 lb ft 140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended in this
manual.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
2.4L L4 B Automatic 0.040 inches (1.01 mm)
3.5L V6 N Automatic 0.040 inches (1.01 mm)
3.6L V6 7 Automatic 0.044 inches (1.10 mm)
5-109
