2008 CADILLAC ESCALADE Owners Manual

3. Move the other end of the cover forward and
hold it next to the driver’s side trim panel slot.
4. Press the end caps in, this will allow the cover to t
into the trim slot.
5. Lightly pull on the cover holder to make sure it
is secure.
On the extended wheelbase models there are
two cover positions. The slots furthest forward allow
the cover to be used if the third seat is removed
or folded down. The cover can be installed
and removed from either side.
Cargo Tie Downs
Your vehicle may have cargo tie downs in the rear
cargo area that allow you to strap cargo in and keep it
from moving inside the vehicle.
Sunroof
Your vehicle may be equipped with a power sliding
sunroof. To open or close the sunroof, the ignition needs
to be turned to ON, or Retained Accessory Power (RAP)
must be active. When RAP is active, the sunroof will work
for 10 minutes after the ignition is turned off, or until a
front door is opened. SeeRetained Accessory Power
(RAP) on page 2-26for more information.
There are two switches in
the overhead console that
operate the sunroof.
Manual-Open/Manual-Close:To open the sunroof
press and hold the rear of the driver’s side switch until
the sunroof reaches the desired position. To close
the sunroof, press and hold the front of the driver’s side
switch until the sunroof reaches the desired position.
The sunshade will open automatically with the sunroof,
but can also be opened manually.
2-65

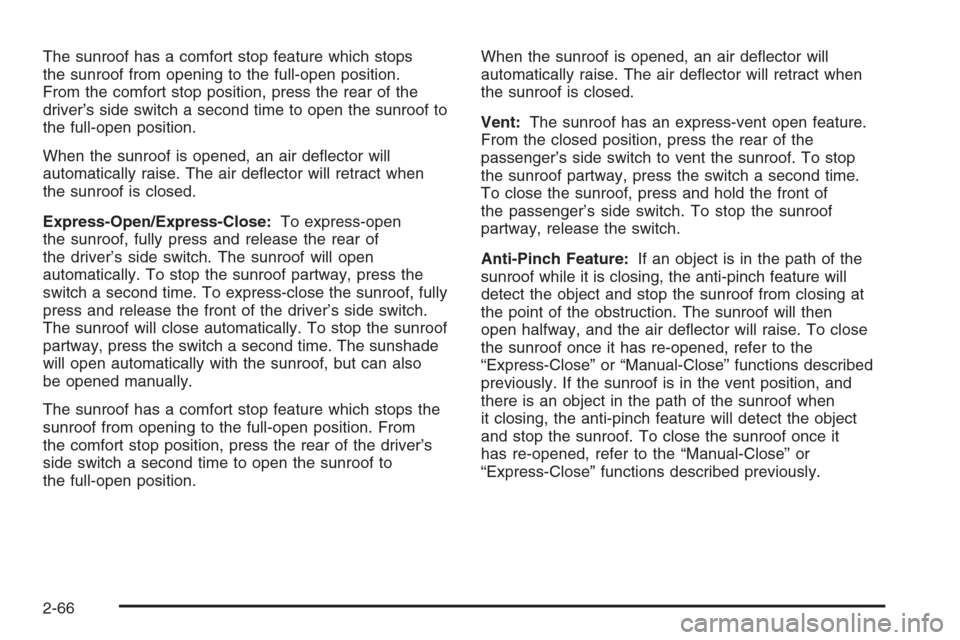

The sunroof has a comfort stop feature which stops
the sunroof from opening to the full-open position.
From the comfort stop position, press the rear of the
driver’s side switch a second time to open the sunroof to
the full-open position.
When the sunroof is opened, an air deector will
automatically raise. The air deector will retract when
the sunroof is closed.
Express-Open/Express-Close:To express-open
the sunroof, fully press and release the rear of
the driver’s side switch. The sunroof will open
automatically. To stop the sunroof partway, press the
switch a second time. To express-close the sunroof, fully
press and release the front of the driver’s side switch.
The sunroof will close automatically. To stop the sunroof
partway, press the switch a second time. The sunshade
will open automatically with the sunroof, but can also
be opened manually.
The sunroof has a comfort stop feature which stops the
sunroof from opening to the full-open position. From
the comfort stop position, press the rear of the driver’s
side switch a second time to open the sunroof to
the full-open position.When the sunroof is opened, an air deector will
automatically raise. The air deector will retract when
the sunroof is closed.
Vent:The sunroof has an express-vent open feature.
From the closed position, press the rear of the
passenger’s side switch to vent the sunroof. To stop
the sunroof partway, press the switch a second time.
To close the sunroof, press and hold the front of
the passenger’s side switch. To stop the sunroof
partway, release the switch.
Anti-Pinch Feature:If an object is in the path of the
sunroof while it is closing, the anti-pinch feature will
detect the object and stop the sunroof from closing at
the point of the obstruction. The sunroof will then
open halfway, and the air deector will raise. To close
the sunroof once it has re-opened, refer to the
“Express-Close” or “Manual-Close” functions described
previously. If the sunroof is in the vent position, and
there is an object in the path of the sunroof when
it closing, the anti-pinch feature will detect the object
and stop the sunroof. To close the sunroof once it
has re-opened, refer to the “Manual-Close” or
“Express-Close” functions described previously.
2-66

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn .............................................................3-6
Tilt Wheel.....................................................3-6
Heated Steering Wheel...................................3-7
Turn Signal/Multifunction Lever.........................3-8
Turn and Lane-Change Signals........................3-8
Headlamp High/Low-Beam Changer..................3-9
Windshield Wipers........................................3-10
Rainsense™ II Wipers...................................3-10
Windshield Washer.......................................3-11
Rear Window Wiper/Washer...........................3-12
Cruise Control..............................................3-12
Exterior Lamps.............................................3-16
Headlamps on Reminder................................3-20
Daytime Running Lamps (DRL).......................3-20
Automatic Headlamp System..........................3-20
Fog Lamps ..................................................3-21
Instrument Panel Brightness...........................3-22
Dome Lamps ...............................................3-22
Dome Lamp Override....................................3-22
Entry Lighting...............................................3-22
Exit Lighting.................................................3-22Reading Lamps............................................3-23
Electric Power Management...........................3-23
Battery Run-Down Protection..........................3-24
Accessory Power Outlet(s).............................3-24
Ashtray(s) and Cigarette Lighter......................3-25
Analog Clock...............................................3-25
Climate Controls............................................3-26
Dual Automatic Climate Control System...........3-26
Outlet Adjustment.........................................3-31
Rear Air Conditioning and Heating System
and Electronic Climate Controls...................3-31
Warning Lights, Gages, and Indicators............3-33
Instrument Panel Cluster................................3-34
Speedometer and Odometer...........................3-35
Trip Odometer..............................................3-35
Tachometer.................................................3-35
Safety Belt Reminders...................................3-35
Airbag Readiness Light..................................3-36
Passenger Airbag Status Indicator...................3-37
Charging System Light..................................3-39
Brake System Warning Light..........................3-40
Anti-lock Brake System (ABS) Warning Light.......3-41
StabiliTrak
®Indicator Light.............................3-41
Engine Coolant Temperature Gage..................3-42
Section 3 Instrument Panel
3-1

Tire Pressure Light.......................................3-42
Malfunction Indicator Lamp.............................3-43
Oil Pressure Light.........................................3-45
Security Light...............................................3-46
Fog Lamp Light............................................3-46
Lights On Reminder......................................3-46
Cruise Control Light......................................3-46
Highbeam On Light.......................................3-47
Tow/Haul Mode Light....................................3-47
Fuel Gage...................................................3-47
Driver Information Center (DIC).......................3-48
DIC Operation and Displays...........................3-48
DIC Warnings and Messages.........................3-52
DIC Vehicle Customization.............................3-59Audio System(s).............................................3-68
Setting the Clock..........................................3-69
Radio(s)......................................................3-70
Using an MP3..............................................3-87
XM Radio Messages.....................................3-91
Navigation/Radio System...............................3-92
Rear Seat Entertainment (RSE) System...........3-92
Rear Seat Audio (RSA)................................3-102
Theft-Deterrent Feature................................3-104
Audio Steering Wheel Controls......................3-104
Radio Reception.........................................3-105
Rear Side Window Antenna..........................3-106
XM™ Satellite Radio Antenna System............3-106
Section 3 Instrument Panel
3-2

✍NOTES
3-3

Instrument Panel Overview
United States version shown; Canada similar.
3-4

A. Air Outlets. SeeOutlet Adjustment on page 3-31.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-8.
C. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-34.
D. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-6.
E. Shift Lever and Range Selection Mode. See
Automatic Transmission Operation on page 2-30.
F. Tow/Haul Selector Button. SeeTow/Haul Mode
on page 2-34.
G. Driver Information Center Controls. SeeDriver
Information Center (DIC) on page 3-48.
H. Analog Clock. SeeAnalog Clock on page 3-25.
I. Audio System. SeeAudio System(s) on page 3-68.
J. StabiliTrak
®Button. SeeStabiliTrak®System
on page 4-6. Rear Park Aid Disable Button.
SeeUltrasonic Rear Parking Assist (URPA)
on page 2-48.
K. Tilt Wheel Lever. SeeTilt Wheel on page 3-6.L. Exterior Lamps Control. SeeExterior Lamps
on page 3-16.
M. Dome Lamp Override Button. SeeDome Lamp
Override on page 3-22. Instrument Panel Brightness
Control. SeeInstrument Panel Brightness
on page 3-22. Fog Lamp Button. SeeFog Lamps
on page 3-21.
N. Cruise Control Buttons. SeeCruise Control
on page 3-12.
O. Horn. SeeHorn on page 3-6.
P. Audio Steering Wheel Controls. SeeAudio Steering
Wheel Controls on page 3-104.
Q. Dual Automatic Climate Controls. SeeDual
Automatic Climate Control System on page 3-26.
R. Pedal Adjust Button. SeeAdjustable Throttle
and Brake Pedal on page 2-28. Heated Windshield
Washer Fluid Button. SeeWindshield Washer
on page 3-11. Power Running Boards Disable
Button (If Equipped). SeePower Running Boards
on page 2-17.
S. Glove Box. SeeGlove Box on page 2-61.
3-5

Hazard Warning Flashers
The hazard warning ashers warn others. They also let
the police and other emergency vehicles know you
have a problem.
The hazard warning
asher button is
located on top of the
steering column.
Press the button to make the front and rear turn signal
lamps ash on and off. Press the button again to
turn the ashers off.
The hazard warning ashers work no matter what
ignition position the key is in, and even if the key is not
in the ignition.
When the hazard warning ashers are on, your vehicle’s
turn signals will not work.
Other Warning Devices
If you carry reective triangles, you can set them up at
the side of the road about 300 feet (100 m) behind
your vehicle.
Horn
To sound the horn, press the center pad on the
steering wheel.
Tilt Wheel
Your vehicle has a tilt wheel, that lets you adjust the
steering wheel before driving. Raising it to the highest
level gives more room to exit and enter your vehicle.
3-6
