2008 BUICK LUCERNE engine

Charging System Light..................................3-38
Brake System Warning Light..........................3-39
Antilock Brake System Warning Light...............3-40
Traction Control System (TCS) Warning Light . . .3-40
StabiliTrak
®Indicator Light..............................3-41
Lane Departure Warning Light........................3-42
Engine Coolant Temperature Warning Light......3-42
Engine Coolant Temperature Gage..................3-43
Tire Pressure Light.......................................3-43
Malfunction Indicator Lamp.............................3-44
Oil Pressure Light.........................................3-46
Security Light...............................................3-47
Fog Lamp Light............................................3-47
Cruise Control Light......................................3-47
Highbeam On Light.......................................3-47
Fuel Gage...................................................3-48Driver Information Center (DIC).......................3-48
DIC Operation and Displays...........................3-49
DIC Compass..............................................3-54
DIC Warnings and Messages.........................3-56
DIC Vehicle Customization.............................3-66
Audio System(s).............................................3-75
Setting the Time...........................................3-76
Radio(s)......................................................3-78
Using an MP3..............................................3-89
XM Radio Messages.....................................3-93
Navigation/Radio System...............................3-94
Theft-Deterrent Feature..................................3-94
Audio Steering Wheel Controls.......................3-95
Radio Reception...........................................3-96
Backglass Antenna.......................................3-97
XM™ Satellite Radio Antenna System.............3-97
Section 3 Instrument Panel
3-2

Electric Power Management
The vehicle has Electric Power Management (EPM) that
estimates the battery’s temperature and state of
charge. It then adjusts the voltage for best performance
and extended life of the battery.
When the battery’s state of charge is low, the voltage is
raised slightly to quickly put the charge back in. When
the state of charge is high, the voltage is lowered slightly
to prevent overcharging. If the vehicle has a voltmeter
gage or a voltage display on the Driver Information
Center (DIC), you may see the voltage move up
or down. This is normal. If there is a problem, an alert
will be displayed.
The battery can be discharged at idle if the electrical
loads are very high. This is true for all vehicles. This is
because the generator (alternator) may not be
spinning fast enough at idle to produce all the power
that is needed for very high electrical loads.
A high electrical load occurs when several of the
following loads are on: headlamps, high beams, fog
lamps, rear window defogger, climate control fan at high
speed, heated seats, engine cooling fans, trailer
loads, and loads plugged into accessory power outlets.EPM works to prevent excessive discharge of the
battery. It does this by balancing the generator’s output
and the vehicle’s electrical needs. It can increase
engine idle speed to generate more power, whenever
needed. It can temporarily reduce the power demands of
some accessories.
Normally, these actions occur in steps or levels, without
being noticeable. In rare cases at the highest levels
of corrective action, this action may be noticeable to the
driver. If so, a Driver Information Center (DIC)
message might be displayed, such as Battery Saver
Active or Service Battery Charging System. If this
message is displayed, it is recommended that the driver
reduce the electrical loads as much as possible. See
DIC Warnings and Messages on page 3-56.
Inadvertent Power Battery Saver
This feature is designed to protect your vehicle’s battery
against drainage from the interior lamps, or garage
door opener. When the ignition is turned off, the power
to these features will automatically turn off after
10 minutes. Power will be restored for an additional
10 minutes if any door is opened, the trunk is opened or
the courtesy lamp switch is turned on.
3-19

#(Air Conditioning):Press this button to turn the
air conditioning system on or off. When this button
is pressed, an indicator light below the button comes on
to show that this mode is activated. Air conditioning
can be selected in any mode as long as the fan knob is
not in the off position.
On hot days during the vehicle’s initial start-up, open
the windows to let hot inside air escape; then close
them. This helps to reduce the time it takes for
the vehicle to cool down. It also helps the system to
operate more efficiently.
For quicker cool down on hot days, do the following:
1. Select the vent air mode.
2. Select the recirculation mode.
3. Select the air conditioner.
4. Select the coolest temperature.
5. Select the highest fan speed.
The air-conditioning system removes moisture from the
air, so a small amount of water may drip underneath
the vehicle while idling or after turning off the engine.
This is normal.Defogging and Defrosting
Fog on the inside of the vehicle is a result of high
humidity causing moisture to condense on the cool
window glass. This can be minimized if the climate
control system is used properly. There are two modes
to clear frost or fog from the windshield. Use the
oor/defog mode to clear the windows of condensation
and to warm the vehicle’s occupants. Use the defrost
mode to remove frost or condensation from the
windshield quickly.
See “Rear Window Defogger” later in this section for
information on clearing the rear window of fog or ice.
Turn the right knob to select the defog or defrost mode.
The recirculation mode cannot be selected while in
these modes.
-(Floor/Defog):This mode directs half of the air to
the windshield and the side window outlets and half
to the oor outlets. The system runs the air conditioning
compressor unless the outside temperature is near or
below freezing.
0(Defrost):This mode directs most of the air to the
windshield and the side window outlets. The system
runs the air conditioning compressor unless the outside
temperature is near or below freezing.
3-23

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<(Rear Window Defogger):Press this button to
turn the rear window defogger on or off. An indicator
light below the button comes on to show that the rear
window defogger is activated. Be sure to clear as much
snow from the rear window as possible.
The rear window defogger will only work when the ignition
is in ON/RUN. The rear window defogger stays on for
about 20 minutes after the button is pressed if traveling at
slow speeds. At higher vehicle speeds, the rear defogger
may stay on continuously. If turned on again, the
defogger only runs for about 10 minutes before turning
off. The defogger can be turned off by pressing the button
again, by turning the ignition to ACC/ACCESSORY or
ON/RUN, or by turning off the engine.
If your vehicle has heated outside rearview mirrors, the
mirrors heat to help clear fog or frost from the surface of
the mirror when the rear window defogger is on. See
Outside Automatic Dimming Heated Mirror on page 2-38
for more information.
Notice:Do not use anything sharp on the inside of
the rear window. If you do, you could cut or
damage the warming grid, and the repairs would not
be covered by your warranty. Do not attach a
temporary vehicle license, tape, a decal or anything
similar to the defogger grid.
Dual Automatic Climate Control
System
The heating, cooling, and ventilation for the vehicle can
be controlled with this system.
If your vehicle has the remote start feature and it is
activated, the climate control system heats or cools the
inside of the vehicle, with the settings used before
the vehicle was turned off. The heated seats, if
the vehicle has them, and the rear window defogger will
be turned on by the climate control system when it is
cold outside. The cooled seat setting is not activated
during a remote start. Normal operation of the system
will return after the key is turned to the ON/RUN
position. SeeRemote Keyless Entry (RKE) System
Operation on page 2-5for more information.
3-24

Manual Operation
9(Fan):Turn the left knob either to the left or right to
adjust the fan speed. Turning this control completely
counterclockwise turns on the automatic fan operation.
If the airow seems low when the fan speed is at
the highest setting, the passenger compartment air lter
may need to be replaced. For more information, see
Passenger Compartment Air Filter on page 3-30
andScheduled Maintenance on page 6-4.
9(Off):Turn the left control to this position to turn
the climate control system off. Outside air still enters the
vehicle and is directed to the oor. The airow direction
and temperature can be adjusted, as indicated below.
If the temperature is adjusted while the system is off, the
display will light to show the current settings.
Mode Control:Turn the right knob clockwise or
counterclockwise to change the airow direction.
F(Vent):This mode directs outside air to the
instrument panel outlets.
*(Bi-Level):This mode splits the air between the
instrument panel outlets and the oor outlets. In
automatic operation, cooler air is directed to the upper
outlets and warmer air to the oor outlets.
7(Floor):This mode automatically uses outside air
and directs most to the oor outlets. Some air is directed
toward the side window outlets and to the windshield.
If recirculation is selected while in this mode, it stays on
for three minutes to reduce windshield fogging.
The mode control can also be used to select the
oor/defog mode. Information on defogging and
defrosting can be found later in this section.
#(Air Conditioning):Press the center of the left
control knob to override the automatic system and turn
the air conditioning system on or off. When this
button is pressed, an indicator light below the button
comes on to show that this mode is activated.
The air conditioning system removes moisture from the
air, so a small amount of water might drip underneath
the vehicle while idling or after turning off the engine.
This is normal.
3-26

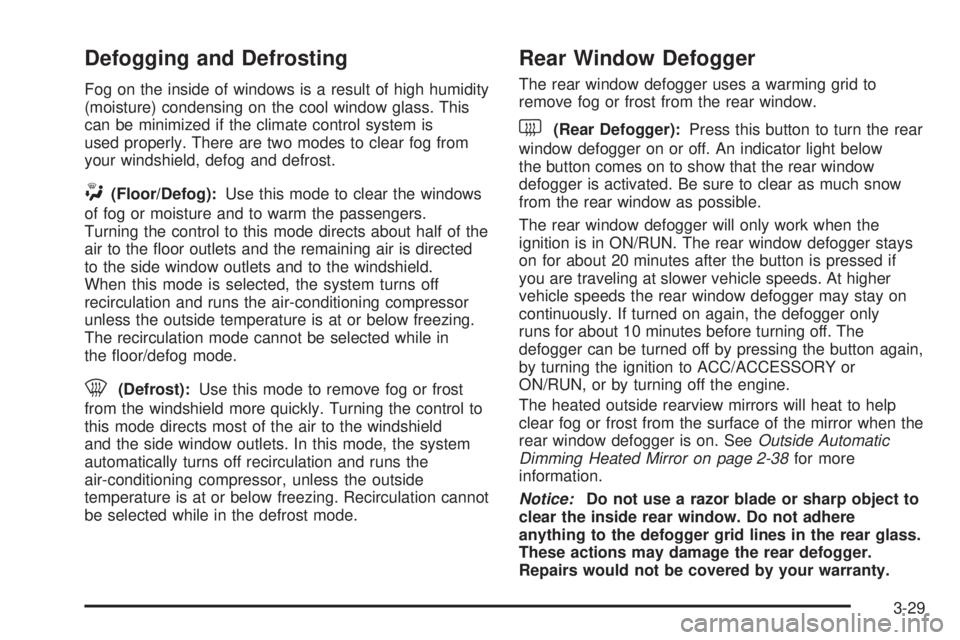

Defogging and Defrosting
Fog on the inside of windows is a result of high humidity
(moisture) condensing on the cool window glass. This
can be minimized if the climate control system is
used properly. There are two modes to clear fog from
your windshield, defog and defrost.
W(Floor/Defog):Use this mode to clear the windows
of fog or moisture and to warm the passengers.
Turning the control to this mode directs about half of the
air to the oor outlets and the remaining air is directed
to the side window outlets and to the windshield.
When this mode is selected, the system turns off
recirculation and runs the air-conditioning compressor
unless the outside temperature is at or below freezing.
The recirculation mode cannot be selected while in
the oor/defog mode.
0(Defrost):Use this mode to remove fog or frost
from the windshield more quickly. Turning the control to
this mode directs most of the air to the windshield
and the side window outlets. In this mode, the system
automatically turns off recirculation and runs the
air-conditioning compressor, unless the outside
temperature is at or below freezing. Recirculation cannot
be selected while in the defrost mode.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
<(Rear Defogger):Press this button to turn the rear
window defogger on or off. An indicator light below
the button comes on to show that the rear window
defogger is activated. Be sure to clear as much snow
from the rear window as possible.
The rear window defogger will only work when the
ignition is in ON/RUN. The rear window defogger stays
on for about 20 minutes after the button is pressed if
you are traveling at slower vehicle speeds. At higher
vehicle speeds the rear window defogger may stay on
continuously. If turned on again, the defogger only
runs for about 10 minutes before turning off. The
defogger can be turned off by pressing the button again,
by turning the ignition to ACC/ACCESSORY or
ON/RUN, or by turning off the engine.
The heated outside rearview mirrors will heat to help
clear fog or frost from the surface of the mirror when the
rear window defogger is on. SeeOutside Automatic
Dimming Heated Mirror on page 2-38for more
information.
Notice:Do not use a razor blade or sharp object to
clear the inside rear window. Do not adhere
anything to the defogger grid lines in the rear glass.
These actions may damage the rear defogger.
Repairs would not be covered by your warranty.
3-29

Warning Lights, Gages, and
Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause
an expensive repair or replacement. Paying attention to
your warning lights and gages could also save you
or others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions. As you will
see in the details on the next few pages, some
warning lights come on briey when you start the
engine just to let you know they are working. If you are
familiar with this section, you should not be alarmed
when this happens.Gages can indicate when there may be or is a problem
with one of your vehicle’s functions. Often gages
and warning lights work together to let you know when
there is a problem with your vehicle.
When one of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow this manual’s advice.
Waiting to do repairs can be costly — and even
dangerous. So please get to know your warning lights
and gages. They are a big help.
Your vehicle has a DIC that works along with the
warning lights and gages. SeeDriver Information Center
(DIC) on page 3-48.
3-32

Speedometer and Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has
been driven, in either miles or kilometers.
Your vehicle has a tamper resistant odometer.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to
the mileage total of the old odometer, then it must
be. But if it cannot, then it is set at zero and a label must
be put on the driver’s door to show the old mileage
reading when the new odometer was installed.
Trip Odometer
A trip odometer can tell you how far you have driven
since you last set it to zero. SeeDriver Information
Center (DIC) on page 3-48for information on resetting
the trip odometer.
Tachometer
Your tachometer displays the engine speed in
revolutions per minute (rpm).
Safety Belt Reminders
Safety Belt Reminder Light
When the engine is started, a chime will come on for
several seconds to remind people to fasten their safety
belts, unless the driver’s safety belt is already buckled.
The safety belt light will
also come on and stay on
for several seconds, then it
will ash for several more.
This chime and light is repeated if the driver remains
unbuckled and the vehicle is in motion. If the driver’s belt
is already buckled, neither the chime nor the light will
come on.
3-34
