Ski bag*
The ski bag is designed for safe, clean transport
of up to 4 pa irs of s tandard s kis or up to 2 snow-
boards.
With the ski bag you can stow skis with a length
of up to 6.9 ft/2.10 m. When skis of 6.9 ft/2.10 m
in length are loaded, the ski bag will tend to con-
tract, reducing its overall capacity.
Before loading the ski bag, fold in the dis-
play screen of the DVD system in the
rear
*, as otherwise the display screen could be
damaged.<
Loading
1.Fold down the center armrest, press the
button and open the cover.
2.Press the button again; the cover in the
cargo bay opens. If you press the button
firmly the first time, this cover also opens.
3.Extend the ski bag between the front seats
and fill it. The zipper facilitates access to the
stowed items and drying of the ski bag.
4.Insert the latch plate of the ski bag retaining
strap into the center safety belt buckle that
is marked CENTER.Only stow clean skis in the ski bag. Wrap sharp
edges to prevent damage.
Securing cargo
After loading, secure the ski bag and its con-
tents. Tighten the retaining strap on the ten-
sioning buckle for this purpose.
Secure the ski bag in this way. If you fail to
do so, it could endanger occupants dur-
ing braking or evasive maneuvers.<
To store the ski bag, perform the above steps in
reverse order.
Removing ski bag
The ski bag can be completely removed, e.g. for
faster drying or to allow you to put it to other
uses.
1.Pull the handle toward the front, arrow1.
2.Take out the ski bag upward, arrow2.
3.Close the cover in the cargo bay.
Details on various inserts are available
from your BMW Sports Activity Vehicle
Center.<

Driving tips
131Reference
At a glance
Controls
Communications
Navigation
Entertainment
Mobility
Loading
To avoid loading the tires beyond their
approved carrying capacity, never over-
load the vehicle. Overloading can lead to over-
heating and increases the rate at which damage
develops inside the tires. The ultimate result
can assume the form of a sudden blow-out.<
Make sure that no fluids leak in the cargo
bay; otherwise the vehicle could be dam-
aged.<
Determining loading limit
1.Locate the following statement on your
vehicle's placard
*:
The combined weight of occupants
and cargo should never exceed
YYY lbs. or XXX kg. Otherwise, this could
damage the vehicle and produce unstable
vehicle operating conditions.<
2.Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.
3.Subtract the combined weight of the driver
and passengers from YYY lbs. or XXX kg.
4.The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the YYY amount equals
1,400 lbs. and there will be five 150 lbs.
passengers in your vehicle, the amount of
available cargo and luggage load capacity is
650 lbs.:
1,400 lbs. minus 750 lbs. = 650 lbs.
5.Determine the combined weight of luggage
and cargo being loaded on the vehicle. That
weight may not safely exceed the available cargo and luggage load capacity calculated
in step 4.
6.If your vehicle will be towing a trailer, part of
the load from your trailer will be transferred
to your vehicle. Consult the manual for
transporting a trailer to determine how this
may reduce the available cargo and luggage
load capacity of your vehicle.
Load
The permissible load is the total of the weight of
occupants and cargo/luggage. The greater the
weight of occupants, the less cargo/luggage
can be transported.
Stowing cargo
>Load heavy cargo as far forward and as low
as possible, placing it directly behind the
backrest.

Things to remember when driving

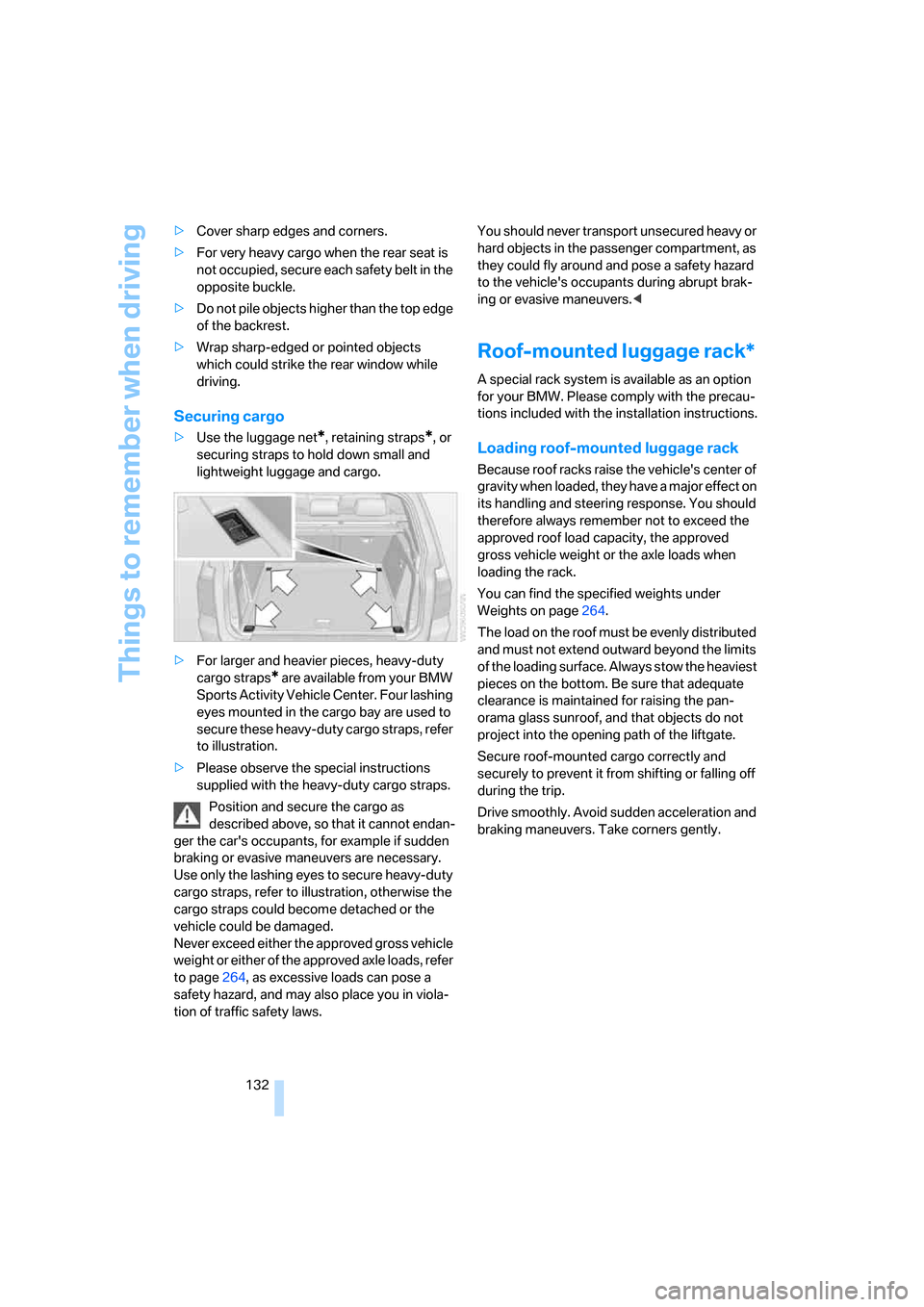

132 >Cover sharp edges and corners.
>For very heavy cargo when the rear seat is
not occupied, secure each safety belt in the
opposite buckle.
>Do not pile objects higher than the top edge
of the backrest.
>Wrap sharp-edged or pointed objects
which could strike the rear window while
driving.
Securing cargo
>Use the luggage net*, retaining straps*, or
securing straps to hold down small and
lightweight luggage and cargo.
>For larger and heavier pieces, heavy-duty
cargo straps
* are available from your BMW
Sports Activity Vehicle Center. Four lashing
eyes mounted in the cargo bay are used to
secure these heavy-duty cargo straps, refer
to illustration.
>Please observe the special instructions
supplied with the heavy-duty cargo straps.
Position and secure the cargo as
described above, so that it cannot endan-
ger the car's occupants, for example if sudden
braking or evasive maneuvers are necessary.
Use only the lashing eyes to secure heavy-duty
cargo straps, refer to illustration, otherwise the
cargo straps could become detached or the
vehicle could be damaged.
Never exceed either the approved gross vehicle
weight or either of the approved axle loads, refer
to page264, as excessive loads can pose a
safety hazard, and may also place you in viola-
tion of traffic safety laws. You should never transport unsecured heavy or
hard objects in the passenger compartment, as
they could fly around and pose a safety hazard
to the vehicle's occupants during abrupt brak-
ing or evasive maneuvers.<
Roof-mounted luggage rack*
A special rack system is available as an option
for your BMW. Please comply with the precau-
tions included with the installation instructions.
Loading roof-mounted luggage rack
Because roof racks raise the vehicle's center of
gravity when loaded, they have a major effect on
its handling and steering response. You should
therefore always remember not to exceed the
approved roof load capacity, the approved
gross vehicle weight or the axle loads when
loading the rack.
You can find the specified weights under
Weights on page264.
The load on the roof must be evenly distributed
and must not extend outward beyond the limits
of the loading surface. Always stow the heaviest
pieces on the bottom. Be sure that adequate
clearance is maintained for raising the pan-
orama glass sunroof, and that objects do not
project into the opening path of the liftgate.
Secure roof-mounted cargo correctly and
securely to prevent it from shifting or falling off
during the trip.
Drive smoothly. Avoid sudden acceleration and
braking maneuvers. Take corners gently.

Mobility
251Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Changing wheels
Your BMW is equipped with run-flat tires as
standard. As a result, it is not necessary to
change the wheel immediately in the case of air
loss in the event of a breakdown.
To continue driving with a damaged tire:
>With Flat Tire Monitor, refer to Indication of
a flat tire page93
>With Tire Pressure Monitor, refer to Mes-
sage with low tire inflation pressure page95
You will recognize run-flat tires by a circular
symbol containing the letters RSC on the side
of the tire, refer to Run-flat tires, page239.
When mounting new tires, or changing from
summer to winter tires or vice versa, use run-flat
tires for your own safety. No spare tire is avail-
able in case of a flat tire. Your BMW Sports
Activity Vehicle Center will be happy to advise
you. Also refer to New wheels and tires,
page239.
Suitable tools for changing tires are avail-
able as accessories at your BMW Sports
Activity Vehicle Center.<
Jacking points for vehicle jack
The jacking points for the vehicle jack are
located in the positions shown.
Compact wheel*
Safety precautions in the event of a flat
tire or wheel change: park the vehicle as
far as possible from passing traffic and on solid
ground. Switch on the hazard warning flashers.
Set the parking brake and engage transmission
position P.
Have all vehicle occupants get out of the vehicle and ensure that they remain outside the imme-
diate area in a safe place, such as behind a
guardrail.
If a warning triangle
* or portable hazard warning
lamp
* is r e q u ir e d , s et i t up o n t h e ro a d s id e a t a n
appropriate distance from the rear of the vehi-
cle. Comply with all safety guidelines and regu-
lations.
Change the wheel only on a level, firm surface
which is not slippery. The vehicle or the jack
could slip to the side if you attempt to raise the
vehicle on a soft or slippery surface such as
snow, ice, tiles, etc.
Position the jack on a firm support surface.
Do not use a wooden block or similar object as a
support base for the jack, as this would prevent
it from extending to its full support height and
reduce its load-carrying capacity.
To avoid serious or fatal injury: never lie under
the vehicle, and never start the engine while it is
supported by the jack.<
What you will need
To avoid rattling noises later on, note the posi-
tions of the tools before removing them, then
return them to their initial positions after com-
pleting work.
The tools are located in the mount under the
floor panel flap.
1Vehicle jack
*
2Vehicle jack crank*
3Lug wrench*

Technical data
264
Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
X5 3.0siX5 4.8i
Curb weight with 3rd row seats
lbs./kg 4,916/2,230 5,247/2,380
Approved gross vehicle weight
without 3rd row seatslbs./kg
lbs./kg6,327/2,870
6,008/2,7256,537/2,965
6,173/2,800
Load
without 3rd row seatslbs./kg
lbs./kg1,411/640
1,268/5751,290/585
1,102/500
Approved front axle load
without 3rd row seatslbs./kg
lbs./kg2,767/1,255
2,778/1,2603,020/1,370
3,020/1,370
Approved rear axle load
without 3rd row seatslbs./kg
lbs./kg3,803/1,725
3,395/1,5403,869/1,755
3,395/1,540
Approved roof load capacity lbs./kg 220/100 220/100
Cargo bay capacity cu ft/l 21.9-61.8/620-1,750 21.9-61.8/620-1,750
Notes
Fuel tank US gal/liters approx. 22.5/85 Fuel grade: page233
of that reserve
X5 3.0si
X5 4.8iUS gal/liters
US gal/litersapprox. 2.1/8
approx. 2.6/10
Windshield washer with
headlamp washer system US quarts/liters approx. 6.9/6.5For more details: page68

Everything from A to Z
272 BMW homepage4
BMW maintenance
system245
"BMW Service settings"229
BMW website4
Body roll, refer to Driving on
poor roads133
Bottle holder, refer to Cup
holders120
Brake assistant89
Brake force display97
Brake lamps
– brake force display97
– replacing bulbs249
Brake rotors130
Brakes
– ABS Antilock Brake
System88
– brake assistant89
– brake force display97
– breaking-in128
– CBC Cornering Brake
Control88
– electronic brake-force
distribution88
– parking brake60
– refer to Braking safely129
– warning lamp13
Brake system128
– brake pads128
– breaking-in128
– disk brakes130
Braking safely129
Breakdown, Flat Tire
Monitor92
Breakdown services, refer to
Roadside Assistance256
Breaking-in brake pads128
Breaking-in differential128
Break-in period128
"Brightness"82
– for DVD system in rear196
– in TV mode184
Brightness
– of Control Display82
– of the rear view camera88
– on Head-Up Display100
"Brightness / Position"100Button for starting engine59
Buttons on steering wheel11
Bypassing traffic
congestion157
C
Calibrating driver's seat49
California Proposition 65
Warning6
"Call"216,227
Call
– accepting214
– displaying accepted217
– ending215
– in absence217
– starting215
Calling
– from phone book216
– from Top 8 list217
– redialing217
– refer to telephone operating
instructions
Camera, refer to Rear view
camera86
"Camera picture and PDC"88
"Camera view
– full screen"88
– main window"88
Can holder, refer to Cup
holders120
Capacities264
Capacity of cargo bay264
Car battery, refer to Vehicle
battery253
Car care, refer to Caring for
your vehicle brochure
Car-care products, refer to
Caring for your vehicle
brochure
"Car Data"73
Care246
– refer to Caring for your
vehicle brochure
Cargo
– refer to Loading131
– securing132
– securing with ski bag125Cargo area, refer to Cargo
bay122
Cargo area cover, refer to Roll-
up cover122
Cargo bay
– capacity264
– emergency operation, refer
to Opening manually33
– expanding123
– opening/closing, refer to
Liftgate33
– opening/closing, refer to
Tailgate35
– opening from inside33
– opening from outside33
– opening with remote
control30
Cargo bay cover, refer to Roll-
up cover122
Caring for artificial leather,
refer to Caring for your
vehicle brochure
Caring for leather, refer to
Caring for your vehicle
brochure
Caring for light-alloy wheels,
refer to Caring for your
vehicle brochure
Caring for the carpet, refer to
Caring for your vehicle
brochure
Caring for the vehicle finish,
refer to Caring for your
vehicle brochure
Car key, refer to Keys/remote
control28
Car phone208
– installation location, refer to
Center armrest119
– refer to Mobile phone208
– refer to separate operating
instructions
Car radio, refer to Radio166
Car wash130
– also refer to Caring for your
vehicle brochure
– before driving in60
– with comfort access37

Reference 279
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

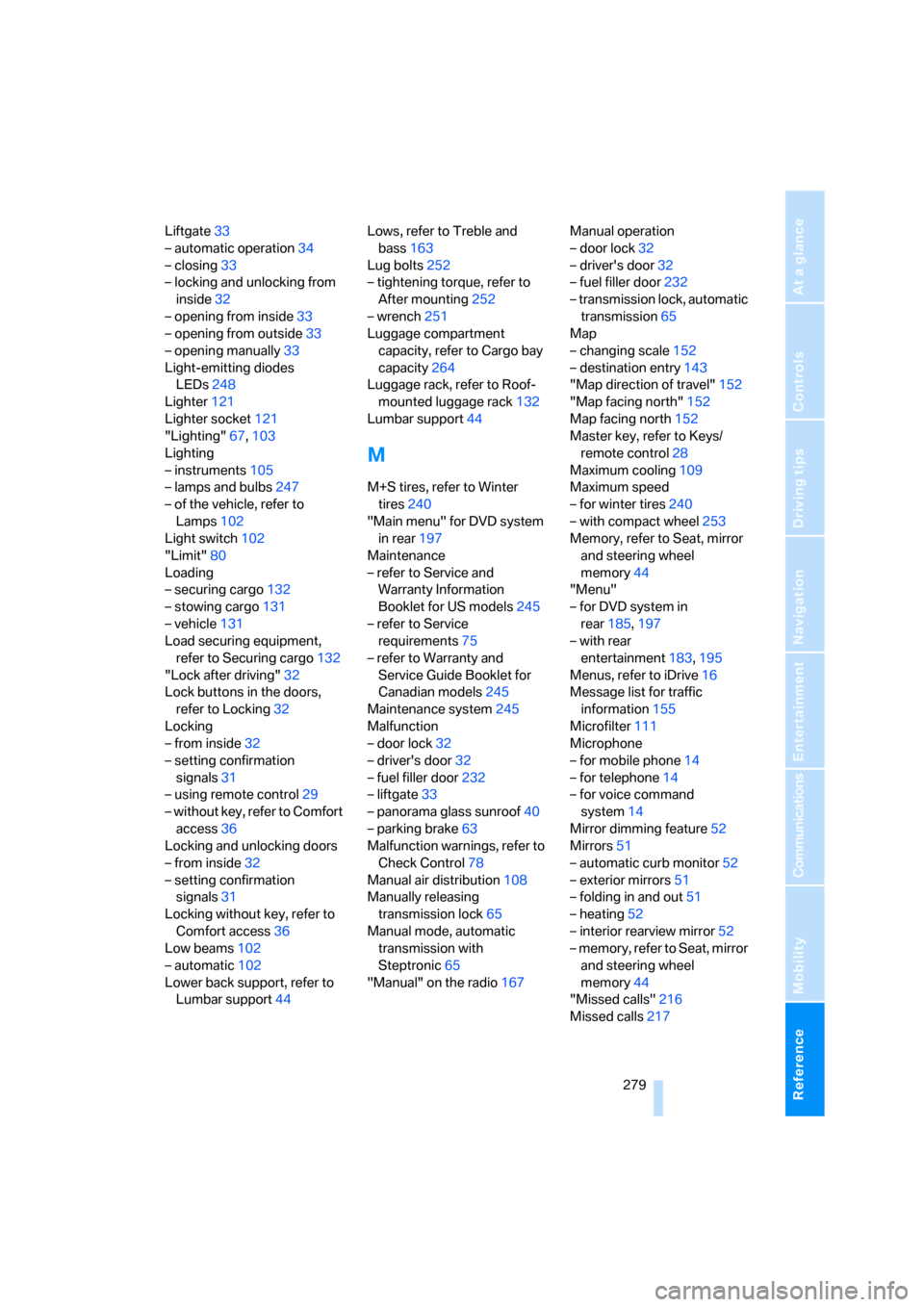

Liftgate33
– automatic operation34
– closing33
– locking and unlocking from
inside32
– opening from inside33
– opening from outside33
– opening manually33
Light-emitting diodes
LEDs248
Lighter121
Lighter socket121
"Lighting"67,103
Lighting
– instruments105
– lamps and bulbs247
– of the vehicle, refer to
Lamps102
Light switch102
"Limit"80
Loading
– securing cargo132
– stowing cargo131
– vehicle131
Load securing equipment,
refer to Securing cargo132
"Lock after driving"32
Lock buttons in the doors,
refer to Locking32
Locking
– from inside32
– setting confirmation
signals31
– using remote control29
– without key, refer to Comfort
access36
Locking and unlocking doors
– from inside32
– setting confirmation
signals31
Locking without key, refer to
Comfort access36
Low beams102
– automatic102
Lower back support, refer to
Lumbar support44Lows, refer to Treble and
bass163
Lug bolts252
– tightening torque, refer to
After mounting252
– wrench251
Luggage compartment
capacity, refer to Cargo bay
capacity264
Luggage rack, refer to Roof-
mounted luggage rack132
Lumbar support44
M
M+S tires, refer to Winter
tires240
"Main menu" for DVD system
in rear197
Maintenance
– refer to Service and
Warranty Information
Booklet for US models245
– refer to Service
requirements75
– refer to Warranty and
Service Guide Booklet for
Canadian models245
Maintenance system245
Malfunction
– door lock32
– driver's door32
– fuel filler door232
– liftgate33
– panorama glass sunroof40
– parking brake63
Malfunction warnings, refer to
Check Control78
Manual air distribution108
Manually releasing
transmission lock65
Manual mode, automatic
transmission with
Steptronic65
"Manual" on the radio167Manual operation
– door lock32
– driver's door32
– fuel filler door232
– transmission lock, automatic
transmission65
Map
– changing scale152
– destination entry143
"Map direction of travel"152
"Map facing north"152
Map facing north152
Master key, refer to Keys/
remote control28
Maximum cooling109
Maximum speed
– for winter tires240
– with compact wheel253
Memory, refer to Seat, mirror
and steering wheel
memory44
"Menu"
– for DVD system in
rear185,197
– with rear
entertainment183,195
Menus, refer to iDrive16
Message list for traffic
information155
Microfilter111
Microphone
– for mobile phone14
– for telephone14
– for voice command
system14
Mirror dimming feature52
Mirrors51
– automatic curb monitor52
– exterior mirrors51
– folding in and out51
– heating52
– interior rearview mirror52
– memory, refer to Seat, mirror
and steering wheel
memory44
"Missed calls"216
Missed calls217

Reference 283
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
"Return" for DVD system in
rear185,197
Reverse
– CD changer178
– CD player178
– DVD changer183
Reverse gear, automatic
transmission with
Steptronic64
Road map152
"Roadside Assistance"224
Roadside Assistance256
Roadside assistance224
Roadside parking lamps104
Roller sun blinds118
Roll-up cover122
Roof load capacity264
Roof-mounted luggage
rack132
Rope, refer to Tow-starting
and towing257
Rotary pushbutton, refer to
iDrive16
Route148
– changing154
– displaying151
– displaying arrow display151
– displaying map view152
– displaying roads and towns/
cities152
– displaying towns/cities152
– list152
– selecting148
– selecting criteria148
RSC Runflat System
Component, refer to Run-
flat tires239
Runflat System Component
RSC, refer to Run-Flat
Tires239
Run-flat tires239
– continuing driving with a
damaged tire93,95
– flat tire93,95
– new wheels and tires239
– tire inflation
pressure93,95,234
– tire replacement239S
Safety5
Safety belts48
– damage49
– sitting safely42
– warning lamp49
Safety belt tensioners
– refer to Airbags97
– refer to Safety belts48
Safety systems
– ABS Antilock Brake
System88
– airbags97
– driving stability control
systems88
– DSC Dynamic Stability
Control89
– safety belts48
Safety tires, refer to Run-flat
tires239
"SAT"163,172
Satellite radio172
– displaying additional
information173
– enabling172
– selecting channel173
– storing channel173
"Scan"
– for DVD system in rear199
– sampling stations with
radio167
– sampling tracks with CD177
Scan
– CD changer177
– CD player177
– radio167
"Scan all"
– for DVD system in rear200
– in audio mode177
"Scan directory"
– for DVD system in rear200
– in audio mode177
Screen, refer to iDrive16
Screw thread for tow
fitting257
SDARS, refer to Satellite
radio172
"Seat heater distribution"50Seat heating50
Seats43
– adjusting43
– adjusting electrically43
– adjusting manually43
– backrest width44
– heating50
– in rear47
– lumbar support44
– memory, refer to Seat, mirror
and steering wheel
memory44
– shoulder support44
– sitting safely
42
– storing the setting44
– thigh support43,44
– ventilation, refer to Active
seat ventilation and Seat
heating50
2nd row seats47
Securing load
– refer to Securing cargo132
– with ski bag, refer to
Securing cargo125
"Select as
destination"144,227
"Select current speed"80
Selecting audio source162
Selecting country for
navigation139
Selecting frequency
manually167
Selecting menu items19
Selecting new scale for
navigation152
Selector lever, automatic
transmission with
Steptronic64
Selector lever lock, refer to
Reverse gear64
Self-leveling suspension92
Service, refer to Roadside
Assistance256
Service and Warranty
Information Booklet for
US models245
"Service Info"76,225,242
Service interval indicator, refer
to Service requirements75
