Wheels and tires
98 age and related safety hazards. Make sure that
the new wheels are balanced.<
Retreaded tires
BMW does not recommend the use of
retreaded tires; otherwise, driving safety
may be reduced. The causes for this include the
possibly different tire casing structures and the
often wide variations in their age, which can
result in a limited service life.<
Correct wheels and tires
BMW recommends that you use only
wheel and tire combinations that BMW
has tested and approved for your particular
vehicle. Variations in factors such as manufac-
turing tolerances mean that even wheels and
tires with identical official size ratings could
actually have different dimensions than the
approved units – these differences could lead to
body contact and with it, the risk of severe acci-
dents. If non-approved wheels and tires are
used, BMW cannot evaluate their suitability,
and therefore cannot be held liable for driving
safety.<
You can ask your BMW Sports Activity Vehicle
Center for the correct wheel-and-tire combina-
tion.
The correct wheel-and-tire combination affects
various systems whose function would other-
wise be impaired, e.g. ABS, DSC or xDrive.
To maintain good handling and vehicle
response, use only tires of a single tread config-
uration from a single manufacturer. After tire
damage, always remember to have the original
wheel and tire combination remounted on the
vehicle as soon as possible.
Wheels equipped with electronics for
TPM Tire Pressure Monitor
When installing new tires or when changing
from summer tires to winter tires or vice versa,
only use wheels equipped with TPM electron-
ics; otherwise, the Tire Pressure Monitor can-
not detect a flat tire, refer to page55. Your
BMW Sports Activity Vehicle Center will be
happy to advise you in this regard.
Recommended tire brands
BMW recommends particular tire brands for
each tire size. You will recognize them by the
clearly visible BMW identification on the tire
sidewall.
With proper use, these tires meet the highest
standards for safety and handling characteris-
tics.
Special characteristics of winter tires
BMW recommends winter tires for use in cold
winter driving conditions. Although all-season
M+S tires do provide better winter traction than
summer tires, they generally fail to provide the
same levels of cold-weather performance as
winter tires.
Observing speed ratings
Never exceed the maximum speed for
which the winter tires are rated.<
Storage
Store wheels or tires in a cool, dry place, pro-
tecting them from light whenever possible. Pro-
tect the tires from contact with oil, grease and
fuel. Do not exceed the maximum tire inflation
pressure indicated on the side wall of the tire.
Changing wheels from one axle to
another
BMW does not recommend changing the front
wheels to the back or vice versa as this can
impair handling characteristics.

Reference
At a glance
Controls
Driving tips
Mobility
123
Dimensions
All dimensions in inches/millimeters. Smallest turning circle dia.: 38.4 ft/11.7 m.
Height with roof rack
*: 66.0 in/1674 mm.

Everything from A to Z
128 Charge-current indicator
lamp12,114
Check Gas Cap, warning
lamp12,92
Child's seats, refer to Child
restraint systems35
Child restraint fixing system
LATCH36
Child restraint systems35
– installing35
– with tether strap36
Child-safety locks37
Child seat security35
Chock112
Chrome parts, care, refer to
Caring for your vehicle
brochure
Cigarette lighter74
Circulation of air, refer to
Recirculated-air
mode64,68
Cleaning, vehicle, refer to
Caring for your vehicle
brochure
Cleaning rear window43
Clock47,48
– 12 or 24 hour mode48
– setting, also refer to Owner's
Manual for Radio/Onboard
Computer
– setting time47
Closing
– from inside21
– with the remote control19
Clothes hooks74
Clutch82
– breaking-in82
Cockpit10
Cold start, refer to Starting
engine38
Combination of wheel/tire98
Compact wheel, wheel
changes112
Compartments, refer to
Storage compartments73
Compartments in cargo area,
refer to Behind side trim
panel78Compass, digital70
Computer48
– also refer to Owner's Manual
for Onboard Computer
– functions48
Condensation, refer to When
the vehicle is parked84
Confirmation signal for
locking/unlocking
vehicle19,21
Connecting car vacuum
cleaner, refer to Connecting
electrical devices74
Connecting electrical
devices74
Consumption, refer to
Average fuel
consumption49
Consumption indicator, refer
to Fuel gauge46
Controls, refer to Cockpit10
Convenience operation
– from outside21
– panorama glass sunroof21
– windows21
Coolant104
– level104
– temperature gauge47
– warning lamp104
Cooling, refer to
Temperature64,67
Copyright2
Correct wheels and tires98
Courtesy lamps61
Cruise control44
– buttons on steering
wheel13
– indicator lamp44
Cruising range49
Cup holders72
Curb weight, refer to
Weights124
Cylinders, refer to Engine
data122
D
Dashboard lighting, refer to
Instrument lighting61
Dashboard system, refer to
Cockpit10
Data, technical122
– dimensions123
– engine122
– filling capacities124
– weights124
Daytime running lamps59
Deactivating front passenger
airbags35,57
Defective lamp59
Defects7
Defrosting windows64,67
– air conditioner64
– automatic climate control67
Defrosting windows and
removing condensation
– air conditioner64
– automatic climate control67
Defrost position, refer to
Defrosting windows64,67
Digital clock47
Digital compass70
Dimensions123
Dimming mirror34
Directional indicators, refer to
Turn signals41
Disk brakes85
Displacement, refer to Engine
data122
Display illumination, refer to
Instrument lighting61
Display lighting, refer to
instrument lighting61
Displays, refer to Instrument
cluster11
Disposal, vehicle battery114
Disposal of the vehicle, refer
to Caring for your vehicle
brochure
Distance warning, refer to
PDC Park Distance
Control50
Door exit lighting61
Door handle lighting59

Everything from A to Z
130 Front fog lamps61
– replacing bulbs110
Front passenger airbags
– automatic deactivation57
– status58
Fuel93
– average consumption49
– capacity124
– gauge46
– quality93
– saving83
Fuel cap92
Fuel display, refer to Fuel
gauge46
Fuel filler door92
– releasing in the event of
electrical malfunction92
Fuel gauge46
Fuel tank contents, refer to
Filling capacities124
Full preparation package
mobile phone, refer to
separate Owner's Manual
Fuses115
G
Garage-door opener, refer to
Integrated universal remote
control69
Gasoline
– refer to Fuel quality93
– refer to Fuel
specifications93
Gasoline display, refer to Fuel
gauge46
Gear indicator in automatic
transmission with
Steptronic40
Gearshift lever, manual
transmission40
General driving notes84
Glove compartment72
Grills, refer to
Ventilation65,68
Gross vehicle weight, refer to
Weights124
Ground clearance87
H
Halogen lamps108
Handbrake39
– indicator lamp39
Hands-free microphone75
– refer to Car phone
preparation75
Hazard warning flashers10
HDC Hill Descent Control52
Head airbags57
Headlamp control,
automatic60
Headlamp flasher41
– indicator lamp12
Headlamps108
– care, refer to Caring for your
vehicle brochure
– replacing bulbs107
Headlamp washer reservoir
– capacity, refer to Filling
capacities124
– refer to Washer fluid43
Headlamp washer system
– headlamp washing43
– washer fluid43
Head Light, refer to Adaptive
Head Light60
Head restraints29
– sitting safely27
Heated mirrors33
Heated rear window
– air conditioner64
– automatic climate control68
Heated seats31
Heated steering wheel34
Heater
– rear window64,68
– windshield washer jets43
Heating
– exterior mirror33
– seats31
– steering wheel34
Heating and ventilation63,66
Heavy cargo, refer to Cargo
loading85
Height, refer to
Dimensions123Height adjustment
– seats28
– steering wheel34
High beams60
– headlamp flasher60
– indicator lamp12
– replacing bulbs109
High Performance Synthetic
Oil103
Hill-climbing ability, refer to
Driving on poor roads87
Hill Descent Control HDC
52
Hills85
Holder for beverages72
Hood100
Horn10
Hotel function18
Hot exhaust system84
Hydraulic brake assistant,
refer to Brake assistant51
Hydroplaning84
I
Icy conditions, refer to
Outside temperature
warning48
Ignition38
Ignition key18
Ignition key positions, refer to
Ignition lock38
Ignition lock38
Imprint2
Indicator/warning lamp
– airbags58
– alarm system25
– automatic transmission with
Steptronic41
– brakes104
– coolant temperature47
– DSC52
– engine temperature47
– Flat Tire Monitor54
– fog lamps61
– front passenger airbags58
– reserve46
– safety belt warning32
– Tire Pressure Monitor55

Reference
At a glance
Controls
Driving tips
Mobility
131

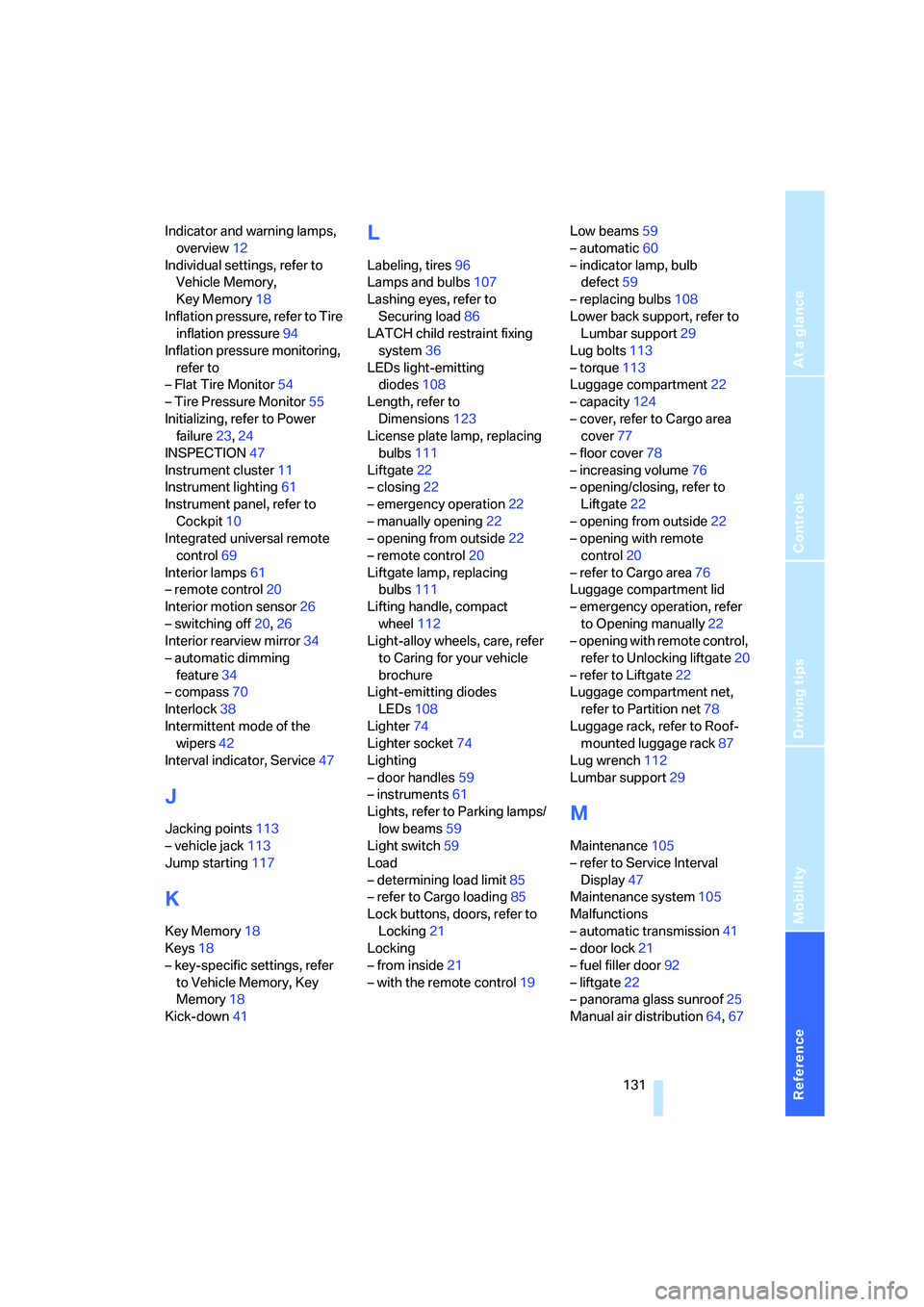

Indicator and warning lamps,
overview12
Individual settings, refer to
Vehicle Memory,
Key Memory18
Inflation pressure, refer to Tire
inflation pressure94
Inflation pressure monitoring,
refer to
– Flat Tire Monitor54
– Tire Pressure Monitor55
Initializing, refer to Power
failure23,24
INSPECTION47
Instrument cluster11
Instrument lighting61
Instrument panel, refer to
Cockpit10
Integrated universal remote
control69
Interior lamps61
– remote control20
Interior motion sensor26
– switching off20,26
Interior rearview mirror34
– automatic dimming
feature34
– compass70
Interlock38
Intermittent mode of the
wipers42
Interval indicator, Service47
J
Jacking points113
– vehicle jack113
Jump starting117
K
Key Memory18
Keys18
– key-specific settings, refer
to Vehicle Memory, Key
Memory18
Kick-down41
L
Labeling, tires96
Lamps and bulbs107
Lashing eyes, refer to
Securing load86
LATCH child restraint fixing
system36
LEDs light-emitting
diodes108
Length, refer to
Dimensions123
License plate lamp, replacing
bulbs111
Liftgate22
– closing22
– emergency operation22
– manually opening22
– opening from outside22
– remote control20
Liftgate lamp, replacing
bulbs111
Lifting handle, compact
wheel112
Light-alloy wheels, care, refer
to Caring for your vehicle
brochure
Light-emitting diodes
LEDs108
Lighter74
Lighter socket74
Lighting
– door handles59
– instruments61
Lights, refer to Parking lamps/
low beams59
Light switch59
Load
– determining load limit85
– refer to Cargo loading85
Lock buttons, doors, refer to
Locking21
Locking
– from inside21
– with the remote control19Low beams59
– automatic60
– indicator lamp, bulb
defect59
– replacing bulbs108
Lower back support, refer to
Lumbar support29
Lug bolts113
– torque113
Luggage compartment22
– capacity124
– cover, refer to Cargo area
cover77
– floor cover78
– increasing volume76
– opening/closing, refer to
Liftgate22
– opening from outside22
– opening with remote
control
20
– refer to Cargo area76
Luggage compartment lid
– emergency operation, refer
to Opening manually22
– opening with remote control,
refer to Unlocking liftgate20
– refer to Liftgate22
Luggage compartment net,
refer to Partition net78
Luggage rack, refer to Roof-
mounted luggage rack87
Lug wrench112
Lumbar support29
M
Maintenance105
– refer to Service Interval
Display47
Maintenance system105
Malfunctions
– automatic transmission41
– door lock21
– fuel filler door92
– liftgate22
– panorama glass sunroof25
Manual air distribution64,67

Reference
At a glance
Controls
Driving tips
Mobility
135
Tires
– age96
– breaking-in82
– changing97
– changing, also refer to Wheel
changes111
– coding96
– condition97
– damage97
– DOT Quality Grades96
– flat111
– inflation pressure94
– inflation pressure table95
– size, refer to Correct wheels
and tires98
– storage98
– temperature97
– traction96
– tread97
– tread wear96
– Uniform Tire Quality
Grading96
– wear indicators, refer to
Minimum tread depth97
– winter tires98
Tools, refer to Onboard tool
kit107
Torque
– engine122
– lug bolts113
Touch signaling42
Tow bar119
Tow fitting118
Towing118
– with automatic
transmission118
Towing eye118
Tow rope119
Tow sockets for tow
fitting118
Tow starting118
TPM Tire Pressure
Monitor55
Track width, refer to
Dimensions123
Traction96
Traction control, refer to DSC
Dynamic Stability
Control51Transmission
– automatic transmission with
Steptronic40
– manual transmission40
Transmission locking
mechanism, refer to
PPark41
Transmission malfunction,
refer to Malfunction41
Transporting children
safely35
Transport securing device,
refer to Securing cargo86
Traveling on poor roads87
Tread depth, refer to Minimum
tread depth97
Tread wear96
Tread wear indicator in tires,
refer to Minimum tread
depth97
Trip-distance counter, refer to
Trip odometer46
Trip odometer46
Trunk lid, refer to Liftgate22
Turning circle, refer to
Dimensions123
Turning lamp60
Turn signals41
– indicator lamp12
– replacing bulbs109
– side, replacing bulbs110
U
Units48
– outside temperature48
Universal garage-door
opener, refer to Integrated
universal remote control69
Universal remote control69
Unlocking
– from inside21
– hood100
– with the remote control19
Unlocking and locking doors
with the remote control19
Upholstery care, refer to
Caring for your vehicle
brochure
V
Valve screw caps, refer to
After mounting113
Vehicle
– battery114
– breaking-in82
– care, refer to Caring for your
vehicle brochure
– cargo loading85
– dimensions123
– disposal, refer to Caring for
your vehicle brochure
– locking from inside21
– parking39
– washing, refer to Caring for
your vehicle brochure
– weights124
Vehicle battery114
Vehicle jack112
– jacking points113
Vehicle Memory18
Ventilation65,68
– draft-free65,68
Viscosity103
Voice command system, refer
to separate Owner's Manual
W
Warning and indicator lamps,
overview12
Warning triangle116
Warranty, refer to Service and
Warranty Information
Booklet for US models,
Warranty and Service Guide
Booklet for Canadian
models105
Warranty and service6
Washer fluid43
Washer fluid reservoir,
capacity, refer to Filling
capacities124
Washer reservoir, refer to
Filler neck for washer
fluid43
Waste tray, refer to Ashtray74
Weights124

Everything from A to Z
136 Welcome lamps59
Wheel/tire combination98
Wheelbase, refer to
Dimensions123
Wheel bolt, wrench112
Wheel changes, compact
wheel112
Wheels and tires98
Width, refer to
Dimensions123
Windows22
– convenience operation21
– safety switch23
Windshield
– cleaning43
– defrosting, refer to
Defrosting windows64,67
Windshield washer reservoir
– capacity, refer to Filling
capacity124
– refer to Washer fluid43
Windshield washer system
– washer/wiper system42
– washer fluid43
Windshield wiper blade
replacement107
Windshield wipers, refer to
Washer/wiper system42
Winter tires98
– changing111
– condition97
– storage98
Wiper blade replacement107
Wiper system42
Working in the engine
compartment100
Wrench/screwdriver, refer to
Onboard tool kit107
X
xDrive52
Xenon headlamp108
– replacing bulbs108
Y
Your individual vehicle5
