Driving
64
Activating rain sensor
Press the button, arrow3. The LED in the but-
ton lights up.
Adjusting rain sensor sensitivity level
Turn the knurled wheel5.
Deactivating rain sensor
Press the button again, arrow3. The LED goes
out.
Deactivate the rain sensor when passing
through an automatic car wash. Failure to
do so could result in damage caused by undes-
ired wiper activation.<
Cleaning windshield and headlamps
Pull the lever, arrow4.
The system sprays washer fluid against the
windshield and activates the wipers for a brief
period.
When the vehicle lighting is switched on, the
headlamps are simultaneously washed at
appropriate intervals.
Do not use the washing mechanisms if
there is any danger that the fluid will
freeze on the windshield. If you do so, your
vision could be obscured. To avoid freezing,
use a washer fluid antifreeze, refer to Washer
fluid. Do not use washing mechanisms when
the washer fluid reservoir is empty, otherwise
you will damage the washer pump.<
Windshield washer nozzles
Both windshield washer nozzles are automati-
cally heated with the engine running or the igni-
tion switched on.
Washer fluid
Washer fluid antifreeze is flammable.
For this reason, keep it away from ignition
sources and store only in the closed original
container out of reach of children. Otherwise,
there is the danger of bodily injury. Always
observe the instructions for use provided on the
containers.<
Filler neck for washer fluid
Only add washer fluid with the engine
cooled down to exclude contact with hot
engine components. Otherwise there is a dan-
ger of fire and to personal safety if the fluid is
spilled.<
All washer nozzles are supplied from one reser-
voir.
Fill with water and – if required – with a washer
antifreeze, according to manufacturer's recom-
mendations.
In order to maintain the mixture ratio, mix
the washer fluid before filling.<
Capacity
Approx. 5.3USquarts/5liters.

Mobility
207Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Engine compartment
1Filler neck for engine oil, refer to
Adding engine oil, page210
2Expansion tank for coolant, refer to
page211
3Starting-aid terminal, refer to page224
4Body ground/negative terminal
5Filler neck for washer fluid of the headlamp
and windshield cleaning systems, refer to
page64

Everything from A to Z
238
Everything from A to Z
Index
"..." Identifies Control Display
texts used to select
individual functions, and
indicates where to find them
in the text.
A
ABS Antilock Brake
System79
– indicator lamp81
Accepted calls182
Accessories6
Accident, refer to Emergency
request223
Acoustic signal, refer to Check
Control71
Activated-charcoal filter for
automatic climate
control101
"Activation time" for parked-
car ventilation102
Active front head restraints44
Active seat ventilation47
Adapter for spare key28
Adaptive brake lamps, refer to
Brake force display87
Adaptive Head Light94
"Add digits" for mobile
phone182
Additives
– coolant211
– engine oil, refer to Approved
engine oils210
"Address book" for navigation
system131
Address for navigation
– deleting133
– entering124,127
– selecting132
– storing131
– storing current position132"Add to address book"131
"Add to destination
list"127,128
Adjusting active backrest
width43
Adjusting interior
temperature98
Adjusting the tone during
audio operation, refer to
Tone control149
Adjusting thigh support42
"After door opened"44
"After unlocking"44
Airbags87
– indicator/warning lamp89
– indicator lamp for front
passenger airbags88
– sitting safely41
Air distribution
– automatic98
– manual99
Airing, refer to Ventilation101
Air recirculation
– AUC Automatic
recirculated-air control100
– recirculated-air mode100
"Air recirculation on / off"50
Air supply, automatic climate
control97
Air volume99
AKI, refer to Fuel quality199
Alarm system35
– avoiding unintentional
alarms36
– interior motion sensor35
– switching off alarm35
– switching off tilt alarm
sensor and interior motion
sensor36
– tilt alarm sensor35
"All channels"160
"All doors"30All-season tires, refer to
Winter tires204
"All stations", calling up with
radio152,156
Alterations, technical, refer to
For your own safety5
Altering stretch of road140
"AM", reception
range149,152
Antenna, refer to Caring for
your vehicle brochure
Antenna for mobile phone174
Antifreeze
– coolant211
– washer fluid64
Antilock Brake System
ABS79
Anti-theft alarm system, refer
to Alarm system35
Anti-theft system, refer to
Central locking system29
Approved axle loads, refer to
Weights232
Approved engine oils210
Approved gross vehicle
weight, refer to Weights232
Armrest, refer to Center
armrest, rear110
Around the center console14
Around the steering wheel10
Arrival time
– refer to Computer68
– refer to Starting destination
guidance136
"Arrow display" for navigation
system137
"Arrow display pop-up
instructions"123
Ashtray
– front108
– rear109

Everything from A to Z
244 Event Data Recorders213
Exhaust system, refer to Hot
exhaust system114
Exterior mirrors48
– adjusting48
– automatic dimming
feature49
– automatic heating48
– folding in and out48
– tilting down passenger-side
exterior mirror48
External audio device107
Eye for tow-starting and
towing, refer to Tow
fitting225
F
"Fader", refer to Tone
control150
Fader, refer to Tone
control150
Failure messages, refer to
Check Control71
False alarm
– refer to Avoiding
unintentional alarms36
– refer to Switching off
alarm35
Fastening safety belts, refer to
Safety belts45
– warning lamp46
Fastest route for
navigation134
"Fast route" for
navigation134
"Favorites", calling up with
radio156
Filler neck for washer fluid64
Filling bottle, refer to
M Mobility System217
Filling sealant into wheel218
Filter, refer to Microfilter/
activated-charcoal filter101
Fine wood, refer to Caring for
your vehicle brochure
First aid, refer to First-aid
kit224First-aid kit224
Flashing
– during locking/unlocking,
refer to Setting confirmation
signals31
– triple turn signal
activation63
Flashlight, refer to
Rechargeable flashlight106
Flat tire
– changing wheels219
– Flat Tire Monitor83,84
– M Mobility System84,217
– refer to Tire condition202
– spare wheel220
– TPM Tire Pressure
Monitor84
– warning lamp84,86
Flat Tire Monitor83
– false alarms83
– initializing system83
– snow chains204
– system limits83
– warning lamp84
Floor mat, refer to Caring for
your vehicle brochure
Floor mats/carpets, refer to
Caring for your vehicle
brochure
Fluid reservoir, refer to Filler
neck for washer fluid64
"FM", reception
range
149,152
FM, waveband152
Folding rear backrest110
Fold-over rear backrest110
Footbrake, refer to Braking
safely115
Footwell lamps, refer to
Interior lamps96
Forward, fast
– CD changer166
– CD player166
For your own safety5
Freeway, refer to Route
criteria134
Front airbags87Front armrest, refer to Center
armrest, front106
Front passenger airbags,
deactivating88
Front seat adjustment42
"FTM"84
FTM, refer to Flat Tire
Monitor83
Fuel199
– average consumption68
– display67
– high-quality brands199
– quality199
– specifications199
– tank contents, refer to
Capacities232
Fuel clock, refer to Fuel
gauge67
Fuel consumption display,
refer to Computer, average
fuel consumption68
Fuel display, refer to Fuel
gauge67
Fuel filler door198
– releasing in the event of
electrical malfunction198
Full mobile phone preparation
package174
Full screen display, refer to
Switching assistance
window off21
Fuses222
G
Garage door opener, refer to
Integrated universal remote
control104
Gasoline, refer to Required
fuel199
Gasoline display, refer to Fuel
gauge67
Gear changes61
Gear display, refer to Displays
in instrument cluster61
Gearshift lever60
– manual transmission58

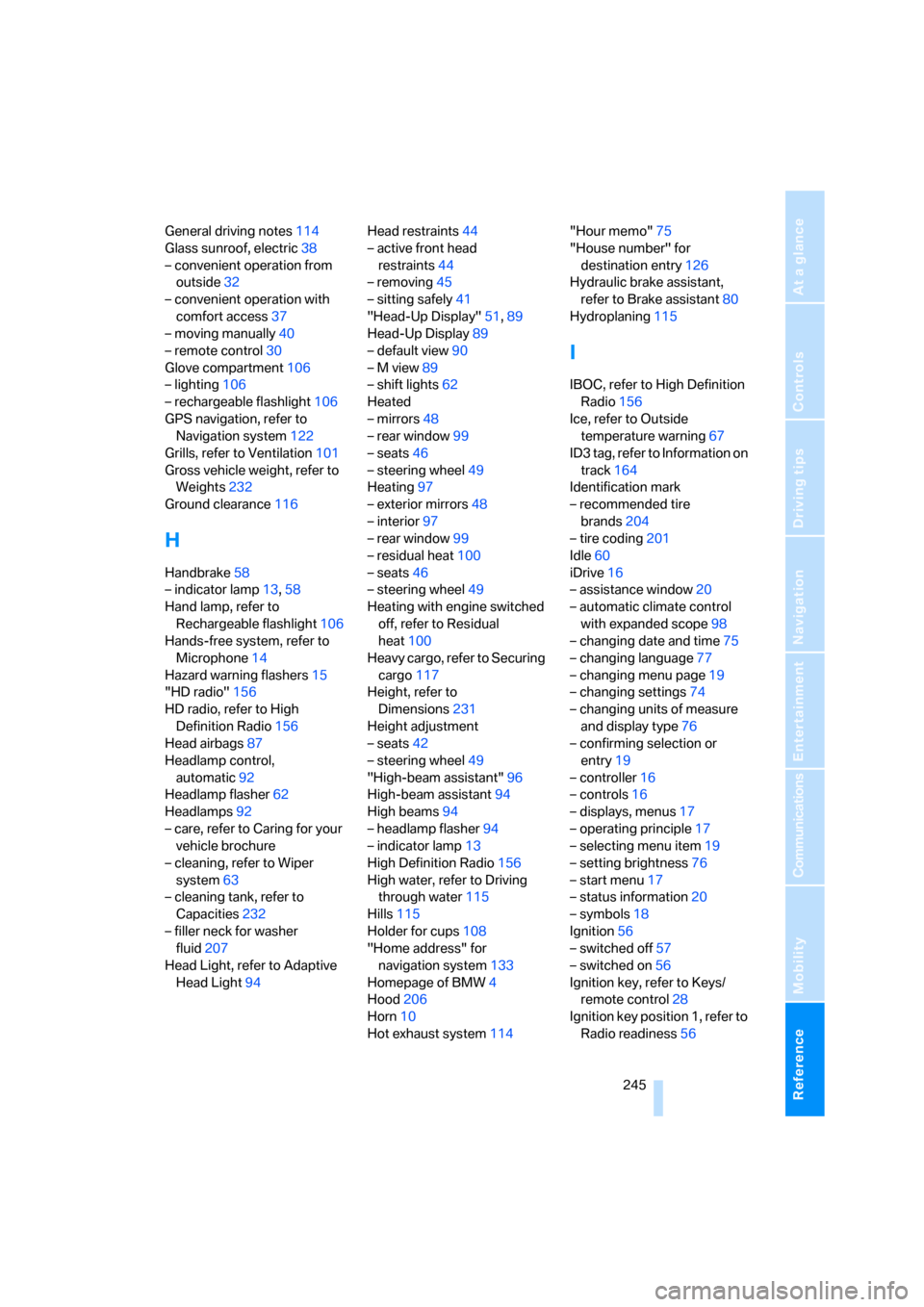

Reference 245
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
General driving notes114
Glass sunroof, electric38
– convenient operation from
outside32
– convenient operation with
comfort access37
– moving manually40
– remote control30
Glove compartment106
– lighting106
– rechargeable flashlight106
GPS navigation, refer to
Navigation system122
Grills, refer to Ventilation101
Gross vehicle weight, refer to
Weights232
Ground clearance116
H
Handbrake58
– indicator lamp13,58
Hand lamp, refer to
Rechargeable flashlight106
Hands-free system, refer to
Microphone14
Hazard warning flashers15
"HD radio"156
HD radio, refer to High
Definition Radio156
Head airbags87
Headlamp control,
automatic92
Headlamp flasher62
Headlamps92
– care, refer to Caring for your
vehicle brochure
– cleaning, refer to Wiper
system63
– cleaning tank, refer to
Capacities232
– filler neck for washer
fluid207
Head Light, refer to Adaptive
Head Light94Head restraints44
– active front head
restraints44
– removing45
– sitting safely41
"Head-Up Display"51,89
Head-Up Display89
– default view90
– M view89
– shift lights62
Heated
– mirrors48
– rear window99
– seats46
– steering wheel49
Heating97
– exterior mirrors48
– interior97
– rear window99
– residual heat100
– seats46
– steering wheel49
Heating with engine switched
off, refer to Residual
heat100
Heavy cargo, refer to Securing
cargo117
Height, refer to
Dimensions231
Height adjustment
– seats42
– steering wheel49
"High-beam assistant"
96
High-beam assistant94
High beams94
– headlamp flasher94
– indicator lamp13
High Definition Radio156
High water, refer to Driving
through water115
Hills115
Holder for cups108
"Home address" for
navigation system133
Homepage of BMW4
Hood206
Horn10
Hot exhaust system114"Hour memo"75
"House number" for
destination entry126
Hydraulic brake assistant,
refer to Brake assistant80
Hydroplaning115
I
IBOC, refer to High Definition
Radio156
Ice, refer to Outside
temperature warning67
ID3 tag, refer to Information on
track164
Identification mark
– recommended tire
brands204
– tire coding201
Idle60
iDrive16
– assistance window20
– automatic climate control
with expanded scope98
– changing date and time75
– changing language77
– changing menu page19
– changing settings74
– changing units of measure
and display type76
– confirming selection or
entry19
– controller16
– controls16
– displays, menus17
– operating principle17
– selecting menu item19
– setting brightness76
– start menu17
– status information20
– symbols18
Ignition56
– switched off57
– switched on56
Ignition key, refer to Keys/
remote control28
Ignition key position 1, refer to
Radio readiness56

Reference 255
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
U
"Unchanged"51,62
Underbody protection, refer to
Caring for your vehicle
brochure
Uniform Tire Quality Grading/
UTQR201
"Units"76
Units
– average fuel
consumption76
– temperature76
Universal garage-door
opener, refer to Integrated
universal remote
control104
Universal remote control104
"Unlock button"30
Unlocking
– from inside33
– from outside30
– without key, refer to Comfort
access36
"Update services"193
Upshift display, refer to Shift
lights62
USB/audio interface169
"USB" in audio mode170
"Use current location as
address"132,133
Used batteries
– refer to Disposal222
– refer to Replacing battery37
Using turn signals62
V
Valve screw caps, refer to
After mounting221
Vehicle
– battery222
– breaking-in114
– care213
– care, refer to Caring for your
vehicle brochure
– loading116
– measurements, refer to
Dimensions231
– parking57
– washing, refer to Caring for
your vehicle brochure
– weights232
"Vehicle / Tires" for
unlocking30
Vehicle jack220
– jacking points220
Vehicle position, refer to
Displaying current
position143
Ventilation101
– draft-free101
– in rear101
– while stationary101
Vent outlets97
– automatic climate control97
– refer to Ventilation101
"Vent settings"99
Viscosity210
Voice, refer to Destination
guidance with voice
instructions139
Voice command system
– overview23
– short commands233
Voice instructions for
navigation system139
– muting50
– repeating50,140
– switching on/off50,139
– volume140
Voice phone book186Volume148
– audio sources148
– cargo bay232
– fuel tank, refer to
Capacities232
– mobile phone180
– setting speed-
dependent150
– voice instructions140
– windshield cleaning system,
refer to Capacities232
W
Warning lamps, refer to
Indicator and warning
lamps13
Warning messages, refer to
Check Control71
Warning triangle223
Warranty and Service Guide
Booklet for Canadian
models212
Washer fluid64
– capacity of the reservoir64
Washing the vehicle, also refer
to Caring for your vehicle
brochure
Waste container, refer to
Ashtray108
Water on roads, refer to
Driving through water115
Waveband for radio152
"WB"149,156
Wear indicators in tires, refer
to Minimum tread depth202
Weather news flashes156
Website BMW4
Weights232
Welcome lamps92
"Welcome light"93
Wheel/tire combination, refer
to New wheels and tires203
Wheel/tire damage203
Wheelbase, refer to
Dimensions231
Wheels and tires200

Everything from A to Z

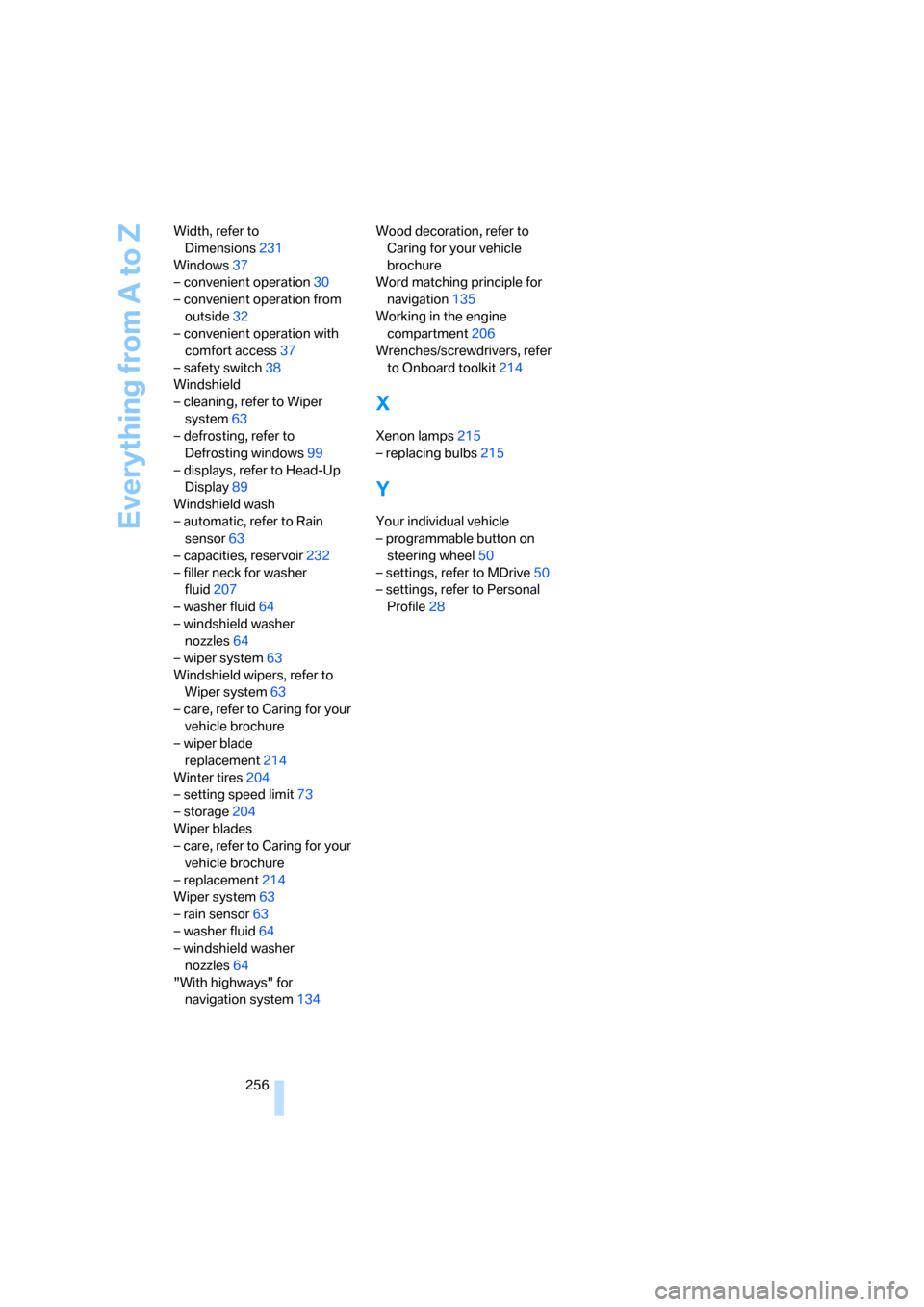

256 Width, refer to
Dimensions231
Windows37
– convenient operation30
– convenient operation from
outside32
– convenient operation with
comfort access37
– safety switch38
Windshield
– cleaning, refer to Wiper
system63
– defrosting, refer to
Defrosting windows99
– displays, refer to Head-Up
Display89
Windshield wash
– automatic, refer to Rain
sensor63
– capacities, reservoir232
– filler neck for washer
fluid207
– washer fluid64
– windshield washer
nozzles64
– wiper system63
Windshield wipers, refer to
Wiper system63
– care, refer to Caring for your
vehicle brochure
– wiper blade
replacement214
Winter tires204
– setting speed limit73
– storage204
Wiper blades
– care, refer to Caring for your
vehicle brochure
– replacement214
Wiper system63
– rain sensor63
– washer fluid64
– windshield washer
nozzles64
"With highways" for
navigation system134Wood decoration, refer to
Caring for your vehicle
brochure
Word matching principle for
navigation135
Working in the engine
compartment206
Wrenches/screwdrivers, refer
to Onboard toolkit214
X
Xenon lamps215
– replacing bulbs215
Y
Your individual vehicle
– programmable button on
steering wheel50
– settings, refer to MDrive50
– settings, refer to Personal
Profile28
