Parking aidApplies to vehicles: with Audi parking system/plus/advancedGeneral notesVarious systems are available to help you when parking or manoeu-
vring in tight spaces, depending on the equipment fitted on your
vehicle.
The Audi parking system gives an acoustic warning if there are any
obstacles behind the car ⇒page 169 .
When you are parking, the Audi parking system plus warns you
acoustically and optically about obstacles in front of and behind the
vehicle ⇒page 170 .
In conjunction with a reversing camera, the Audi parking system
advanced shows a picture of the area behind the vehicle. This
picture helps you to manoevre the vehicle backwards and sideways.
In addition, you are assisted by the acoustic signals and graphic
display of the parking aid ⇒page 171 .
Note
To ensure that the acoustic parking aid works properly, the sensors
must be kept clean and free of snow and ice.Audi parking systemApplies to vehicles: with Audi parking systemDescription
The Audi parking system is an acoustic parking aid.Sensors are located in the rear bumper. When the sensors detect an
obstacle, you are alerted by acoust ic signals (beeps). The measuring
range of the sensors starts at about: The acoustic signals sound with increasing frequency as you
approach the obstacle. A warning tone will sound continuously
when the vehicle is less than appr
ox. 0.30 m away from the obstacle.
Stop reversing immediately!
The volume of the warning beeps will be gradually reduced after
about 4 seconds if the vehicle remains at a constant distance from
a detected obstacle (it will not be reduced if the obstacle is closer
than 0.30 m).
The parking aid is switched on automatically when reverse gear is
engaged. You will hear a brief acknowledgement tone.
WARNING
•
The parking aid cannot replace the full concentration of the
driver. The driver is always resp onsible for safety during parking
and other manoeuvres.
•
The sensors have blind spots in which obstacles are not regis-
tered. It is particular ly important to ensure that there are no small
children or animals near the vehicle, as the sensors may not
always be able to detect them.
•
Always keep a close watch on the area around the vehicle and
make full use of the rear-view mirrors.Caution
Please note that low obstacles detected by the system may no
longer be registered by the sensors as the car moves closer, so the
system will not give any further warning. Certain kinds of obstacles
(such as wire fences, chains, thin painted posts or trailer draw bars, Rear
Side
0.60 m
Centre
1.60 m
document_0900452a81b1b9de.book Seite 169 Donnerstag, 26. Juli 2007 9:16 09
--4 -
-T
-+ +-
II]
•
CD

Parking aid
170etc.) may not always be detected by the system, so take care not to
damage the vehicle in such cases.
Note
•
Please refer to the notes on towing ⇒ page 177.
•
You can adjust the volume and pitch of the beeps ⇒page 177 .
Audi parking system plusApplies to vehicles: with Audi parking system plusDescription
The Audi parking system plus is a parking aid with
acoustic signals and graphic display.Sensors are located in the front and rear bumpers. When the
sensors detect an obstacle, you are alerted by acoustic signals
(beeps) and a graphic display. The measuring range of the sensors
starts at about:
The acoustic signals sound with increasing frequency as you
approach the obstacle. A warning tone will sound continuously
when the vehicle is less than appr ox. 0.30 m away from the obstacle.
Stop moving immediately!
The volume of the warning beeps will be gradually reduced after
about 4 seconds if the vehicle remains at a constant distance from
a detected obstacle (it will not be reduced if the obstacle is closer
than 0.30 m).
Applies to vehicles: with Audi parking system plusSwitching on/offSwitching on
– Switch on the sound system or MMI*.
– Engage reverse gear, or
– Press the switch

in the centre console ⇒fig. 185 or
next to the selector gate. You will hear a brief acknowl-
edgement tone and the diode in the switch will light up.
Switching off
– Drive forwards faster than 10 km/h, or
Front
Side
0.90 m
Centre
1.20 m
Rear
Side
0.60 m
Centre
1.60 m
Fig. 185 Centre
console: Parking aid
switchFig. 186 Display:
Graphical distance
display
document_0900452a81b1b9de.book Seite 170 Donnerstag, 26. Juli 2007 9:16 09
--4 -
-T
[I)
-+ +-
•

Parking aid171
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
– Press the switch

, or
– Switch off the ignition.
Segments in the graphic display
You can estimate the distance to an obstacle by referring to the red
segments at the front and rear of the vehicle ⇒page 170, fig. 186.
The closer the vehicle gets to the obstacle the closer the segments
move towards the vehicle in the graphic. At the latest when the
penultimate segment is highlighted the vehicle has reached the
danger (collision) zone. Stop moving immediately ⇒!
WARNING
•
The parking aid cannot replace the full concentration of the
driver. The driver is always resp onsible for safety during parking
and other manoeuvres.
•
The sensors have blind spots in which obstacles are not regis-
tered. It is particularly important to ensure that there are no small
children or animals near the vehicle, as the sensors may not
always be able to detect them.
•
Always keep a close wa tch on the area around the vehicle and
make full use of the rear-view mirrors.Caution
Please note that low obstacles detected by the system may no
longer be registered by the sensors as the car moves closer, so the
system will not give any further warning. Certain kinds of obstacles
(such as wire fences, chains, thin painted posts or trailer draw bars,
etc.) may not always be detected by the system, so take care not to
damage the vehicle in such cases.
Note
•
You can change the display and adjust the volume and pitch of
the beeps ⇒page 177 .
•
Please refer to the notes on towing ⇒page 177 .
•
There is a slight delay in the picture display.
Audi parking system advancedApplies to vehicles: with Audi parking system advancedIntroductionA reversing camera is integrated in vehicles with the Audi parking
system advanced, in addition to a parking aid with acoustic signals
and graphic display ⇒page 170 .
Two modes can be selected when parking. “Parking mode 1” can, for
example, be used when parking your vehicle in a parking bay or a

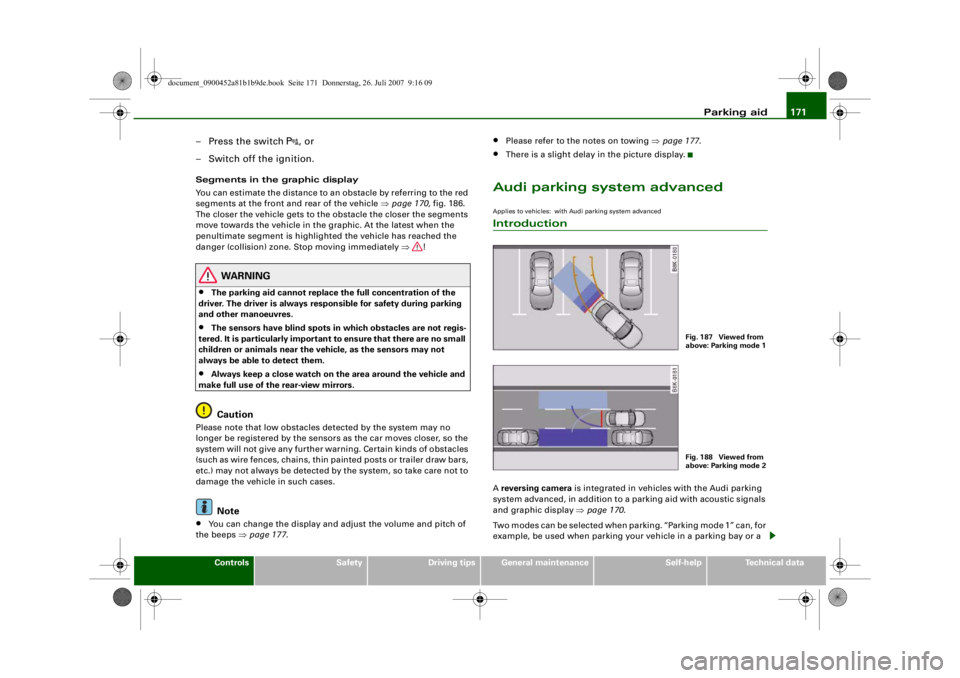

Fig. 187 Viewed from
above: Parking mode 1Fig. 188 Viewed from
above: Parking mode 2
document_0900452a81b1b9de.book Seite 171 Donnerstag, 26. Juli 2007 9:16 09
--4 -
-T
•
-+ +-
CD

Parking aid173
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
•
Moisten the lens using a commercially available, alcohol-based
glass cleaning agent and clean the lens with a dry cloth ⇒.
•
Use a small brush to remove snow and a de-icer spray to remove
ice ⇒ .
WARNING
•
The parking aid cannot replace the full concentration of the
driver. The driver is always resp onsible for safety during parking
and other manoeuvres.
•
Always keep a close wa tch on the area around the vehicle and
make full use of the rear-view mirrors.
•
Do not allow the camera images in the MMI display to distract
you from watching the traffic.
•
For safety reasons, you should not use the system if the posi-
tion and installati on angle of the camera have been changed, e.g.
in a rear-end collision. Have it checked by a qualified workshop.Caution
•
Please note that low obstacles detected by the system may no
longer be registered by the sensors as the car moves closer, so the
system will not give any further warning. Certain kinds of obstacles
(such as wire fences, chains, thin painted posts or trailer draw bars,
etc.) may not always be detected by the system, so take care not to
damage the vehicle in such cases.
•
Never remove snow and ice from the lens of the reversing
camera using warm or hot water - da nger of cracks appearing on the
lens.
•
Never use abrasive cleaning agents on the lens.
Applies to vehicles: with Audi parking system advancedSwitching on/off
The reversing camera is au tomatically switched on
together with the acoustic signals and graphic display
when you select reverse gear.Switching on
– Switch on the MMI system.
– Engage reverse gear, or
– Press the switch

in the centre console ⇒page 170,
fig. 185. You will hear a brief acknowledgement tone and
the diode in the switch will light up.
Switching off
– Drive forwards faster than 10 km/h, or
– Press the switch

, or
– Switch off the ignition.
Changing display via MMI
– Press the control button for Graphic ⇒ page 174, fig. 192
to show the graphic display on the screen.
– Press the control button for Rear View to display the
picture from the reversing camera.
WARNING
•
Some objects (e.g. narrow posts or bars), recesses in the
ground or protruding parts on other vehicles may not be displayed
in a satisfactory manner or may no t be displayed at all on the MMI
screen.A5
document_0900452a81b1b9de.book Seite 173 Donnerstag, 26. Juli 2007 9:16 09
--4 -
-T
0
0
-+
CD
+-
•

Parking aid177
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
Applies to vehicles: with Audi parking system/plus/advancedSwitching display and acoustic signals on and offThe settings for the graphic display* and acoustic signals
are controlled via the sound system or MMI*.– Select: Function selector button > Audi parking
system .Display*•
off - The parking aid gives only acoustic warning signals when it
is activated.
•
Graphic - The graphic display ap pears when reversing and
driving forwards.
•
Rear View * - The picture from the reversing camera is shown
when reversing and driving forwards.
•
Automatic * - The picture from the reversing camera is shown
when reversing and the graphic display is shown when driving
forwards.
Warning beeps
•
Rear volume - Volume of the rear sensors
•
Rear frequency - Pitch of the rear sensors
•
Front volume* - Volume of the front sensors
•
Front frequency * - Pitch of the front sensors
You will hear a short test tone each time you make a new setting.Note
•
You can also change the warning beep settings directly from the
graphic display* or reversing camera* picture. Simply press the
control button for *.
•
New settings are not activated until you switch on the parking
aid again.
•
The settings will be automatically stored and assigned to the
remote control key.
Applies to vehicles: with Audi parking system/plus/advanced and towing bracketTo w i n g b r a c k e tIn towing mode, the rear parking sensors are NOT activated when
you select reverse gear or press the switch
. This may not apply if
the power socket was NOT factory-fitted. This results in the
following restrictions:
Audi parking system*
There is no distance warning.
Audi parking system plus*
There is no rear distance warning. However, the system will still give
a warning when obstacles are detected while driving forwards. The
proximity graphic will switch over to towing mode.
Audi parking system advanced*
There is no rear distance warning. However, the system will still give
a warning when obstacles are detected while driving forwards. The
proximity graphic will switch over to towing mode. The image of the
Fig. 196 Display:
Settings for parking
aid
CAR
Settings
document_0900452a81b1b9de.book Seite 177 Donnerstag, 26. Juli 2007 9:16 09
--4 -
-T
[1J
I I •
-+ +-

Index
338
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Seat height (manual) . . . . . . . . . . . . . . 73
Seat belt height adjustment . . . . . . . . . . 199
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . 194 Adjusting seat belts . . . . . . . . . . . . . . 197
Belt tensioners . . . . . . . . . . . . . . . . . . 199
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . 250
During pregnancy . . . . . . . . . . . . . . . . 198
Height adjustment . . . . . . . . . . . . . . . 199
Putting on . . . . . . . . . . . . . . . . . . . . . . 197
Safety notes . . . . . . . . . . . . . . . . . . . . . 195
Taking off . . . . . . . . . . . . . . . . . . . . . . . 199
Warning lamp . . . . . . . . . . . . . . . . . . . . 18
Seat heating . . . . . . . . . . . . . . . . . . . . . . . 114 Front (deluxe automati c air conditioner) .
114
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Seat memory . . . . . . . . . . . . . . . . . . . . . . . . 75
Selector lever Manual release (multitronic®) . . . . . . 168
Selector lever positions . . . . . . . . . . . . . . 163
Service interval display . . . . . . . . . . . . . . . 24
Service position for windscreen wipers . 67
servotronic . . . . . . . . . . . . . . . . . . . . . . . . 225
side assist Area covered by sensors . . . . . . . . . . 151
Changing settings in the MMI . . . . . . 155
Description . . . . . . . . . . . . . . . . . . . . . 149
How the system works . . . . . . . . . . . . 151
Information and warning modes . . . 151
Messages in instrument cluster display .156 Safety notes . . . . . . . . . . . . . . . . . . . . . 157
Switching on and off . . . . . . . . . . . . . 149
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Single journey memory . . . . . . . . . . . . . . . 26
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Front passenger . . . . . . . . . . . . . . . . . 189
Incorrect sitting position . . . . . . . . . . 191
Rear passengers . . . . . . . . . . . . . . . . . 189
Ski bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 273
Sockets 230 Volt . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Starting the engine . . . . . . . . . . . . . . . . 46
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . 277
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . 284
Speed warning . . . . . . . . . . . . . . . . . . . . . . 28
Speedometer . . . . . . . . . . . . . . . . . . . . . 14, 23
Starting the engine After fuel tank has been run dry . . . . 252
Jump-starting . . . . . . . . . . . . . . . . . . . 293
Spare key . . . . . . . . . . . . . . . . . . . . . . . . 46
Tow-starting . . . . . . . . . . . . . . . . . . . . 295
Starting with jump leads . . . . . . . . . . . . . 293
Status messages . . . . . . . . . . . . . . . . . . . . . 30
Steering . . . . . . . . . . . . . . . . . . . . . . . . . 16, 36 Locking the steering . . . . . . . . . . . . . . 116
Malfunction . . . . . . . . . . . . . . . . . . . . . . 34
Steering wheel height adjustment (manual) . . . . . . . . . . . . . . . . . . . . . . . 116
Storage compartments . . . . . . . . . . . . . . . 90 Front seats . . . . . . . . . . . . . . . . . . . . . . . 91 Stretch net . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Sun blinds . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Sun roof
Convenience open/close function . . . . 54
Opening and closing . . . . . . . . . . . . . . . 55
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Supplementary heater Deluxe automatic air conditioner . . . 101
Deluxe automatic air co nditioner plus . . .
110
Suspension control . . . . . . . . . . . . . . . . . 159 Warning lamp . . . . . . . . . . . . . . . . . . . . 39
Switches on driver's door Central locking system . . . . . . . . . . . . . 49
Switching off the engine . . . . . . . . . 118, 120
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
TTailgate See Boot lid . . . . . . . . . . . . . . . . . . . . . . 51
Tank capacity . . . . . . . . . . . . . . . . . . . . . . 321
Technical data . . . . . . . . . . . . . . . . . . . . . . 320
tiptronic . . . . . . . . . . . . . . . . . . . . . . . 162, 166
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Total journey memory . . . . . . . . . . . . . . . . 26
Tow-away protection . . . . . . . . . . . . . . . . . 50
Towing Automatic braking . . . . . . . . . . . . . . . . 233
Trailer stabilisation . . . . . . . . . . . . . . . 233
Towing away . . . . . . . . . . . . . . . . . . . . . . . 295
Towing bracket Parking system . . . . . . . . . . . . . . . . . . 177
document_0900452a81b1b9de.book Seite 338 Donnerstag, 26. Juli 2007 9:16 09
--4 -
-T
-+ +-
