Downloaded from www.Manualslib.com manuals search engine Fuel tank flap
To open:
Press the switch on the driver’s door. To close:
Press the tank flap until you hear it click into place.
Engine oil
The correct oil specifications and
engine oil capacity are listed in the
Performance, weights and dimen-
sions section of the
Owner’s Manual.
Fuel
(see sticker)
Tyre pressures
(see sticker on door
pillar on driver side)
Warning triangle
The compartment for the
warning triangle is located beneath the luggage compartment floor.
Luggage lid
To open:
Press the button on
the remote control key or on the driver's door. The lid will springopen slightly. Press the release
flap between the radiator grille and the luggage lid and lift the lid.
To close: Lower the luggage lid
and press it into the catch.
Downloaded from www.Manualslib.com manuals search engine Overview
Buttons for:
Audi magnetic ride
Electronic stabilisationprogram
Hazard warning lights
Rear spoiler
parking system for activation/deactivation
of parking aid
Warning lamp for front
passenger’s airbag
Handbrake
ESP OFF
19
P
20
21
Door handle and central
locking switch
Lock
Unlock
Bonnet lock release
Light switch
Cruise control system
Turn signal and main beam
lever
Controls on multi-function
steering wheel
Instruments and warning/
indicator lamps
10
9
8
4
5
7
6
Steering wheel position
adjuster Ignition lock
Windscreen wipers/washer
and buttons for on-board
computer
Navigation system Air conditioner
Front passenger’s seat
heating
Driver’s seat heating
Gear lever or selector lever
for Rtronic
18
17
16
15
12
14
13
11
14
15
1617
18
19
20
21

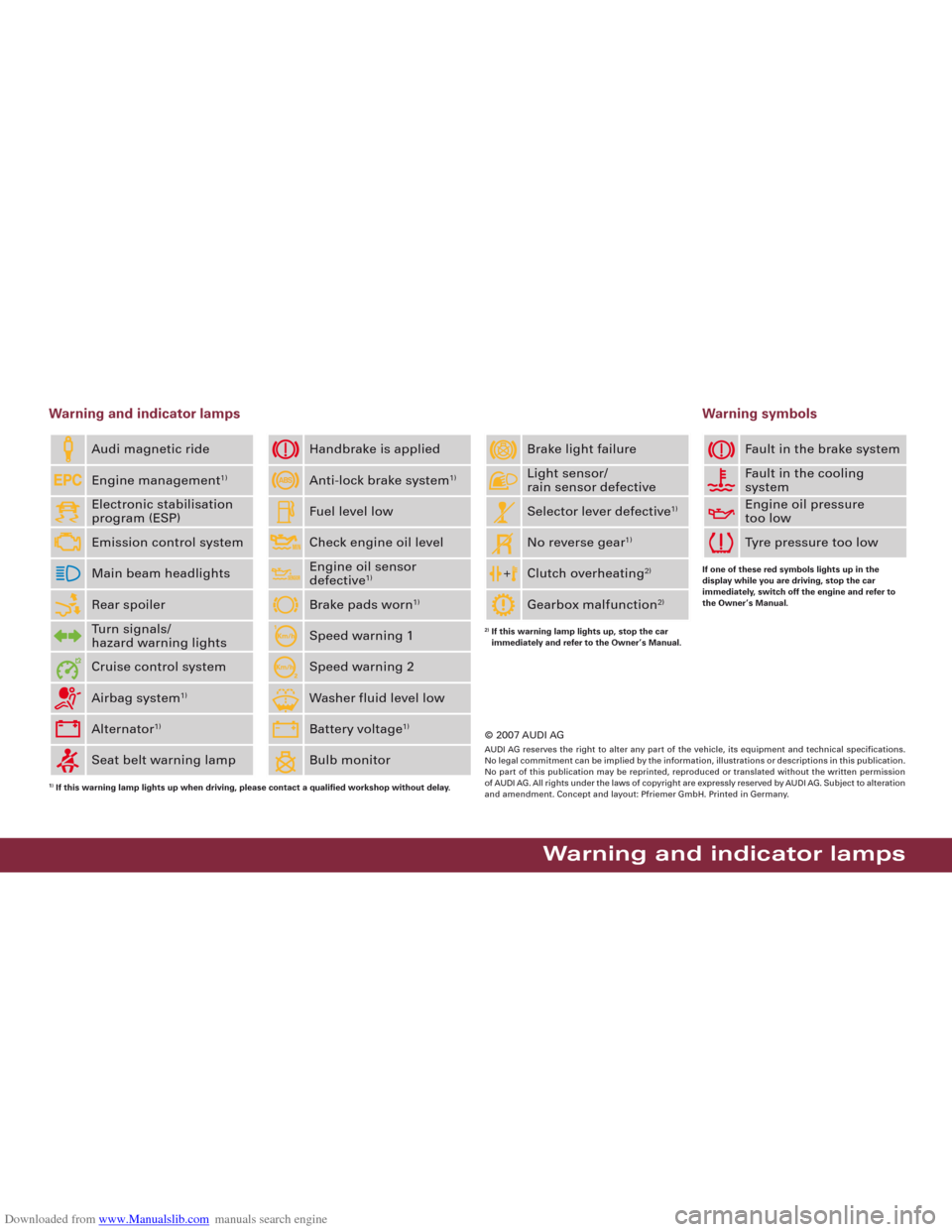

Downloaded from www.Manualslib.com manuals search engine Warning and indicator lamps
Handbrake is applied
Anti-lock brake system1)
Fuel level low
MINCheck engine oil level
Engine oil sensor
defective1)
Brake pads worn1)
Speed warning 1
Speed warning 2
Washer fluid level low
Battery voltage1)
Bulb monitor
Brake light failure
Light sensor/
rain sensor defective
Selector lever defective1)
No reverse gear1)
+Clutch overheating2)
Gearbox malfunction2)
Audi magnetic ride
Engine management1)
Electronic stabilisation
program (ESP)
Emission control system
Main beam headlights
Rear spoiler
Turn signals/
hazard warning lights
Cruise control system
Airbag system1)
Alternator1)
Seat belt warning lamp
Warning and indicator lamps
© 2007 AUDI AGAUDI AG reserves the right to alter any part of the vehicle, its equipment and technical specifications.
No legal commitment can be implied by the information, illustrations or descriptions in this publication.
No part of this publication may be reprinted, reproduced or translated without the written permission
of AUDI AG. All rights under the laws of copyright are expressly reserved by AUDI AG. Subject to alter ation
and amendment. Concept and layout: Pfriemer GmbH. Printed in Germany.
Warning symbols
1)If this warning lamp lights up when driving, please contact a qualified workshop without delay.
2)If this warning lamp lights up, stop the car
immediately and refer to the Owner’s Manual. If one of these red symbols lights up in the
display while you are driving, stop the car
immediately, switch off the engine and refer to
the Owner’s Manual.
Fault in the brake system
Fault in the cooling
system
Engine oil pressure
too low
Tyre pressure too low
