OF THE CARResetting the power supply
cut-off switch
(where provided)The switch is located inside the fuse box
at battery positive terminal.
To reset the power supply cut-off switch,
proceed as follows:
❒press button A-fig. 53to reset the
fuel cut-off switch;
❒open the bonnet;
A0F0126mfig. 54
Before resetting the
power supply cut-off
switch carefully inspect the car
for fuel leaks or damages to
electric devices (e.g. head-
lights).
WARNING
A0F0071mfig. 55
❒operate the retaining clips A-fig.
54and remove the protection cov-
erB;
❒press buttonC-fig. 55to reset the
power supply.

194
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
A0F0119mfig. 46
Never replace a broken
fuse with anything oth-
er than a new fuse.
Never change a fuse
with another with a
higher amp rating, danger of
fire.
WARNING
If a general fuse
(MEGA-FUSE, MAXI-
FUSE) cuts in, do not attempt
any repair and contact Alfa
Romeo Authorized Services.
Before changing a fuse, check
the ignition key has been re-
moved and that all the other
electric devices have been
turned off/disabled.
WARNING
If the fuse blows again,
contact Alfa Romeo Au-
thorized Services.
WARNING
IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse. The conductor el-
ement must be intact; if not, replace the
fuse with one of the same amp rating
(same colour).
A:undamaged fuse
B:fuse with damaged filament.
To replace a fuse, use the pliers C
hooked to the fusebox on the dash-
board.

195
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

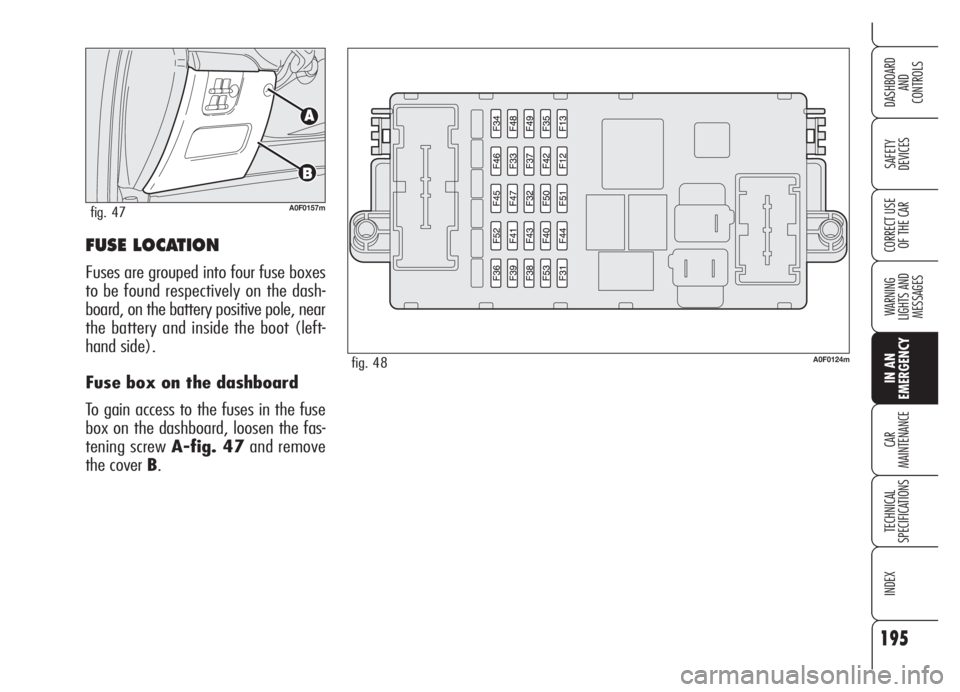

OF THE CARFUSE LOCATION
Fuses are grouped into four fuse boxes
to be found respectively on the dash-
board, on the battery positive pole, near
the battery and inside the boot (left-
hand side).
Fuse box on the dashboard
To gain access to the fuses in the fuse
box on the dashboard, loosen the fas-
tening screw A-fig. 47and remove
the cover B.
A0F0157mfig. 47
A0F0124mfig. 48

196
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARFuse box on the battery
positive pole
To gain access to the fuses in the fuse
box on the battery positive pole press
the retainers A-fig. 49and remove
the protection cover B.
A0F0126mfig. 49
A0F0125mfig. 50

197
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

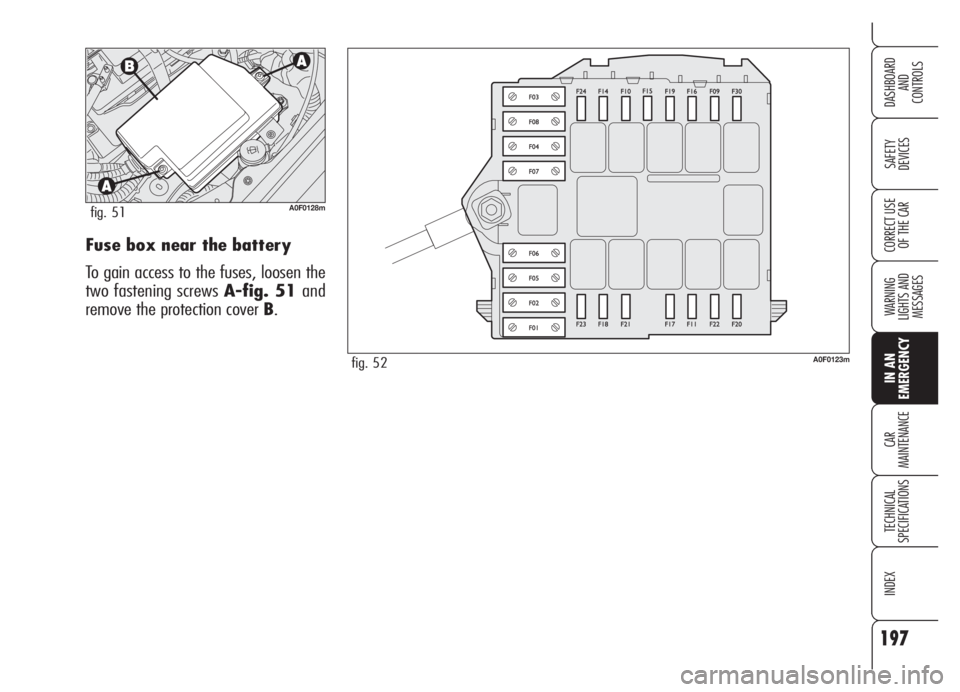

OF THE CARFuse box near the battery
