2008 Alfa Romeo Brera/Spider Owner handbook (in English)

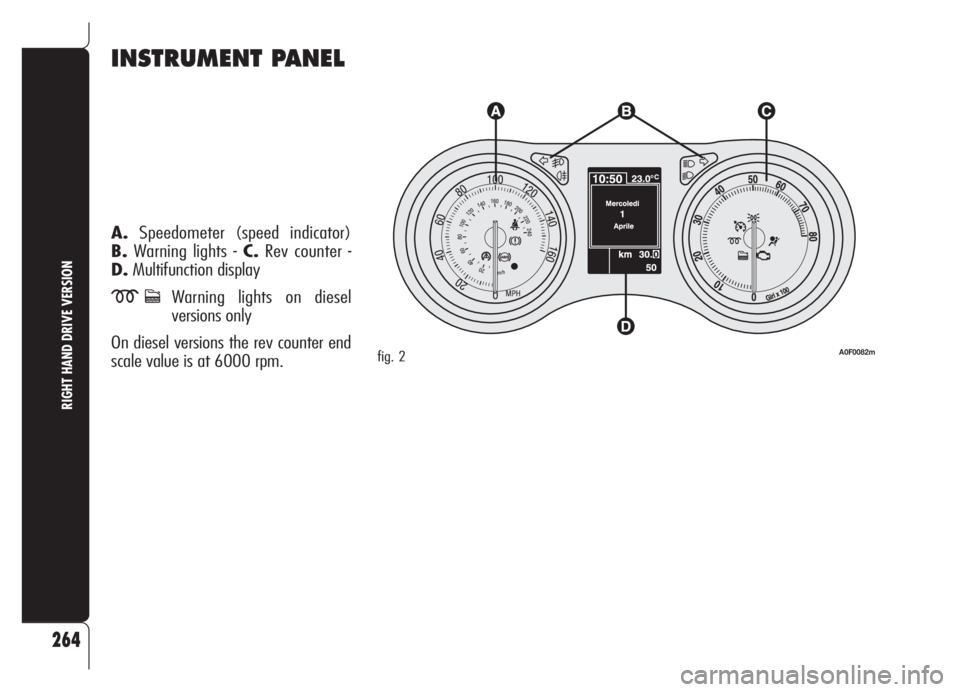

INSTRUMENT PANEL
A0F0082mfig. 2
A.Speedometer (speed indicator)
B.Warning lights - C.Rev counter -
D.Multifunction display
mcWarning lights on diesel
versions only
On diesel versions the rev counter end
scale value is at 6000 rpm.
264
RIGHT HAND DRIVE VERSION

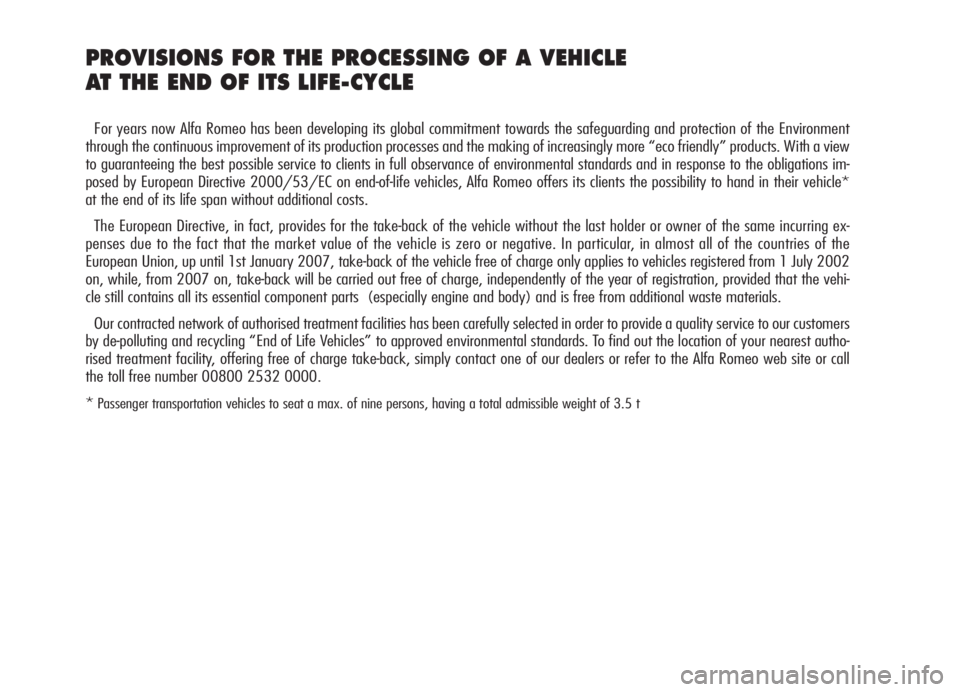

PROVISIONS FOR THE PROCESSING OF A VEHICLE
AT THE END OF ITS LIFE-CYCLE
For years now Alfa Romeo has been developing its global commitment towards the safeguarding and protection of the Environment
through the continuous improvement of its production processes and the making of increasingly more “eco friendly” products. With a view
to guaranteeing the best possible service to clients in full observance of environmental standards and in response to the obligations im-
posed by European Directive 2000/53/EC on end-of-life vehicles, Alfa Romeo offers its clients the possibility to hand in their vehicle*
at the end of its life span without additional costs.
The European Directive, in fact, provides for the take-back of the vehicle without the last holder or owner of the same incurring ex-
penses due to the fact that the market value of the vehicle is zero or negative. In particular, in almost all of the countries of the
European Union, up until 1st January 2007, take-back of the vehicle free of charge only applies to vehicles registered from 1 July 2002
on, while, from 2007 on, take-back will be carried out free of charge, independently of the year of registration, provided that the vehi-
cle still contains all its essential component parts (especially engine and body) and is free from additional waste materials.
Our contracted network of authorised treatment facilities has been carefully selected in order to provide a quality service to our customers
by de-polluting and recycling “End of Life Vehicles” to approved environmental standards. To find out the location of your nearest autho-
rised treatment facility, offering free of charge take-back, simply contact one of our dealers or refer to the Alfa Romeo web site or call
the toll free number 00800 2532 0000.
*
Passenger transportation vehicles to seat a max. of nine persons, having a total admissible weight of 3.5 t

ENGINE OIL CHANGE (litres)
REFUELLING (litres)
QUALITYASSISTENZA TECNICA - INGEGNERIA ASSISTENZIALE
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Fiat Group Automobiles S.p.A.
Publication no. 60431726 - 1
stEdition - 06/2007All rights reserved. Reproduction, even in part is prohibited without written permission
from Fiat Group Automobiles S.p.A.
SERVICE
2.2 JTS - 3.2 JTS 2.4 JTDM
Engine oil circuit 5.4 6.4
Do not discard used oil in the environment.
COLD TYRE INFLATION PRESSURE
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h
2.2 JTS - 2.4 JTDM- 3.2 JTS
Fuel tank capacity 70
Reserve 10
For cars with petrol engine, only use unleaded petrol with no less than 95 (R.O.N.).
For cars with diesel engine, only use diesel fuel for motor vehicles (Specification EN590).
Tyres
215/55 R16 93V
front rear
2.3 2.3
2.6 2.6Space-saver
spare wheel
T125/80 R17
4.2 Tyres
225/50 R17 98W
front rear
2.5 2.5
2.7 2.7Tyres
235/45 R18 98W
front rear
2.7 2.5
2.8 2.6
average load bar
full load bar
