4 PRESENTATION
Within the chapters symbols draw your attention to specific
information: This document is designed to familiarise you with the new vehicle from the
moment you get behind the wheel and to describe the operating features.
Reading the handbook is made easy by a content con sisting of
10 identified chapters which can be located by mean s of a colour
code specific to each one. Its sections cover, by t heme, all of the
functions of the vehicle in its most complete speci fication.
Chapter 9 indicates all of the technical data rela ting to your
vehicle. At the end of the document, diagrams of th e outside
and inside of the vehicle will assist you in locati ng equipment or
functions and page numbers refer you to the relevan t section of
the handbook. directs you to the chapter and section which conta
ins detailed
information concerning a function,
indicates important information relating to use of the equipment,
alerts you to the safety of individuals and equipm ent on board.

9
2a
2b
2a
2b
9
5
Exterior
FAMILIARISATION
1
17 182

Key
: chapter identification
: page identification
22
Key - Remote control
Complete locking of the vehicle, cab
and rear doors.
Complete unlocking of the vehicle,
cab and rear doors.
Sliding side door
Pull the handle towards you then
towards the rear and open the door
guiding the rearward sliding until the
point of resistance has been passed.
If fitted on your vehicle, do not open the
left-hand side door while filling with fuel
as this could damage the fuel filler flap.
Usable dimensions
Door open warning light
If this comes on, a door has not been
closed correctly.

4b4a
2
8
2
4a4b
8
Exterior
6
134
131
Hinged rear doors
This control permits opening to
approximately 180°.
Parking assistance
Rear suspension
Two functions:
- Automatic correction.
- Manual correction.
165
Changing a wheel
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
23

7
8
7
7
7
FAMILIARISATION
1
Opening the bonnet 156
Diesel engines Petrol engine
157
180
Towing eye 155
Partially open the bonnet, lift the control and
raise the bonnet.
Secure the strut in one of the two notches,
according to the height required, to hold the
bonnet open.
Lift the cover at the foot of the left-hand
seat and pull the control upwards.
At the front, unclip the cover by pressing it
at the bottom.
At the rear, unclip the cover using a coin or
the flat part of the towing eye. Take care when working under the bonnet.
Refer to the "Levels" section of chapter 7 for adv
ice on use of the fluids.
Exterior

Interior
8
INSTRUMENTS AND CONTROLS

1. Lights and direction indicators stalk.

2. Instrument panel with display.

3. Wipers, wash-wipe, trip computer
controls.

4. Gear lever.

5. Ignition.

6. Audio equipment controls.

7. Driver's air bag, horn.

8. Steering wheel height and depth
adjustment.

9. Headlamp beam adjustment.

10. Cruise control, speed limiter switch.

11. 12 volt accessories socket
(120 W max) of the lighter type.

12. Ashtray.

13. Glove box, auxiliary socket,
passenger air bag disarming switch.

9
FAMILIARISATION
1
CENTRE CONSOLE AND OVERHEAD STORAGE UNIT

1. Location of the controls:
- locking of the electric child lock,
- central locking/unlocking.

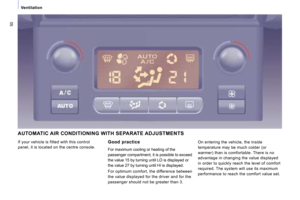

2. Heating and/or air conditioning
controls.

3. Location of the ticket/card storage or
controls:
- deactivation of the ESP,
- disarming of the interior protection alarm, alarm diode,
- deactivation of the parking assistance.

4. CD changer or storage compartment.

5. Audio equipment or storage
compartment.

6. Central adjustable vents.

7. Hazard warning lights button.

8. Display or storage compartment.

9. Courtesy light.

10. Warning lights:
- passenger air bag disarmed.

11. Location of the ticket/card storage,
rear ventilation deactivation switch,
heated seat controls.
ADJUSTING THE TIME - a centre console with display: refer to the "Adjusting the date and time"
section of chapter 4,
- a centre console without display: refer to the "Instruments and controls"
section of chapter 2.
Depending on the configuration of your
vehicle, you have either:
Interior

3
Interior
10
Driver's seat
SIT COMFORTABLY

1. Forwards-backwards adjustment.

2. Angle.

3. Height.

4. Lumbar.

5. Head restraint height.
60

2
5
3
3
11
FAMILIARISATION
1
Steering wheel Electric windows
Mirrors
35
Seat belts 138 82
80
Adjust the height and depth of the steering
wheel.
Manual adjustments.
Electric adjustments, electric folding/
unfolding.
Height adjustment.
Fastening.
