2008.5 Citroen C5 ECO mode

137
9
D R I V I N G

12
Rotation - Radio source: Scrolling of the pre-set stations.
- CD/MP3 CD/CD changer/jukebox source: Scrolling of the CDs or
directories.
- On the multifunction screen menus: Movement and increasing/decreasing.
Short press - On the multifunction screen menus: confi rmation.
- Opening of the short-cut menus (depending on the multif
unction screen
page).
Long press Opening of the multifunction screen main menu.

13 Short press Cancellation of the current operation and return to the p
revious page on the
multifunction screen.
When an incoming telephone call is received: Refuse the cal l.
Long press Return to the initial page on the multifu nction screen.

14 Short press Access to the multifunction screen general menu.

15 Short press/Maintained press Volume increase.

16 Short press/Maintained press Volume decrease.

17 Short press - First press: mute.
- Second press: restore sound.

18 Short press - Radio source: Automatic search of higher frequencies.
- CD/MP3 CD/CD changer/jukebox source: Search for the next track.

Maintained press - CD/MP3 CD/CD changer/jukebox source: Fast forward play.

19 Short press - Radio source: Automatic search of lower frequencies.
- CD/MP3 CD/CD changer/jukebox source: Search for
the previous track.
Maintained press CD/MP3 CD/CD changer/jukebox source: Rewind.

20 Short press - Radio source: displaying of the list of radio stations
available.
- CD/MP3 CD and CD changer source: displaying of the list o f CD tracks
and directories.
- Jukebox source: displaying of the list of albums.
Long press Updating of the list of radio stations.

21 Short press/Long press Horn.

22 Short press MODE: selection of the type of informati on presented on the multifunction screen.

185
11
P R A C T I C A L I N F O R M A T I O N
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to con-
serve a suffi cient level of charge in
the battery.
After the engine has stopped, you can
still use functions such as the audio
and telematics system, windscreen
wipers, dipped headlamps, courtesy
lights, etc. for a maximum combined
duration of thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-func-
tion screen indicating that the vehi-
cle has switched to economy mode
and the active functions are put on
standby.
If the telephone is being used at this
time:
- it will be maintained for 5 minutes with radio-CD hands-free kit,
-
it will be interrupted after 10 minutes with the MyWay audio-navigation
system,
- you can complete your call with the NaviDrive system.
This period may be signifi cantly re-
duced if the battery charge is low. Exiting economy mode
These functions are reactivated
automatically next time the vehicle
is driven.

 In order to resume the use of
these functions immediately,
start the engine and let it run for
a few minutes.
The time available will then be dou-
ble the duration for which the engine
was left running. However, this time
will always be between fi ve and thirty
minutes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).

195
12

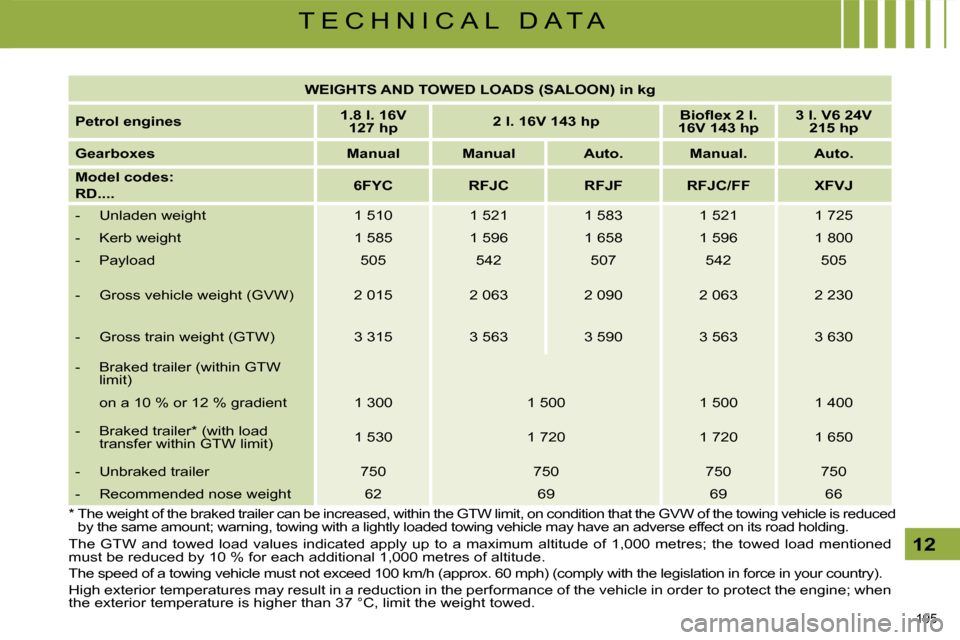

T E C H N I C A L D A T A
* The weight of the braked trailer can be increa sed, within the GTW limit, on condition that the GV W of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (SALOON) in kg

Petrol engines
1.8 l. 16V
127
hp
2 l. 16V 143
hp
Biofl ex 2 l.
16V 143
hp
3 l. V6 24V
215
hp

Gearboxes Manual Manual Auto.
Manual
. Auto.

Model codes:
RD....
6FYC RFJC RFJF RFJC/FF XFVJ
- Unladen weight 1 510 1 521 1 583 1 521 1 725
- Kerb weight 1 585 1 596 1 658 1 596 1 800
- Payload 505 542 507 542 505
- Gross vehicle weight (GVW) 2 015 2 063 2 090 2 063 2 230
- Gross train weight (GTW) 3 315 3 563 3 590 3 563 3 630
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 500 1 500 1 400
- Braked trailer * (with load transfer within GTW limit) 1 530 1 720 1 720 1 650
- Unbraked trailer 750 750 750 750
- Recommended nose weight 62 69 69 66
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

196
12
T E C H N I C A L D A T A

WEIGHTS AND TOWED LOADS (TOURER) in kg

Petrol engines
1.8 l. 16V
127
hp
2 l. 16V 143
hp
Biofl ex 2 l.
16V 143
hp
3 l. V6 24V
215
hp

Gearboxes Manual Manual Auto.
Manual
Auto.

Model codes:
RW...
6FYC RFJC RFJF RFJC/FF XFVJ
- Unladen weight 1 549 1 578 1 619 1 578 1 761
- Kerb weight 1 624 1 653 1 694 1 653 1 836
- Payload 605 605 605 605 605
- Gross vehicle weight (GVW) 2 154 2 183 2 224 2 183 2 366
- Gross train weight (GTW) 3 454 3 683 3 724 3 683 3 666
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 500 1 500 1 300
- Braked trailer * (with load transfer within GTW limit) 1 600 1 790 1 800 1 790 1 600
- Unbraked trailer 750 750 750 750
- Recommended nose weight 64 72 72 68
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
* The weight of the braked trailer can be increa
sed, within the GTW limit, on condition that the GV W of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

200
12
T E C H N I C A L D A T A

WEIGHTS AND TOWED LOADS (SALOON) in kg

Diesel engines
1.6 l. HDi
110
hp
2 l. HDi
140
hp
2 l. HDi
138
hp
2 l. HDi
173
hp
V6 HDi
208
hp

Gearboxes Manual Manual Auto. Manual Auto.

Model codes:
RD...
9HZC

9HZC/1
RHF8 RHRJ 4HTH UHZJ
- Unladen weight 1 503 1 608 1 658 1 729 1 766
- Kerb weight 1 578 1 683 1 733 1 804 1 841
- Payload 537 547 532 487 544
- Gross vehicle weight (GVW) 2 040 2 155 2 190 2 216 2 310
- Gross train weight (GTW) 3 140 3 755 3 490 3 816 3 710
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 600 1 300 1 600 1 400
- Braked trailer * (with load transfer
within GTW limit) 1 370 1 820 1 560 1 820 1 690
- Unbraked trailer 750 750 750 750 750
- Recommended nose weight 55 73 63 73 68
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle
is reduced by the same amount; warning, towing with a light ly loaded towing vehicle may have an adverse effect on its
road holding.

201
12
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

WEIGHTS AND TOWED LOADS (TOURER) in kg

Diesel engines
1.6 l. HDi
110
hp
2 l. HDi
140
hp
2 l. HDi
138
hp
2 l. HDi
173
hp
V6 HDi
208
hp

Gearboxes Manual Manual Auto. Manual Auto.

Model codes:
RW...
9HZC

9HZC/1
RHF8 RHRJ 4HTH UHZJ
- Unladen weight 1 537 1 655 1 695 1 765 1 802
- Kerb weight 1 612 1 730 1 770 1 840 1 877
- Payload 641 621 631 587 571
- Gross vehicle weight (GVW) 2 178 2 276 2 326 2 352 2 373
- Gross train weight (GTW) 3 178 3 776 3 526 3 952 3 676
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 000 1 500 1 200 1 600 1 300
- Braked trailer * (with load transfer within GTW limit) 1 300 1 800 1 500 1 900 1 600
- Unbraked trailer 750 750 750 750 75 0
- Recommended nose weight 52 72 60 77 64

210
11
22
33
44
22
44
33
11
AUDIO
Press the SOURCE button several times in succession and select the radio.
Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
ACTIVATE FREQUENCY FOLLOWING (RDS)
FM WAVEBAND PREFERENCES
The external environment (hills, buildings, tunnels, basement car parks) may block reception, includi ng in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
The RDS, if displayed, enables you to continue lis tening to the same station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
RADIO
SELECTING A STATION

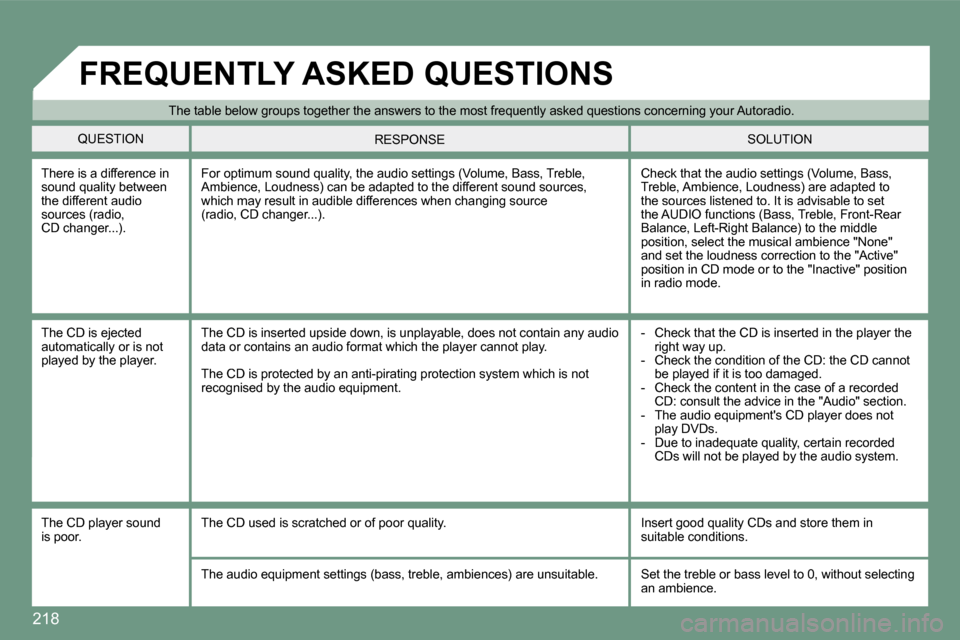

218
The table below groups together the answers to the most frequently asked questions concerning your Au toradio.
QUESTION SOLUTION RESPONSE
There is a difference in sound quality between the different audio sources (radio, CD changer...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD changer...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment's CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
FREQUENTLY ASKED QUESTIONS
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
