2008.5 Citroen C4 PICASSO DAG check engine

132
IX
D R I V I N G

SITUATION
CONSEQUENCES

4 Display of message
"Parking brake faulty"
and the following warning lamps:
and/or fl ashing - The automatic functions are deactivated.
- The hill start assist is unavailable.
To apply the electronic parking brake:

 Immobilise the vehicle and switch off the ignition

 Pull the control lever for at least 5 seconds or until maximum
application.

 Switch on the ignition and check that the electronic parkin g
brake warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp P fl ashes or if the warning lamps do not come
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer.
To release the electronic parking brake:

 Switch on the ignition.

 Pull the control lever and hold it for approximately 3 second s.

5 Display of message
"Parking brake control
faulty – automatic mode activated" and the
following warning lamps:
and/or fl ashing - Only the functions for automatic application on switchi
ng off the
engine and automatic release on acceleration are available.
- Manual application/release of the electronic parking brake and
dynamic emergency braking are unavailable.

6 Battery fault - Lighting of the battery warning lamp ma
kes it essential to stop
the vehicle as soon as traffi c allows. Stop and immobilise your
vehicle.
- Apply the electronic parking brake before switching off the
engine.

133
IX
D R I V I N G
HILL START ASSIST
System which keeps your vehicle
immobilised temporarily (approxi-
mately 2 seconds) when starting on
a gradient, the time it takes to move
your foot from the brake pedal to the
accelerator pedal.
This function is only active when:
- the vehicle is completely stationary, with your foot on the brake pedal,
- in particular conditions on a slope,
- with the driver’s door closed.
The hill start assist function cannot
be deactivated. Operation
Operating fault
If a malfunction of the system
occurs, these warning lamps come
on. Contact a CITROËN dealer to
have the system checked.

On an ascending slope, with the
vehicle stationary, the vehicle is
held for a brief moment when you
release the brake pedal:
- provided you are in fi rst gear or neutral on a manual gearbox,
- provided you are in A or M on an
electronic gearbox,
- provided you are in D or M on an
automatic gearbox.
On a descending slope, with the
vehicle stationary and reverse
gear engaged, the vehicle is held
for a brief moment when you re-
lease the brake pedal.
do not exit the vehicle while
it is being held in the hill
start assist phase.
If you need to exit the ve-
hicle with the engine running,
manually apply the parking brake
and ensure that the warning lamp

P (red) on the instrument panel is
permanently on.

134
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle

 Check that the gear lever is in
neutral.

 Do not touch the accelerator.

 For Diesel engines: turn the key to
position M and wait until the pre-
heating warning light switches off
if it has come on.

 Operate the starter, turning the
key until the engine starts (no
more than ten seconds).

 In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of
two driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
-
the sequential mode for manual
changing of the gears by the driver.

 automatic mode: selector 2 in
position A .

 manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the levers 1 .
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear

 Push the gear lever to the right
then rearwards.

134
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle

 Check that the gear lever is in
neutral.

 Do not touch the accelerator.

 For Diesel engines: turn the key to
position M and wait until the pre-
heating warning light switches off
if it has come on.

 Operate the starter, turning the
key until the engine starts (no
more than ten seconds).

 In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of
two driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
-
the sequential mode for manual
changing of the gears by the driver.

 automatic mode: selector 2 in
position A .

 manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the levers 1 .
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear

 Push the gear lever to the right
then rearwards.

135
IX
D R I V I N G
Displays on the instrument panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille associated with the selector
allows you to view the position
selected.

When the ignition is on,
lighting of the service
warning lamp, accompa-
nied by a sound signal and the
message "Gearbox faulty" indi-
cates a malfunction.
Consult a CITROËN dealer.
For safety:

 Position N can only be disen-
gaged if you are pressing the
brake pedal.

 If the gearbox is in position N
but the selector position is differ-
ent, reposition the selector on N
in order to be able to start. Moving off

 To start the engine, the selector
has to be in position N .

 Press fi rmly on the brake pedal.

 Action the starter.

 When the engine is running,
place the selector on R , A or M
as desired.

 Check, in the instrument panel,
the position engaged.

 Release the brake pedal and
accelerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure. Reverse gear
Engaging reverse gear
To engage reverse gear, move the
selector to R .

Only attempt to change to reverse
gear when the vehicle is stationary.
If the vehicle is moving rapidly, if an in-
advertent attempt to engage reverse
gear is made, the warning lamp N will
fl ash and your vehicle will go auto-
matically into neutral. To re-engage a
gear, you have only to reposition the
selector on A , M or R .
Neutral Changing to neutral
To change to neutral, move the
selector to N . If the vehicle is
moving, do not select this position
even momentarily.

138
IX
D R I V I N G
Acceleration
For optimum acceleration (e.g. to
overtake another vehicle), you only
have to apply the accelerator pedal
beyond the end-of-travel switch, by
pressing down fi rmly.
Vehicle stationary, with the
engine running
In the event of a prolonged stop with
the engine running, the gearbox
changes automatically to neutral N . Stopping the vehicle
Before stopping the engine, you can
choose:

 to leave the vehicle in neutral;
move the selector to position N .

 to leave the vehicle with a gear
engaged ( R , A or M ); place the
selector in the chosen position
prior to stopping the engine. In
this case, the vehicle cannot be
moved.
In all cases, it is essential to apply
the parking brake. Check that the
parking brake warning lamp is lit up
in the instrument panel.
Do not use the accelera-
tor to hold your vehicle on
a gradient. Use either the
brake pedal or the electric
parking brake.
Before taking any action in the en-
gine compartment, check that the
selector is in neutral N .

140
IX
D R I V I N G

 To start the engine, the selector
has to be in position P or N .

 Action the starter.

 When the engine is running,
place the selector on R , D or M
as required.

 Check, in the instrument panel,
the position engaged.

 Release the brake pedal and
accelerate.

 If the selector is not in position

P , a message "place automatic
gear-box in position P " appears
on the multifunction screen, ac-
companied by a beep and the
fl ashing of P on the instrument
panel.
Moving off

 To avoid incoherence between
the position of the selector and
the actual position of the gear-
box, always exit from position P
when you switch on the ignition
and press the brake pedal.
Otherwise, when the ignition is on or
the engine is running:


reposition the selector in position P ,

 put your foot on the brake pedal
and then select the gear you
want.
Park

 To select position P , move the
selector back to the highest
position (towards R ), then push
it forwards and then to the left.

 To exit position P , move the
selector to the right and then to
the position you want.

 Only engage this position when
the vehicle is completely sta-
tionary. In this position, the front
wheels are locked. Make sure
that the selector is correctly po-
sitioned. Reverse gear
Neutral
Only engage this position
when the vehicle is station-
ary. To prevent snatching,
do not accelerate too soon
after selection.
Never select position
N if
the vehicle is moving.
Never select positions P or

R if the vehicle is not sta-
tionary.
If, while the vehicle is moving,
position N is engaged inadvertently,
allow the engine to idle before
engaging position D or M .
This position of the selector
is used to prevent the vehi-
cle from moving when you
are stationary.

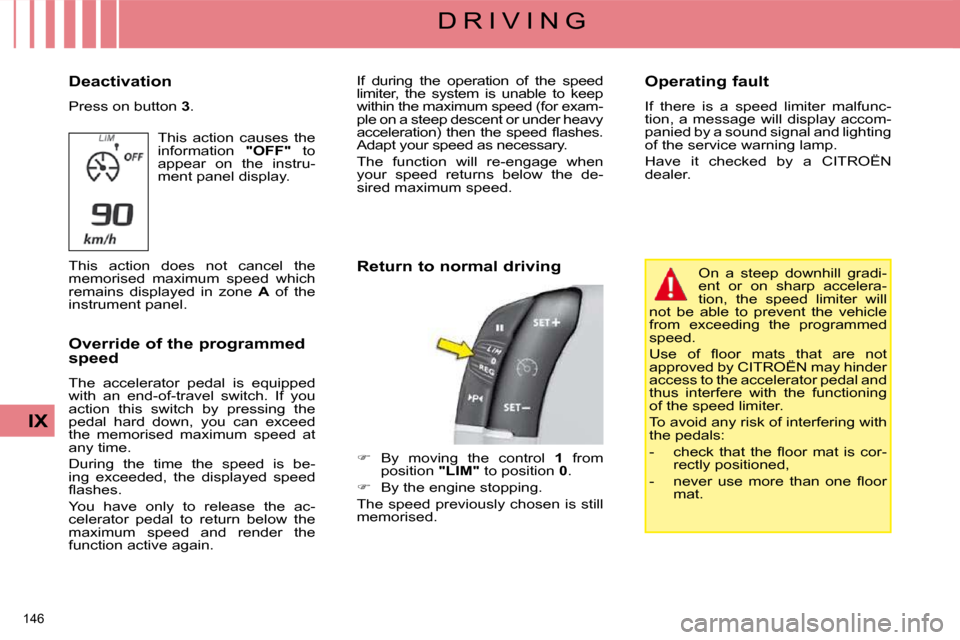

146
IX
D R I V I N G
Deactivation
Press on button 3 .
This action causes the
information "OFF" to
appear on the instru-
ment panel display.
This action does not cancel the
memorised maximum speed which
remains displayed in zone A of the
instrument panel.
Override of the programmed
speed
The accelerator pedal is equipped
with an end-of-travel switch. If you
action this switch by pressing the
pedal hard down, you can exceed
the memorised maximum speed at
any time.
During the time the speed is be-
ing exceeded, the displayed speed
fl ashes.
You have only to release the ac-
celerator pedal to return below the
maximum speed and render the
function active again. Return to normal driving

 By moving the control 1 from
position "LIM" to position 0 .

 By the engine stopping.
The speed previously chosen is still
memorised. Operating fault
If there is a speed limiter malfunc-
tion, a message will display accom-
panied by a sound signal and lighting
of the service warning lamp.
Have it checked by a CITROËN
dealer.
If during the operation of the speed
limiter, the system is unable to keep
within the maximum speed (for exam-
ple on a steep descent or under heavy
acceleration) then the speed fl ashes.
Adapt your speed as necessary.
The function will re-engage when
your speed returns below the de-
sired maximum speed.
On a steep downhill gradi-
ent or on sharp accelera-
tion, the speed limiter will
not be able to prevent the vehicle
from exceeding the programmed
speed.
Use of fl oor mats that are not
approved by CITROËN may hinder
access to the accelerator pedal and
thus interfere with the functioning
of the speed limiter.
To avoid any risk of interfering with
the pedals:
- check that the fl oor mat is cor- rectly positioned,
- never use more than one fl oor mat.
